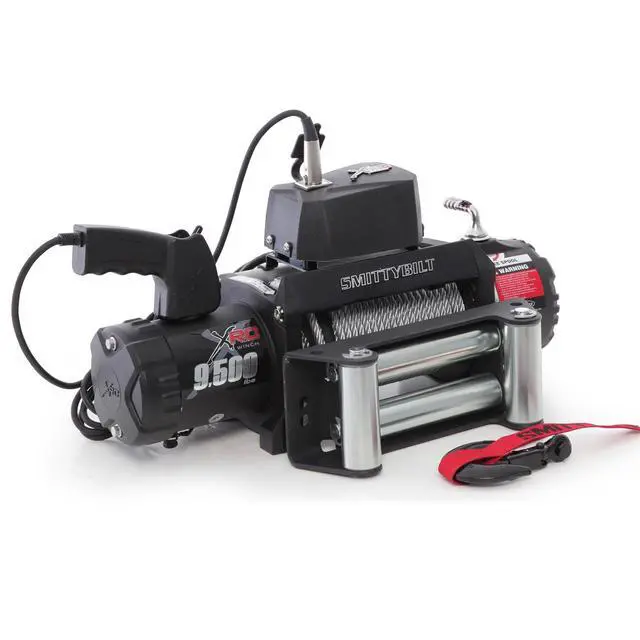

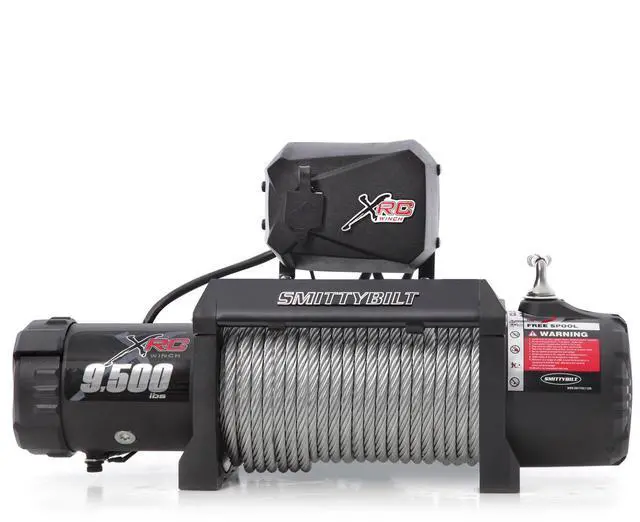

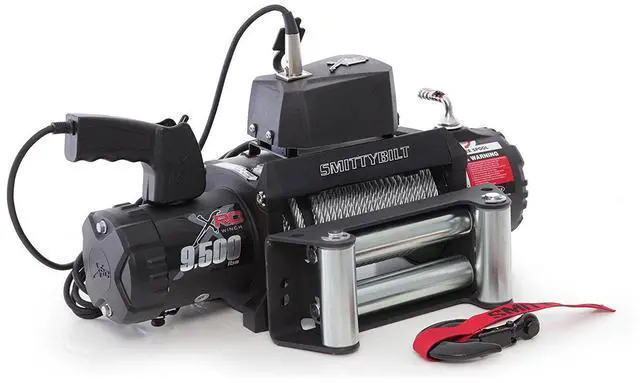

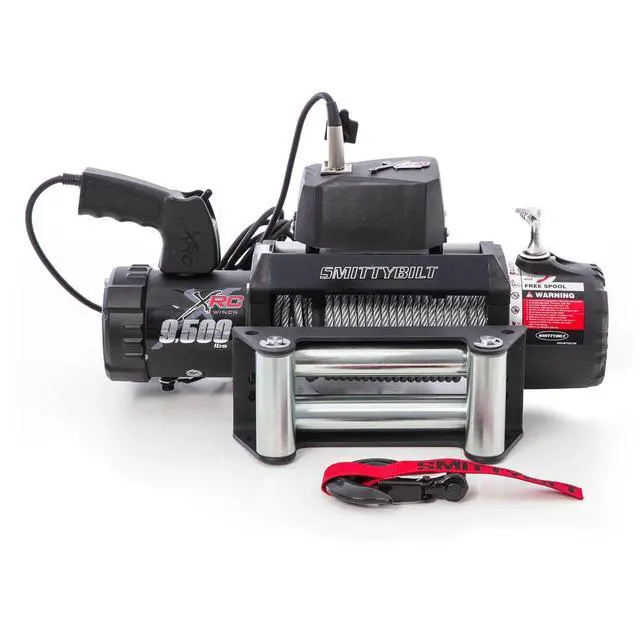

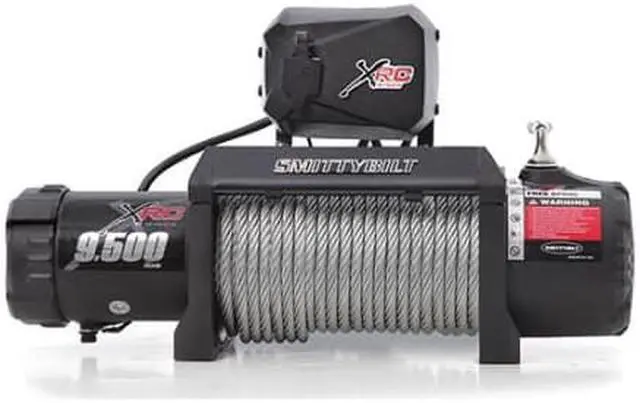

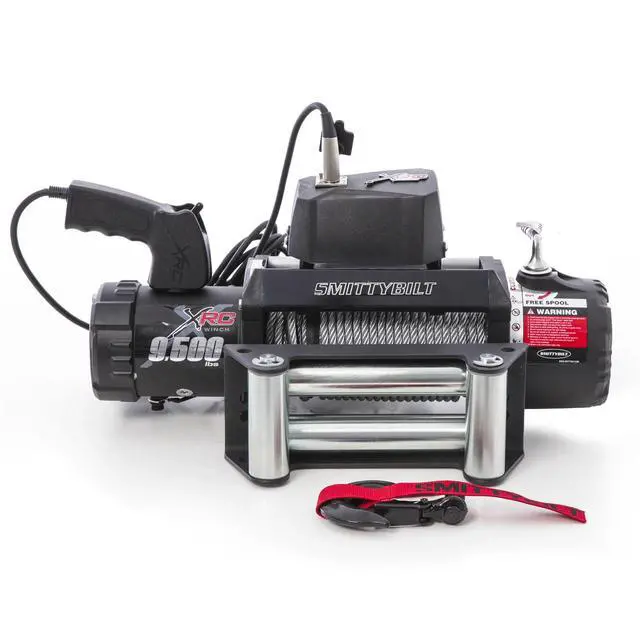

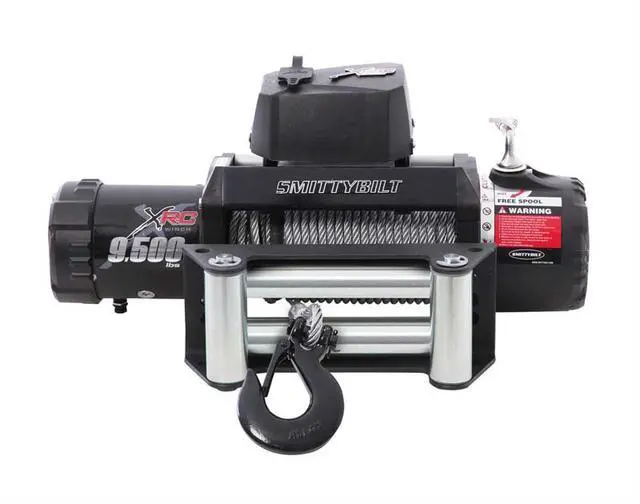

Smittybilt XRC-9.5K Waterproof Winch Gen2 97495

The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9, 500lb to 17, 500 lbs capacities, Smittybilt's XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds.

Every winch is finished in a rugged UV-Resistant matte black coating with stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime.

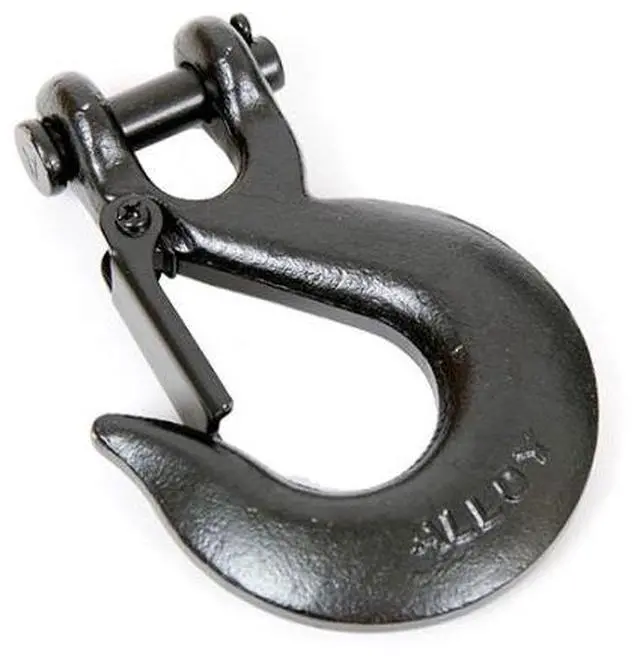

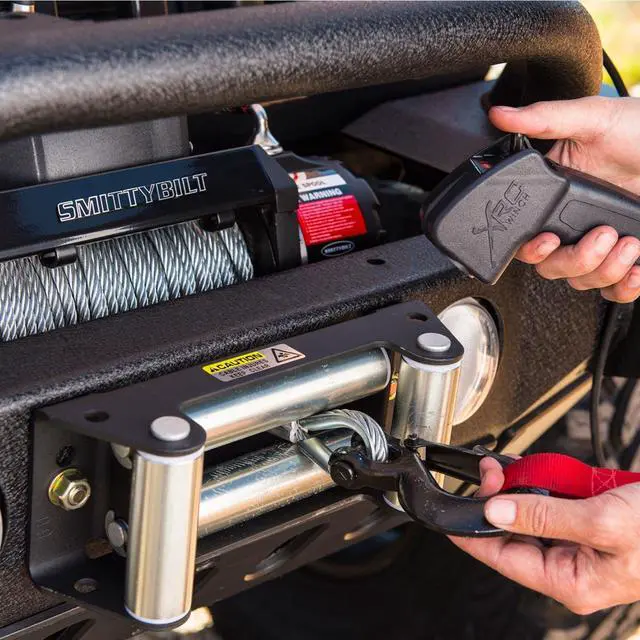

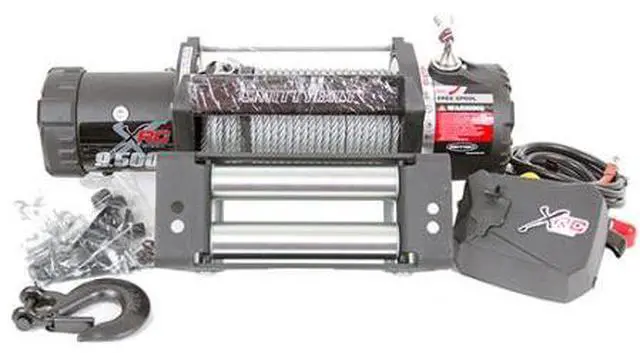

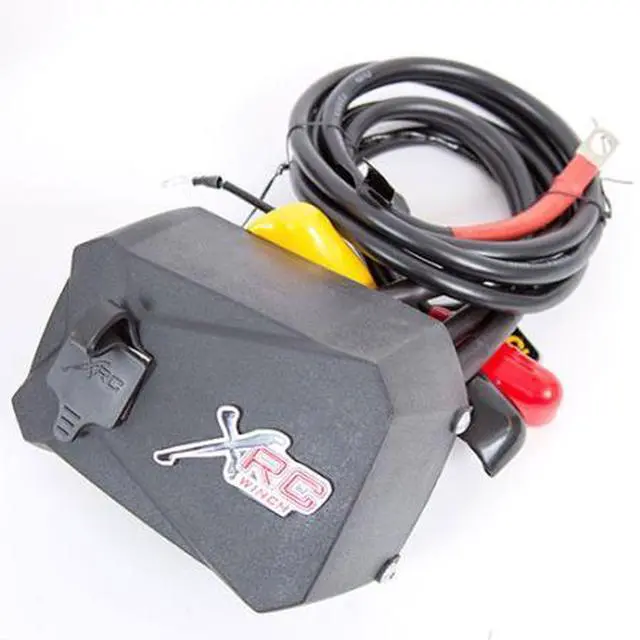

Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation. Winch includes a Lifetime Mechanical Warranty and 3 Year Electrical Warranty.
Details:

• Waterproofing: IP67 Rating

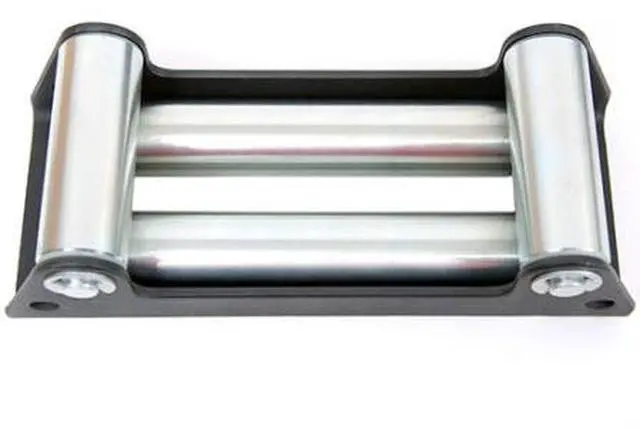

• Fairlead: 4-Way Roller
• Rated Line Pull: 9, 500Lbs (4, 309kgs) single-line

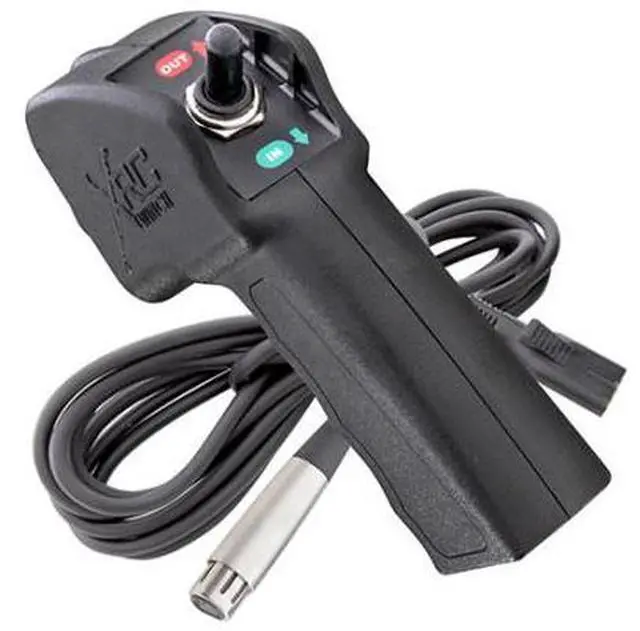

• Remote Control: Included
• Motor: 6.6 hp Series Wound
• Recommended Battery: 650CCA Minimum for Winching
• Control: Remote Switch, 12’ ( 3.7 m) lead
• Battery Leads: 25mm, 72" ( 1.83 m)
• Gear Train: 3-Stage Planetary
• Gear Ratio:
  161.28: 1
• Finish: Textured Black
• Weight: 78.0 lbs ( 35.0 k)
• Clutch: Sliding Ring Gear Mounting
• Bolt Pattern: 10.0 " x 4.5 "
• Brake: Automatic In-Drum
• Overall Dimensions (L x W x H): 22.3" x 5.4" x 9.4"
• Drum Size: Diameter 2.5"
• Cable Type: Wire Rope
• Cable: 93.5 ’ 5/16" Diameter
