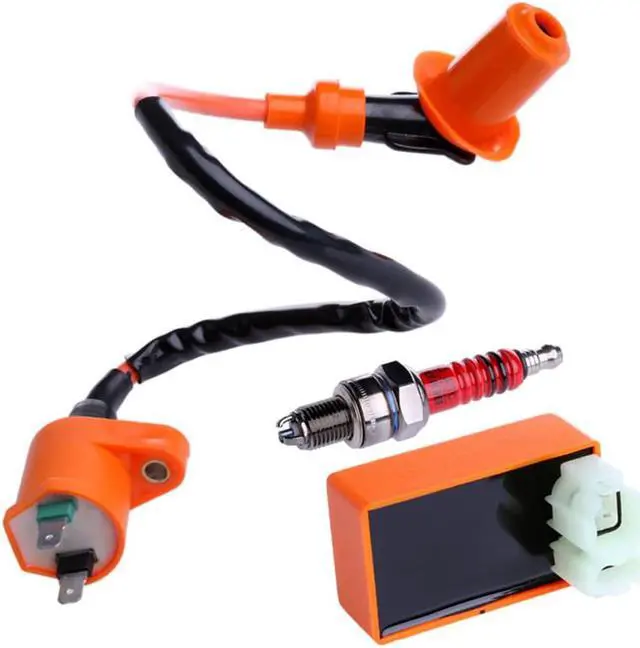

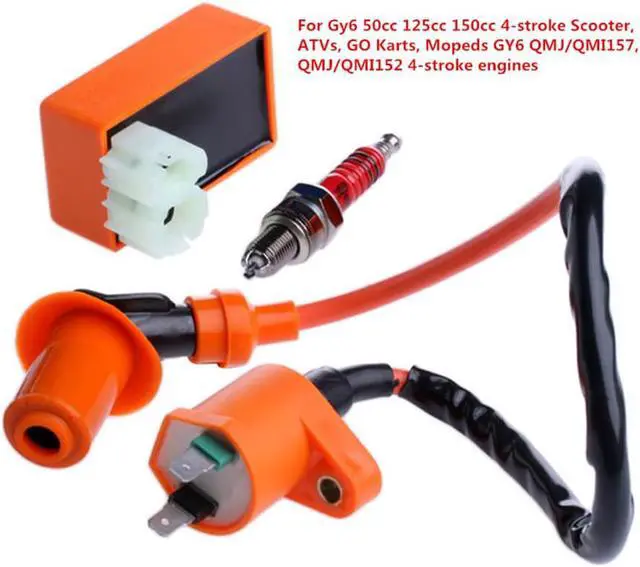

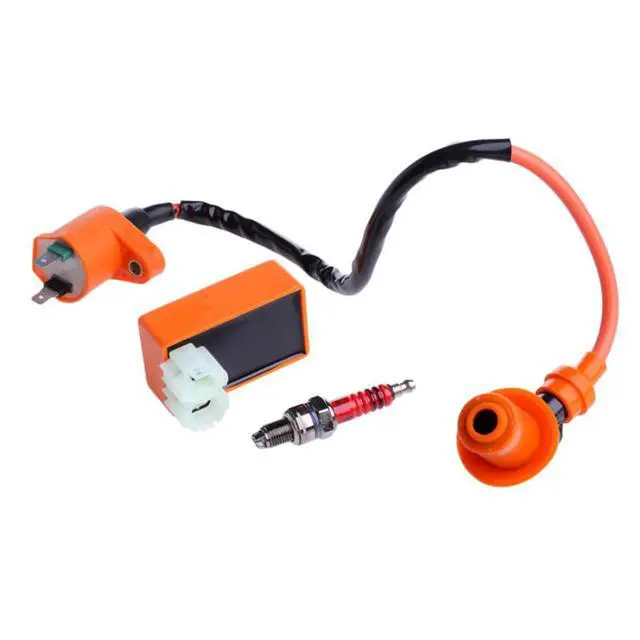

Racing AC CDI 6PIN + Ignition Coil + Spark Plug A7TC
For Gy6 50cc 125cc 150cc 4-stroke Scooter, ATVs, GO Karts, Mopeds
GY6 QMJ/QMI157, QMJ/QMI152 4-stroke engines
Ignition Coil Feature:
Overall Length: 19" / 50cm
Wire Length: 16"
This coil can improve combustion efficiency, strengthen electrical performance
Match up exactly with original equipment in perfect fitness, just replace and ride again, easy to install

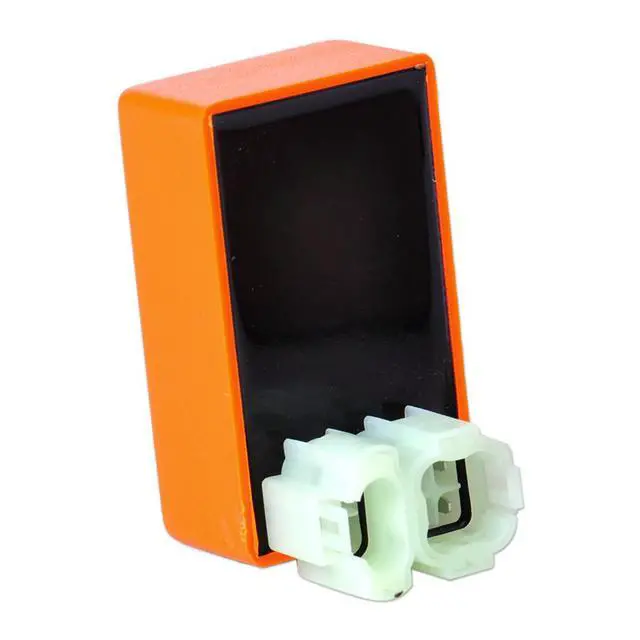

CDI box Feature:
Connector: 6 Pin male plug.
AC Fired

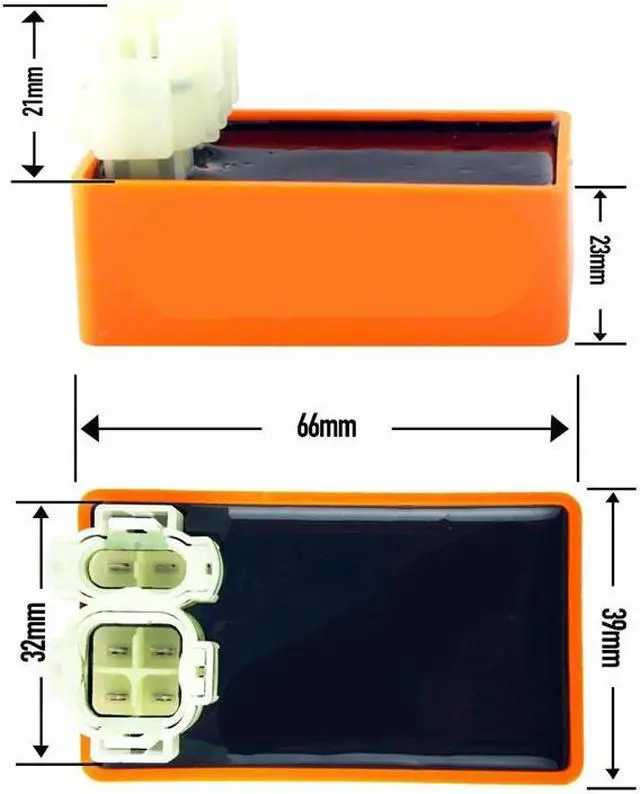

CDI dimension: 64mm x 37mm x 42mm (24mm orange part + 18mm white part) (L x W x H).
The orange CDI is a ignition module that has no rev limit & also has a single stage advanced timing circuit, this means that you can get a faster response to RPM acceleration and a higher RPM limit at top end if you use the orange CDI.
NOTE: will NOT work for Honda TRX 125 1987 1988 and more!

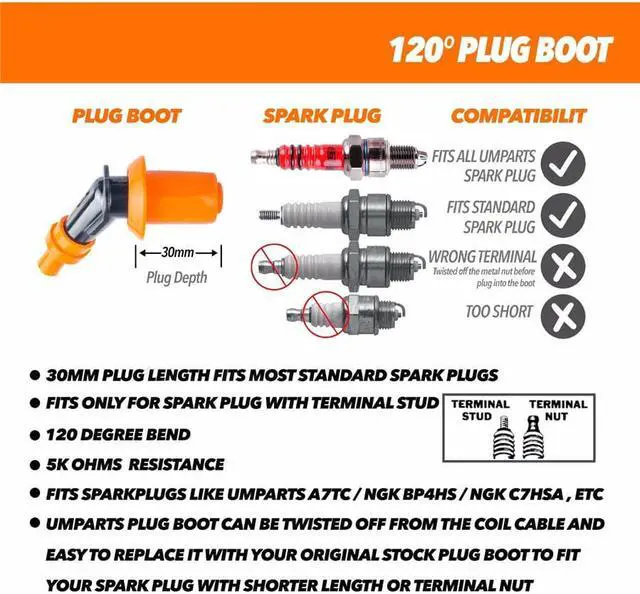

Spark Plug Feature: Models: A7TC
Thread Diameter: 10mm
Hex Size: 5/8''
How to distinguish CDI box with AC fired or CDI box with DC fired?
1. In the GY6 6-plug set-up. You have AC if you have 3-wires going into the 4-plug side and 2-wires going into the 2-plug side. On the other hand, you have DC if you have the larger CDI box, 3 or 4 wires going into the 4-plug side and only 1-wire going into the 2-plug side.
2. If headlights turn on without the engine running(with just the key on), it is a DC system. In the AC system, turning headlights on require the engine to be running. Another indication is, if the engine will only runs with a battery it is DC. If it will runs without a battery, it is a AC system.
What is included:
1 x Ignition coil
1 x AC CDI box
1 x Spark plug A7TC
For Gy6 50cc 125cc 150cc 4-stroke Scooter, ATVs, GO Karts, Mopeds
GY6 QMJ/QMI157, QMJ/QMI152 4-stroke engines
Ignition Coil Feature:
Overall Length: 19" / 50cm
Wire Length: 16"
This coil can improve combustion efficiency, strengthen electrical performance
Match up exactly with original equipment in perfect fitness, just replace and ride again, easy to install
CDI box Feature:
Connector: 6 Pin male plug.
AC Fired
CDI dimension: 64mm x 37mm x 42mm (24mm orange part + 18mm white part) (L x W x H).
The orange CDI is a ignition module that has no rev limit & also has a single stage advanced timing circuit, this means that you can get a faster response to RPM acceleration and a higher RPM limit at top end if you use the orange CDI.
NOTE: will NOT work for Honda TRX 125 1987 1988 and more!
Spark Plug Feature: Models: A7TC
Thread Diameter: 10mm
Hex Size: 5/8''
How to distinguish CDI box with AC fired or CDI box with DC fired?
1. In the GY6 6-plug set-up. You have AC if you have 3-wires going into the 4-plug side and 2-wires going into the 2-plug side. On the other hand, you have DC if you have the larger CDI box, 3 or 4 wires going into the 4-plug side and only 1-wire going into the 2-plug side.
2. If headlights turn on without the engine running(with just the key on), it is a DC system. In the AC system, turning headlights on require the engine to be running. Another indication is, if the engine will only runs with a battery it is DC. If it will runs without a battery, it is a AC system.
What is included:
1 x Ignition coil
1 x AC CDI box
1 x Spark plug A7TC
