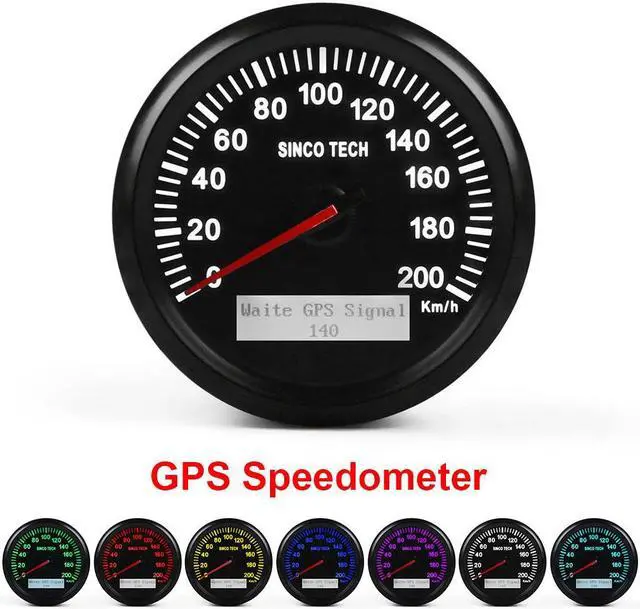

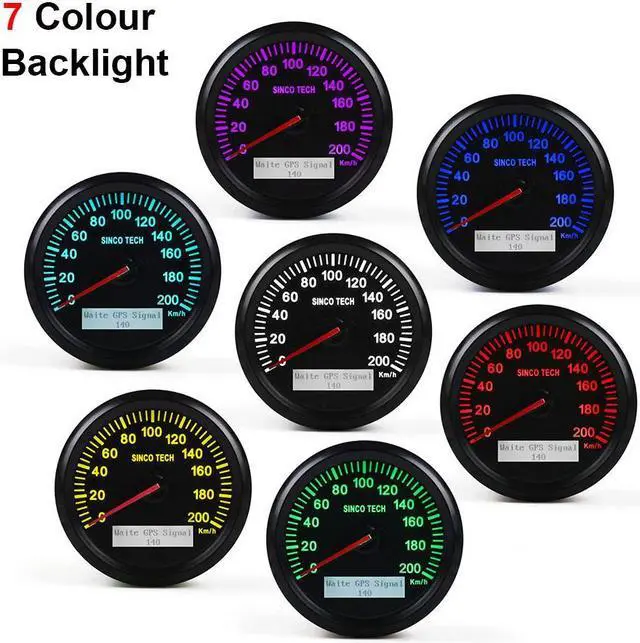

Universal 85mm GPS Speedometer 200km/h Speed Gauge Meter With 7 Colors Backlight 12V 24V With LCD For Car Truck Boat Motor

Features:
Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision etc.
With curved glass (with anti-fog function)
There is a snap together with the harness connector, for best and firmly connected, in order that the gauges could work even in strong viberation

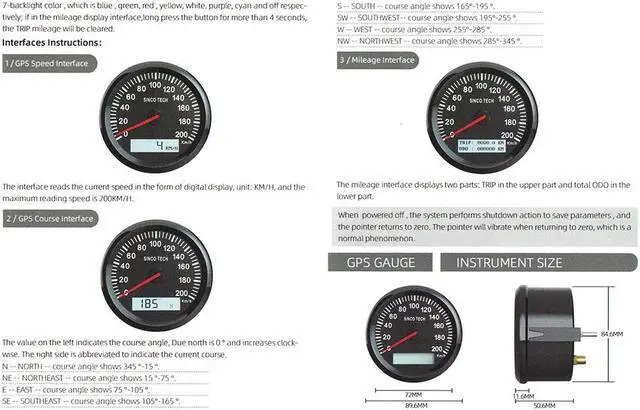

3-IN-1 functions can display speed, course angle and mileage.
IP67 waterproof and dustproof grade.

For 12V/24V Car Truck Boat Motor
Parameters:

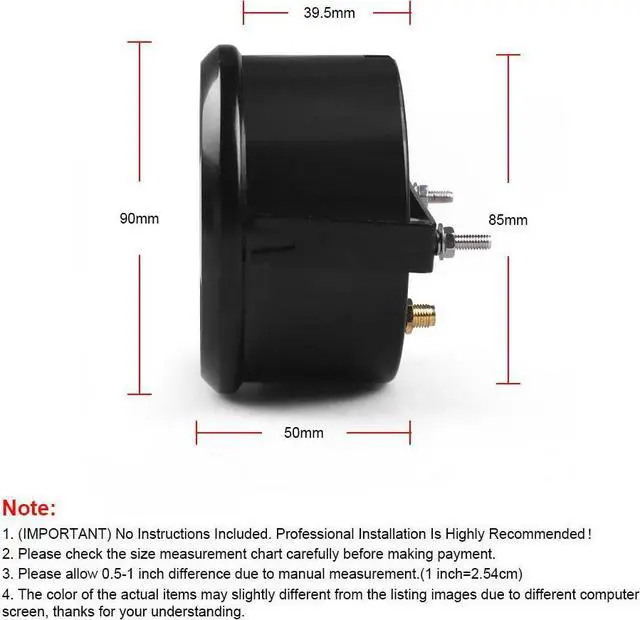

Fixing dimension: 85mm(3-3/8'')
Working Volt: 8-30V,
Working Current: <=100mA
Working Temperature: -30~75
Storage temperature: -40~85

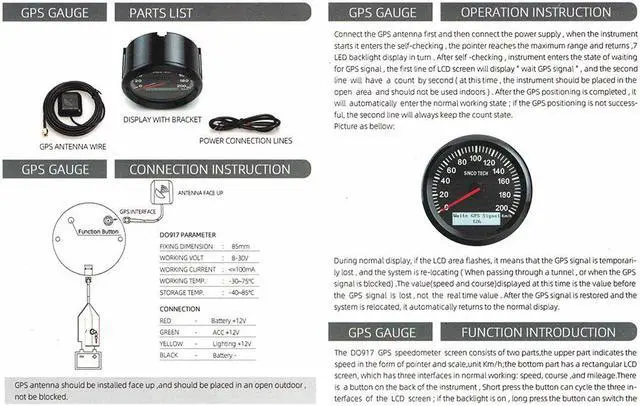

Instruction:
Opening a hole in the panel (your cabin board and dashboard) with a diameter of 85mm, insert meter into the hole, the panel corresponding to the instrument panel is marked with a convex table, and open a small notch in this location, to ensure that there is at least 85mm (3 3/8'') of the instrument panel at the back of the instrument
After the instrument is mounted in the panel, screw down with a fixed ring
Connect the wire, the instrument housing is directly connected to the 12/24v power supply
Insert wire harness, firmly locked in the table

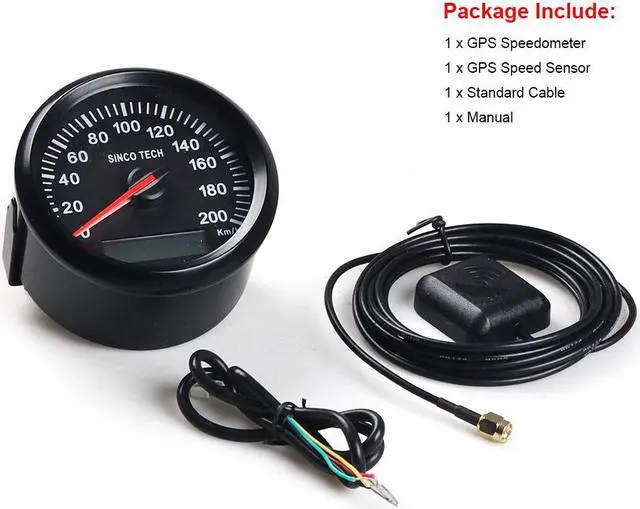

Package Include:

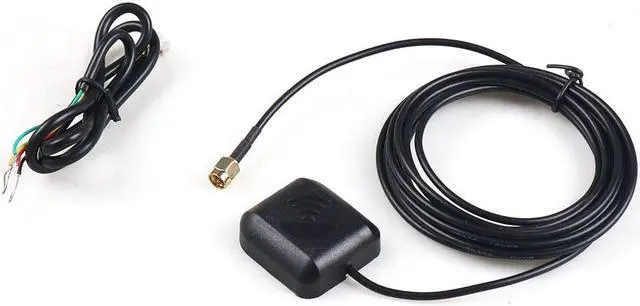

1 x Speedometer Kit
1 x Installation Instruction
