0-140PS Fuel Injection Pressure Tester Kit Fuel Pressure Gauge Gasoline Gas Set

Description:

With automatic diagnosis function: fuel pressure gauge automatic diagnosis tool, suitable for fuel injection pump tester.

Protector: The assembly is equipped with a quick connect system and safety valve to prevent accidental discharge of fuel under pressure.

Safe Fuel Recovery: The gauge features a pressure relief valve on the side and a long drain hose for safe fuel recovery.

PERFECTLY EQUIPPED: Kit includes copper adapters and accessories for modern schrader test port fuel injection systems.

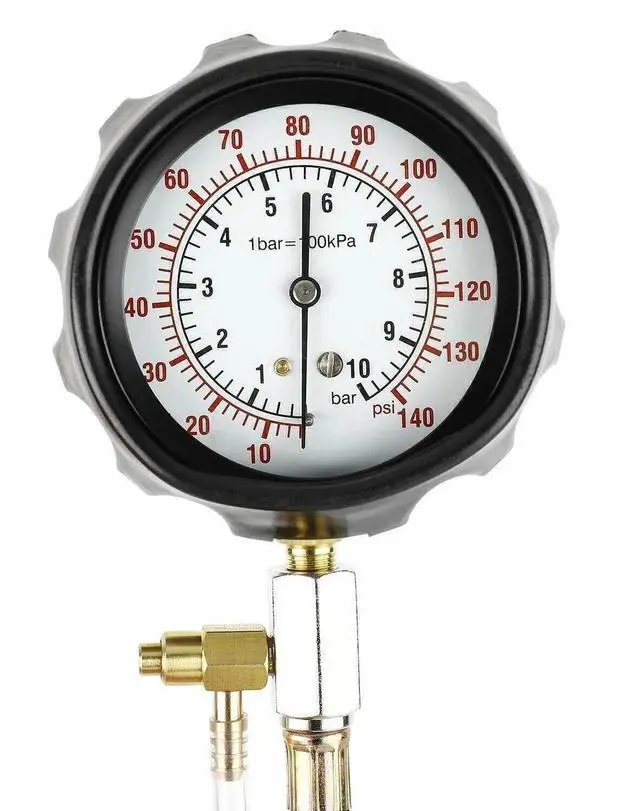

Reading Range: 90mm pressure gauge equipped with two scales (psi and bar), reading range from 0 to 140 psi and 0 to 10 bar.

Feature:

1. Complete accessories

2. The connecting hose is durable under pressure

3. Pressure gauge measurement accuracy

4. Combined CNC machine tool processing, more precise

5. Simple operation, convenient use and reasonable design

6. 90mm professional double scale head, plexiglass surface

7. Suitable for all kinds of small cars

8. Head measurement range: 0-140 psi (0-10) bar

9. The workbench is equipped with a pressure reducing valve, which is safe and fast.

Application:

1. Comprehensive diagnosis of automobile fuel pressure.

2. Detect the leakage of the fuel injector

3. High temperature and oil resistant instrument

Method:

Use the tee fitting to measure the fuel pressure gauge on the line between the fuel pressure regulator and the injector.

The measured values can be used to judge the operation of fuel system components such as electric gasoline pumps and oil pressure regulators.

NOTE:

1. Pay attention to ventilation to prevent fire

2. Be sure to release the pressure before removing the oil pipe

3. The oil pipe shall not have aging leakage.

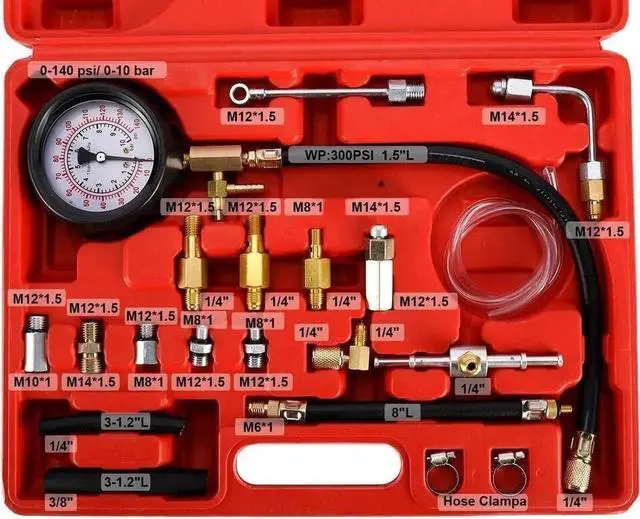

Fitting size:

1# AdaptorM10X1&M12X1.5

2# AdaptorM12X1.5&M14X1.5

3# AdaptorM8X1&M12X1.5

4# AdaptorM8X1&M12X1.5

5# Adaptor7/16-20UNF

6# Adaptor7/16-20UNF

7# Adaptor7/16-20UNF

8# AdaptorM10X1

9# Adaptor7/16-20UNF

10# Adaptor7/16-20UNF&M12X1.5

11# Adaptor7/16-20UNF&M12X1.25

12# Adaptor7/16-20UNF&M12X1.5

13# AdaptorM8X1&7/16-20UNF

14# AdaptorM12X1.5&M14X1.5

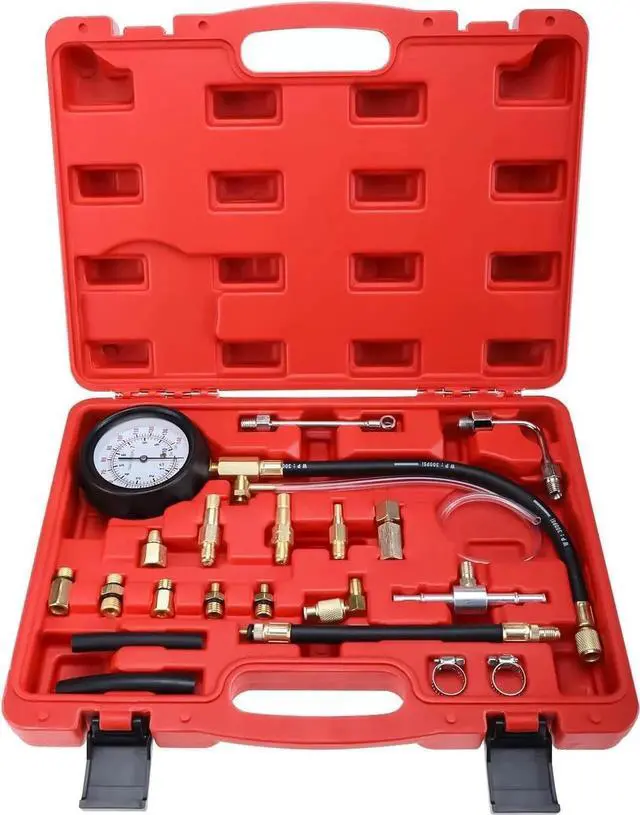

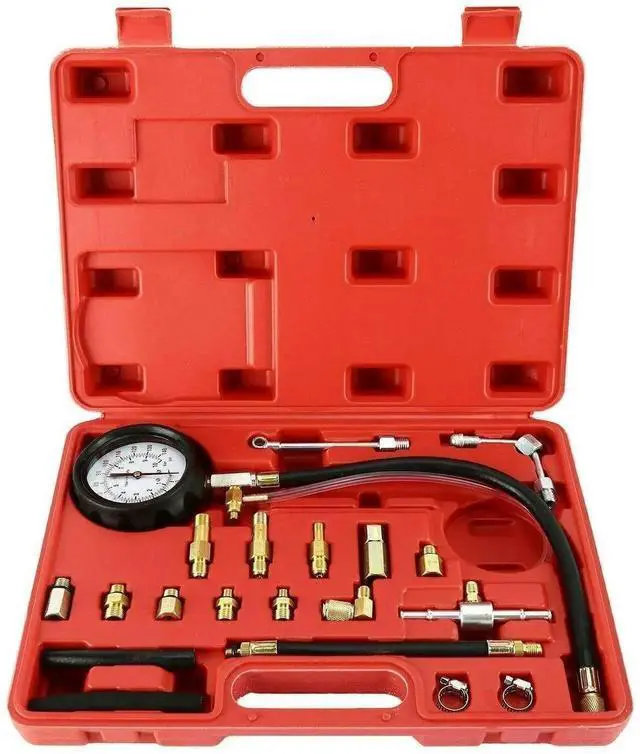

Package List:

1x 3-1/2" big dial pressure gauge

1x 14"L long hose with 1/4" Female brass parts

1x 8"L short hose with 1/4" Male x M6 brass parts

13x Brass parts

2x Hose clamps

1x T type parts (Aluminium tee parts 1/4" & 3/8" barbed x 1/8"-24NPT & brass parts 1/8"-27NPT x 1/4"-18NPT)

1x Hose (1/4" x 3-1/2"L)

1x Hose (3/8" x 3-1/2"L)

1x Instruction manual

1x Red storage box
