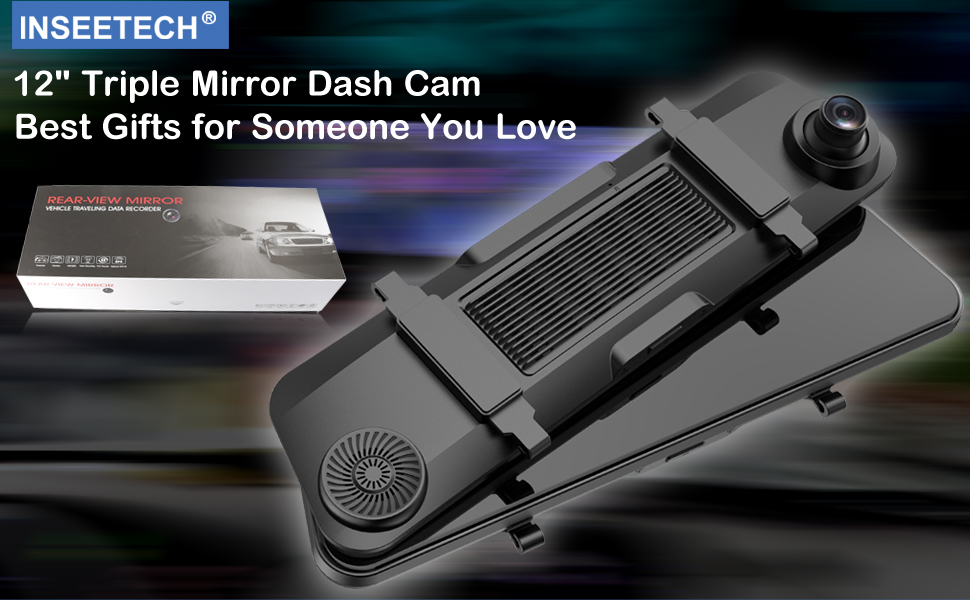

For your safer driving, INSEETECH launches 3-channel 12'' HD Full Tough Screen mirror dash cam. This product is inexpensive and has high quality. Compared with ordinary mirror dash cams, this INSEETECH mirror dash cam has been upgraded to triple channel cameras, which can show and record road conditions more clearly to help safe driving.
Its parking monitoring, parking line and other functions are very suitable for variety of vehicle types, such as cars, trucks, RV, trailers, pickup trucks, etc.
INSEETECH 3-channel mirror dash cam can record scenes in front of/inside/behind vehicles simultaneously to ensure all-round protection. The design cares for your loved ones in the cars, provides evidence for traffic accidents and safeguard your property, etc.
1080P
3-Channel Cameras
12" Touch Screen
Loop Recording & Emergency Lock
Parking Monitoring & 24 Hour Parking Monitoring
Parking Assist
Super Night Vision & WDR
Supports 128GB (32GB Included)

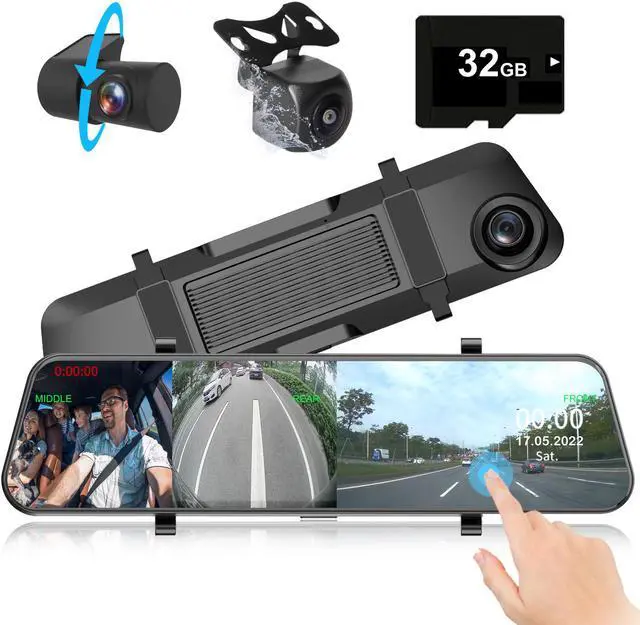

- 1 X 12" Mirror Dash Cam (Included Front Camera)
- 1 X Backup Camera (Waterproof, 24.6ft/7.5m)
- 1 X In-car Camera (2ft/0.6m)
- 1 X Car Charger (11.5ft/3.5m)
- 1 X 32GB Memory Card
- 2 X Rubber Mounting Strap
- 1 X User Manual

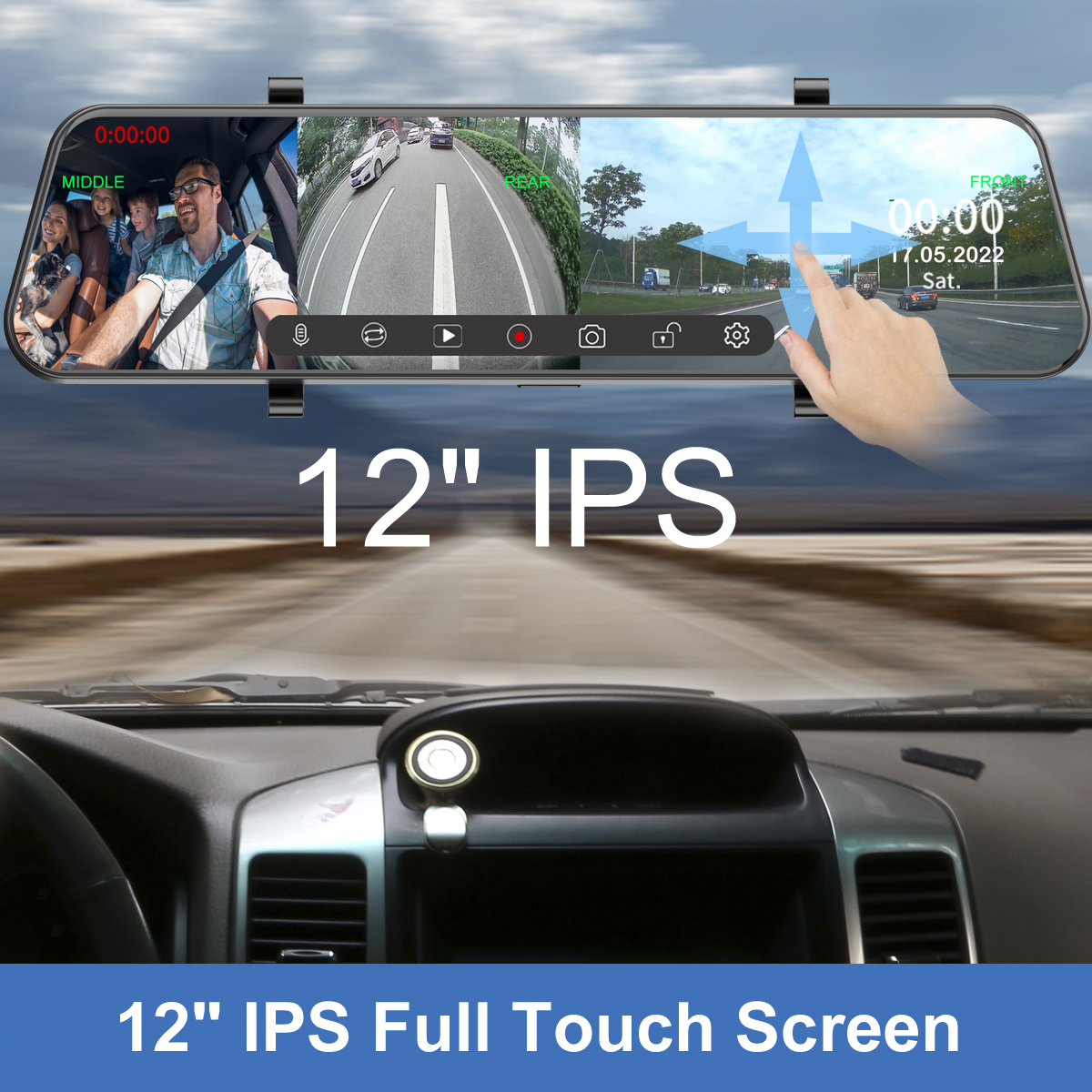

12" IPS Full Touch Screen eliminates more blind spots and makes our driving safer. We can adjust the brightness of the screen to avoid affecting the driver's vision when driving in the dark.

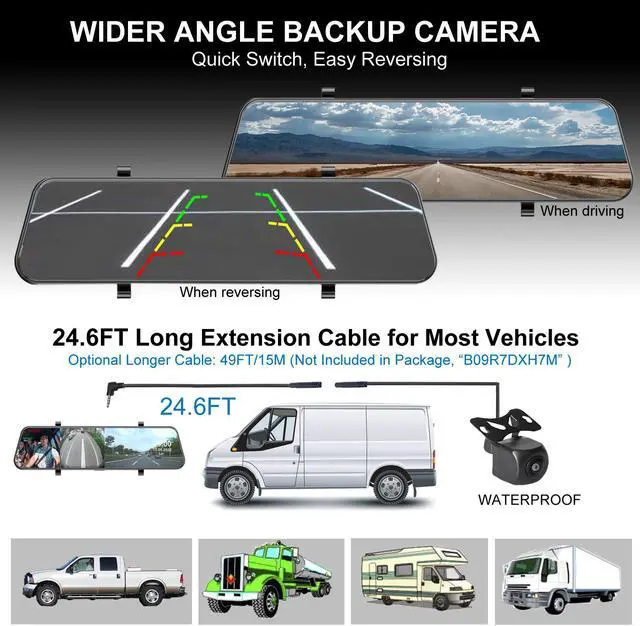

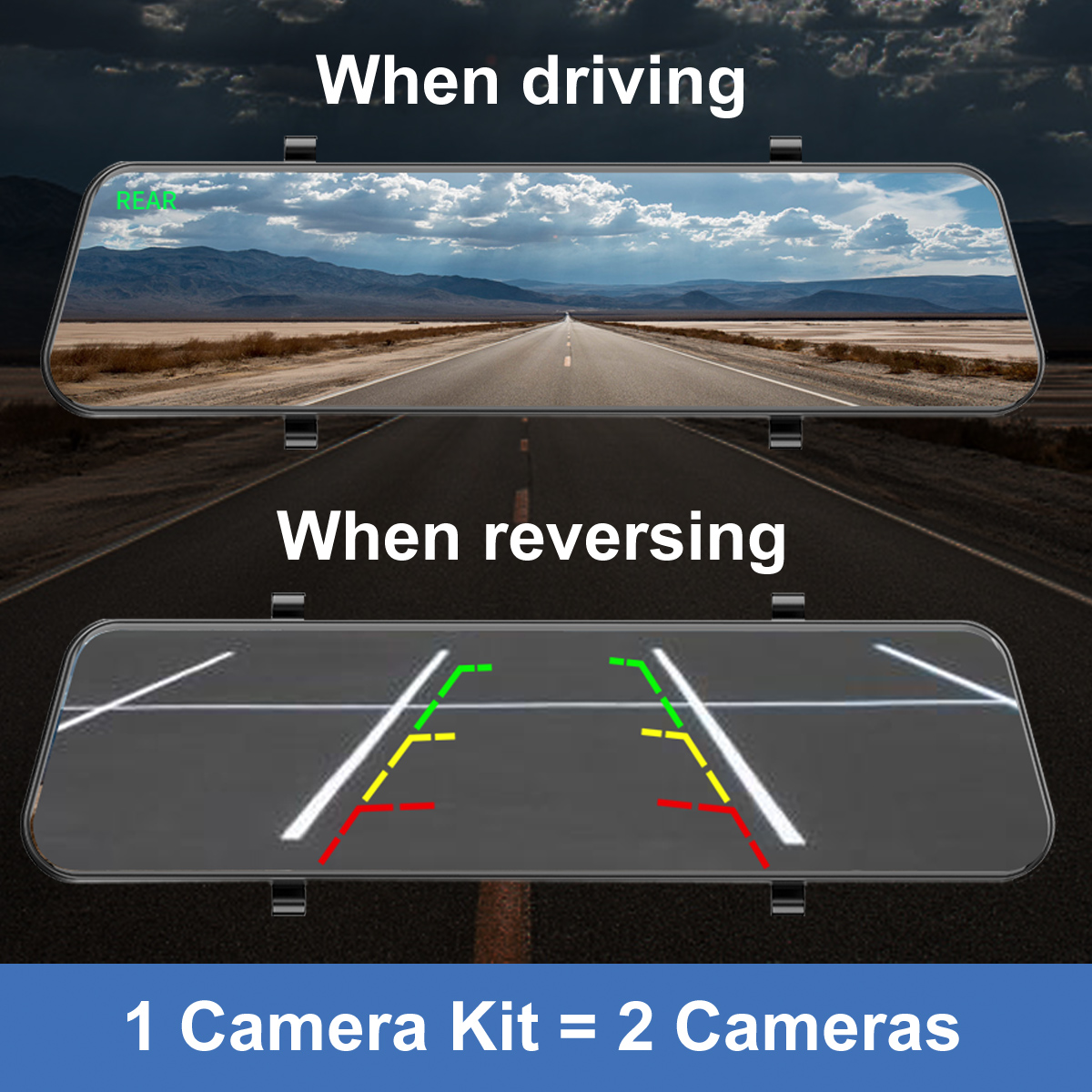

Unlike ordinary backup cameras on the market, this camera is equivalent to two ordinary backup cameras. The 173° horizontal wide angle and 100° vertical angle help drivers to easily know road situation behind while driving. When reversing, the system will automatically switch to the reversing mode, allowing the driver to immediately observe the position of obstacles behind more clearly, so as to realize driving safety.

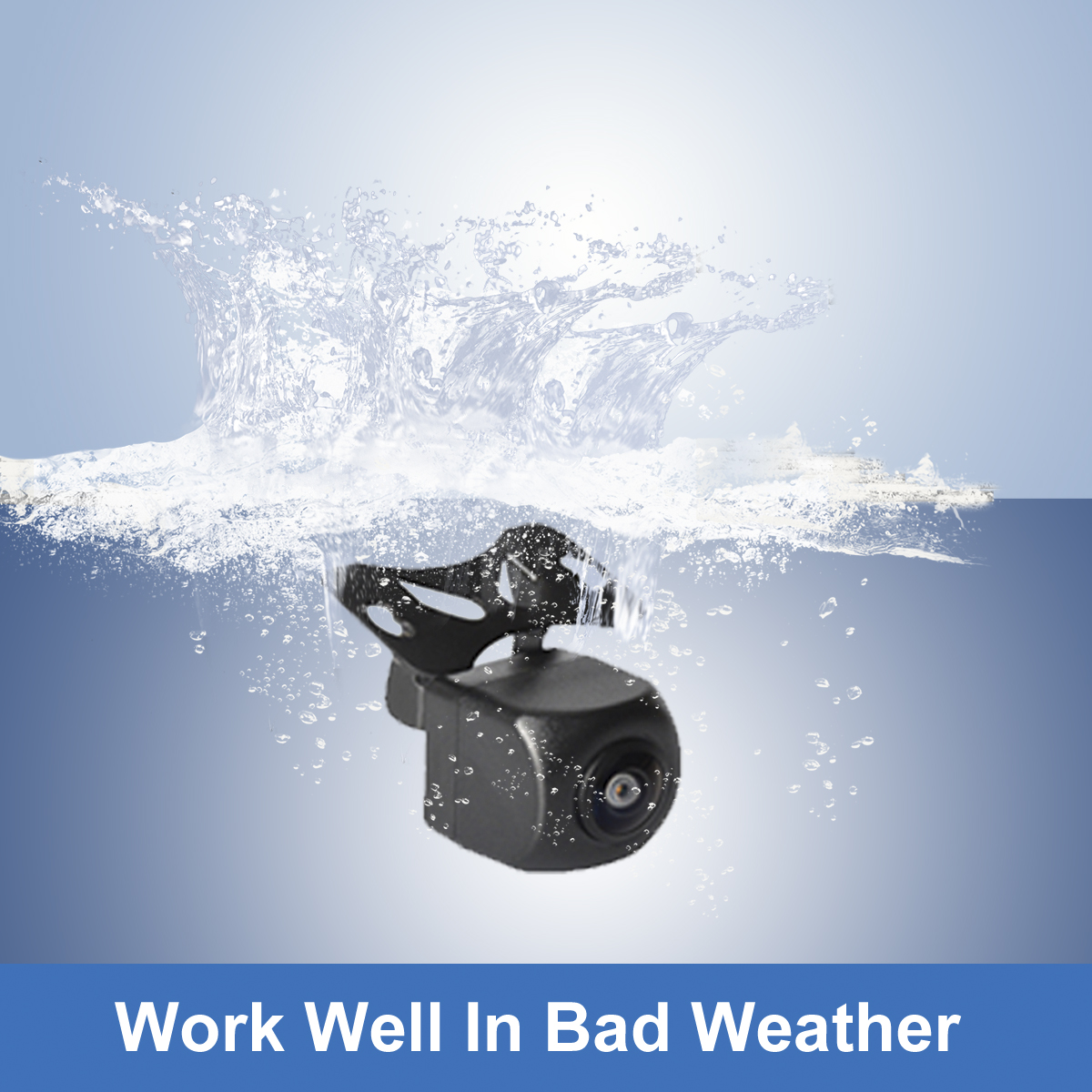

The backup camera of the triple channel dash cam can work well in windy/ rainy/ snowy environments (-4F to 149F). And if it falls into 0.15m to 1m deep water by accident, it can still work as usual after being picked up. It is installed outside the car to help drivers to easily know road situation behind while driving and to assist reversing.
In general, the mirror dash cam will continuously record the scene captured by the three cameras at the same time. When the memory card is full, old videos will be overwritten by new ones. However, if a collision occurs, this video will be locked and not be overwritten automatically. (Max support 128G card, included 32G card).
This dash cam supports 24H time-lapse recording. Turn on 1Frame Per 1Sec function. It will monitor and protect the vehicle for up to 24 hours after turning off the car engine. And once an abnormal situation is detected, the dash cam will automatically lock the recorded video. If the battery voltage is lower than 11.6V, it will automatically disconnect the power to achieve battery protection.
NOTE: To activate this feature, please search (Item#: 9SIB5RVJ1M9968) to purchase a hardwired kit.

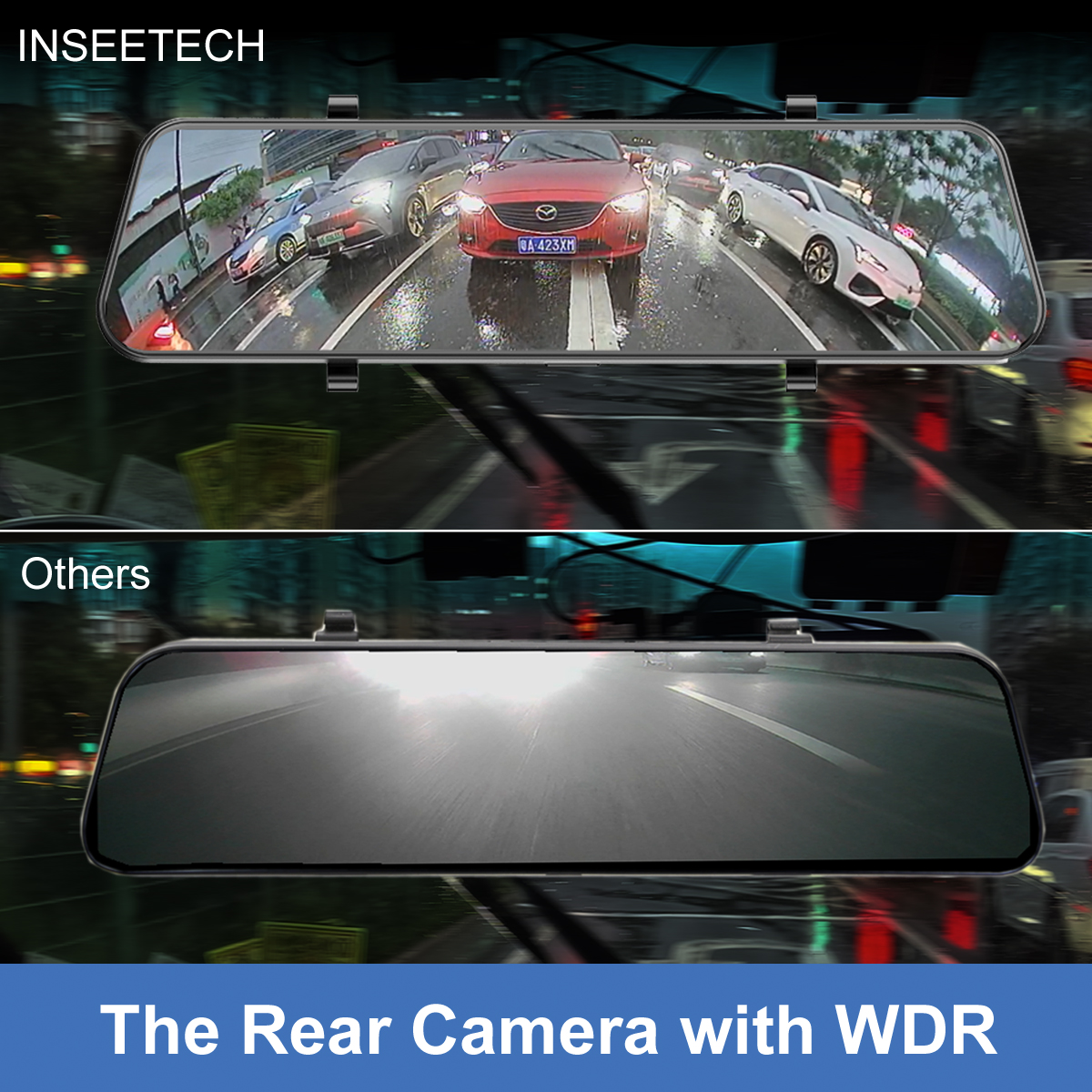

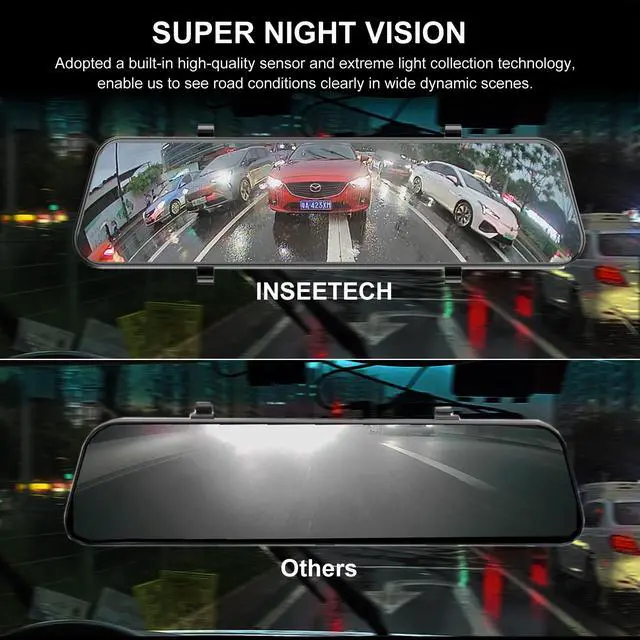

INSEETECH rear view mirror dash camera adopts a built-in high-quality sensor, extreme light collection and Wide Dynamic Range technology(WDR), which enable us to see road conditions clearly in harshly lit highcontrast conditions such as entering and exiting tunnels, overcoming headlight' s glare, etc.
About installation
- Before installation, please read the user manual carefully, and power on to check whether the accessories in the box can be used normally. This mirror dash cam adopts a rear strap-type installation without dismantling the car.
- Please select appropriate location and method to install the inner view camera and the rear camera.
- Please use the original accessories provided in the package to avoid compatibility problems, like shortage of vehicle power.
- If extension cable is not long enough, please do not cut it for extension or modification because it may damage the machine or vehicle, and make rear camera work unstably.
About extension cable
- If the 24.6 ft rear view camera extension cable in the box is not long enough for your larger vehicle, you can replace it with a longer dash cam cable or configure an extension cable.
- Search "9SIB5RVJ1N2902" to buy a 15M/49ft dash cam cable (replace the cable in the box).
About memory cards
- It is recommended to use a high-speed Memory card (Class 10 or above) with a capacity of 8G -128G (Including a 32G card).
- Please insert the card before turning on the dash cam. Otherwise it may not recognize the card. And do not insert or remove the card while the device is running, because it will cause recording failure or the last video file to be damaged or lost.
- Please format the camera card in the machine menu for the first time.
- Please format the camera card regularly. If you use it for a long time, the recorder will stop recording due to the insufficient capacity of the recorder because the locked files are not recorded cyclically. Formatting once every 1-2 weeks is recommended.
About parking monitoring
- The parking monitoring function is disabled by default. If this function is not turned on, dash cam will not be automatically start recording when is vibrated.
- Turn on parking monitoring. Only when the recorder in the off state is vibrated, the recorder can automatically turn on and record for 30 seconds according to the G-SENSOR induction, and then turn off.
- If you need continuous automatic camera recording 24H after parking, you need to configure the relevant hard-wired kit (not included) and turn on Parking Monitoring and 1Frame Per 1Sec functions. Please search (Item#: 9SIB5RVJ1M9968 ) to purchase a hardwired kit.
| Screen | 11.8 inches |
|---|---|
| Display resolution | 1920*440 |
| Camera Resolution | front 1080P, inside 720P, rear 720P |
| Camera angle | front 143°, inside 110°, rear 173° (rear vertical angle 100°) |
| Support memory card | support 8-128G Memory card (included 32G card) |
|---|---|
| Cable length | Car charger 11.5ft/3.5M; In-car camera 2ft/0.6M; Backup camera 24.6ft/7.5M |
| Working temperature | -4F to 149F |
| Rear camera | Waterproof |
