Dash Cam Hardwire Kit, Mini USB Hard Wire Kit Fuse for Dashcam, Plozoe 12V-24V to 5V Car Dash Camera Charger Power Cord, Gift 4 Fuse Tap Cable and Installation Tool(11.5ft)

Upgraded the 2nd Generation Dash Cam Hardwire Kit
This mini usb cable and Micro USB port converter hardwire kit. Perfect for 24/7 Parking Surveillance.Low voltage protection protects against battery dying.Plozoe Dash cam hardwire kit works for almost all car mini & micro USB device, such as dash cammirror camGPS navigator and radar detector etc.
Low Voltage Protection

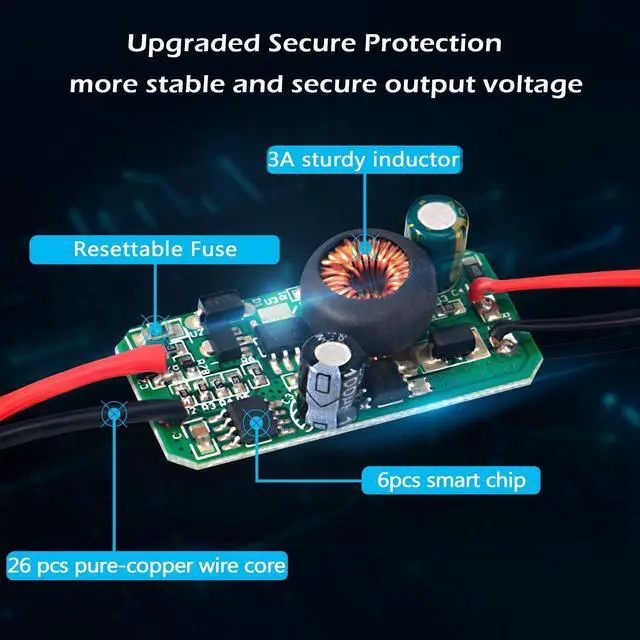

Set 6 high-precision resistors,Dual power-off protection chip, intelligent low-voltage protection device can read the battery voltage more accurately, When your car's voltage is lower than 11.7V or 11.6V, it will automatically turn off the power. Protect y

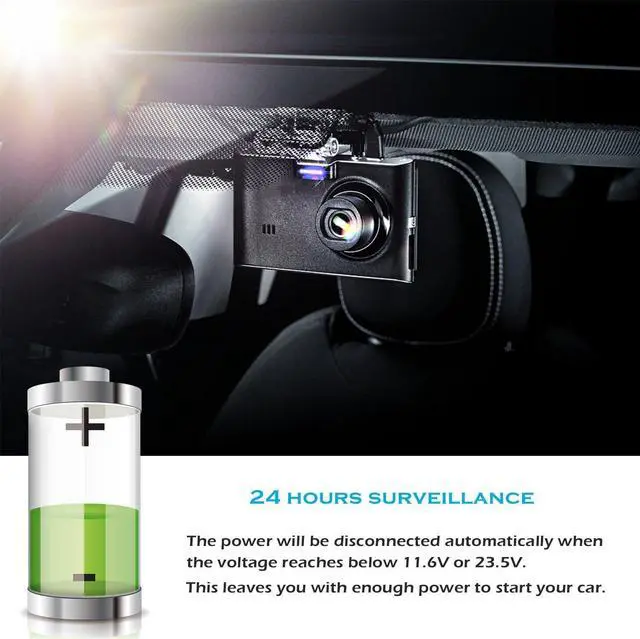

24 Hours Parking Surveillance
The vehicle hard-wire kit connected to car battery or fuse box power, can uninterruptedly supply power for dash camera for 24 hours. It can even supply power when the car is turned off.
Fuse Puller
One free fuse puller inside the storage box for easy picking.
High Quality Copper Conductor
3.5mm transmission line, high-quality copper core conductor, the dashcam hardware kit is faster and safer to charge

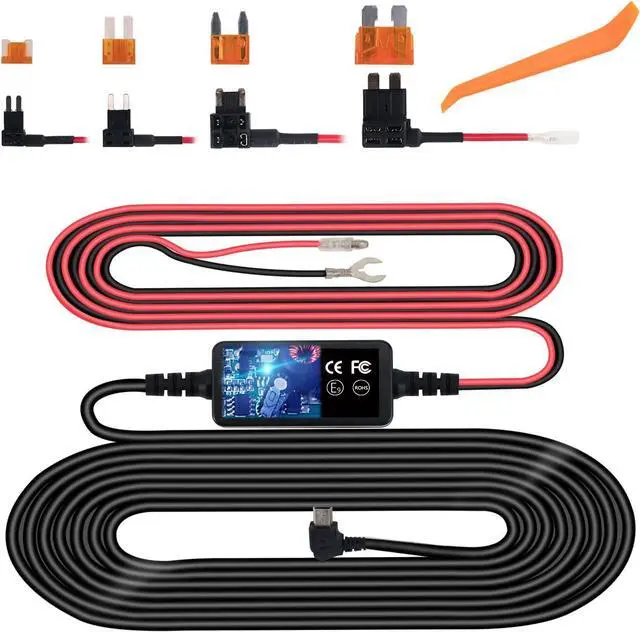

Four Types of Fuses Adapters for Almost All Cars
Comes with Low-profile mini fuse, Mini fuse, Micro 2 fuse, ATO (regular) fuse adapters for you to use whatever your vehicles fuse box requires.
Besides, with the seal wire connectors that will be easy for you to connect, firm connection and prevent short circuit.
Upgraded the 2nd Generation Dash Cam Hardwire Kit
An automatic matching device is set at the mini connector to make the compatibility range wider, such as Apeman Aukey Rexing Vantrue Vava Garmin Dash cam, etc.
Compatible 12 24V Vehicles
This hardwire kit accepts voltage from any type of vehicles runs on 12 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power.

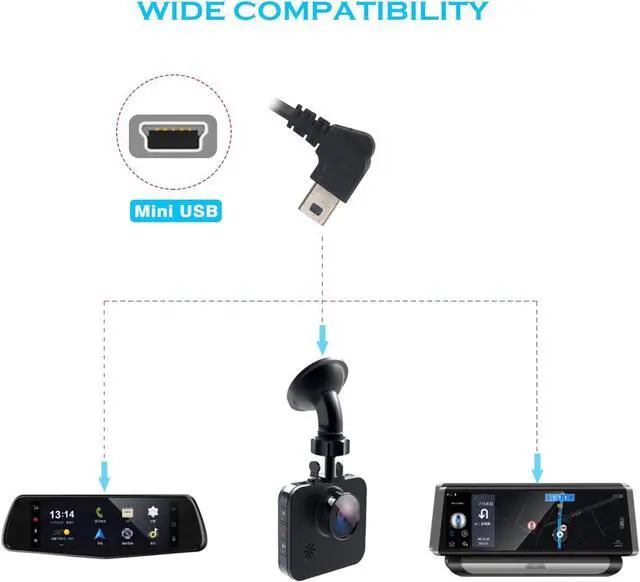

Compatible With Most Of The Car Dash Cam With Mini USB Input
This mirror dash cam hardwire kit is applied to almost all car Mini USB device (Voltage Between 12-30V), Convert the voltage from 12v to 5v,such as Vantrue dash cammirror camGPS navigator and radar detector etc, it

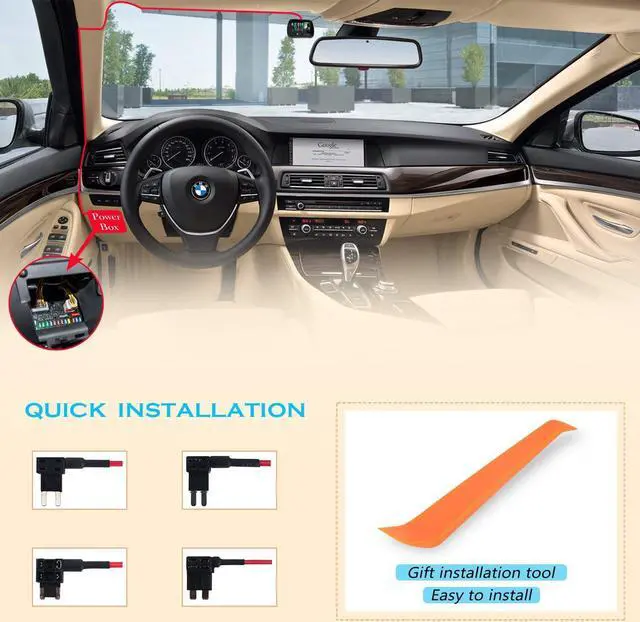

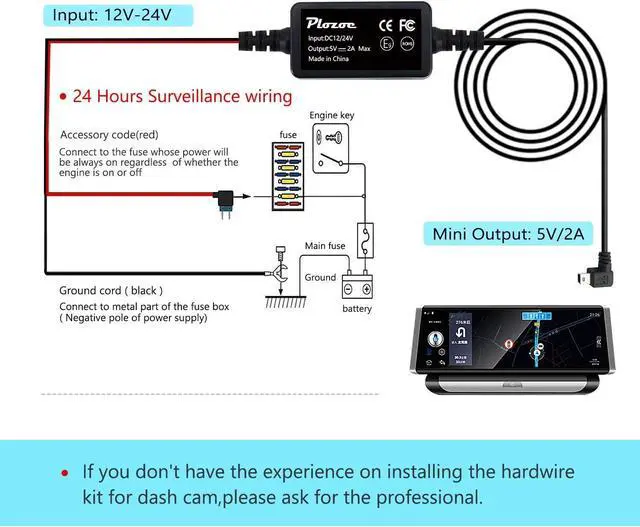

Find the Correct Fuse Slot
Open the fuse box, find the correct fuse slot for your hardwire kit. If you need to find an ignition switched fuse, put the key in the vehicle, find the fuse which is not lit up while the car is off, and test it by turning the car on to see if it lights up. If your kit requires constant power, turn off the car and remove the key to see which fuse slots stays lit on.
Connect the Red Wire
Once you've determined which fuse slots you need to use for your hardwiring kit you can crimp the red wire of your hardwire kit onto the Add-A-Fuse. Gently remove the fuse you identified. Install the fuse you just removed into the installation kit add-a-fuse circuit. Plug the add-a-circuit into the fuse box in the correct orientation.
Ground the Hardwiring Kit
Slip the black wire (which is in the shape of a C) under a metal bolt or screw in your vehicle (this is the ground wire). Check that it is not attached onto plastic parts. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with. To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards.
DUAL SLOT FUSE HOLDER
It provides one fuse holder to protect original circuit and provides a lead with the second fuse holder for new circuit.
