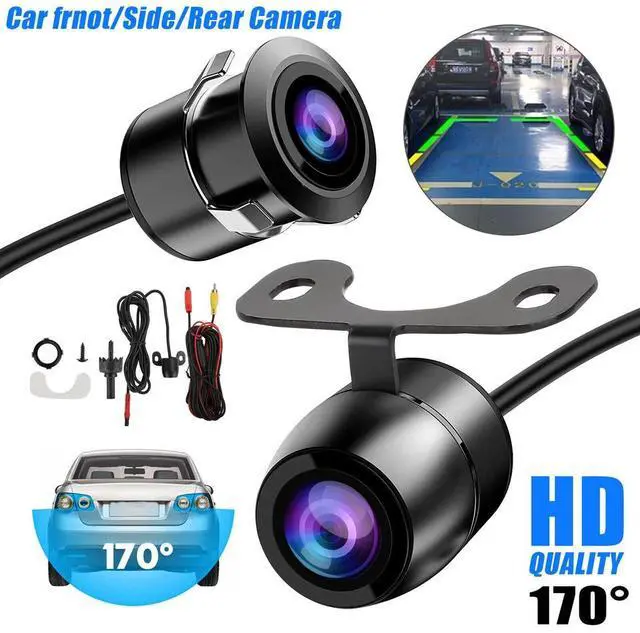

    170° CMOS Car Side/Rear View Reverse Backup Night Vision Parking Camera HD

    • Type Car side/rear Camera
    • Image Sensors PC1030 1/4 Inch Color CMOS
    • Effective Pixels 648 x 488 Pixels
    • Lens Angle 170 degrees
    • Image pipeline feature Auto exposure, AWB, AGC, Auto ficker detection and cancellation
    • Video System PAL/NTSC(Automatic throw-over)
    • Resolution 420TV lines
    • Waterproof Class IP 67
    • Operation Temperature -20~ +75
    • Storage Temperature -40~+85
    • Video Output RCA connector
    • Working Power DC12V
    • Current Consumption 60mA
    • Video cable length Approx 6 m/ 236.2 inch
    • Power supply cable length Approx 1.2m/ 47.2 inch
    +
    +
    Overview
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    1. Product Description This universal camera is specially designed for seeing the blind spot where your mirrors cant reach, especially the 170 degree wide view angle, it can help you see more when you driving or parking,effectively avoid a lot of trouble.


    Product Feature

    1. Easy to Install:

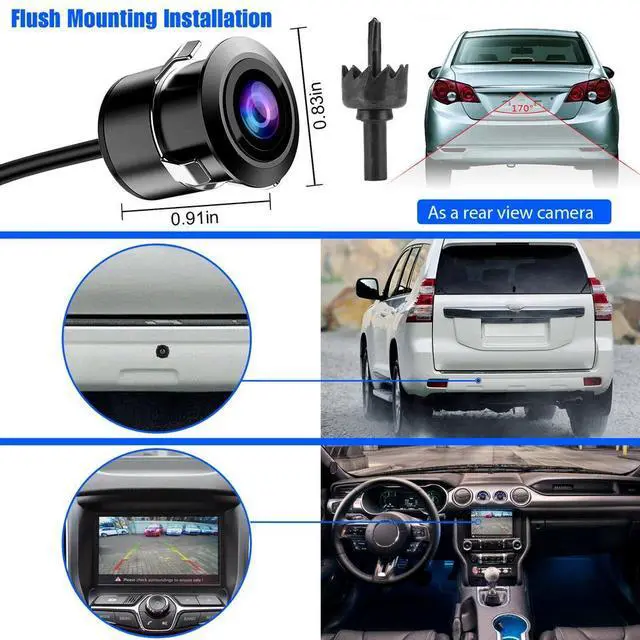

    2. 2 Installation options,you could choose bracket mounting or flush mounting as per your case.
    3. Rear Switchable:
    4. Optional Customized Distance Scale Lines & Mirror/Normal Image Switchable - You Can Use it as Rear View Backup Camera or Side Camera.
    5. Note: By default this is a front camera without distance scale line.
    6. 170 Degree Wide View Angle:
    7. Help you see blind area where your eyes can't reach.Work with your head units or aftermarket LCD/TFT displays with standard RCA input.
    8. Suitable for variety of vehicles: car, mini-truck, mini-van etc,12V working Voltage ONLY.
    9. Hightlight:
    10. This camera is a rear camera without distance scale lines as default set for backing up.
    11. To use it as a rear view camera you would need to cut the white looped wire.
    12. To appear the parking guide lines, cut the green looped wire.
    13. Cut Green Cable:
    14. Cancel Parking Guide Lines.
    15. Cut white cable: Switch normal image(front view) to mirror (rear view).


    Note

    1. After cutting either the white or green wire for your configuration, you need to ground one side of the cut wire for the camera to convert.
    2. One side will give you a blank image and one side will give you your converted camera.
    3. Just tie one side of your cut wire to the black ground/earth wire and power it up.


    Product Specification

    TypeCar side/rear Camera
    Image SensorsPC1030 1/4 Inch Color CMOS
    Effective Pixels648 x 488 Pixels
    Lens Angle170 degrees
    Image pipeline featureAuto exposure, AWB, AGC, Auto ficker detection and cancellation
    Video SystemPAL/NTSC(Automatic throw-over)
    Resolution420TV lines
    Waterproof ClassIP 67
    Operation Temperature-20~ +75
    Storage Temperature-40~+85
    Video OutputRCA connector
    Working PowerDC12V
    Current Consumption60mA
    Video cable lengthApprox 6 m/ 236.2 inch
    Power supply cable lengthApprox 1.2m/ 47.2 inch

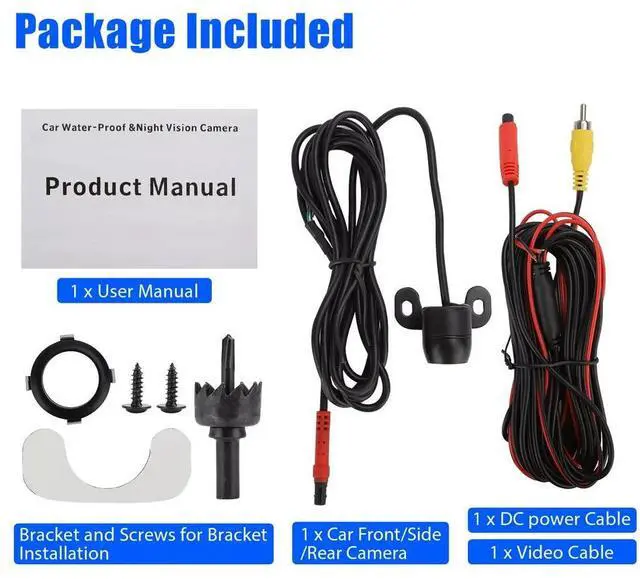

    Package Included

    1. 1 x Car Front/Side/Rear Camera
    2. 1 x Flush Mount Hole Drill
    3. 1 x Mount Bracket
    4. 2 x Screws
    5. 1 x DC power Cable
    6. 1 x Video Cable
    7. 1 x User Manual
