Features:
This camera has a mirror image.
This camera only supports NTSC video system, so please make sure your monitor supports NTSC video system.
During installation, please connect the power cable of the backup camera to the harness wires that connect to the backup light on the tail light assembly.
The camera switch is controlled by the reverse gear shift.

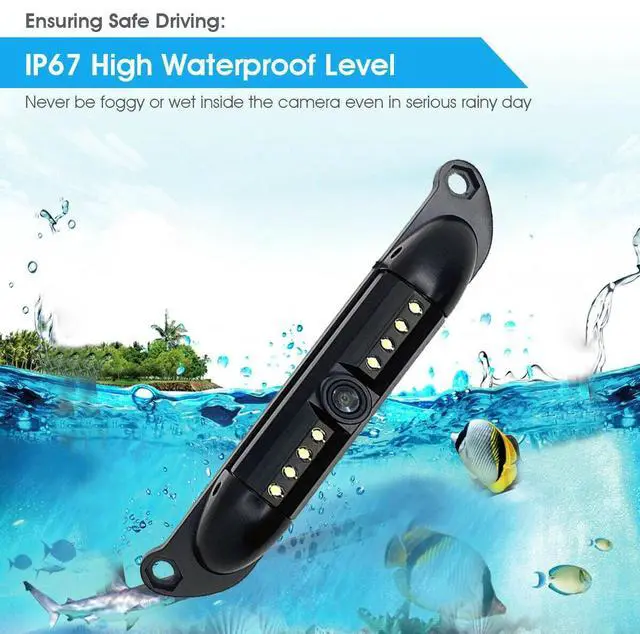

Please take care of the sealing to prevent water leakage when installation.
Specification:
Horizontal angle: 120 degree

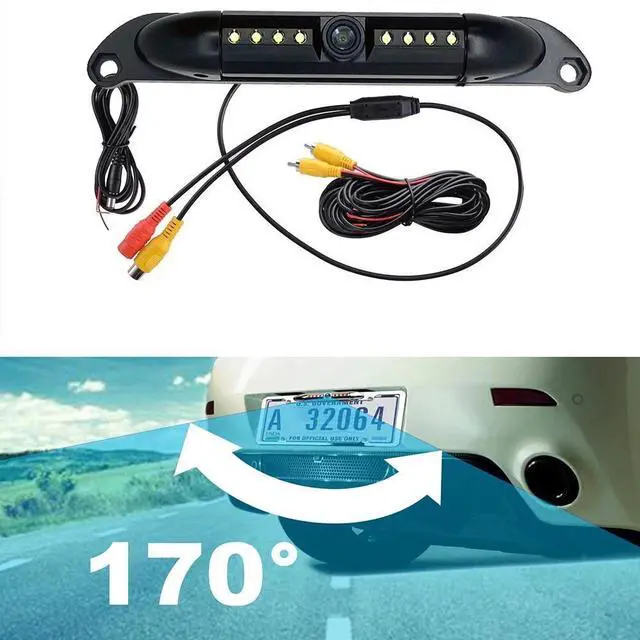

Diagonal angle: 170 degree
Visible range up to 95%
Signal System: NTSC
L x W x H: 7.5in x 1in
Effective Pixels: 648*488 pixels
Horizontal Resolutions: 420 TV lines
Minimum Illumination: 0lux with IR on
Video output: RCA connector, 1.0V p-p, 75ohm
Power Consumption: Max 120MA
Power Supply: DC12V

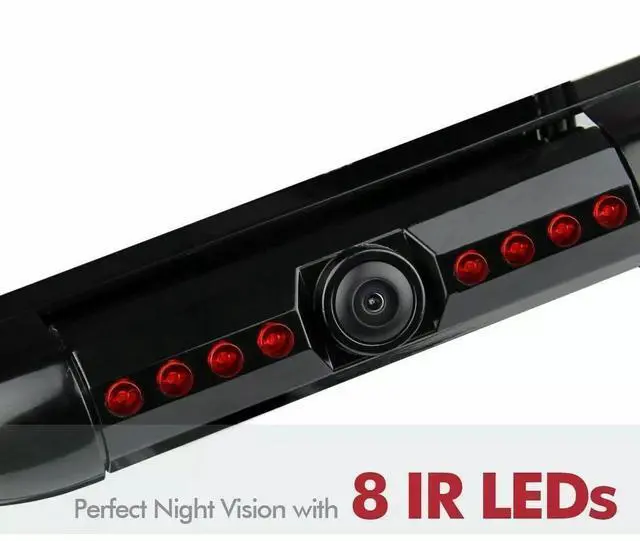

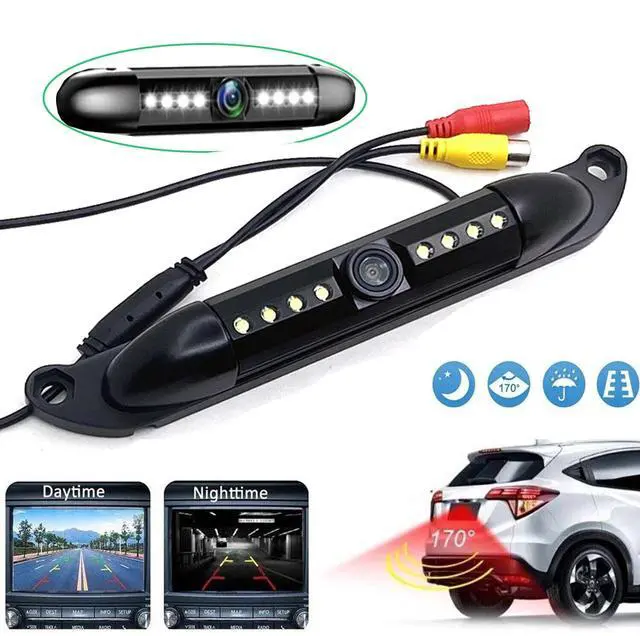

Types:IR Night Vision
Package Included:
1 x car rear view backup camera
