Car Rear View Reverse Camera Parking Backup Cam HD Night Vision Waterproof 170°

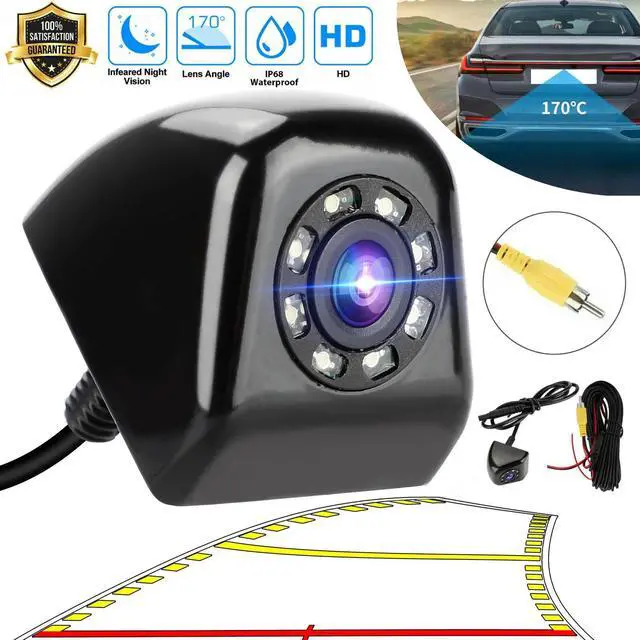

- BACK UP CAMERA WITH MOVABLE GUIDE LINE:Applying new chip, our back up camera can show trajectory guide line without extra device, its guide line automatically changes according to the cars moving direction.

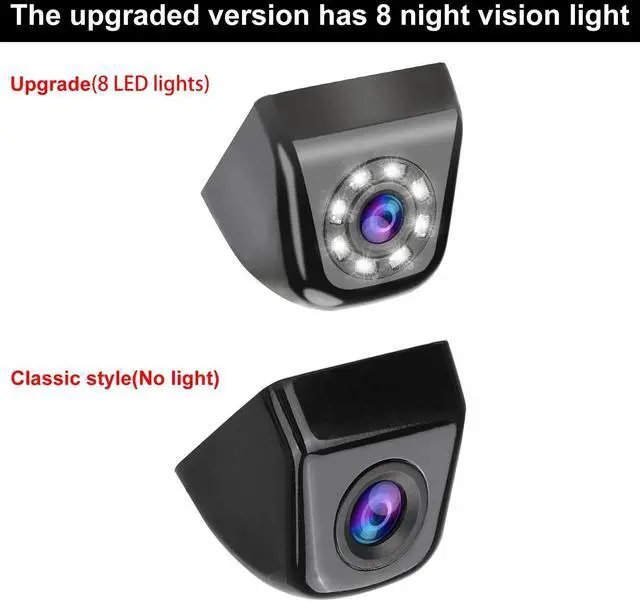

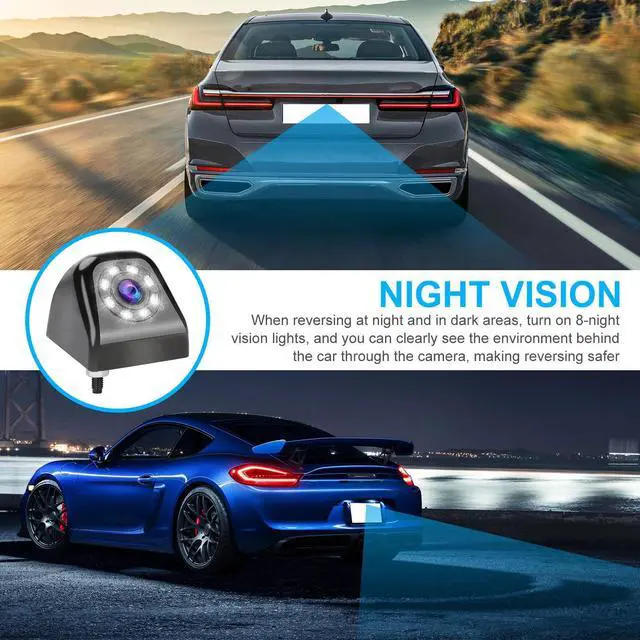

- NIGHT VISION:When reversing at night and in dark areas, turn on 8-night vision lights, and you can clearly see the environment behind the car through the camera, making reversing safer.

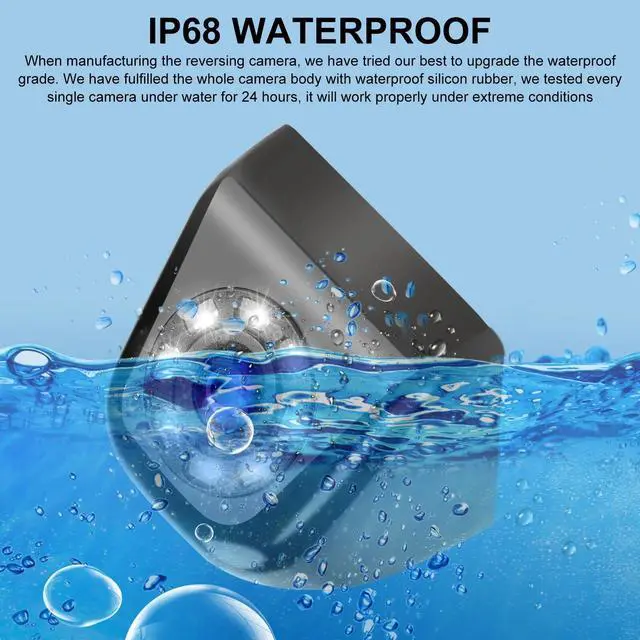

- IP68 RATED WATERPROOF REVERSE CAMERA:When manufacturing the reversing camera, we have tried our best to upgrade the waterproof grade. We have fulfilled the whole camera body with waterproof silicon rubber, we tested every single camera under water for 24 hours, it will work properly under extreme conditions.

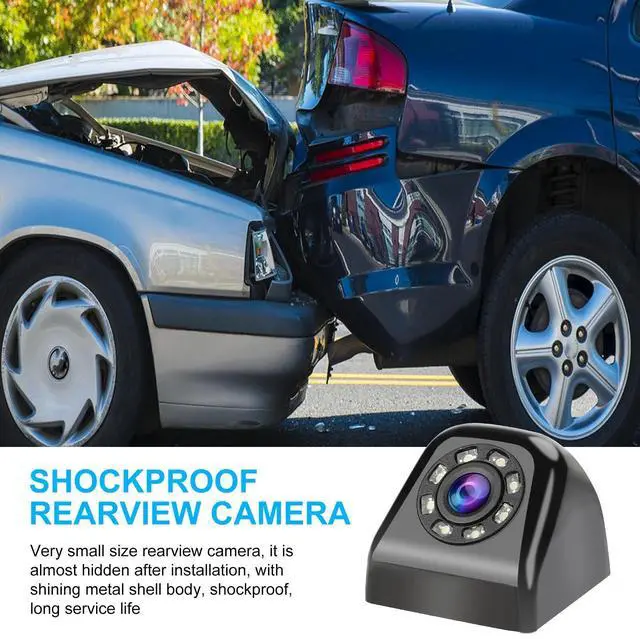

- MINI SHOCKPROOF REARVIEW CAMERA:Very small size rearview camera, it is almost hidden after installation, with shining metal shell body, shockproof, long service life.

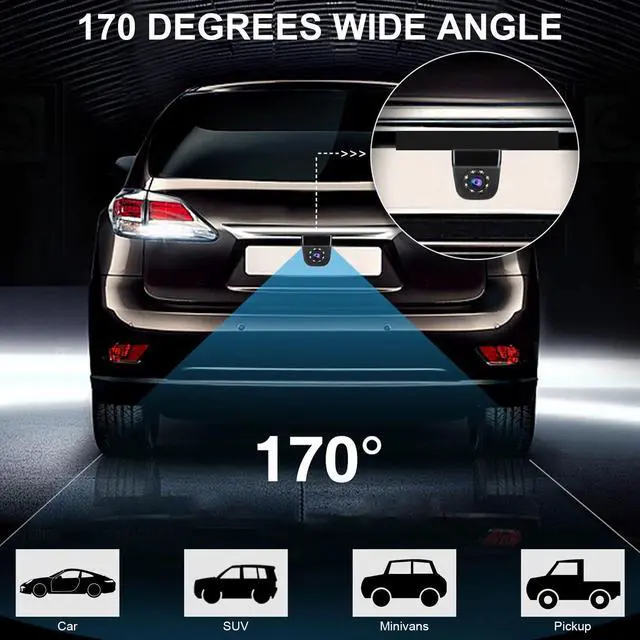

- HIGH DEFINITION FLUSH MOUNT BACKUP CAMERA:4089T CCD image sensor, 960*720 Pixels, 0.01 flux to support high quality night vision image, 170 degrees wide viewing angle, will meet your need for sure.

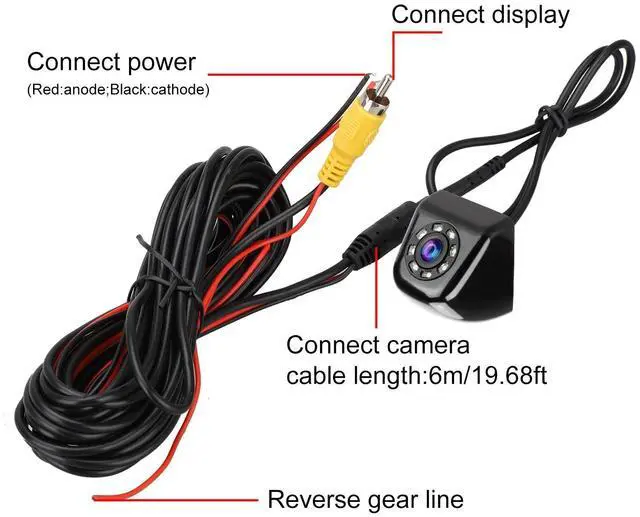

- BACKING CAMERA WORK WITH MONITORS SUPPORTS RCA CONNECTION:This backing up camera only works with monitors which supports RCA connection. For normal mirror monitors or TFT monitors, no need to use the trigger detection cable. When it works with a radio head unit, please remember to connect the trigger wire.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Product FeatureBACK UP CAMERA WITH MOVABLE GUIDE LINE:Applying new chip, our back up camera can show trajectory guide line without extra device, its guide line automatically changes according to the cars moving direction.
- NIGHT VISION:When reversing at night and in dark areas, turn on 8-night vision lights, and you can clearly see the environment behind the car through the camera, making reversing safer.
- IP68 RATED WATERPROOF REVERSE CAMERA:When manufacturing the reversing camera, we have tried our best to upgrade the waterproof grade. We have fulfilled the whole camera body with waterproof silicon rubber, we tested every single camera under water for 24 hours, it will work properly under extreme conditions.
- MINI SHOCKPROOF REARVIEW CAMERA:Very small size rearview camera, it is almost hidden after installation, with shining metal shell body, shockproof, long service life.
- HIGH DEFINITION FLUSH MOUNT BACKUP CAMERA:4089T CCD image sensor, 960*720 Pixels, 0.01 flux to support high quality night vision image, 170 degrees wide viewing angle, will meet your need for sure.
- BACKING CAMERA WORK WITH MONITORS SUPPORTS RCA CONNECTION:This backing up camera only works with monitors which supports RCA connection. For normal mirror monitors or TFT monitors, no need to use the trigger detection cable. When it works with a radio head unit, please remember to connect the trigger wire.
Product Specification
| Type | Car Rear View Reverse Camera |
| Sensor | 1/3-inch Color CMOS |
| Effective Pixels | 656x492 |
| TV System | NTSC |
| Lens Angle | 170 degree |
| Electronic Shutter | 1/60-1/20000s |
| Minimum Illumination | 0.1 Lux/F=1.2(0 Lux with IR on) |
| Video Output | 1.0 VP-P,75 OHM |
| Power Supply | DC 12V |
| Operating Temperature | -20 degree Celsius to +75 degree Celsius (RH95%Max.) |
| Storage Temperature | -40 degree Celsius to +85 degree Celsius (RH95%Max.) |
Package Included
- 1 x Rear View Camera
- 1 x Audio Cable
- 1 x User Manual
- 1 Set of Mounting Screws
