Car Rear View Backup Camera 8 IR Night Vision US License Plate Frame CMOS 170°

Brand new and high quality.

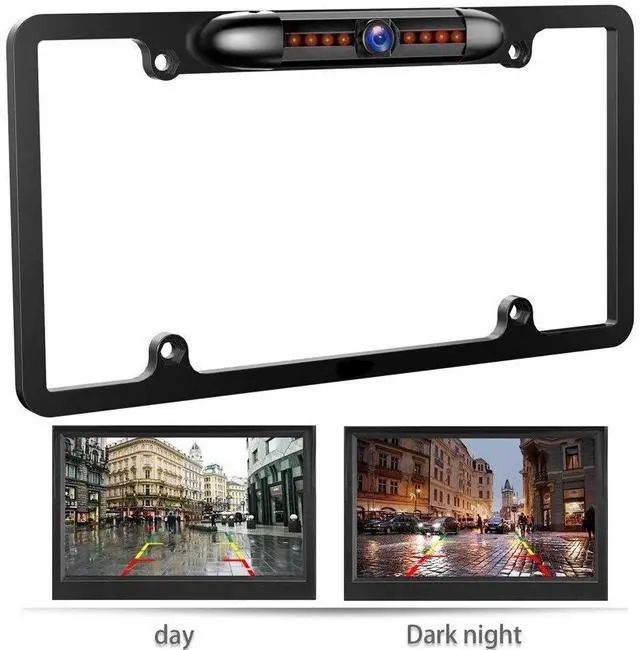

Quality zinc metal license plate frame camera with IP-67 grade waterproof and dustproof, works well in atrocious weather.

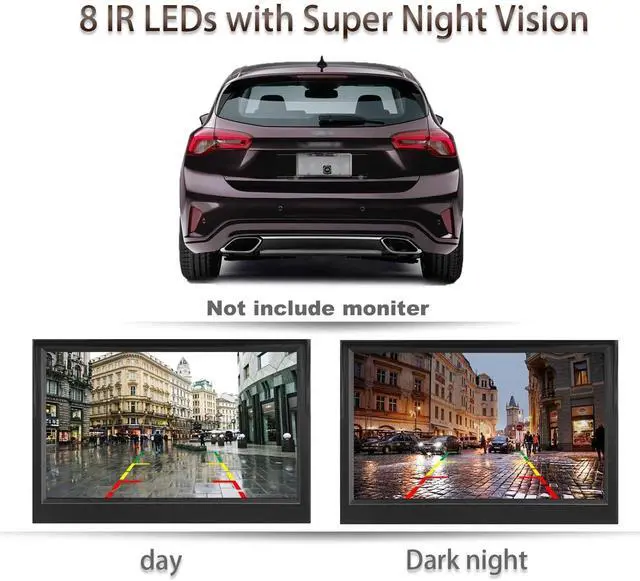

Color CMOS (PC1030, 648*488) imager, with 8 Infrared LED, excellent night vision performance, provides safety reversing both in day & night.

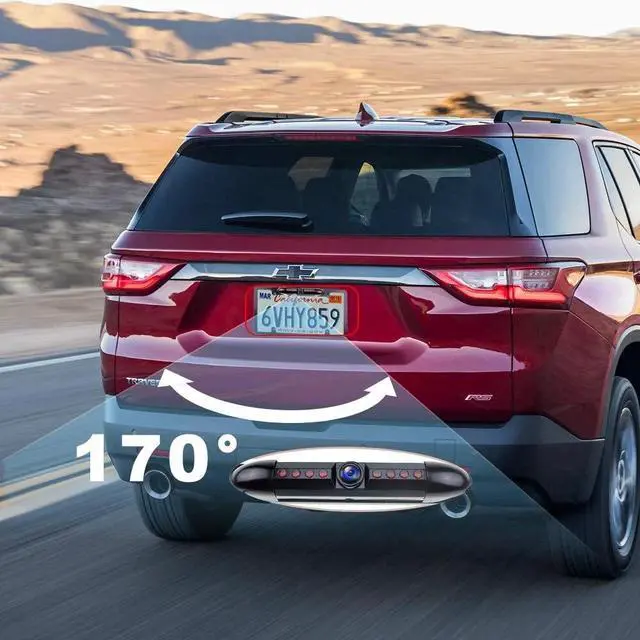

Macro camera lens with 170-degree wide viewing, 120-degree up and down tiltable, allows you to adjust it to best shooting angle.

Built-in grid lines as a trapezoid electronic ruler, 3 ft measured by every interval, keeps you much more secure while reversing.

Mounts easily on the license plate with the existing screws, ideal for most vehicles that use a standard U.S. or Canada license plate.

Installation

It can be easily installed on the license plate, compatible with standard U.S. or Canada license plates.

1.Clean the camera installation surface.

2.Mount the camera on the license plate.

3.Fix the camera temporarily with the existing screws.

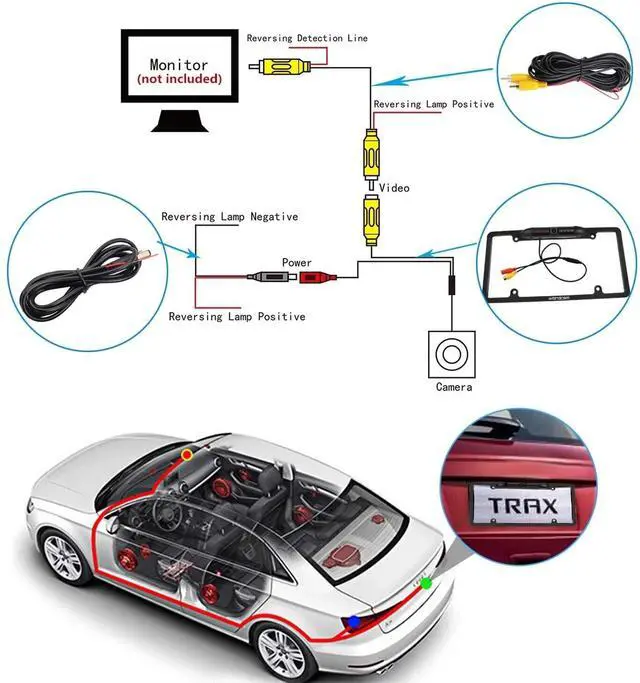

4.Connect the camera to the power and monitor.

5.Change the shift lever to the R (Reverse) range to view the rear image of the vehicle.

6.Use the L-wrench to adjust the camera for a best viewing angle.

7.Tighten the retaining hex screws firmly, fix the camera.

Product Details

Image Sensor: Color CMOS PC1030.

Lens Angle: 170 degree.

Sensing area: NTSC 4.08 x 3.10 mm.

Effective Pixels: PAL: 704 * 576 pixels NTSC: 712 * 486 pixels

Horizontal Resolutions: 420 TV lines.

Minimum Illumination: 1LUX/F1.2

Video output: RCA connector, 1.0 V p-p, 75 ohm.

Power Consumption: 60 mA.

Power Supply: DC 12 V.

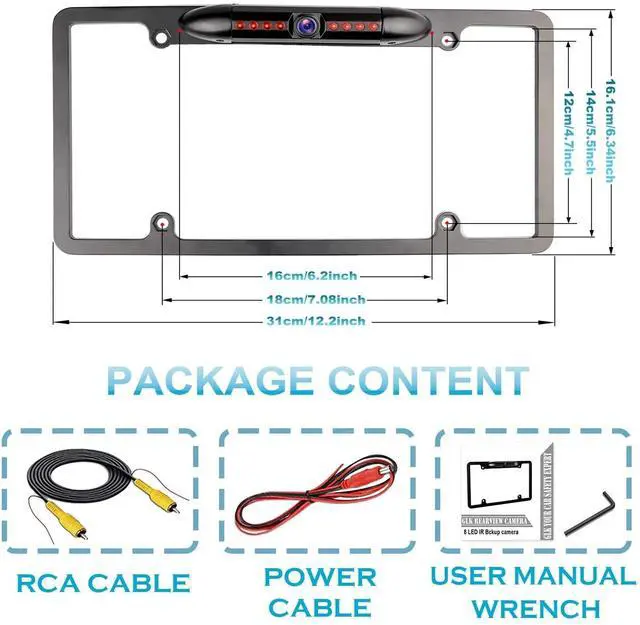

Size: 12.21" x 6.34" x 1.06" ( 310 x 161 x 27 mm ).

Compatible With

Universal for 12V Car, SUV,etc.

Package Include

1 x License Plate Frame Car Rear View Camera.(Monitor does Not include)

1 x 3.3 ft Power Cable.

1 x 20 feet RCA Video Cable.

1x English Manual
