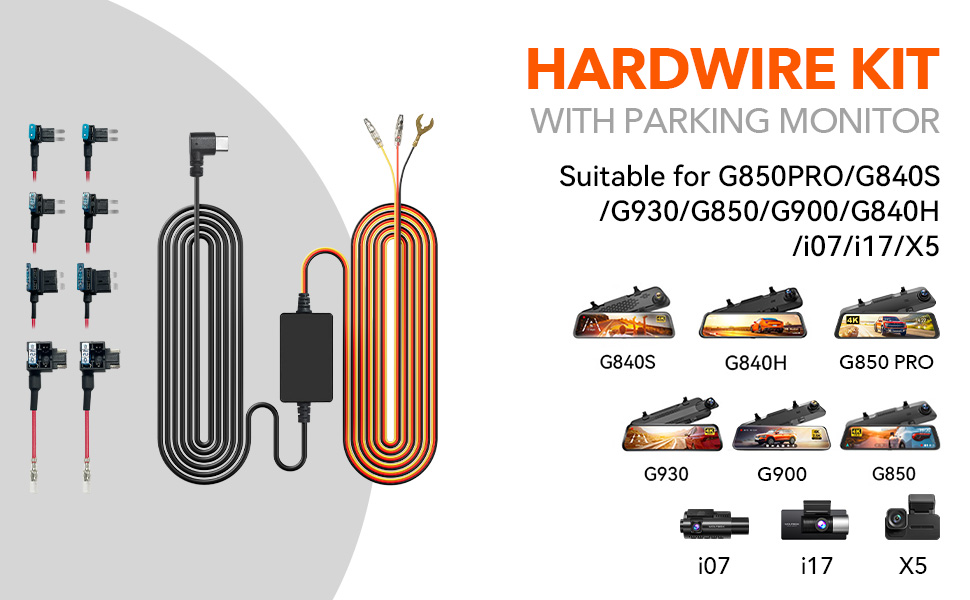

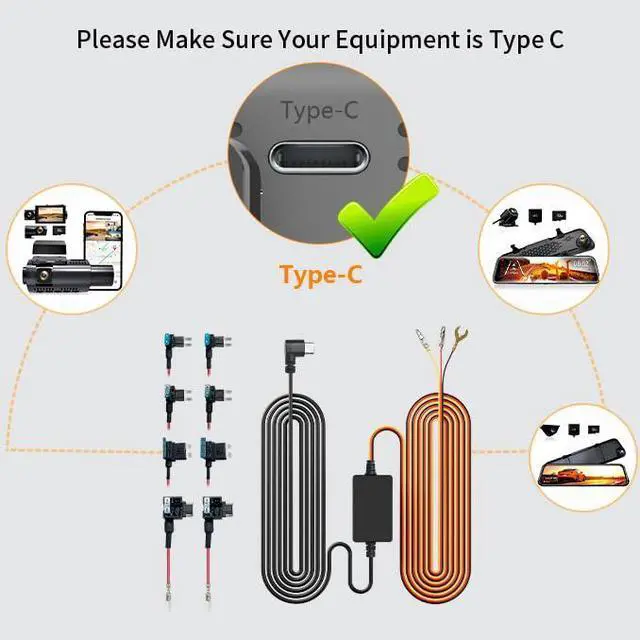

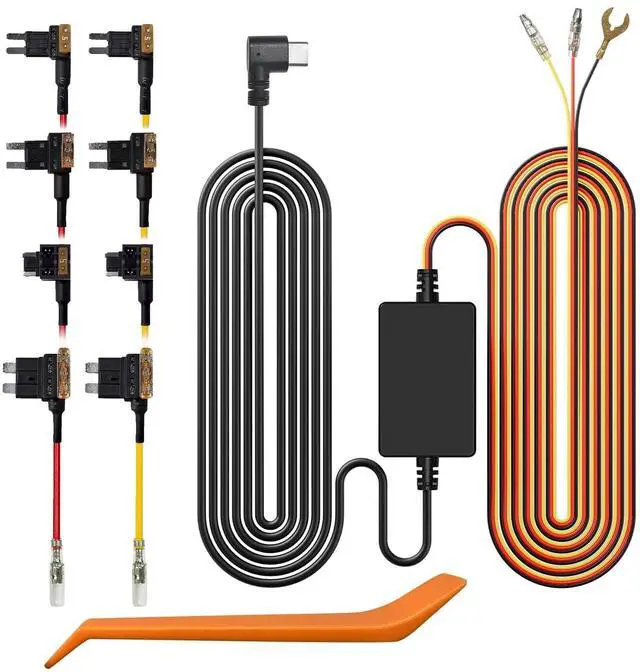

WOLFBOX USB Type-C Hardwire Kit
Warm tips:
1. Please make sure the ACC and BAT is connected correctly.
2. The length of this hardwire kit is 11.5ft, suitable for most trucks, SUVs and other vehicles.
3. Please note that installation steps may vary by vehicle model and specific conditions. It is strongly recommended to refer to the vehicle manual or seek professional help before installation.
Time-lapse function:
After WOLFBOX mirror dash cam is connected to this dedicated hardwire kit and turn the time-lapse function on the dash cam, the camera will enter the time-lapse recording function automatically when the car engine is off. In this mode, it records one frame per second, which extremely saves power and capacity, you don't need to worry about draining out of the car battery. This is because when the car engine is off, the ACC will have no power, and the dash cam will detect it and change recording mode from normal to time-lapse.

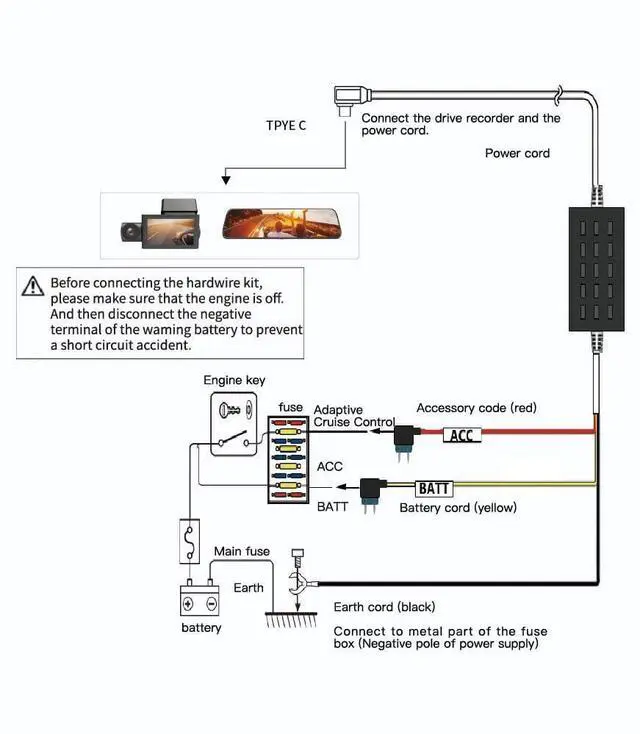

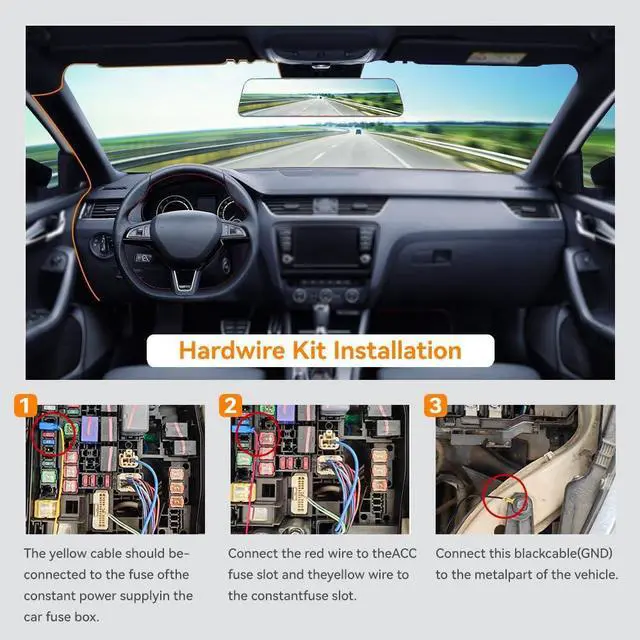

-Instructions for installation-
1. Stop the engine.
2. Open the fuse box.
3. Use a power detector to detect the constant power and ACC power (emergency power). *note: Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A.
4. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source, and the ground terminal (black wire) to the metal part of the body.
Low Voltage Protection
Ensure the safety of your vehicle's battery with the Wolfbox Hardwire Kit, which features a low voltage protection mode that safeguards against voltage drops below 11.8V (±0.2) by automatically cutting off power.
Time-lapse recording
Time-lapse recording enables you to capture an extended duration by reducing the number of frames in the video, giving you the ability to watch a complete 24-hour recording in a shorter period of time.

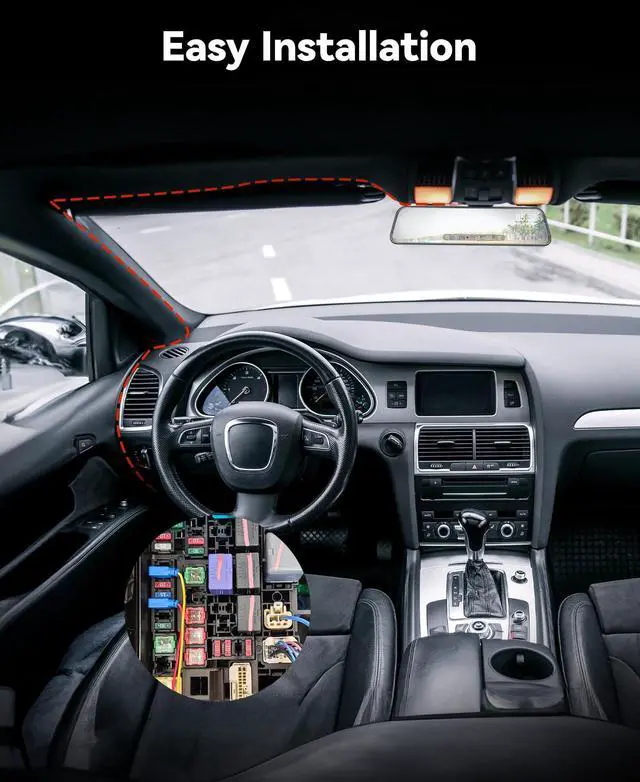

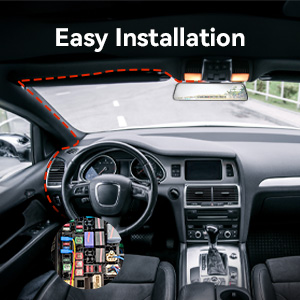

Easy Installation
Only need to use the installation tools provided in the packaging, follow the installation instructions to accurately connect the ends of the Hardwire Kit, and finally hide any exposed sections of the wire.

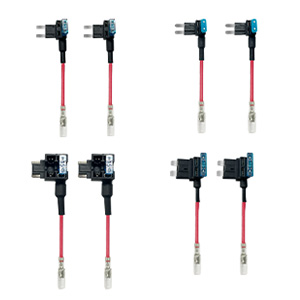

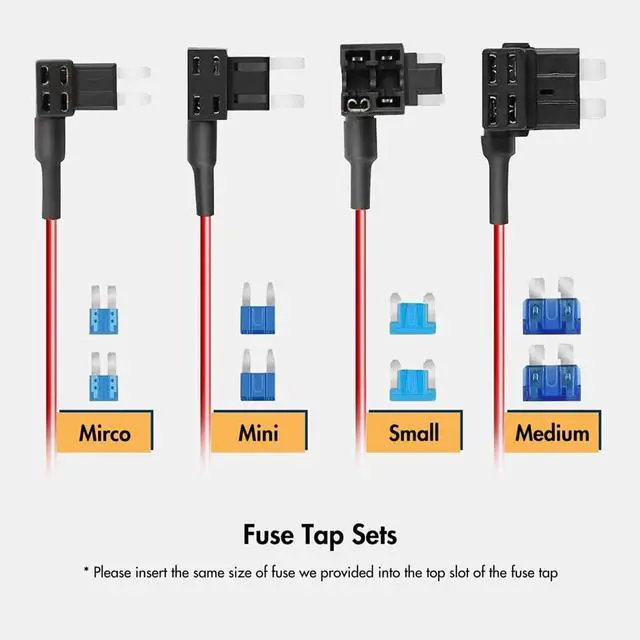

Multiple Fuse Models
The Wolfbox Mirror Camera Hardwire Kit offers four different fuse models to cater to various vehicle types. Choose the right fuse for your car model and enjoy a seamless installation.

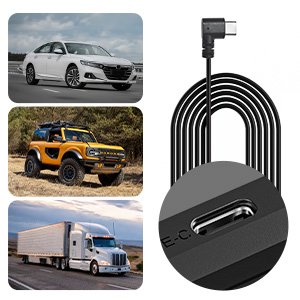

Universal Compatibility
The Wolfbox hardwire kit is suitable for various types of vehicles, especially regular passenger cars, sedans, SUVs, and trucks. It is used to convert the 12V/24V power supply in vehicles to a lower voltage for devices that require it.
24H Parking Monitoring
The Wolfbox hardwire kit, when connected to the car's fuse box power, can provide uninterrupted power to the dash camera for 12/24/48 hours. It is even capable of supplying power when the car is turned off.

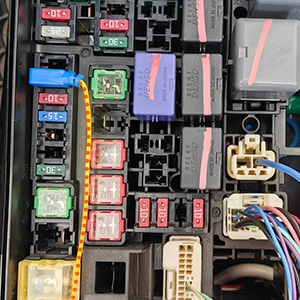

Yellow cable (BATT/B+)
The yellow cable should be connected to the fuse of the constant power supply in the car fuse box. If you are looking for a constant power supply in the fuse box: Use a voltage tester to check the fuse to ensure it still have electricity even if the car engine is off.

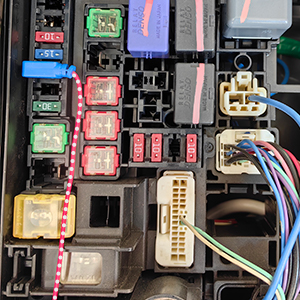

Red cable (ACC)
Connect the red cable supply power only when the car engine starts. Testing method : The tester bulb will light when the engine if on and won't light when the engine is off.

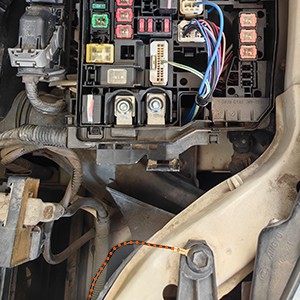

Black cable (GND)
Connect this black cable(GND) to the metal part of the vehicle. Most cars have screws or metal parts next to the fuse box. Connect the black cable to the screw or metal part. (As in the picture below).
WOLFBOX USB Type-C Hardwire Kit
Warm tips:
1. Please make sure the ACC and BAT is connected correctly.
2. The length of this hardwire kit is 11.5ft, suitable for most trucks, SUVs and other vehicles.
3. Please note that installation steps may vary by vehicle model and specific conditions. It is strongly recommended to refer to the vehicle manual or seek professional help before installation.
Time-lapse function:
After WOLFBOX mirror dash cam is connected to this dedicated hardwire kit and turn the time-lapse function on the dash cam, the camera will enter the time-lapse recording function automatically when the car engine is off. In this mode, it records one frame per second, which extremely saves power and capacity, you don't need to worry about draining out of the car battery. This is because when the car engine is off, the ACC will have no power, and the dash cam will detect it and change recording mode from normal to time-lapse.
-Instructions for installation-
1. Stop the engine.
2. Open the fuse box.
3. Use a power detector to detect the constant power and ACC power (emergency power). *note: Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A.
4. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source, and the ground terminal (black wire) to the metal part of the body.
Low Voltage Protection
Ensure the safety of your vehicle's battery with the Wolfbox Hardwire Kit, which features a low voltage protection mode that safeguards against voltage drops below 11.8V (±0.2) by automatically cutting off power.
Time-lapse recording
Time-lapse recording enables you to capture an extended duration by reducing the number of frames in the video, giving you the ability to watch a complete 24-hour recording in a shorter period of time.
Easy Installation
Only need to use the installation tools provided in the packaging, follow the installation instructions to accurately connect the ends of the Hardwire Kit, and finally hide any exposed sections of the wire.
Multiple Fuse Models
The Wolfbox Mirror Camera Hardwire Kit offers four different fuse models to cater to various vehicle types. Choose the right fuse for your car model and enjoy a seamless installation.
Universal Compatibility
The Wolfbox hardwire kit is suitable for various types of vehicles, especially regular passenger cars, sedans, SUVs, and trucks. It is used to convert the 12V/24V power supply in vehicles to a lower voltage for devices that require it.
24H Parking Monitoring
The Wolfbox hardwire kit, when connected to the car's fuse box power, can provide uninterrupted power to the dash camera for 12/24/48 hours. It is even capable of supplying power when the car is turned off.
Yellow cable (BATT/B+)
The yellow cable should be connected to the fuse of the constant power supply in the car fuse box. If you are looking for a constant power supply in the fuse box: Use a voltage tester to check the fuse to ensure it still have electricity even if the car engine is off.
Red cable (ACC)
Connect the red cable supply power only when the car engine starts. Testing method : The tester bulb will light when the engine if on and won't light when the engine is off.
Black cable (GND)
Connect this black cable(GND) to the metal part of the vehicle. Most cars have screws or metal parts next to the fuse box. Connect the black cable to the screw or metal part. (As in the picture below).
