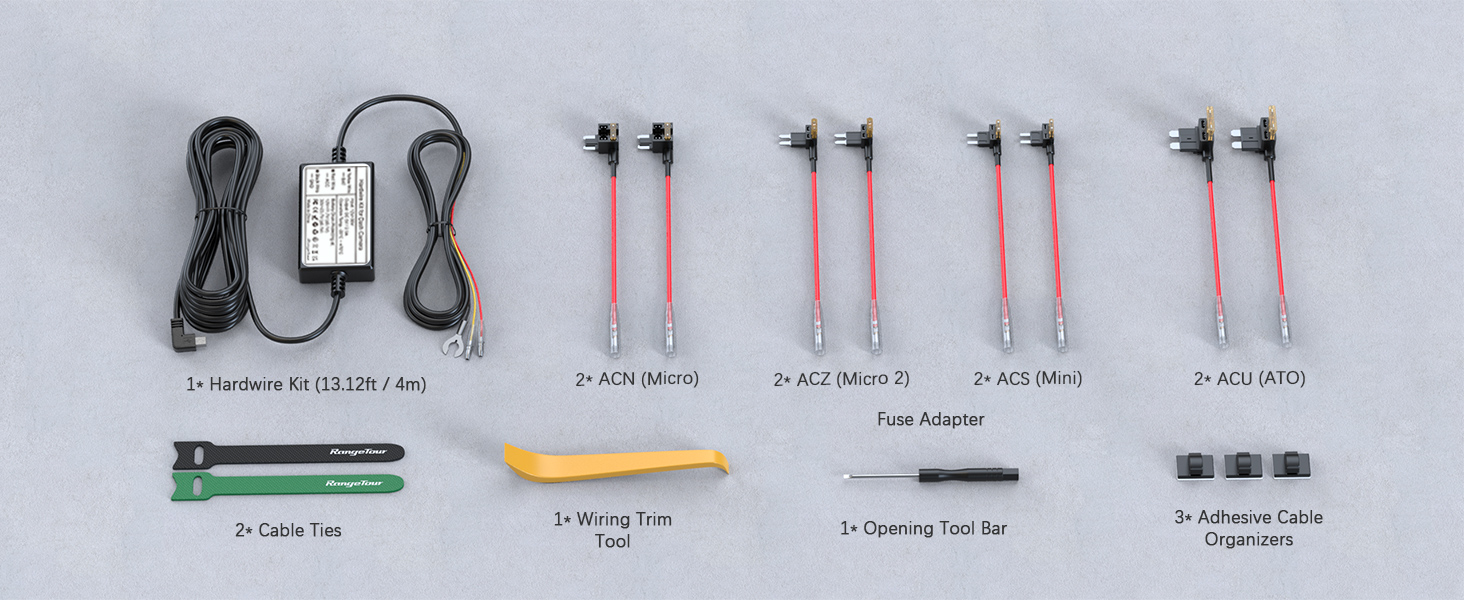

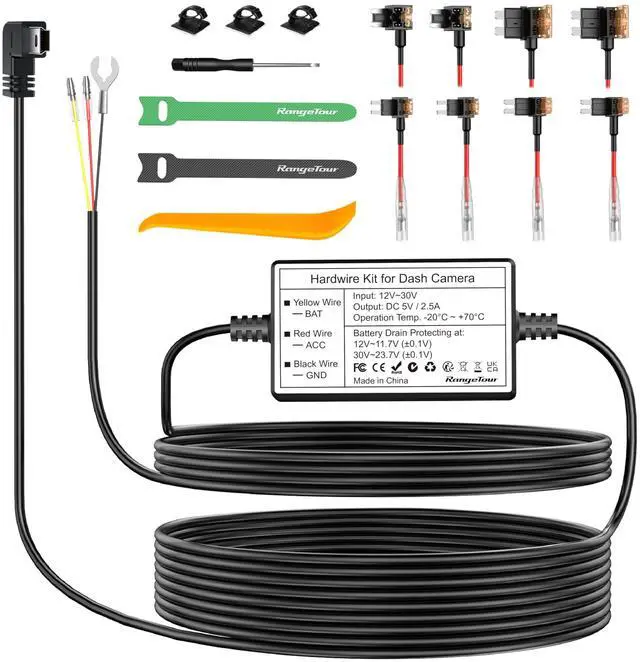

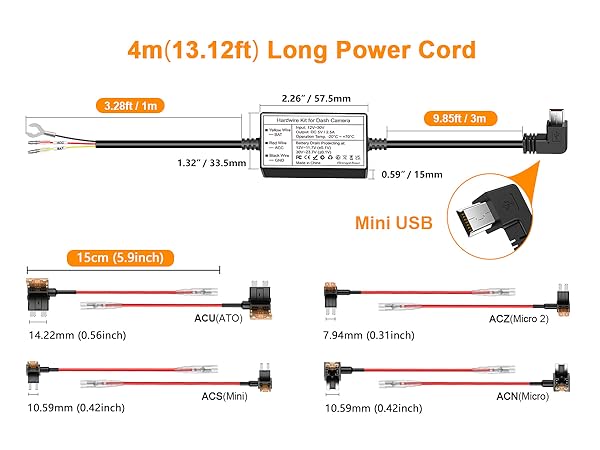

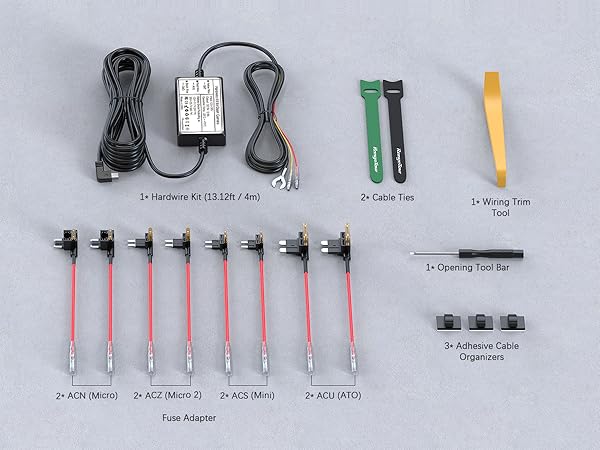

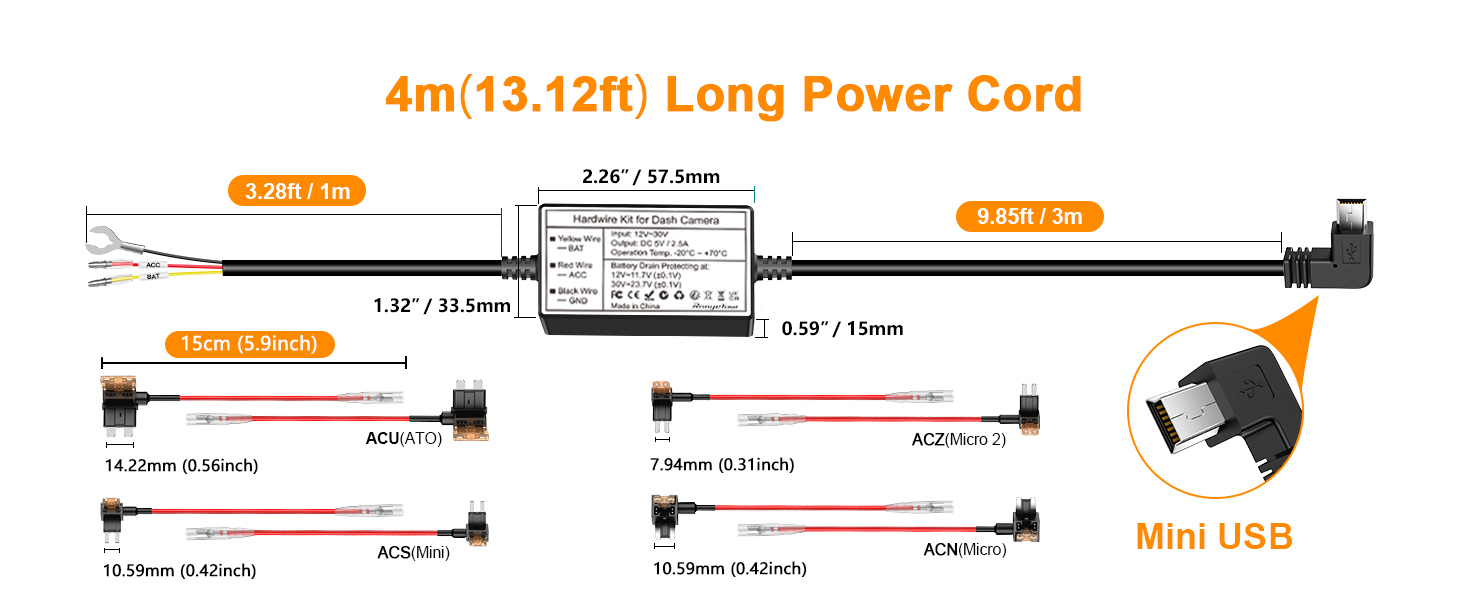

Range Tour Dash Cam Hardwire Kit Mini USB Port, 5V/2.5A (also suitable for 1-2A)

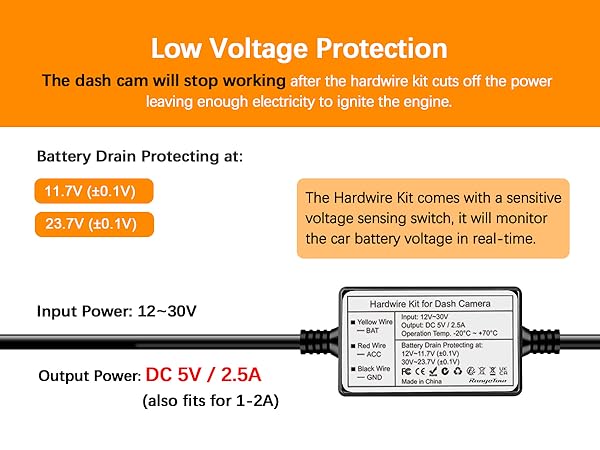

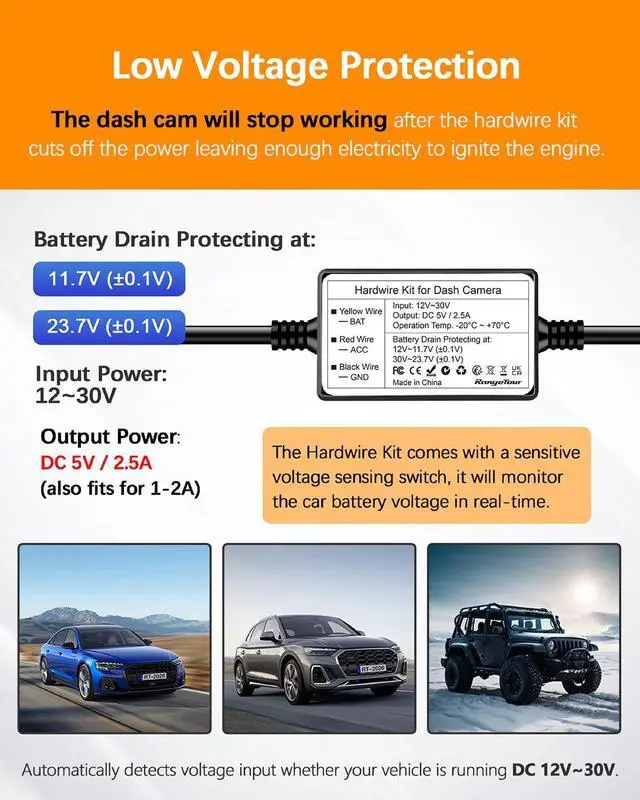

Low Voltage Protection
Once the car battery voltage is lower than 11.7V or 23.7V, it will cut the power supply, leaving enough power to ignite the engine.

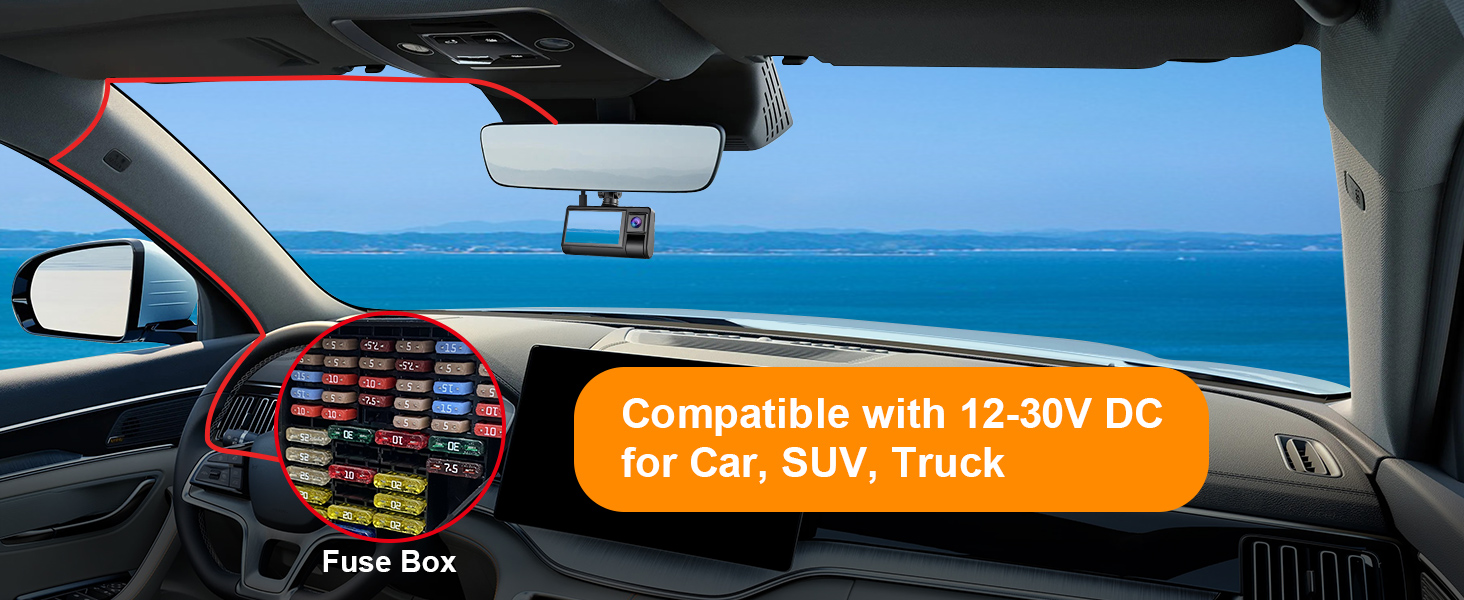

High Compatibility
Suitable for most vehicles, including SUVs, cars, trucks, and buses, Vans.

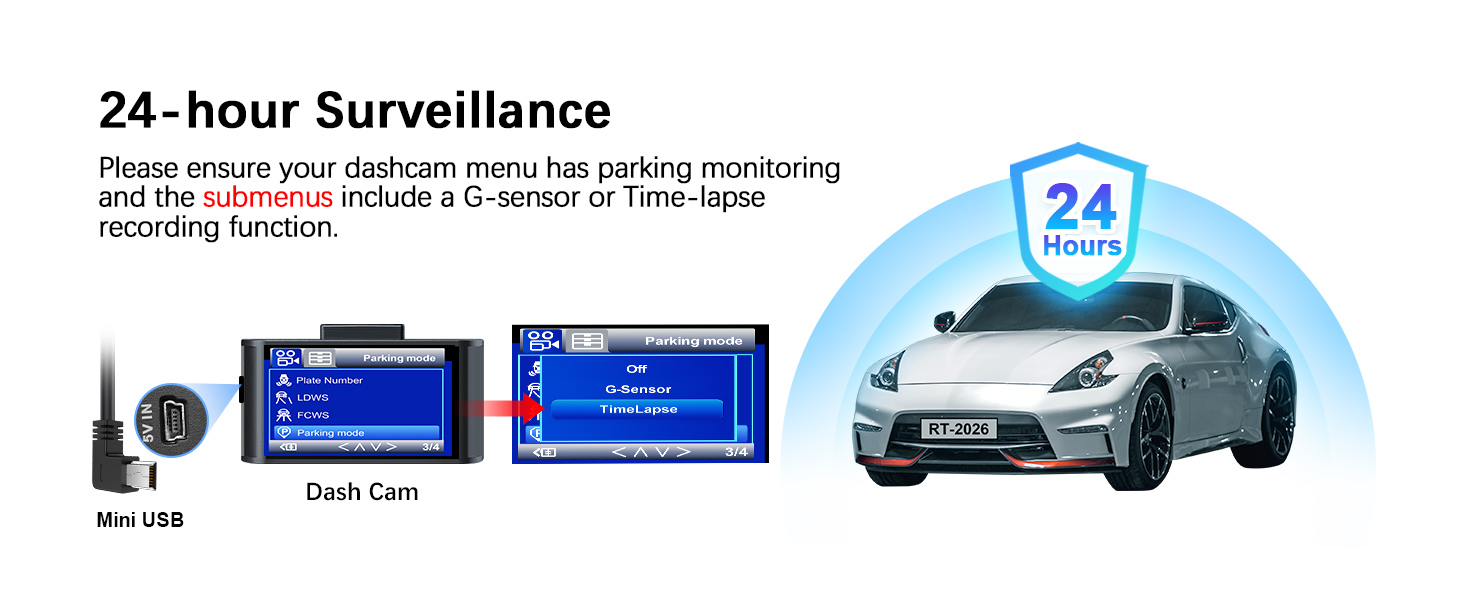

24 Hours Surveillance
Please make sure your dashcam supports the 3-core (BAT / ACC / Ground) 24-hour Time-Lapse parking mode function on camera settings.
Select Time-Lapse Parking Mode
Dashcam captures and records footage at 1fps per second to conserve memory, allowing for continuous surveillance of a parked vehicle.
Troubleshooting Videos

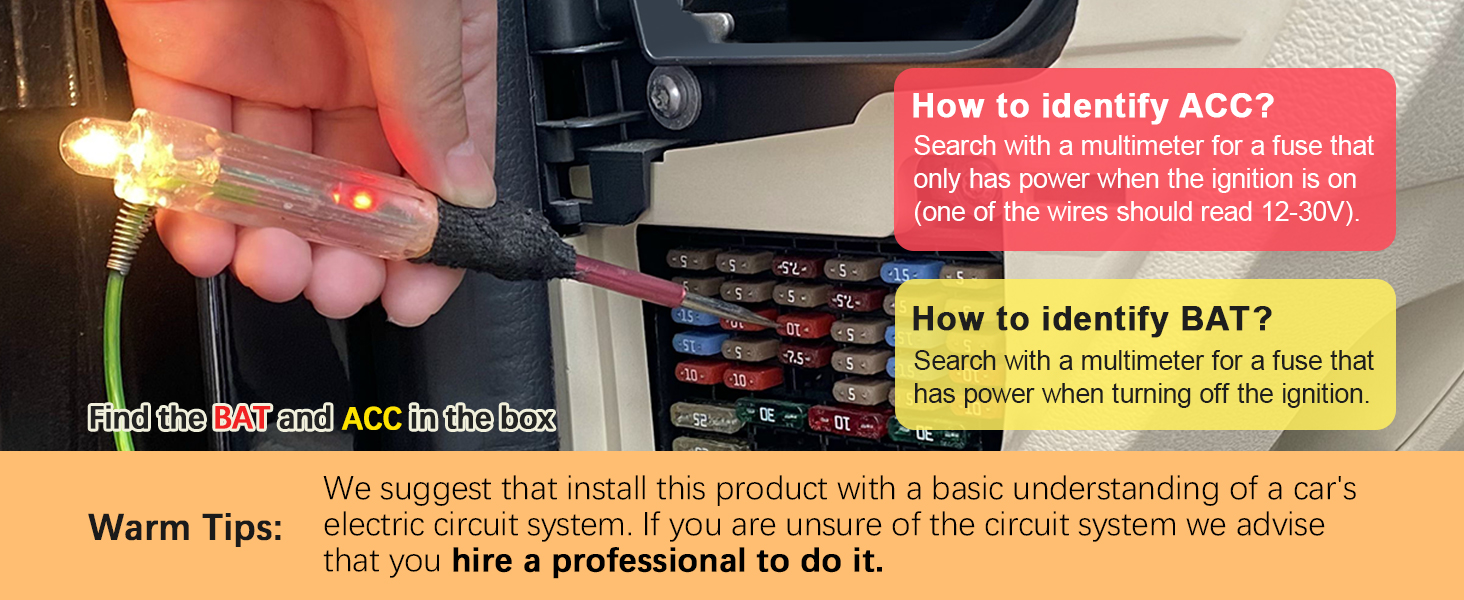

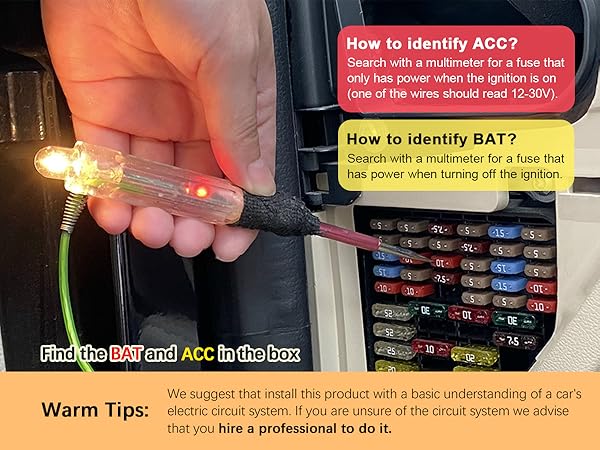

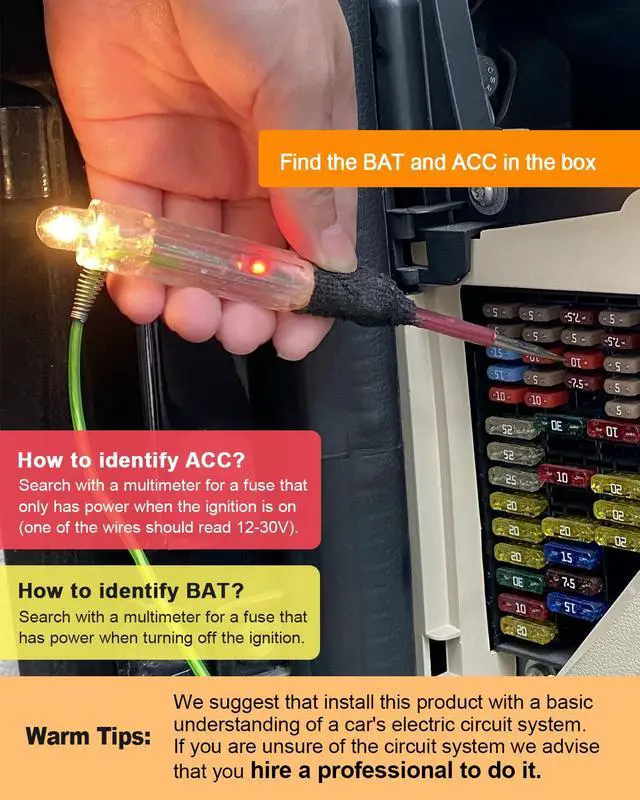

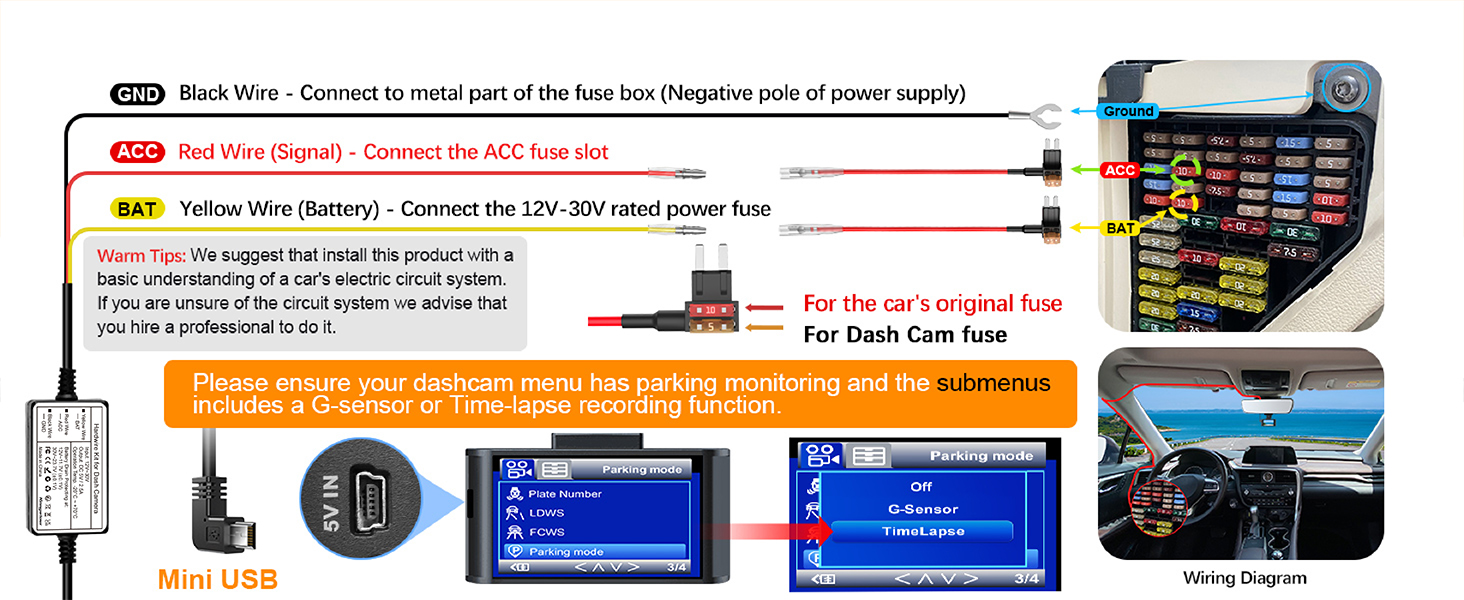

How to identify the ACC & BAT?
Please ensure the red, yellow, and black wires are properly connected before connecting the car camera for the hardwire kit to work.
Why can't the dash cam be activated by plugging in the red wire (ACC)?
The red wire(ACC) is a signal wire and the yellow wire(BAT) is the power wire.
If only the red wire (ACC) is connected, the dash cam cannot be turned on because the ACC wire is a signal wire used to detect whether the car is started or turned off.
Why can't the dash cam be activated by plugging in the yellow wire(BAT)?
If only the yellow wire (BAT) is connected, the dash cam can boot directly, but there is no signal to prove that the car is turned off, so the parking monitoring function of the dash cam cannot be activated.
Why doesn't it work after a period of use?
The Hardwire Kit comes with a sensitive voltage sensing switch, it will monitor the car battery voltage in real-time.
Once the voltage is lower than 11.7V or 23.7V, it will cut the power supply, leaving enough power to ignite the engine.
Range Tour, Your Reliable Driving Partner!

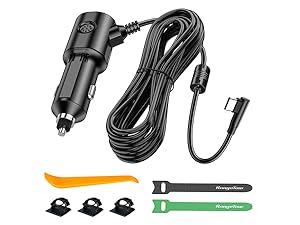

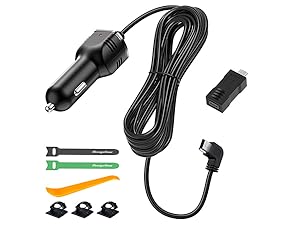

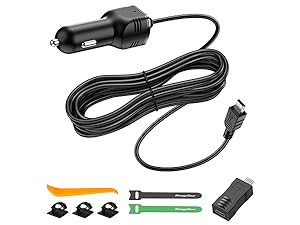

 Dash Cam Car Charger Mini USB |  Dash Cam Car Charger USB-C |  Dash Cam Car Charger Mini USB |
|---|---|---|
Interfaces Mini USB and Micro USB, L-Type | Interfaces USB-C, L-Type | Interfaces Mini USB and Micro USB, I-Type |
Output DC 5V / 3A | Output DC 5V / 2.5A | Output DC 5V / 2A |
Length 4m/13.12ft | Length 3.5m/11.5ft | Length 3.5m/11.5ft |

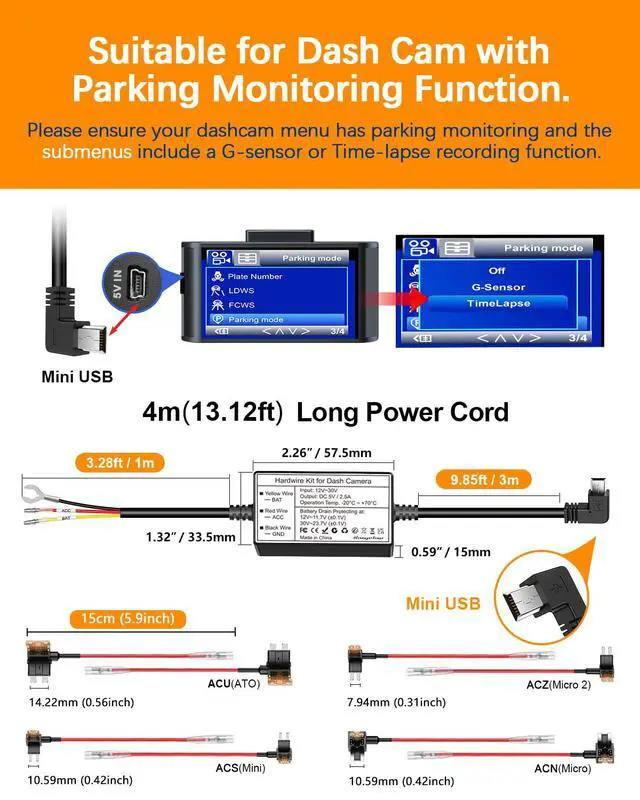

First, make sure your dash cam supports parking mode.
If the voltage drops below a configurable cut-off level, the device will automatically shut down to prevent the vehicle battery from being drained by the dashcam when the battery voltage drops to 11.7V or 23.7V.
Range Tour Dash Cam Hardwire Kit Mini USB Port, 5V/2.5A (also suitable for 1-2A)

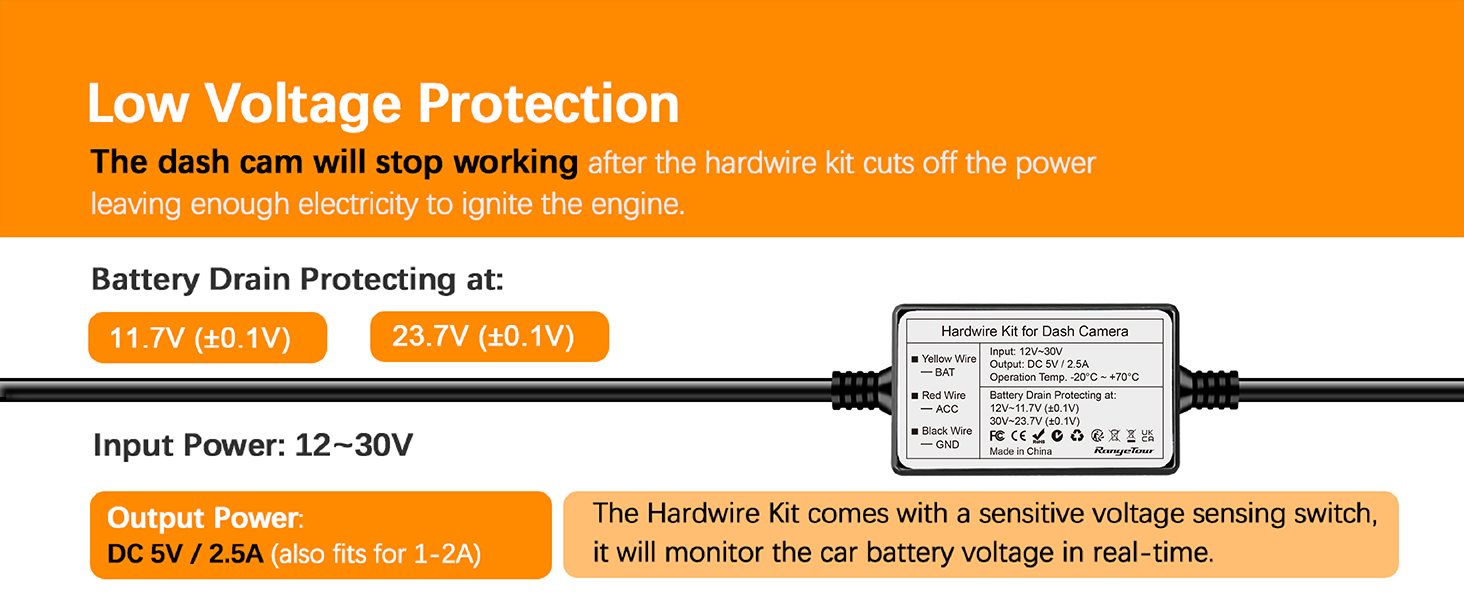

Low Voltage Protection
Once the car battery voltage is lower than 11.7V or 23.7V, it will cut the power supply, leaving enough power to ignite the engine.

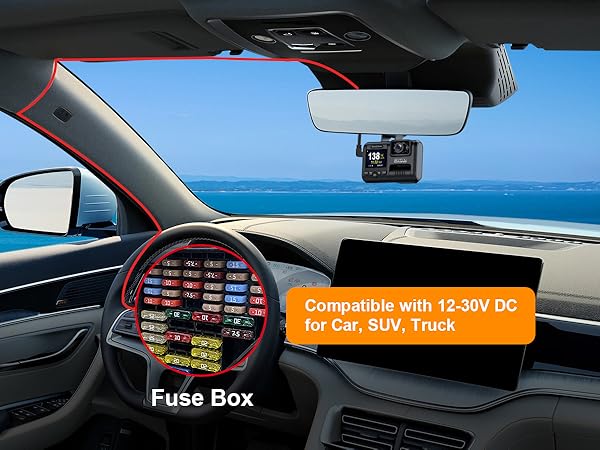

High Compatibility
Suitable for most vehicles, including SUVs, cars, trucks, and buses, Vans.

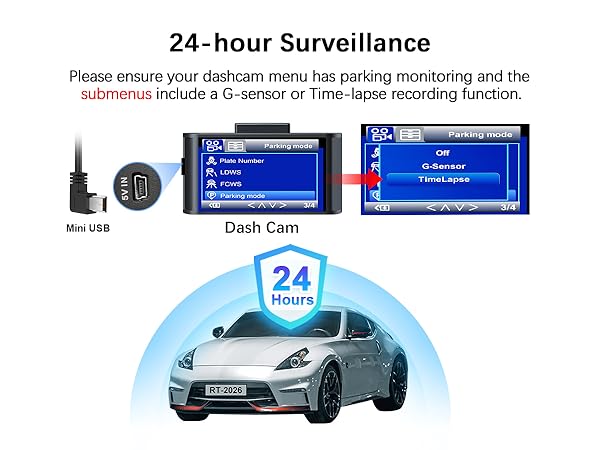

24 Hours Surveillance
Please make sure your dashcam supports the 3-core (BAT / ACC / Ground) 24-hour Time-Lapse parking mode function on camera settings.
Select Time-Lapse Parking Mode
Dashcam captures and records footage at 1fps per second to conserve memory, allowing for continuous surveillance of a parked vehicle.
Troubleshooting Videos
Troubleshooting 1

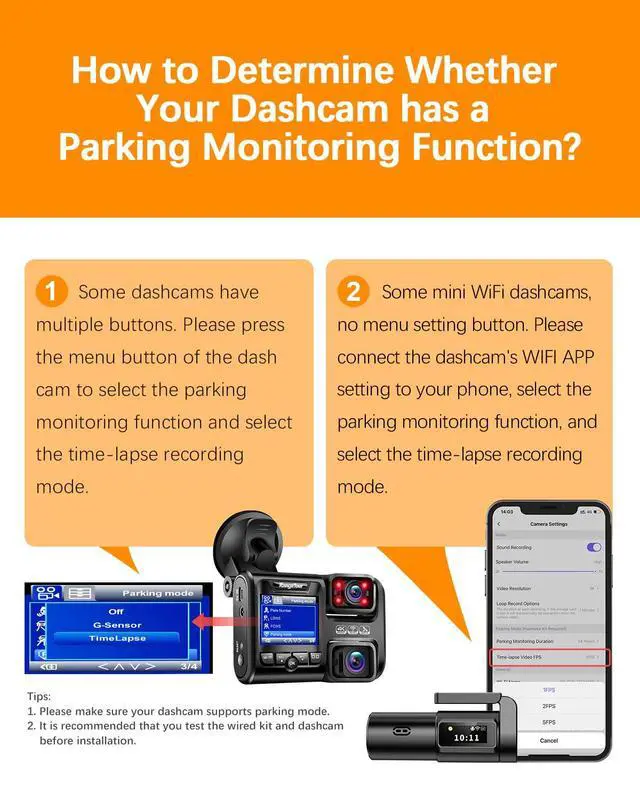

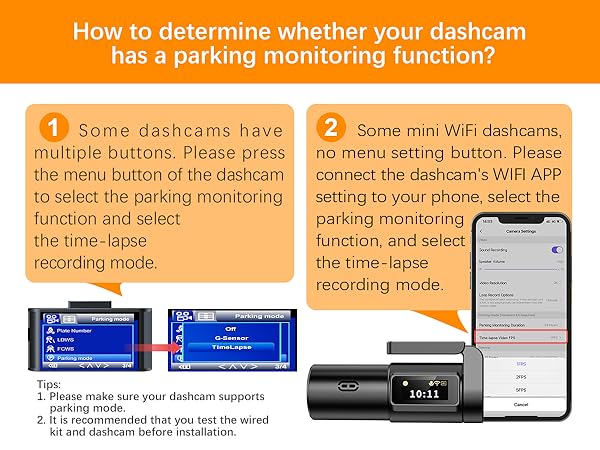

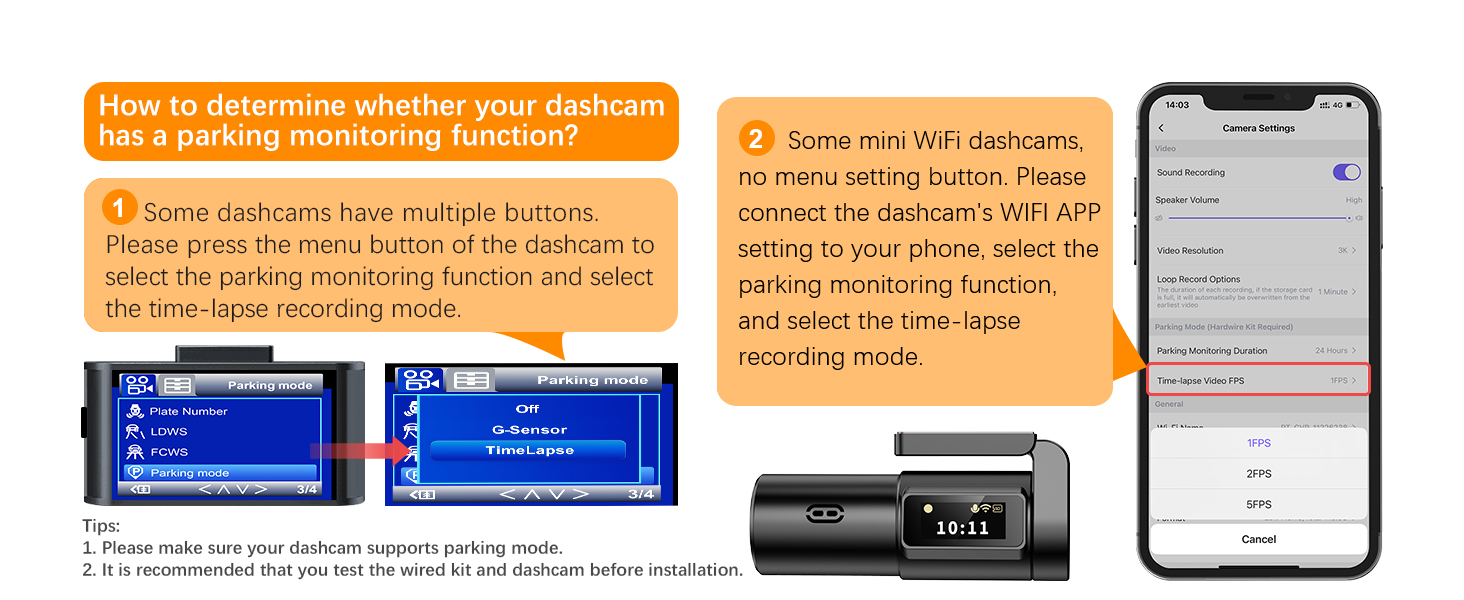

How to determine if the dash cam has a parking monitor function?
Make sure your dash cam has parking monitor function in the dash cam settings menu, otherwise do not purchase this hardwire kit.

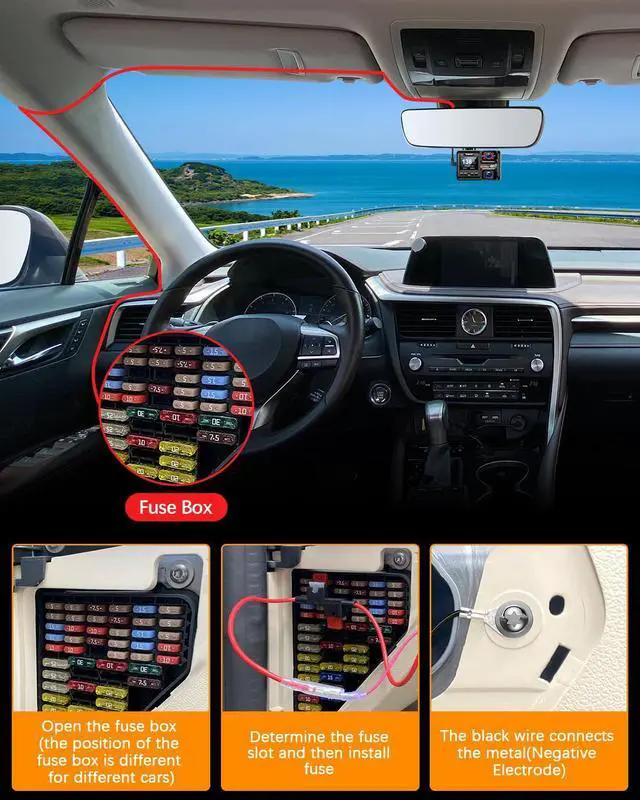

Make sure the red, yellow and black wires are properly connected before connecting the car camera for the hardwire kit to work.
Troubleshooting 2
Why did the dash cam stop working after a period of use?
When the car voltage is lower than 11.7/23.7V, the dash cam stops working, leaving enough power to start the engine.

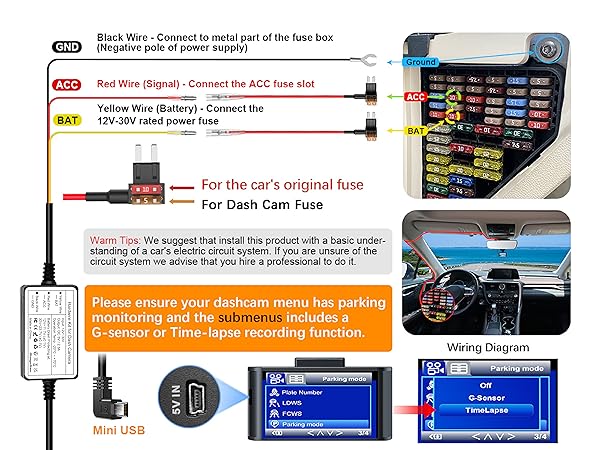

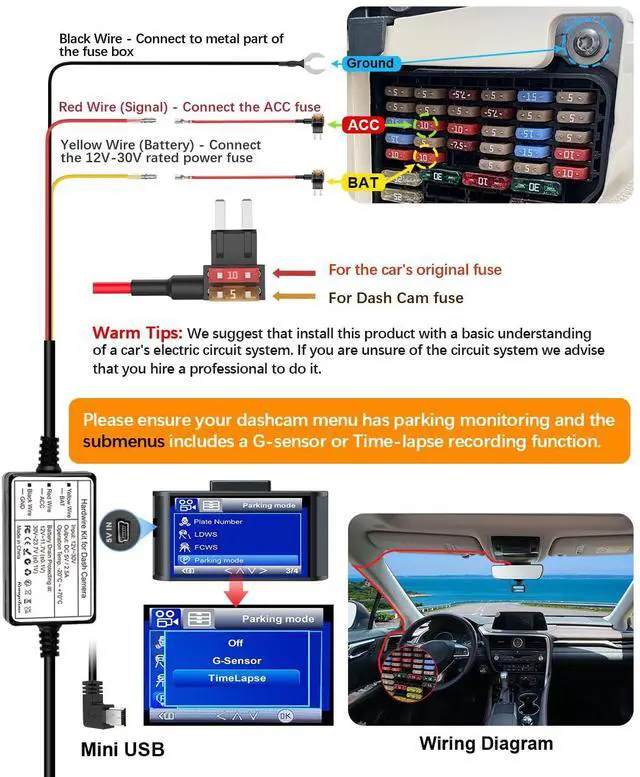

How to identify the ACC & BAT?
Please ensure the red, yellow, and black wires are properly connected before connecting the car camera for the hardwire kit to work.
Why can't the dash cam be activated by plugging in the red wire (ACC)?
The red wire(ACC) is a signal wire and the yellow wire(BAT) is the power wire.
If only the red wire (ACC) is connected, the dash cam cannot be turned on because the ACC wire is a signal wire used to detect whether the car is started or turned off.
Why can't the dash cam be activated by plugging in the yellow wire(BAT)?
If only the yellow wire (BAT) is connected, the dash cam can boot directly, but there is no signal to prove that the car is turned off, so the parking monitoring function of the dash cam cannot be activated.
Why doesn't it work after a period of use?
The Hardwire Kit comes with a sensitive voltage sensing switch, it will monitor the car battery voltage in real-time.
Once the voltage is lower than 11.7V or 23.7V, it will cut the power supply, leaving enough power to ignite the engine.
Range Tour, Your Reliable Driving Partner!
