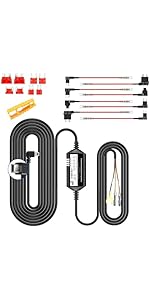

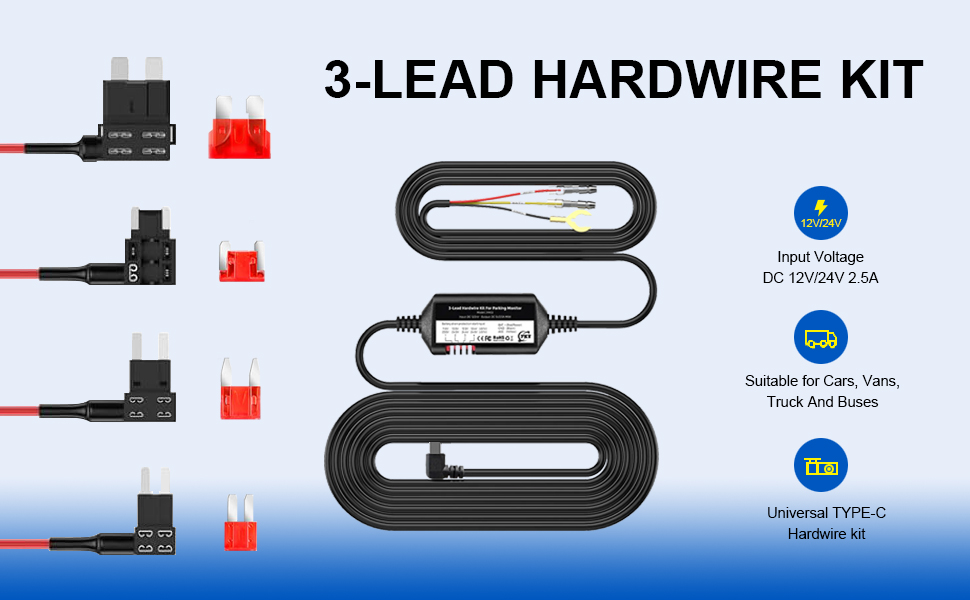

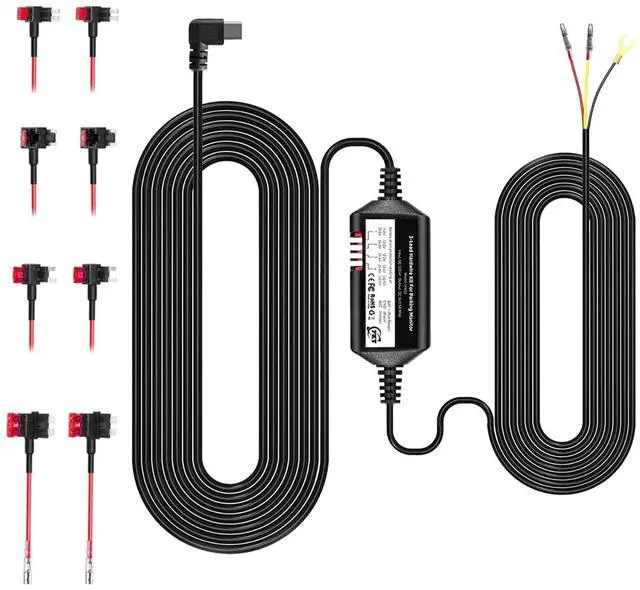

Dash Cam Hardwire Kit, 12ft Acc Hardwire Kit for Dash Camera Type C 3-Lead Hard Wire Kit 12V-24V to 5V with Low Voltage Protection Car Dash Camera Charger Power Cord for Dashcam Radar Detectors

1. The 3-Lead Hardwire Kit is a power management device that provides power to your dashcam from your car's battery via fuse box to keep your dashcam continuously running even after your engine is turned off to utilize the 24-hour Parking Monitor feature.

2. Automatically detects voltage input whether your vehicle is running DC 12V or 24V.

3. It is compatible with most dash cameras available in the market with a TYPE C power connector.

4. The Hardwire Kit will monitor your voltage status and cut-off the power to the dashcam if the voltage drops below the con?gured value more than 8 seconds. And reserves enough power so you can start your car for the next time.

5. You have four different con?guration choices that you can select when you want the power to be disconnected to the dash cam when the battery’s voltage reaches a certain level.

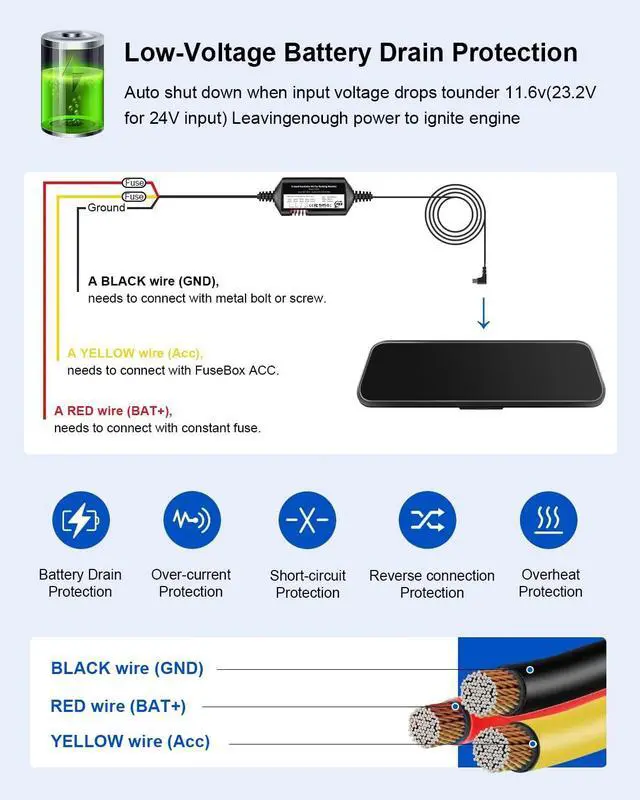

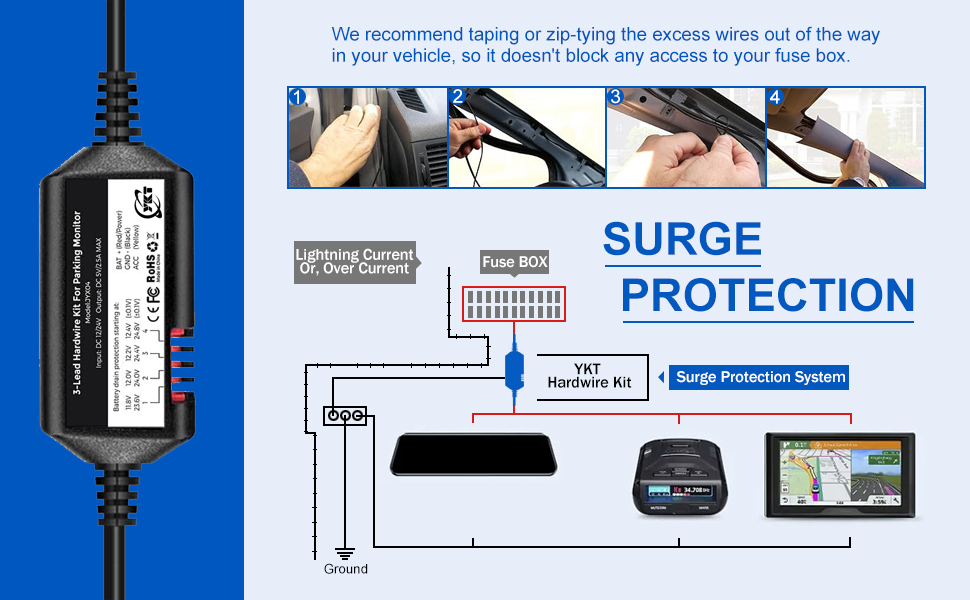

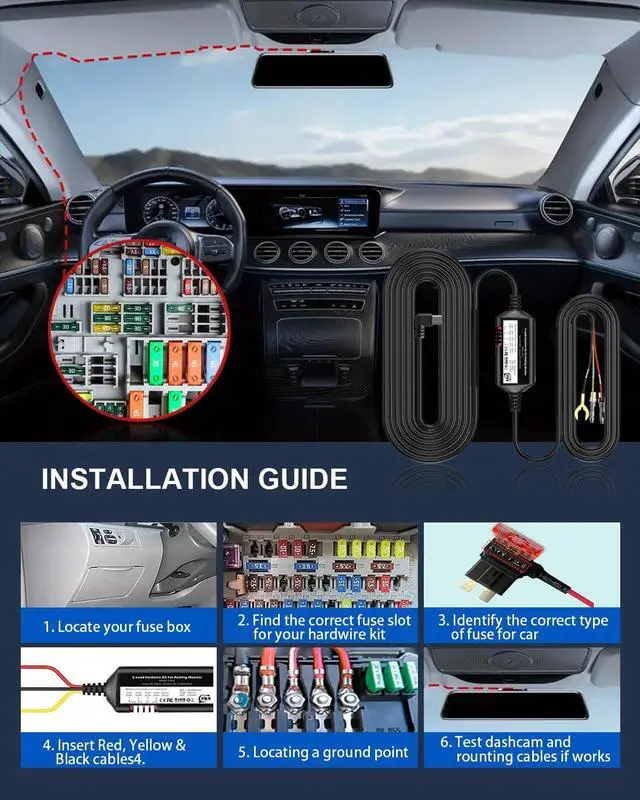

Hard-wire kits, there are 3 wires that need to be connected:

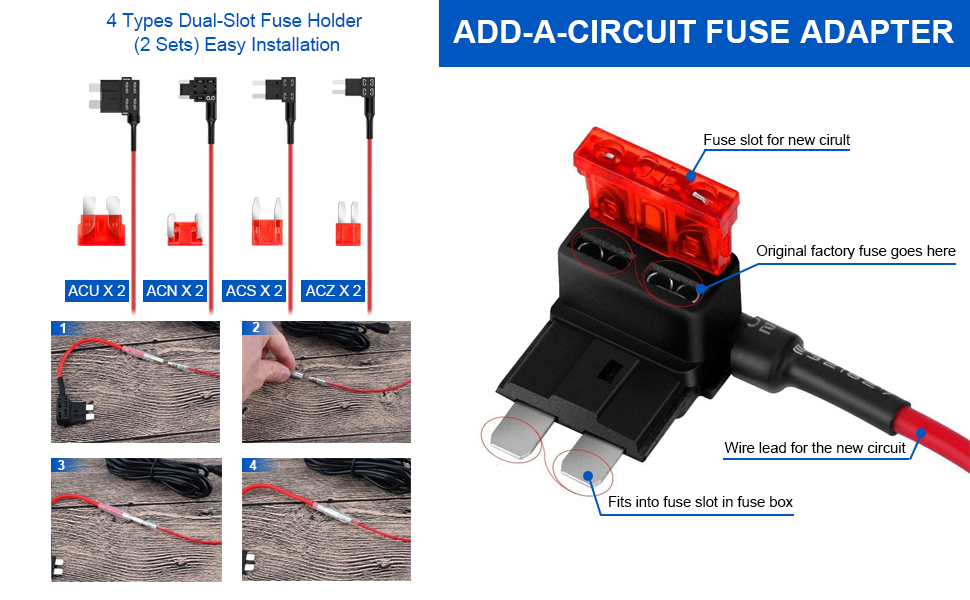

A RED wire (BAT+), needs to connect with constant fuse, which can provide power to dash cam even when the vehicle is off.

A YELLOW wire (ACC), needs to connect with Fuse Box ACC, which can make the dash cam auto power on&off when the vehicle is on&off.

A BLACK wire (GND), needs to connect with metal bolt or screw, which can prevent electric shock.

Please connect the red wire to always powered, the yellow wire to ACC, and the black wire to ground.

If the hardwire kit is connected correct, find the "Park" menu in the menu, press OK to select connected, tick parking monitoring, and press the menu button to exit and save the settings

Once the car turns on ACC, dash cam will automatically turn on, and once the car turns off, the camera will enter Time-Lapse Parking Mode.

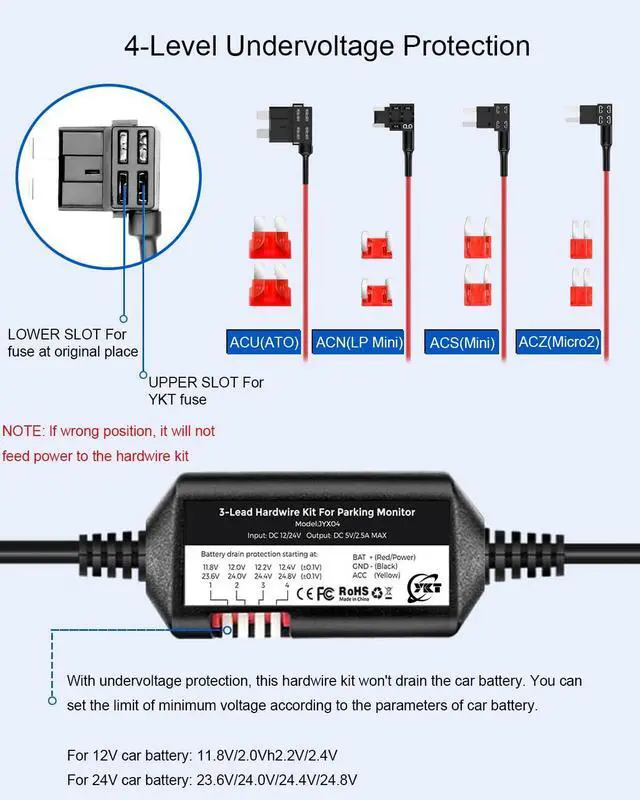

Four Options of Low Voltage Protection:

Reverse connect protection

Short circuit protection

Overload protection

Overtemperature protection (protection circuit over 130?, return to normal when it drops to 90?).

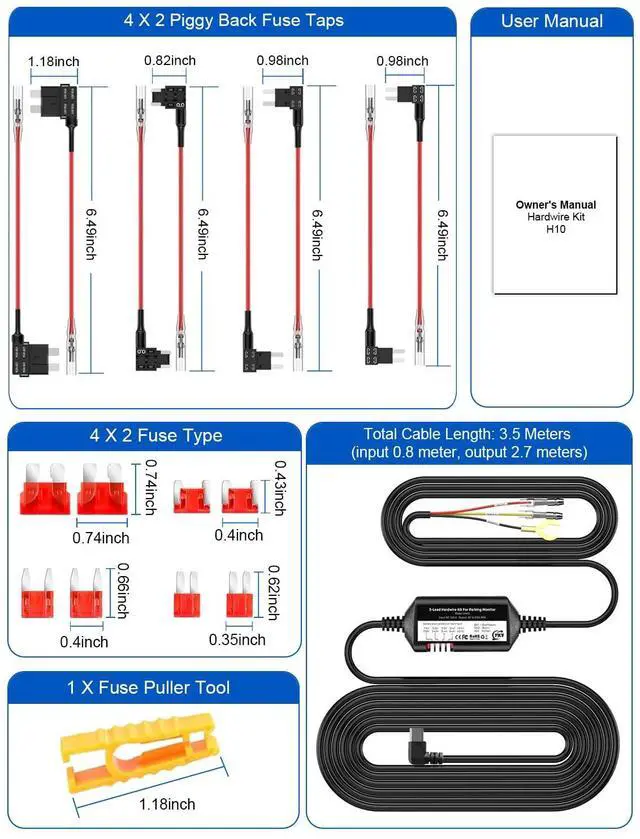

Total Cable Length: 3.5 Meters (input 0.8 meter, output 2.7 meters)

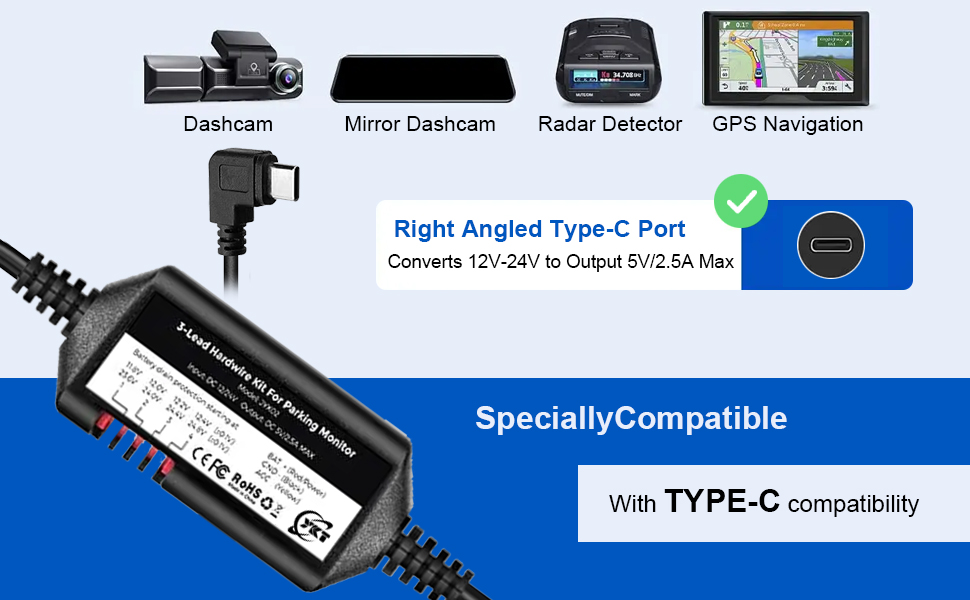

Output Connector: Right Angled TYPE C plug, DC 5V, 2.5A

Working temperature: -20? to 90?

For 12V Battery: 11.8V 12.0V 12.2V 12.4V

For 24V Battery: 23.6V 24.0V 24.4V 24.8V

Note:

If you press at the same time to select 2 or more options, or do not select the voltage option, this default voltage cut-off is 11.8VDC for a 12VDC battery and 23.6VDC for a 24VDC battery. 12.2V or 24.4V recommended for most users in general driving conditions.

NOTE:

Make sure to test and identify the minimum necessary battery voltage you will need to start your car for the next time before you set to the lowest setting.

We recommend that you start with the highest setting, and then test and press only one voltage option in sequence to ?nd the suitable battery voltage that will give you enough battery power left over to start your car for the next time.
