All Types of Dashcam Hardwire
How we start?
We start with a dashcam accessories supplier, and we decided to develop the dashcam hardwire kit with more functions to meet customers' new requirements, and we started to do so.
Why the hardwire kit cannot cut off power when engine is off?
Because nowadays many vehicles have the start/stop function, the hardwire kit has the time delay function to keep the power supply when engine is for a temporary stop
Why the hardwire kit is not compatible with all brand dashcams?
Because the Type-C uses a different ACC signal port than others (A5-B5 or A8-B8) it may cause not compatible issue.

DASH CAMERA HARDWIRE KIT

DASHCAM HARDWIRE FEATURES:

2 Power ModeS: ACC or 24 Hour Parking Mode

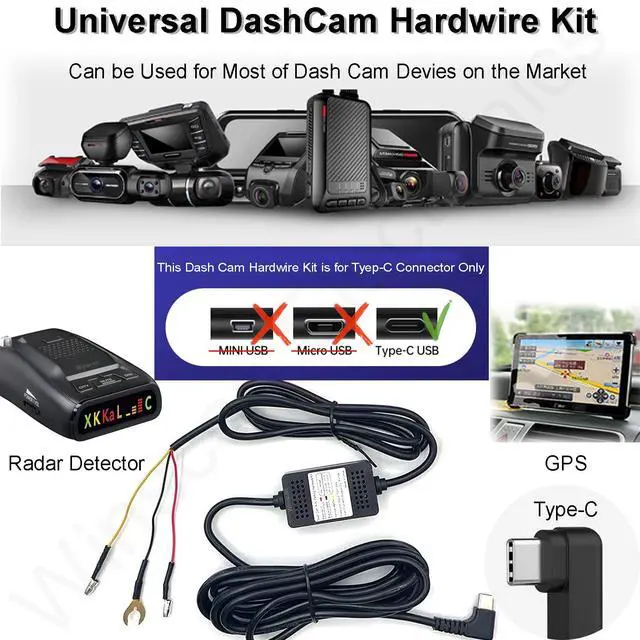

Compatibility: Compatible with most of the dash cameras for 12-24V vehicles

Low Voltage Protection: Automatically power off voltage 11.6V.

IMPORTANT NOTE:

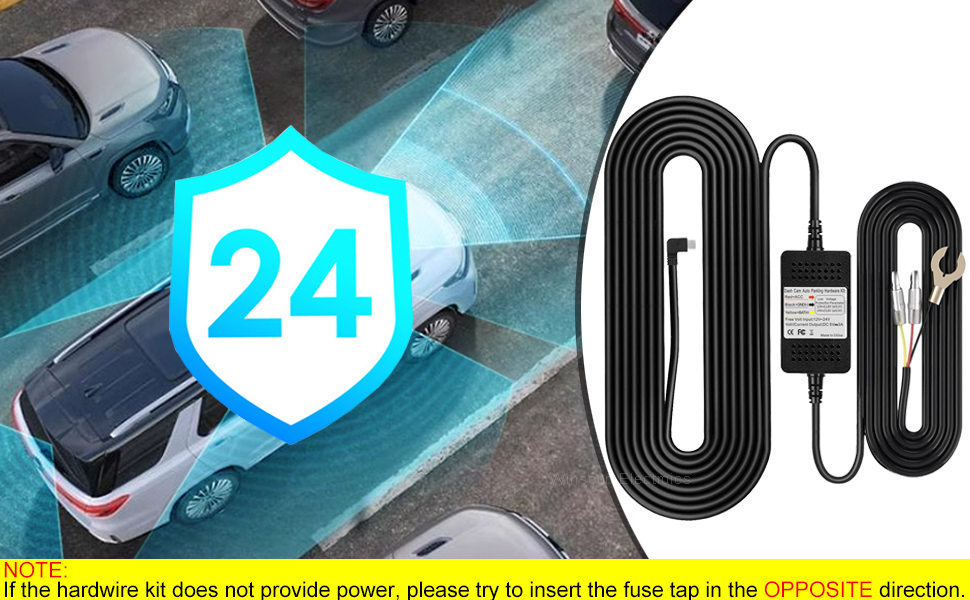

If the hardwire kit does not provide power, please try to insert the fuse tap in the OPPOSITE direction.

(Due to the car fuse slot having positive and negative poles)

PARKING SURVEILLANCE DASH CAM HARDWIRE KIT SPECIFICATIONS:

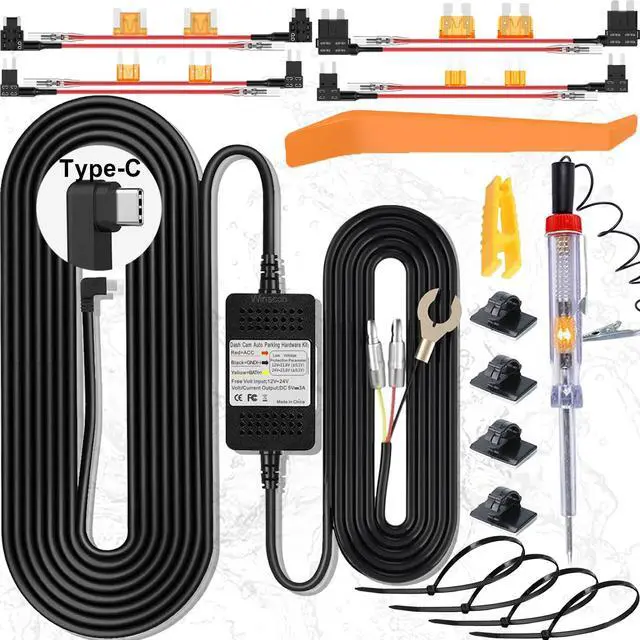

Connector: USB Type-C
Input Voltage: DC 12V-24V
Output Voltage: 5V
Output Current: 3A
Working Temperature:-40~ 160 Degrees F

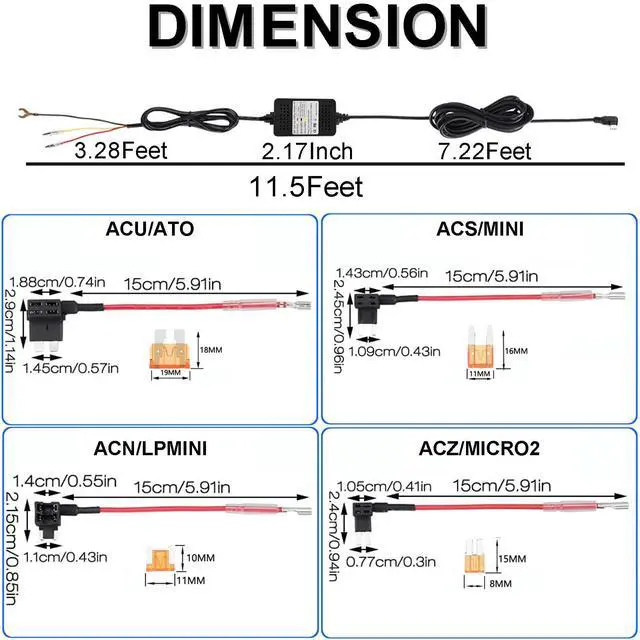

Cable Length: 11.5ft/3.5m
Low Voltage Protection: 11.6V for 12V; 23.5V for 24V vehicle.

HARDWIRE KIT INSTALLATION STEPS:

Dashcam hardwire Kit OBD 1

1. Use your owner’s manual to identify the location of the internal fuse box. This is normally found by the foot well on the driver’s side of your vehicle or under the engine hood.

OBD dashcam hardwire 2

2. Open the fuse box cover plate to find the fuse map. Locate the Fuse Box and find a Constant Fuse Slot, or ACC Fuse Slot(for NOT USE 24/7 Surveillance Mode).

3. Remove the fuse from the constant fuse slot and insert it into the bottom slot of the fuse tap we provide the same size.

Use the circuit test pen to identify the positive pole of the fuse slot.

dashcam hardwire Kit OBD 3

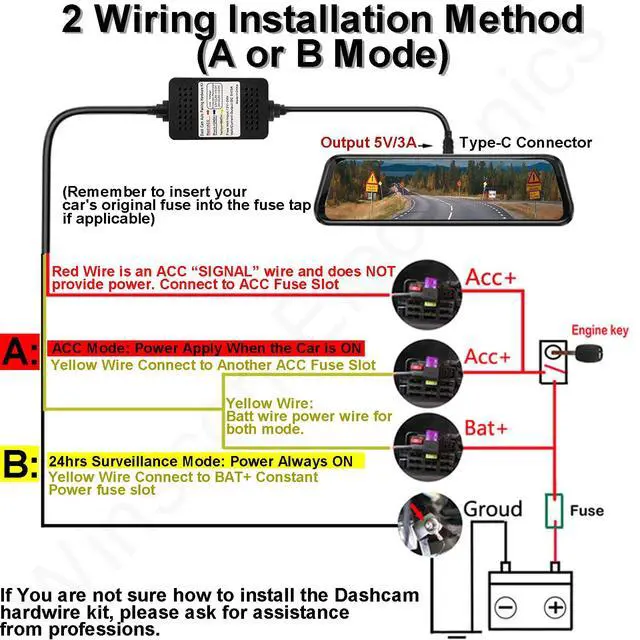

4. Connect the Yellow LINE to the positive pole of the constant fuse slot, or ACC Fuse Slot(for NOT USE 24/7 Surveillance Mode).

5. Connect the RED LINE of the hardwire kit to the positive pole of the ACC fuse slot in the fuse box. ACC fuse slot energizes only when the ignition switch is on. (IMPORTANT:Remember to insert your car's original fuse into the fuse tap if applicable.)

6. IMPORTANT: If the hardwire kit does not provide power, please try to insert the fuse tap in the OPPOSITE direction.

OBD dash cam hardwire kit 4

7. Connect the Black Wire(Ground Wire) and screw connect it to any non-coated metal bolt.

OBD dash camera hardwire kit cable 5

8. Before hiding the charger cable, connect the power cable to Dash Cam to make sure the device can be powered on and work normally.

IMPORTANT: If the hardwire kit does not provide power, please try to insert the fuse tap in the OPPOSITE direction. (Due to the car fuse slot having positive and negative poles)

Dash cam hardwire charger 6

9. Wire and hide the extra dash cam power charging cable, and connect it to the onboard dash cam or other devices, then the installation is completed.
