2 Wired Rear View Backup Camera System, 10" 1080P Monitor IP69K Waterproof Vibration-Proof 10G Reverse Camera, Quad Split Screen for Tractor, Truck, Trailer, Combine, Heavy Equipment, BH102

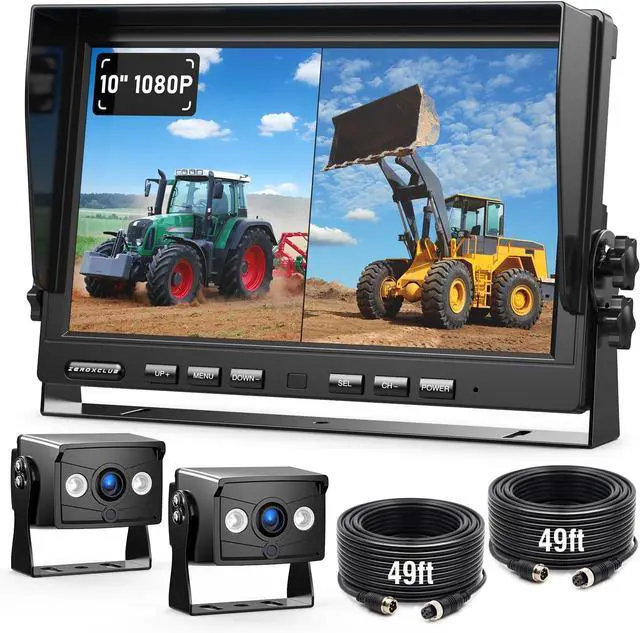

Upgraded Wired Backup Camera System: This wired backup camera system includes a 10 inch monitor and 2 wired backup cameras. The system features 10G high vibration resistance, suitable for large vehicles such as farm tractors, combines, cotton pickers, farm sprayers, bulldozers, trucks, RVs, trailes, skid steer loaders, snowplows, forklifts, excavators, heavy equipment, etc.
Suitable voltage range: DC 12V-24V.
10";

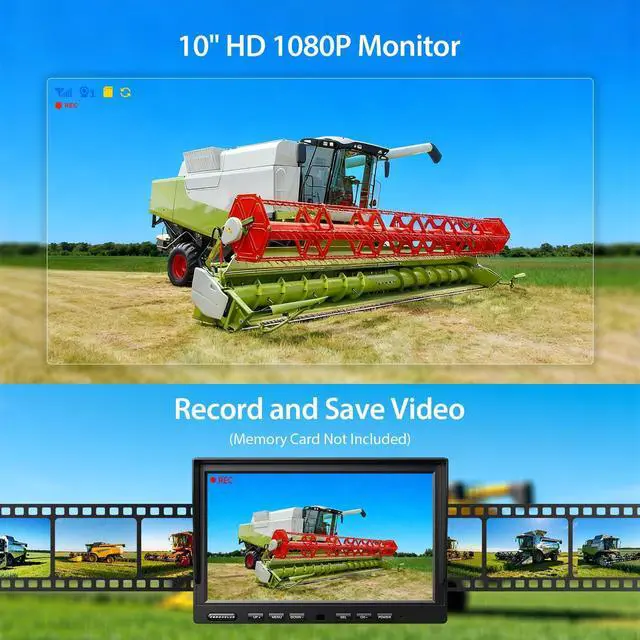

HD 1080P Monitor: The large 10.1 -inch screen can display images in HD1080P resolution with a clearer detail view. You can insert a memory card (not included) and then the system can be used as a dash cam with video recording capabilities.
Supported memory card types: 32GB128GB Micro SD card.
Monitor size: 10.1 (W) * 6.5 (H) inch.
Rear Camera size: 2.3 (W) * 2.5 (H) inch.
Quad-Split Monitor with P-Line: The rv backup camera system supports up to 4 cameras, which could be setup for dual/triple/quad screen for multiple cameras monitoring at the same time. Features parking guide lines for easier and more convenient parking. If you would like to learn more about the installation and operation of the wired backup camera system before purchasing, you can contact us for installation instrutions.

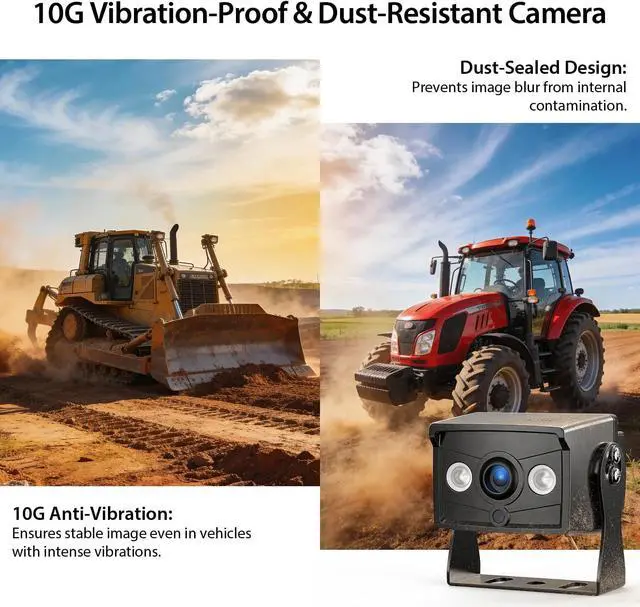

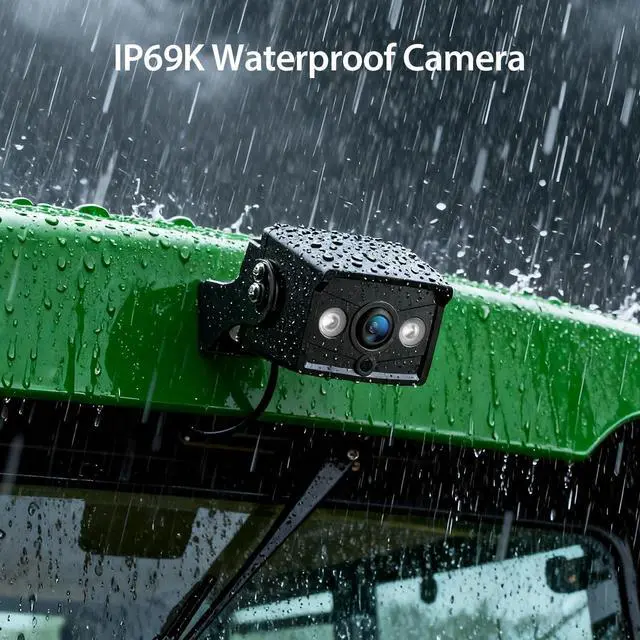

10G Vibration-proof Heavy Duty Camera: The camera features 10G vibration resistance, ensuring it delivers stable images continuously even when installed on vehicles experiencing severe vibrations. With IP69K waterproof standard, the wired rear view camera can work in extreme weather. No water ingress or fogging issues. The system comes with 2 wired rear view cameras, if you want to add additional cameras, please contact us to purchase separately.
Easy Installation: The system supports two display modes: continuous monitoring mode and reverse mode. Please connect the Yellow wire to the positive power source (DC 12-24V), the Red wire to ACC, and the Black wire to negative / ground. Connect the trigger wire (green wire) to the reverse light. When reversing, the camera will automatically turn on and display the reverse view on the screen. After reversing, the screen will return to the pervious mode.
