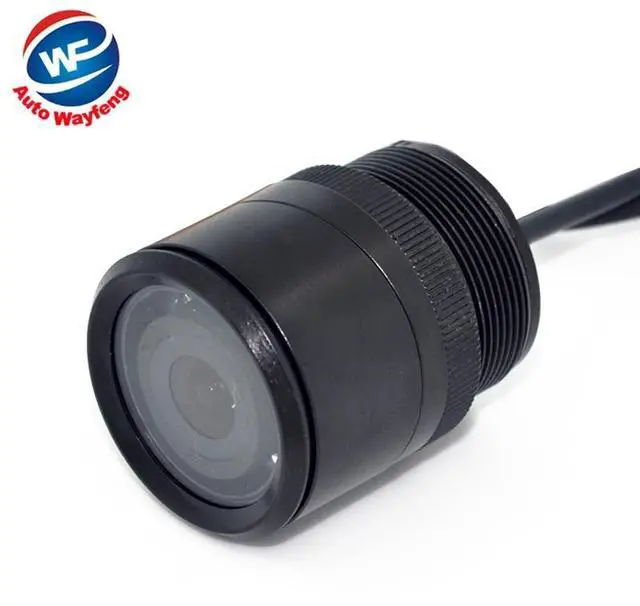

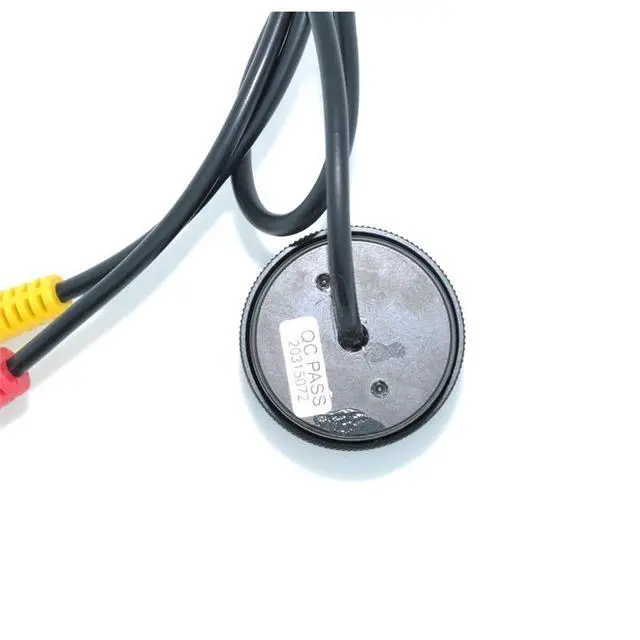

28MM CCD Car Rear View Camera rearview parking Wide Angle Universal Auto Parking Camera Reverse backup Camera

28MM HD CCD Car Rear View Camera Rearview Parking Wide Angle Waterproof Universal Auto Parking Camera Reverse Backup Camera

All our car cameras will be tested 100% before sending to you .

Specification:

Image sensor: 1/4 "color CCD.

TV: NTSC & PAL

illumination. <0.1

AGC: Auto

blc: cars

White Balance: Auto

Video: bright colors

728x512 effective pixels.

Resolution: 480TV lines

Video output: 1.0vp-p, 75

Electronic shutters: 1/60 (NTSC) - 1 / 10.000, 1/50 (PAL) - 1 / 10.000

S / N: better than 48db

Lens Angle: 170 degrees

From the class: IP 68

Operation temperature: from - 20 ° C + 80 ° C RH95%

Storage temperature: - 30 ° C + 80 ° C

Working power (DC): 12V

Current consumption: 90ma max

For television systems of the machine, a rear view camera.

Usually monitors support NTSC and PAL TV systems. so do not importand the car cameras have NTSC or PAL. Please confirm that if the monitors can support NTSC or PAL. If your monitor only can support NTSC, or a friend, please leave us a message which TV you one business day after you make the payment. If not. We will send the car camera with the TV system to our customers at random.

How to install:

Fix the camera to a special design hole in your car.

Connect the built-in license plate light of the camera, where the stock license plate Light was connected to get the power

Connect the power to the camera car reverse lights - red wire to positive and negative black wire.

Video cable to connect the camera to the extension cord.

Connect an extension cord to the machine monitor.

You will see the images when your car is on the reverse transition.

=> Your stock license plate light at the car

=> Set the camera where the stock license plate light.

=> You will see the images when your car is on the reverse transition.

Package includes:

1 x CCD chip car rear camera

1 x 6 videos.

1 x power supply cable

1 x User
