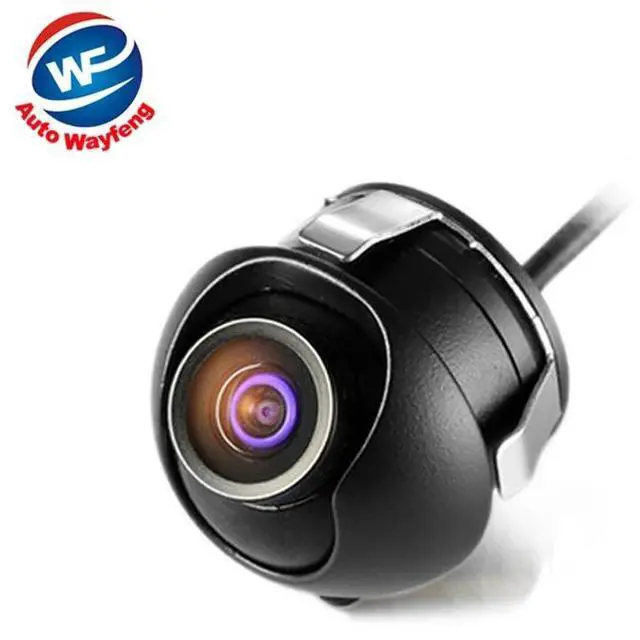

HD CCD Night Vision Car Camera for Front, Rear & Side Monitoring

Image Sensor: 1/4-inch Color CCD

Video System: NTSC / PAL Optional

Minimum Illumination: <0.1Lux

AGC: Auto

BLC: Auto

White Balance: Auto

Video Output: Color vivid signal

Effective Pixels:728×512

Resolution:480TVL

Video Signal:1.0Vp-p, 75

Electronic Shutter:

NTSC: 1/60 ~ 1/10000s; PAL:1/50 ~1/10000s

S/N Ratio: 48dB

Waterproof Grade: IP68

Operating Temp: -20~+80, RH95%

Storage Temp: -30~+80

Working Voltage: DC12V

Max Current Consumption:90mA

Most car monitors support both NTSC and PAL. If your monitor only works with one system, leave us a message within one working day after payment, otherwise we will ship camera system randomly.

1. Mount camera on reserved mounting hole of license plate position.
2. Tap power from original license plate lamp wiring.
3. Connect red wire to positive pole of reverse lamp, black wire to negative pole.
4. Link camera video cord with extension cable then connect to car monitor.
5. Rear view image displays automatically when shifting into reverse gear.

Quick Install Steps:

1. Remove original vehicle license plate lamp
2. Install camera at the original lamp position
3. View real-time image after engaging reverse

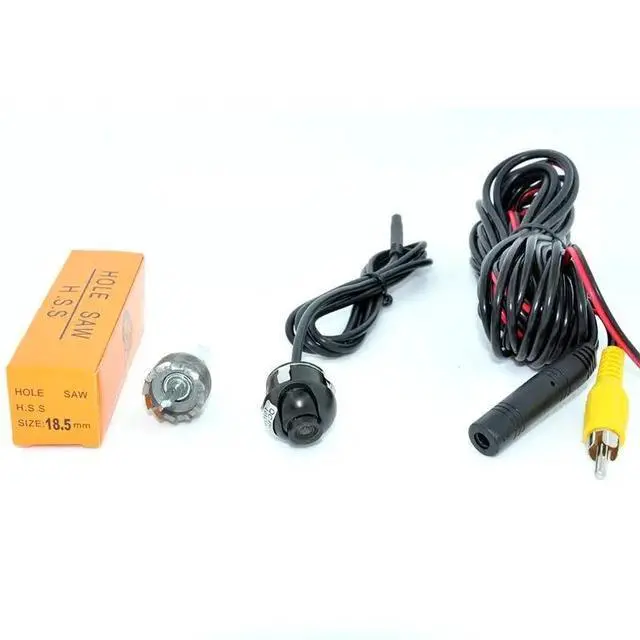

1 × CCD Car Camera

1 × 6m Video Cable

1 × Power Cord

1 × User Manual

1 × 18.5mm Drill Bit
