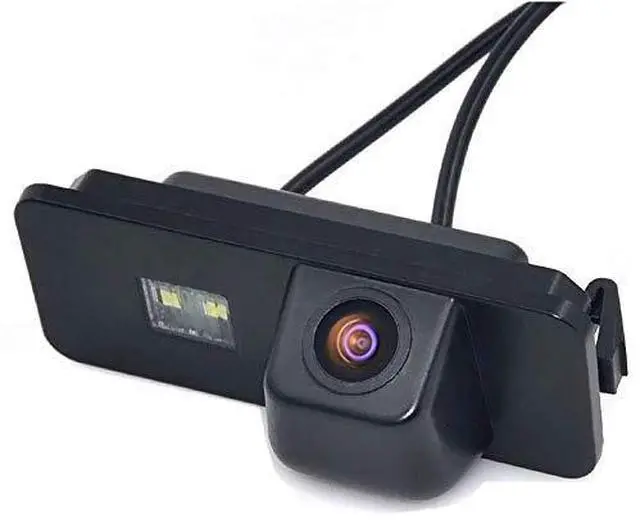

Car Rear View Backup Safety Camera for VW Golf, CC, Passat, Polo, Scirocco, EOS, Lupo (2-door), Phaeton, Beetle, SEAT Variant

Compatible Vehicles: VW Golf, CC, Passat, Polo, Scirocco, EOS, 2-door Lupo, Phaeton, Beetle, SEAT Variant

1. Dedicated mould design, perfectly fit the original car mounting position, no drilling or modification required for simple plug-and-play installation.
2. Adopts high-quality 1/4 inch color CCD image sensor, delivering clear, delicate picture with true color reproduction day and night.
3. Built-in high-sensitivity optical lens, outstanding low-light performance, clear image even in dim parking environments.
4. Fixed NTSC video signal, widely compatible with most mainstream car navigation, head unit and rearview mirror monitors on the market.
5. Stable signal output, low power consumption, long service life, shock-resistant structure to adapt to complex road driving conditions.
6. Compact mini size, hidden installation without destroying vehicle interior appearance, neat wiring layout.

1. Image Sensor: 1/4 inch color CCD
2. TV System: NTSC
3. Effective Pixels: 728 × 512
4. Resolution: 520 TV lines
5. Video Output: 1.0Vp-p, 75
6. Electronic Shutter: 1/60 ~ 1/10000s
7. Working Voltage: DC 12V
8. Max Current Consumption: 90mA
9. Operating Temperature: -20°C ~ +80°C, RH 95% Max

1. Install the camera at the original license plate lamp position of your vehicle.
2. Fine-tune the lens angle to get the best rear view field.
3. Connect red and black power wires to car reverse light power supply.
4. Link the yellow video cable to your car display host.

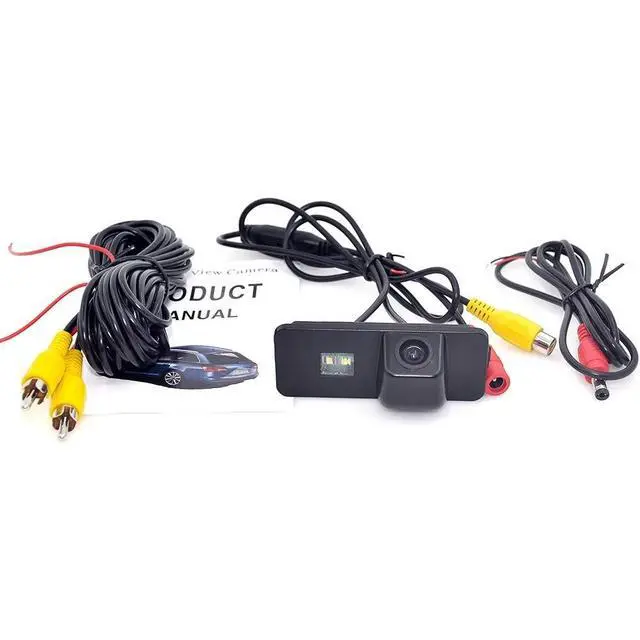

1 × Special CCD rear view camera

1 × 6m video extension cable

1 × power connecting wire

1 × user manual

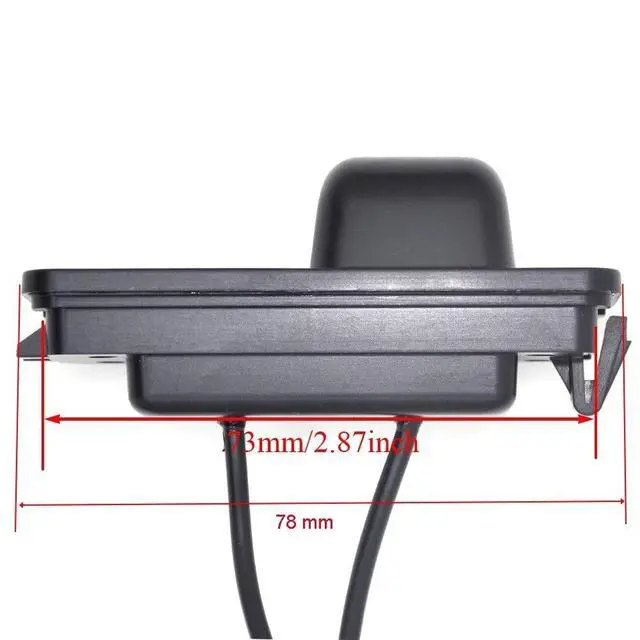

Vehicle versions from different regions have tiny size differences. Please measure your mounting position size before ordering to avoid mismatching. All cameras will undergo strict function testing before shipment to guarantee good working condition.
