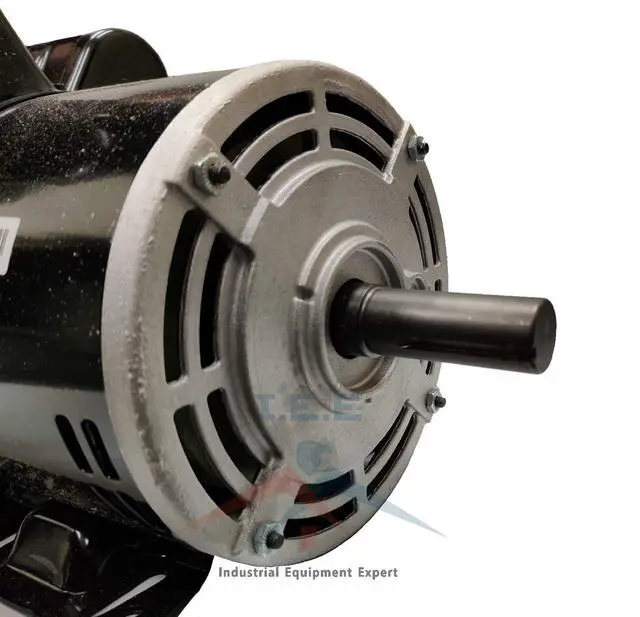

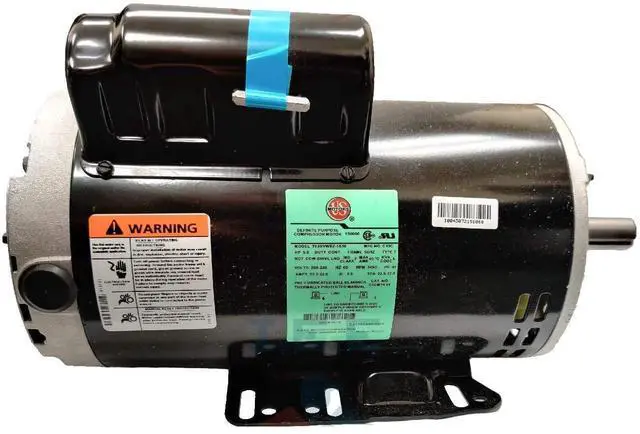

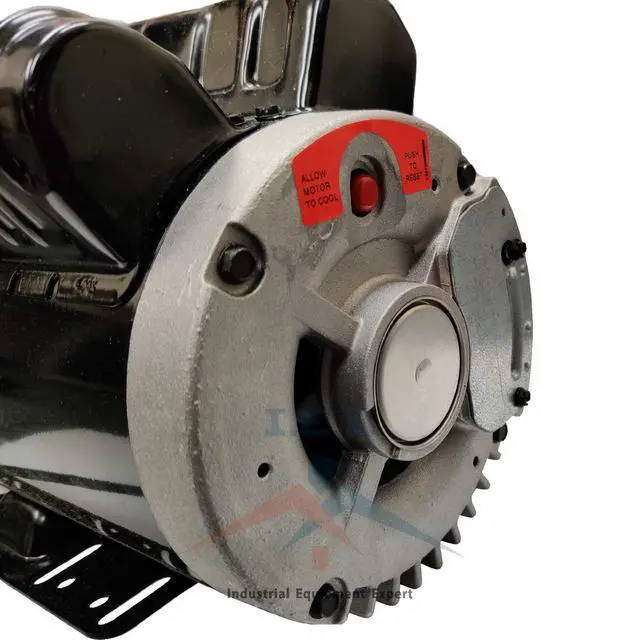

5 HP Electric Motor, 3450 RPM, 1 Phase, 56 Frame, 7/8" Shaft
- High Performance Motor Specifications: 5 HP Definite Purpose Special Compressor Duty motor operates at 208-230 VAC with 22.5-22 Amps current draw and 3450 RPM speed for dependable performance. Single Phase Design: 1 Phase motor featuring counterclockwise rotation and a 1.0 service factor, engineered specifically for continuous duty compressor applications. Robust Construction Features: Ball bearings with an ODP (Open Drip Proof) enclosure offering protection while ensuring adequate ventilation. Standard Frame and Mounting: 56 Frame size with a base mount configuration measuring 11-1/4 inches by 6-1/2 inches by 6-1/2 inches for straightforward installation. Precise Shaft Dimensions: 7/8 inch diameter shaft extending 2-1/4 inches with a 3/16 inch keyway for secure coupling to compressor equipment
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High Performance Motor Specifications: 5 HP Definite Purpose Special Compressor Duty motor operates at 208-230 VAC with 22.5-22 Amps current draw and 3450 RPM speed for dependable performance. Single Phase Design: 1 Phase motor featuring counterclockwise rotation and a 1.0 service factor, engineered specifically for continuous duty compressor applications. Robust Construction Features: Ball bearings with an ODP (Open Drip Proof) enclosure offering protection while ensuring adequate ventilation. Standard Frame and Mounting: 56 Frame size with a base mount configuration measuring 11-1/4 inches by 6-1/2 inches by 6-1/2 inches for straightforward installation. Precise Shaft Dimensions: 7/8 inch diameter shaft extending 2-1/4 inches with a 3/16 inch keyway for secure coupling to compressor equipment
