TEKS 1146000 Self-Drilling Screw, #12 x 4 in, Climaseal Steel Flange Hex Head

The TEKS - 1146000 is a Self-Drilling Screw designed for various industrial and commercial applications. Made from high-grade C1022 steel, this screw features an integrated drill point that could potentially penetrate some types of material without the need for pre-drilled holes. It's ideal for tasks such as metal fabrication, construction, assembly, and specifically suited for attaching accessories to steel framing, duct work to steel framing, retrofit framing, roof deck to steel framing and wall panel to girt.

• Drive: The External Hex drive requires a specific tool fitting (5/16 in) for installation or removal.
• Fastener Length: With a length of 4 inches, the screw may penetrate and help secure materials together depending on material properties.
• Finish: The Climaseal finish is intended to enhance durability and corrosion resistance while providing functional properties like improved grip during installation.
• Head Type & Size: The Flange Hex head type has a diameter of 0.415 in which can contribute to load distribution when fully inserted into materials.
• Screw Size: #12 size indicates its width and thread count per inch which determines secure fastening in industrial applications.

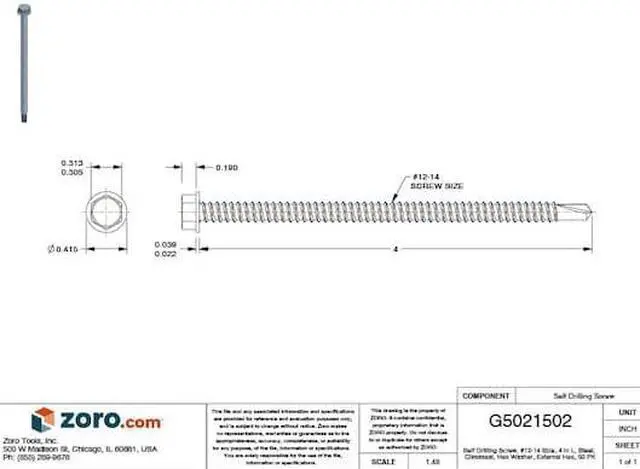

• CAD Available: A Computer-Aided Design (CAD) file is available allowing professionals to incorporate accurate dimensions into their project plans
• Material Compatibility: Intended primarily for use with metal materials; recommended maximum drilling thickness is 0.21 inches
• Standards Compliance: Adheres to ICC ESR-1976 standards indicating compliance with established technical specifications
