16AWG 16/2 2 Core Shielded Wire CNC Wire (30FT) UL2464 Tinned Copper Core 16 Gauge Cable Speaker Wire for CNC Router Machine, CNC VFD Spindle, Electrical Appliance, Transformer and 3D Printer,etc

Specification30ft 16AWG Gauge 2 conductor wire(Red & Black ).
Rated voltage: 300V.
Rated temperature: 80/176.
Cond. resistance: 14.6 /KM20, Insulation
resistance: 10M/KM20, Dielectric
test: 2000AC V/min.
Material: PVC+Tinned Copper+Aluminum

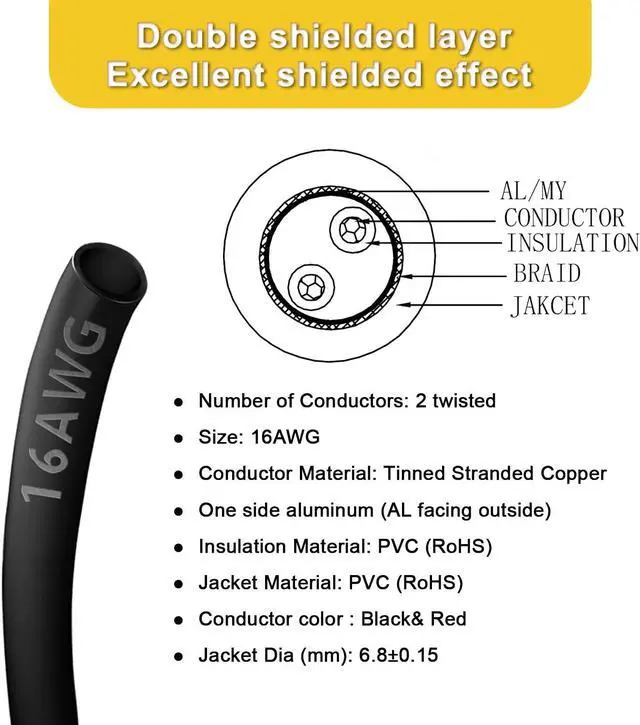

Excellent shielded effectThere are double shielded layers(Aluminim& tinned copper) to achieve premium shielded effect. The shielding layer can shield this electromagnetic field inside the cable. Shielded cables also serve as grounding protection: if there is damage to the core wire of the cable, the leaked current can flow along the shielding layer, such as the grounding grid. At this point, shielded cables serve as safety protection.

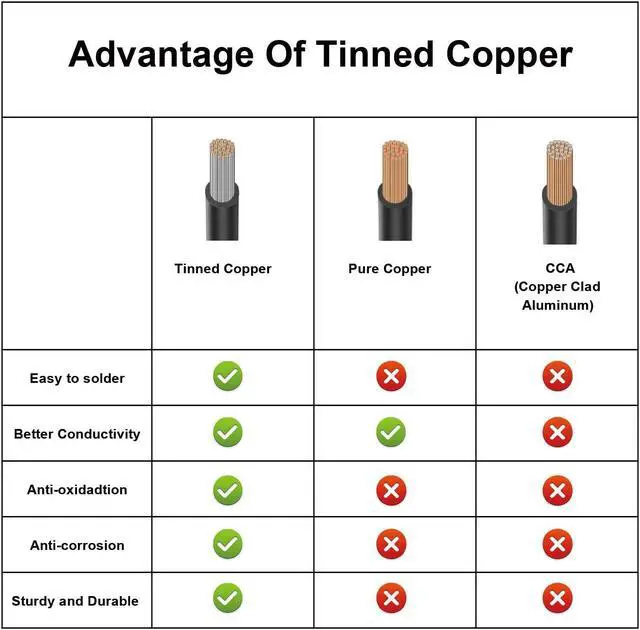

High ConductivityTinned copper not only has good electrical conductivity, but the tin coating also has the characteristics of strong corrosion resistance and oxidation resistance. It can greatly extend the service life comparing with ordinary copper wire. It is also more suitable for soldering.
High quality copper material 99% oxygen free copper materil to get better conductivity, and to extend working life of shielded wire. Pass RHOS 2.0 and meets UL standards.
ApplicationIt is widely used in electronic instrument & device, electrical appliance, transformer and electrical motor, etc.
