22AWG 6 Core Cable Shielded Chain CNC Wire (15FT) UL2464 Tinned Copper Core Extreme Flexible 22 Gauge Electrical Wire for CNC Router Machine, CNC Spindle, Robot Arm,3D Printer,etc

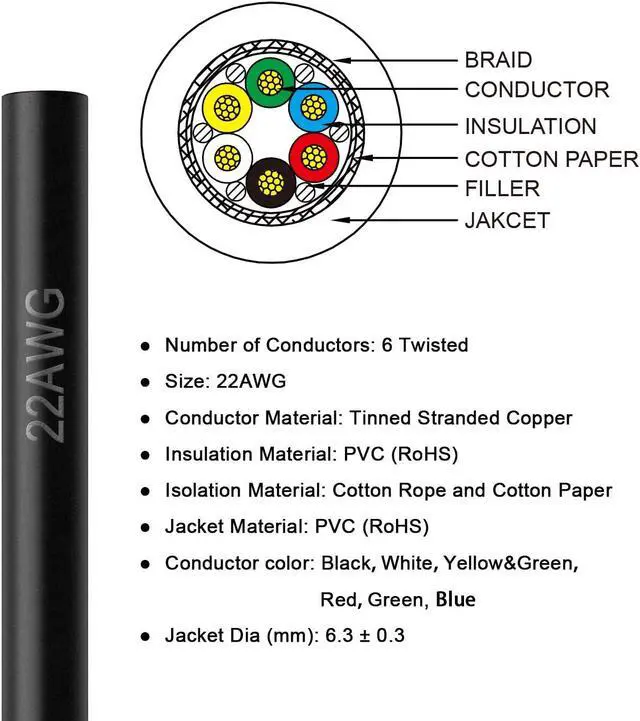

Specification15ft 22 Gauge 6 conductor wire.
Rated voltage: 300V.
Rated temperature: 80/176.
Cond. resistance: 40.1 /KM20, Insulation
resistance: 10M/KM20, Dielectric
test: 2000AC V/min.
Material: PVC+Tinned Copper.
Shield wireThe shielding layer can shield this electromagnetic field inside the cable. Shielded cables also serve as grounding protection: if there is damage to the core wire of the cable, the leaked current can flow along the shielding layer, such as the grounding grid. At this point, shielded cables serve as safety protection.
High ConductivityTinned copper not only has good electrical conductivity, but the tin coating also has the characteristics of strong corrosion resistance and oxidation resistance. It can greatly extend the service life comparing with ordinary copper wire. It is also more suitable for soldering.

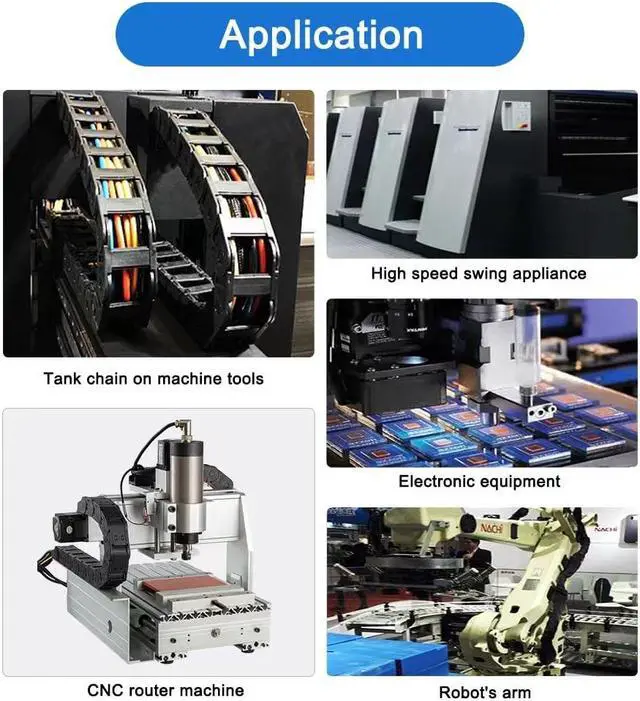

ApplicationIt is widely used for chains in data and signal cables, sensor technology, control equipment and computer control engineering and machinery. It can be used for wet conditions but not for outdooor.

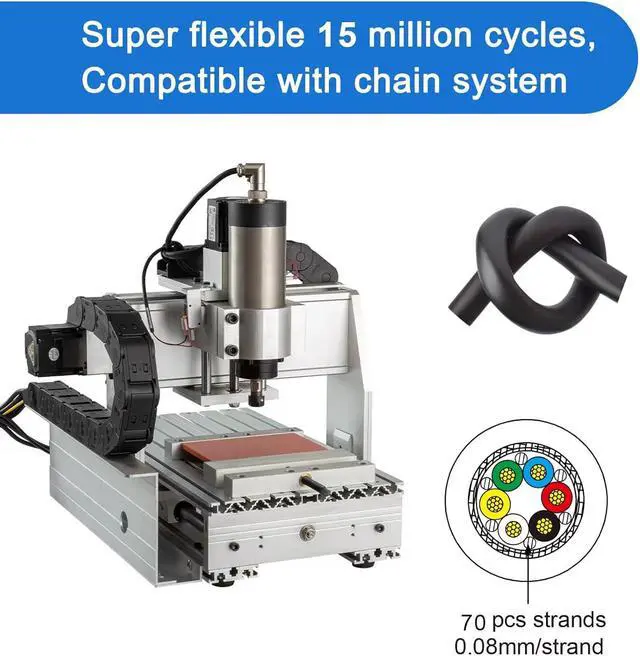

Extreme flexible70pcs strands, 0.08 mm/strand tinner cooper in every conductor, more than 15 million cycles, suitable for chain system.
