Upgrade Your GPU Power Connection with Safety and Style

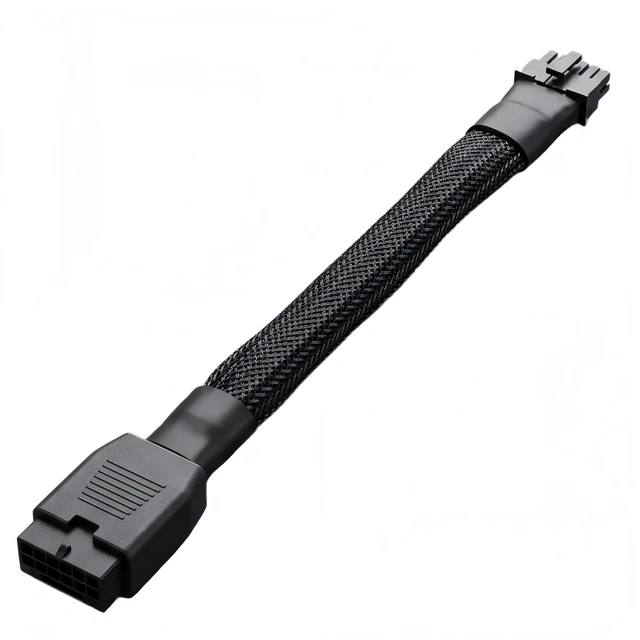

The 16-Pin (12+4) 12VHPWR PCIe 5.0 GPU Power Sleeved Cable Extension is the clean, safe, and professional solution for connecting your high-end NVIDIA GPU to your power supply. Whether you’re building a new RTX 50 series system (except RTX 5090) or upgrading an existing RTX 40 series build, this 15cm extension cable delivers stable 600W power delivery with premium aesthetics.

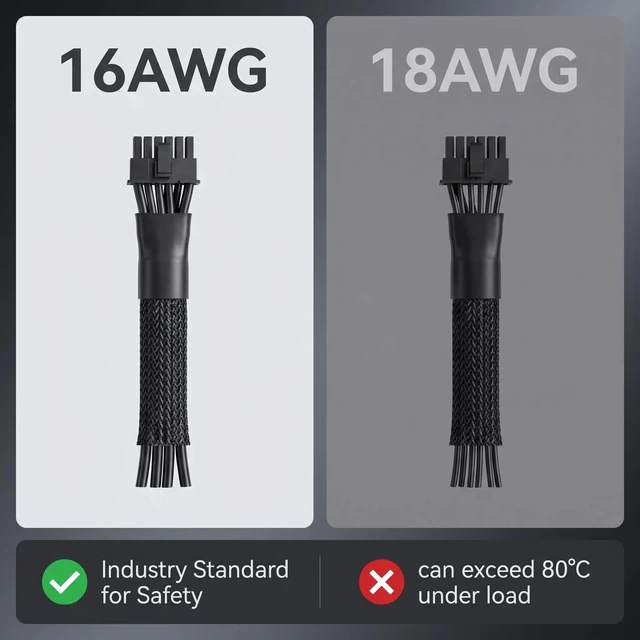

Why 16AWG Matters – The Safety Difference
The 12VHPWR connector has a small safety margin compared to traditional 8-pin connectors. Under heavy graphics load, the connector works near its limits. If the contact surface between the 12VHPWR pins is not perfect, electrical current can concentrate on fewer contact points, leading to overheating and potential melting.
16AWG tinned copper is the industry-standard gauge specified for 12VHPWR cables. It can carry up to 13A per wire, providing the stable, high-wattage power delivery needed for extreme gaming and overclocking.
What Makes This Extension Cable Different?
1. Direct Male-to-Female Design – Cleaner Than Factory Adapters
Most GPUs come with a bulky 1-to-4x 8-pin adapter that‘s unsightly and creates unnecessary cable clutter. This extension cable uses a direct 16-pin male to 16-pin female connection, replacing the complex factory configuration with a single, clean cable run. The result: better airflow, easier cable management, and a more secure connection point.
2. 15cm Optimized Length – Perfect for Tight Spaces
At just 15cm (5.9 inches) , this extension cable is specifically designed for:
- Vertical GPU mounts
- Small form-factor (SFF) PC cases
- Tight cable routing scenarios
- Reducing strain on the GPU connector
3. Premium Nylon Braided Sleeving
The high-density nylon braided sleeve:
- Protects inner wires from abrasion and damage
- Maintains a clean, premium look inside your case
- Is flexible enough for tight bends
- Includes cable combs for organized wire spacing
Technical Specifications
Compatible GPUs
NOT Compatible with: 12-pin RTX 30 series GPUs (RTX 3090/3080/3070 FE). This cable is for 12+4 pin 12VHPWR connectors only. RTX 5090 is NOT recommended due to its higher power requirements – use a direct PSU cable for RTX 5090.
CRITICAL: Installation & Safety Guide

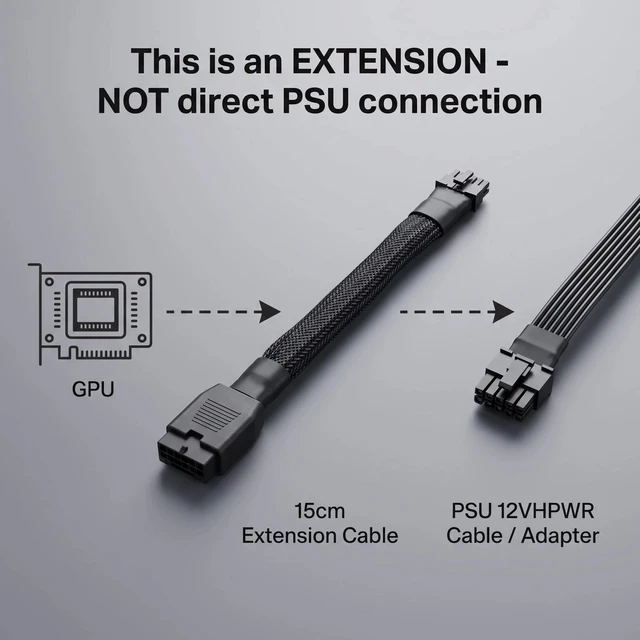

This is an EXTENSION cable – NOT a direct PSU replacement cable.
Correct Installation:
- PSU with PCIe 5.0 cable: GPU ? This Extension Cable ? PSU‘s 12VHPWR cable ? PSU
- PSU with 8-pin cables: GPU ? This Extension Cable ? Original 1-to-4 adapter ? PSU’s 8-pin cables
DO NOT plug this extension cable directly into your power supply.
Safety Checklist:
- Fully insert until click – The connector must be completely seated. Partial insertion is the #1 cause of melting.

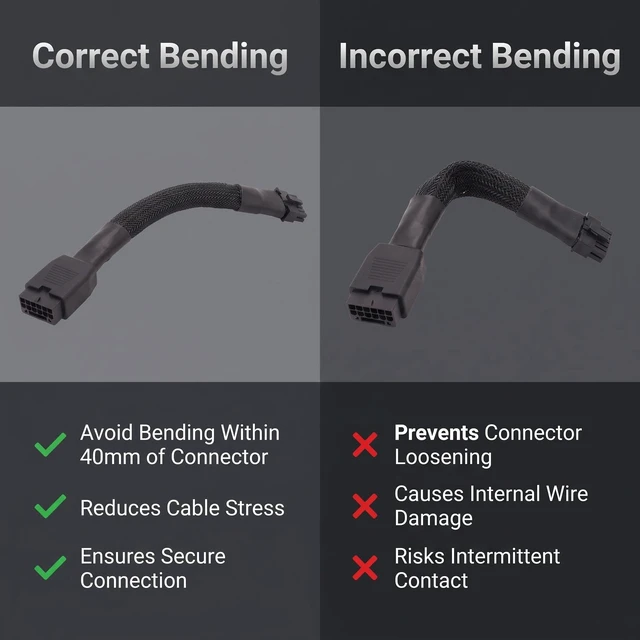

- Avoid bending within 40mm of connector – Sharp bends near the connector can loosen contact points.
- No tension on the cable – Ensure the cable is not pulling on the GPU connector.
- Hand-tighten only – Do not use tools or excessive force.
- Check after installation – Power on and verify the connector is fully seated before running heavy loads.
Why Proper Insertion Matters:
The 12VHPWR connector has a safety margin of only 1.1 (compared to 1.9 for traditional 8-pin connectors). Under heavy graphics load, the connector operates near its limits. If the contact surface is not perfect, current concentrates on fewer contact points, causing localized overheating that can melt the connector. Full insertion is not optional – it is mandatory for safe operation.
Upgrade Your GPU Power Connection with Safety and Style
The 16-Pin (12+4) 12VHPWR PCIe 5.0 GPU Power Sleeved Cable Extension is the clean, safe, and professional solution for connecting your high-end NVIDIA GPU to your power supply. Whether you’re building a new RTX 50 series system (except RTX 5090) or upgrading an existing RTX 40 series build, this 15cm extension cable delivers stable 600W power delivery with premium aesthetics.
Why 16AWG Matters – The Safety Difference
The 12VHPWR connector has a small safety margin compared to traditional 8-pin connectors. Under heavy graphics load, the connector works near its limits. If the contact surface between the 12VHPWR pins is not perfect, electrical current can concentrate on fewer contact points, leading to overheating and potential melting.
16AWG tinned copper is the industry-standard gauge specified for 12VHPWR cables. It can carry up to 13A per wire, providing the stable, high-wattage power delivery needed for extreme gaming and overclocking.
What Makes This Extension Cable Different?
1. Direct Male-to-Female Design – Cleaner Than Factory Adapters
Most GPUs come with a bulky 1-to-4x 8-pin adapter that‘s unsightly and creates unnecessary cable clutter. This extension cable uses a direct 16-pin male to 16-pin female connection, replacing the complex factory configuration with a single, clean cable run. The result: better airflow, easier cable management, and a more secure connection point.
2. 15cm Optimized Length – Perfect for Tight Spaces
At just 15cm (5.9 inches) , this extension cable is specifically designed for:
- Vertical GPU mounts
- Small form-factor (SFF) PC cases
- Tight cable routing scenarios
- Reducing strain on the GPU connector
3. Premium Nylon Braided Sleeving
The high-density nylon braided sleeve:
- Protects inner wires from abrasion and damage
- Maintains a clean, premium look inside your case
- Is flexible enough for tight bends
- Includes cable combs for organized wire spacing
Technical Specifications
| Connector Type | 12VHPWR 16-Pin (12+4) Female to Male Extension Cable |
| Connector A (Input) | 16-Pin (12+4) Female (connect to PSU‘s 12VHPWR cable) |
| Connector B (Output) | 16-Pin (12+4) Male (connect to GPU) |
| Connector Standard | 12VHPWR / 12V-2x6 compatible |
| Total Power | 600W continuous |
| Wire Gauge | 16AWG Tinned Copper |
| Compliance | ATX 3.0, PCIe 5.0 |
| Sleeving | Black nylon braided |
| Length | 15cm (5.9 inches) |

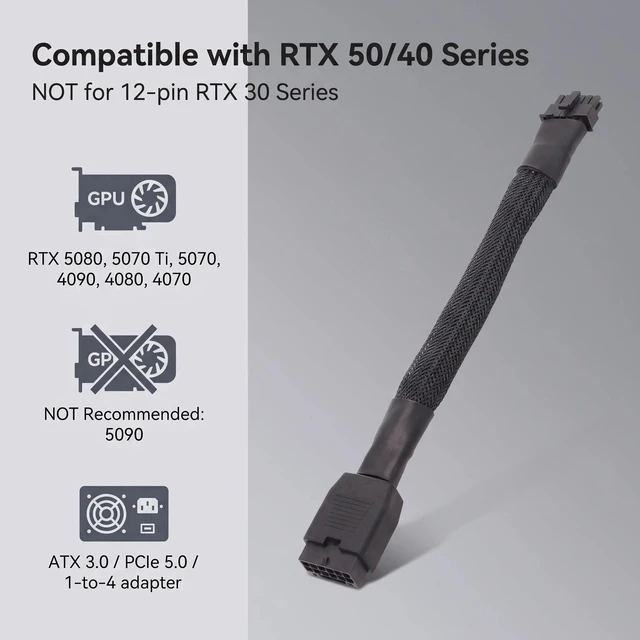

Compatible GPUs
| GPU Series | Compatible Models |
| RTX 50 Series | RTX 5080, 5070 Ti, 5070 (NOT recommended for RTX 5090) |
| RTX 40 Series | RTX 4090, 4080, 4070 Ti, 4070, 4060 Ti |
| RTX 30 Series | RTX 3090 Ti (12+4 pin only) |
NOT Compatible with: 12-pin RTX 30 series GPUs (RTX 3090/3080/3070 FE). This cable is for 12+4 pin 12VHPWR connectors only. RTX 5090 is NOT recommended due to its higher power requirements – use a direct PSU cable for RTX 5090.
CRITICAL: Installation & Safety Guide
This is an EXTENSION cable – NOT a direct PSU replacement cable.
Correct Installation:
- PSU with PCIe 5.0 cable: GPU ? This Extension Cable ? PSU‘s 12VHPWR cable ? PSU
- PSU with 8-pin cables: GPU ? This Extension Cable ? Original 1-to-4 adapter ? PSU’s 8-pin cables
DO NOT plug this extension cable directly into your power supply.
Safety Checklist:
- Fully insert until click – The connector must be completely seated. Partial insertion is the #1 cause of melting.
- Avoid bending within 40mm of connector – Sharp bends near the connector can loosen contact points.
- No tension on the cable – Ensure the cable is not pulling on the GPU connector.
- Hand-tighten only – Do not use tools or excessive force.
- Check after installation – Power on and verify the connector is fully seated before running heavy loads.
Why Proper Insertion Matters:
The 12VHPWR connector has a safety margin of only 1.1 (compared to 1.9 for traditional 8-pin connectors). Under heavy graphics load, the connector operates near its limits. If the contact surface is not perfect, current concentrates on fewer contact points, causing localized overheating that can melt the connector. Full insertion is not optional – it is mandatory for safe operation.
