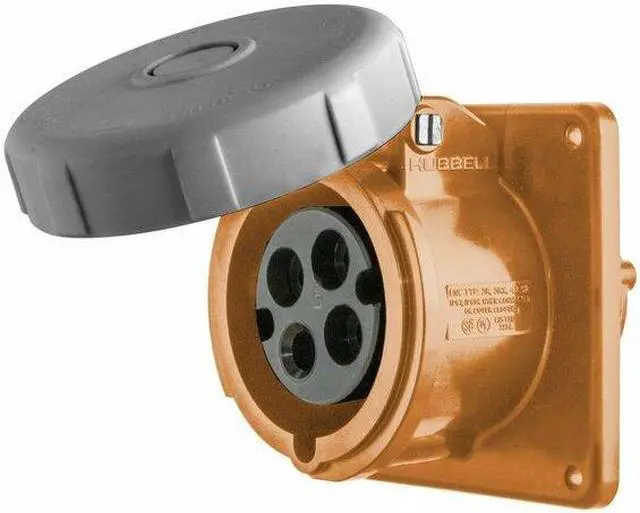

HUBBELL WIRING DEVICE-KELLEMS HBL430R12W Watertight Pin & Sleeve Receptacle, 30

The HUBBELL IEC Pin and Sleeve Receptacle is an IP67-rated electrical device intended for industrial applications; rated for operation in environments as specified by the manufacturer. Rated for 30A and 125/250V AC, this receptacle features straight connection orientation with screw terminals; compatible with wire sizes from 12 to 2 AWG. Includes spring-loaded cap and shrouded design supporting its IP67 rating per manufacturer specifications. Suitable for use in areas requiring equipment rated at this level of ingress protection.

Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

• Current/Voltage Rating: 30A, 125/250V AC


• Body Material: Zytel 101 Nylon thermoplastic housing


• IP/NEMA Ratings: IP67; NEMA Type 4X enclosure (see standard requirements)


• Cord Size Compatibility: Accepts wire sizes from 12 to 2 AWG via screw terminals


• Temperature Range: Operates between -40°C to +75°C


• Grounding Style: IEC grounded with three poles and four wires (three-phase)


• Flange Type & Cap: Flanged mount with neoprene gasket; spring-loaded cover supports closure when not in use


• Color Coding: Orange housing aids identification among multiple devices
