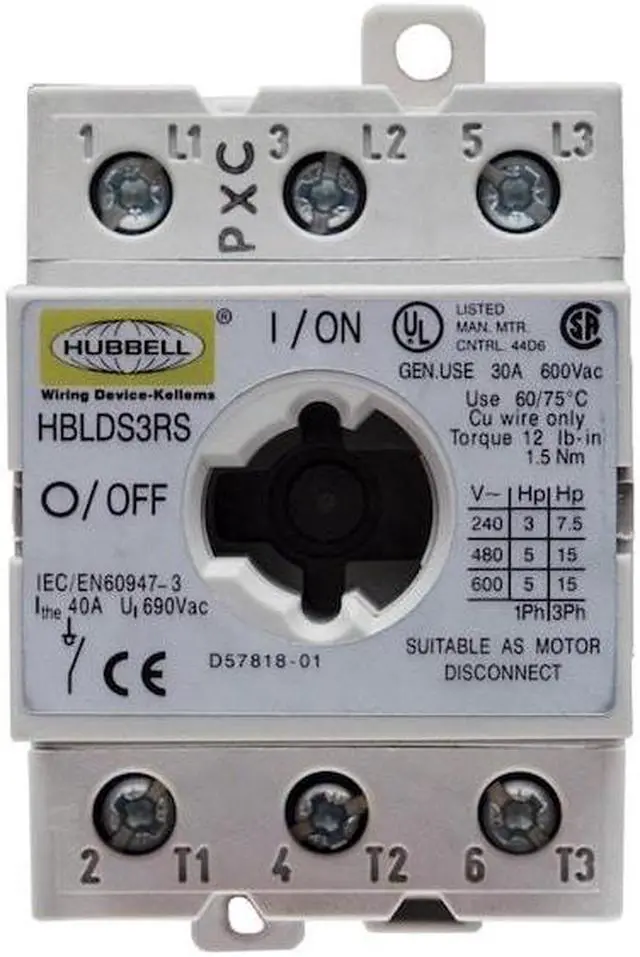

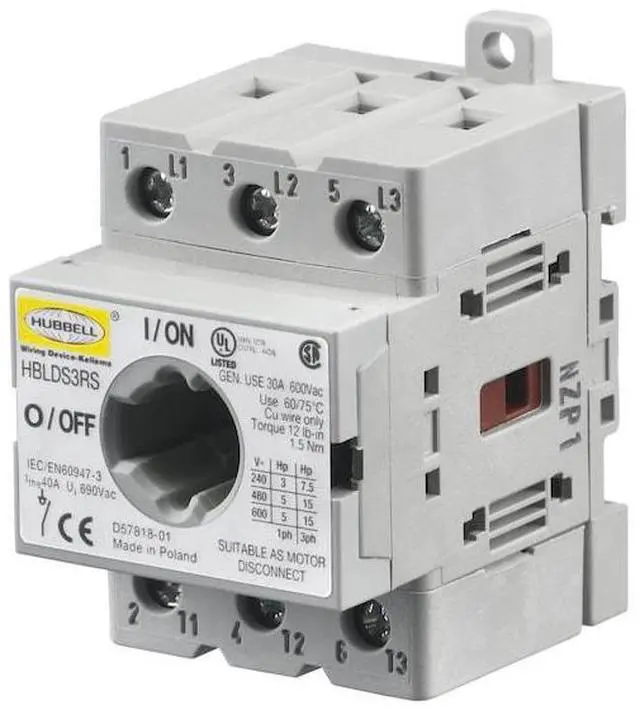

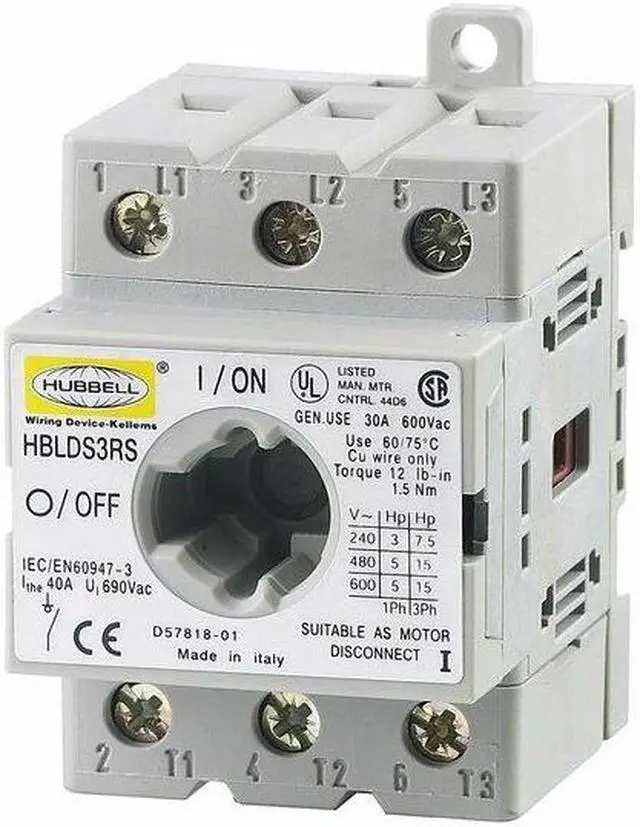

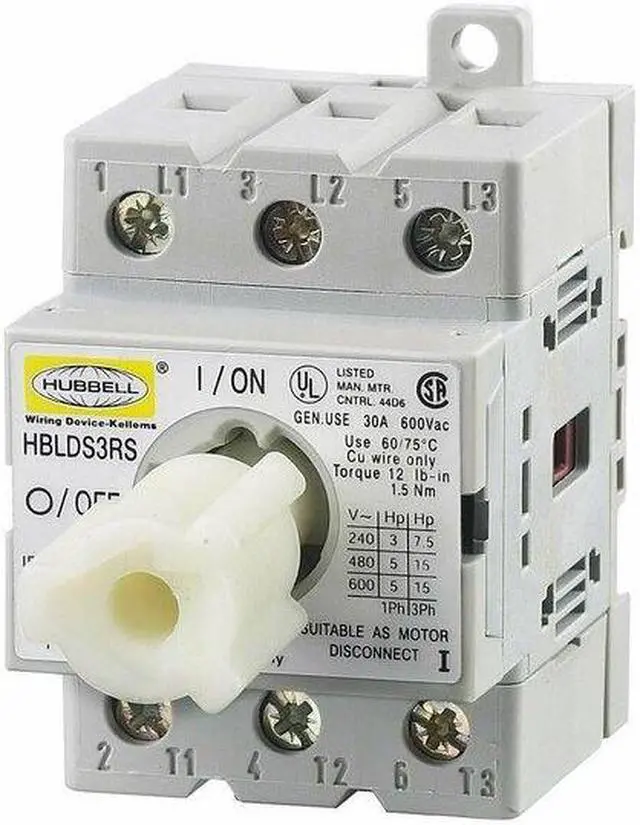

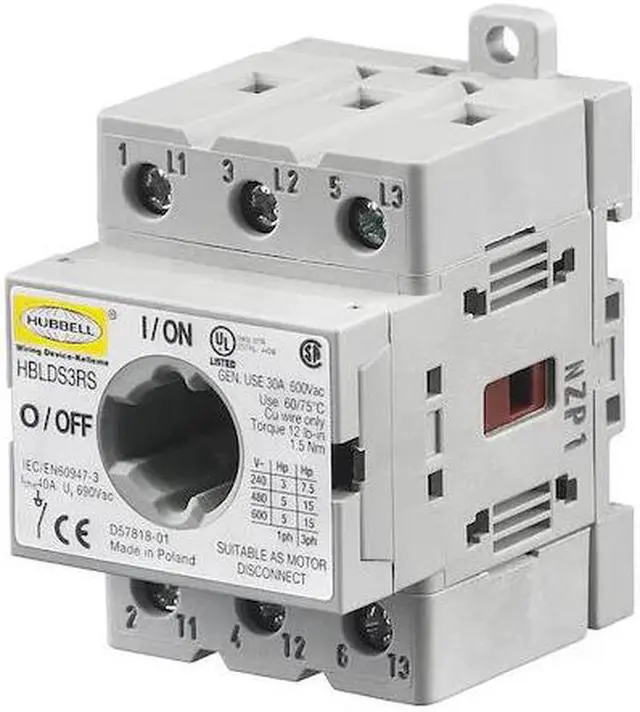

HUBBELL WIRING DEVICE-KELLEMS HBLDS3RS Replacement Switch, 30 A, 600V AC, Red

The HUBBELL Replacement Disconnect Switch, 30A is a three-pole load break switch designed as a replacement component for Circuit-Lock Series unfused disconnect switches. Rated for up to 30 amps and 600V AC, this industrial-grade switch is rated for use as a motor disconnect per NEC section 430.102(B) and meets UL and CSA standards.

Key Features of the HUBBELL Replacement Disconnect Switch, 30A:

• Current Rating: Rated for 30 A maximum


• Voltage: Supports up to 600V AC (RMS)


• Pole Configuration: Three poles; suitable for three-phase systems


• Protection Method: Non-fusible design


• Material & Construction: Stainless steel housing with impact resistance per UL 746C; exposed materials are UV stabilized


• Ingress Protection: IP66 suitability; NEMA Type 4, 4X, and 12K rated enclosure


• Resistance Properties: Designed to meet specified requirements for impact, moisture, and UV exposure based on applicable standards


• Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation


• Cycling Durability: Mechanical10,000 cycles; Electrical6,000 cycles


• Mounting Style: Rear panel mounting with externally adjustable feet
