SP630E Bluetooth Controllers 4 Zones 2.4GHz RF RB3 Remote Kit Support FCOB COB SMD PWM or SPI RGB RGBW LED Strip WS2811 WS2812B WS2814 WS2815 SK6812 IC etc DC5V DC12V DC24V

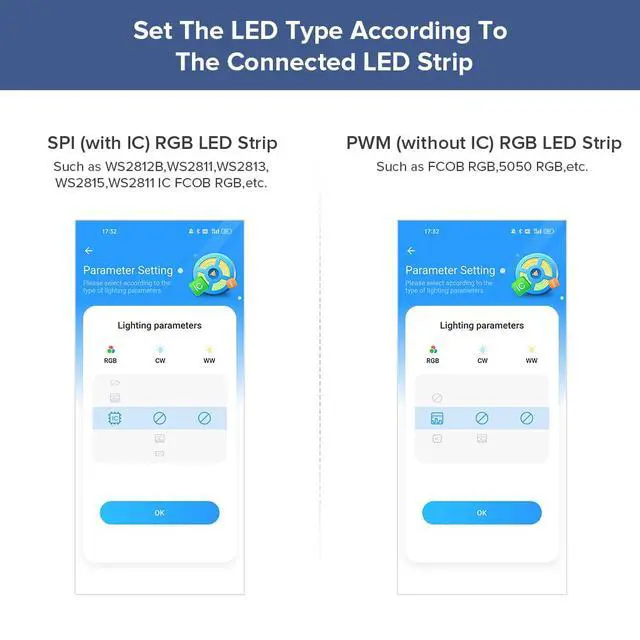

All In One LED ControllerSP630E is compatible with various types of LED light strips.Such as PWM 3CH RGB 4 CH RGBW(Without IC), SPI RGB/RGBW (With Addressable IC Chip). SP630E max control: 600 ICs (SPI RGB LED Strip). 450ICs (SPI RGBW LED strip).

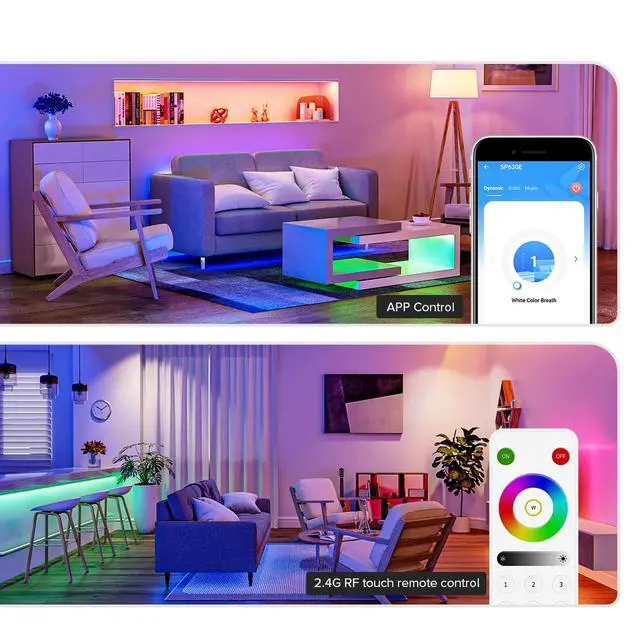

2.4Ghz Wireless 30M(98FT) Remote Control DistanceOne RF remote control can control up to 4 groups of lights.Each group can control an LED strip within 30m (98ft).The remote control allows for free control of a distance of 30 meters (98ft) within an open space.

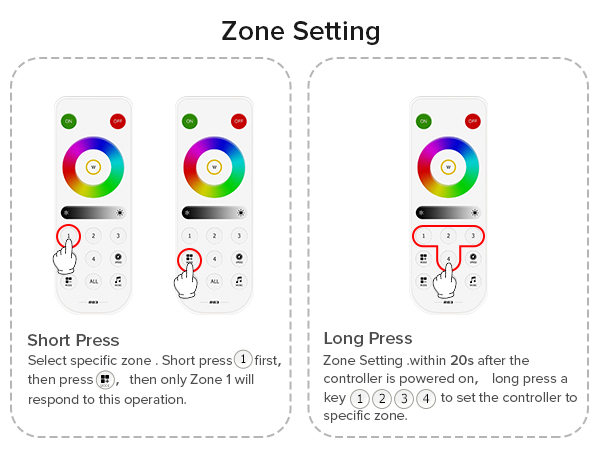

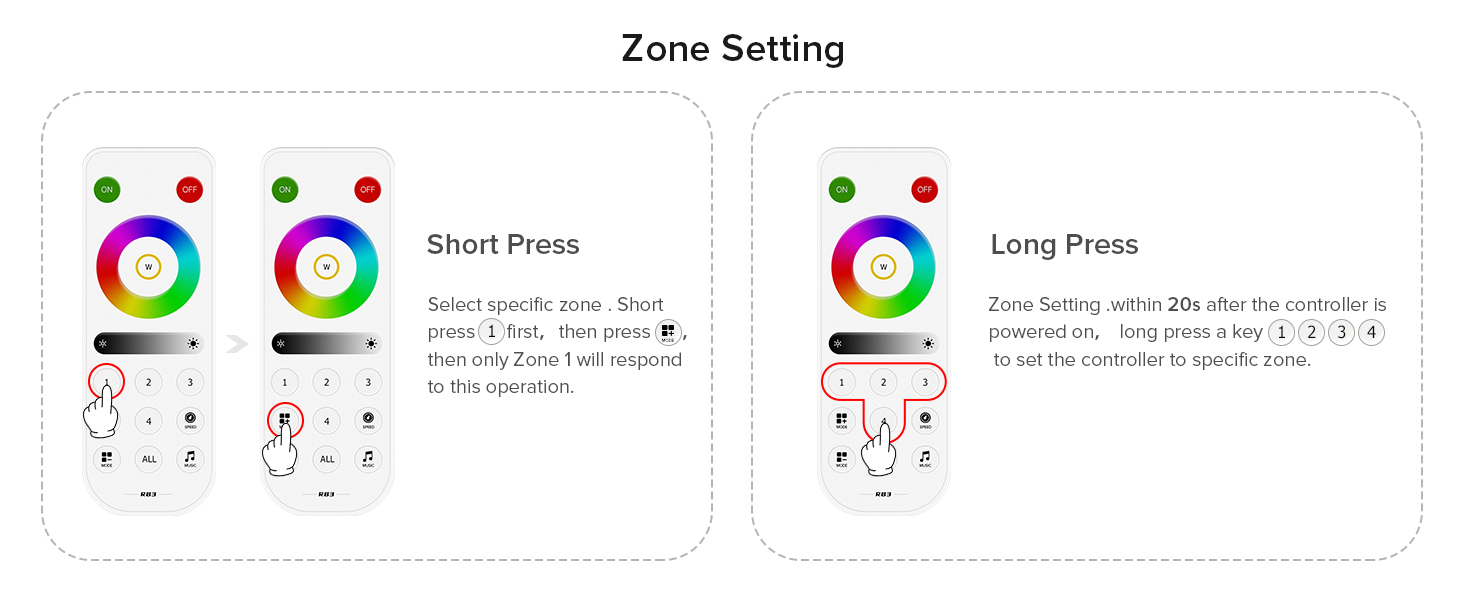

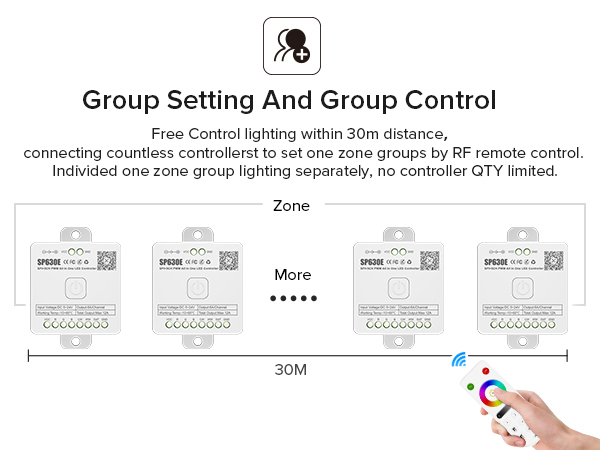

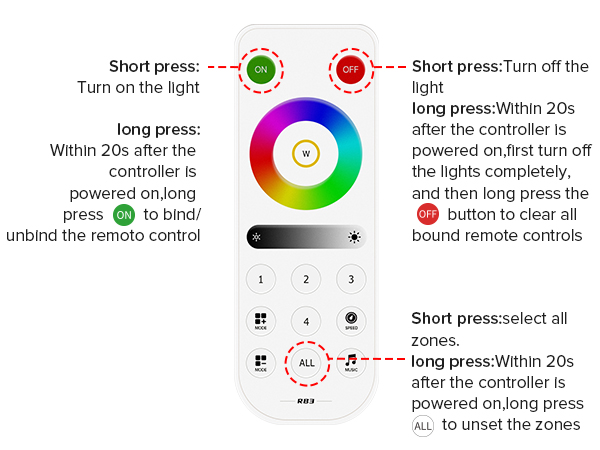

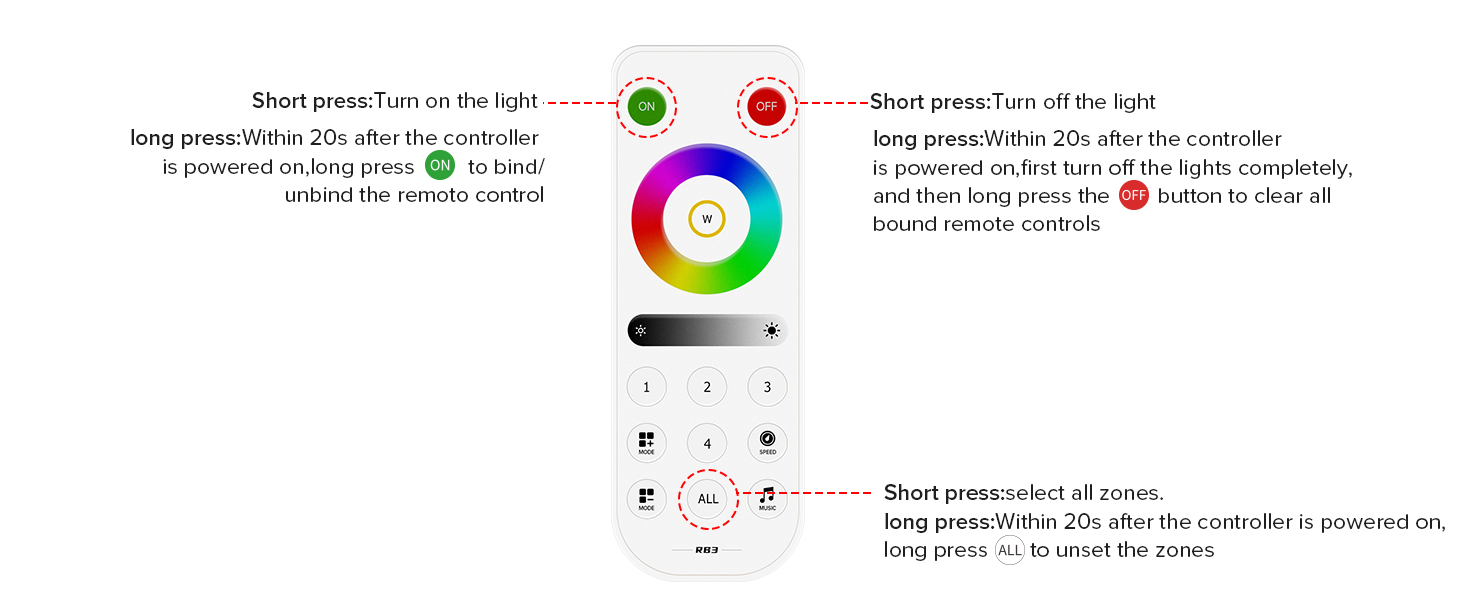

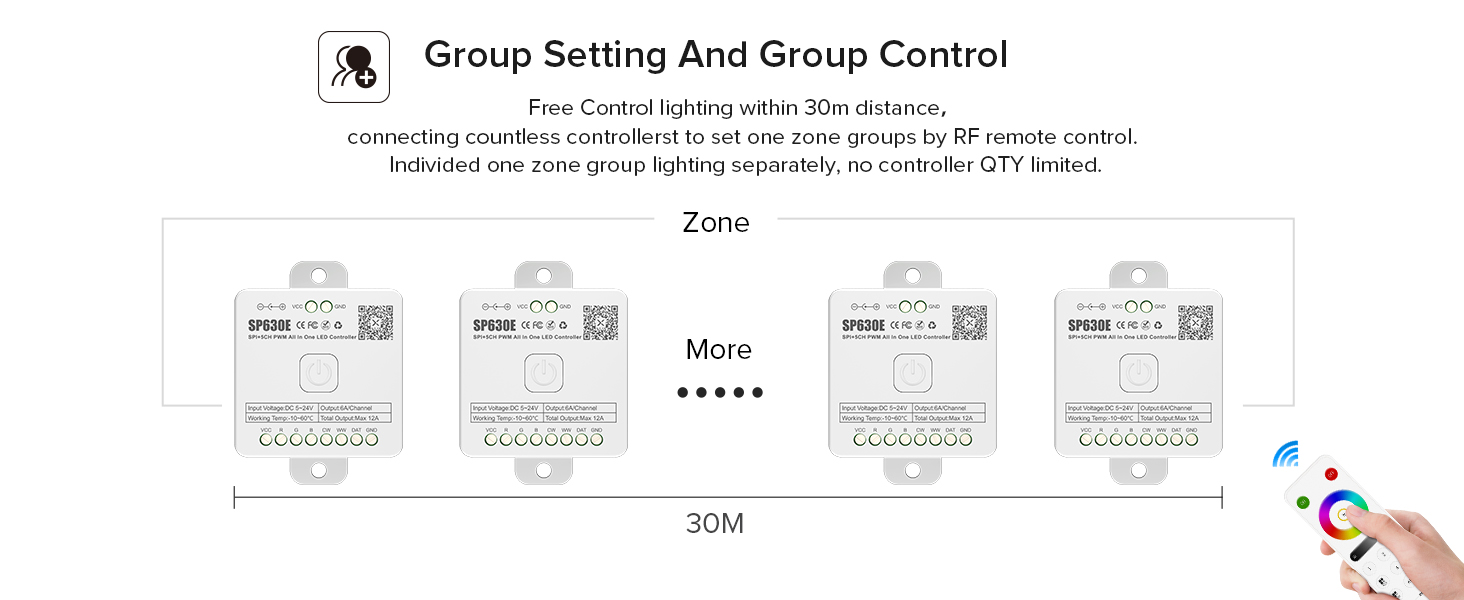

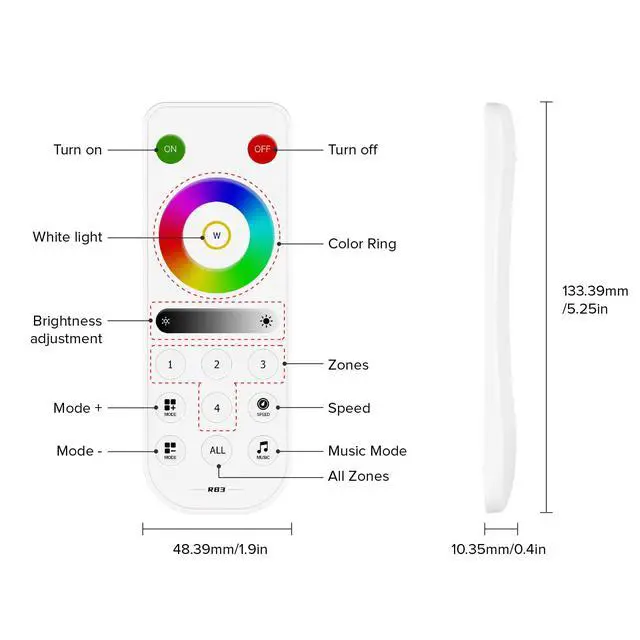

4 Zones Control SeparatelyThe RB3 RF remote can control up to 4 zones, supports one-to-many control, and one RF remote control can control multiple controllers. It also supports multi-to-one control, with each controller able to bind up to 5 RF remote controls.

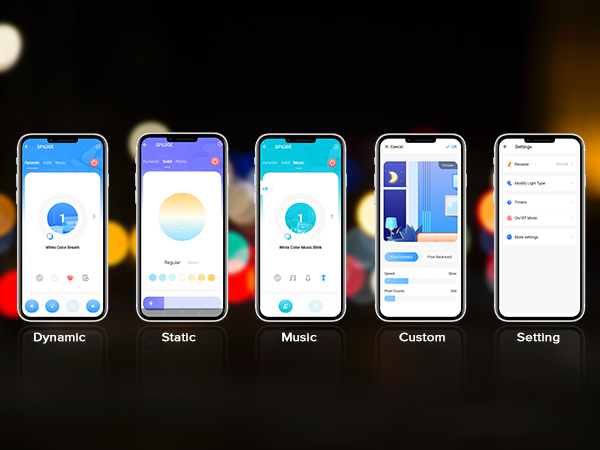

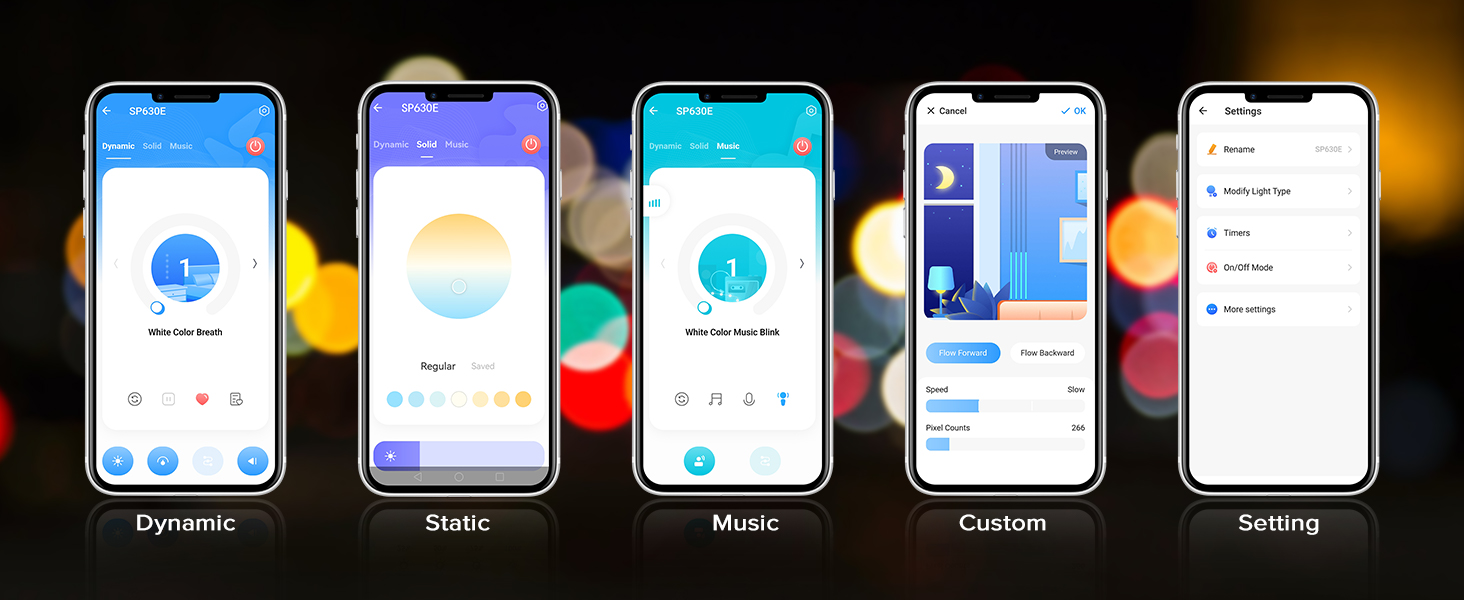

Special Functions3 kinds of collection methods:mobile phone Mic, player streaming, Built-in high-sensitivity Mic.BanlanX app supports to set kinds of on/off animations and the power-on state.Four APP operating interfaces: static effect, dynamic effect, music effect and DIY. Timing function.You can set up to 5 timers.
DIYThrough the Banlanx app, you can customize your favorite lighting effects to meet your various needs.(Note:BanlanX APP does not support the group function.)

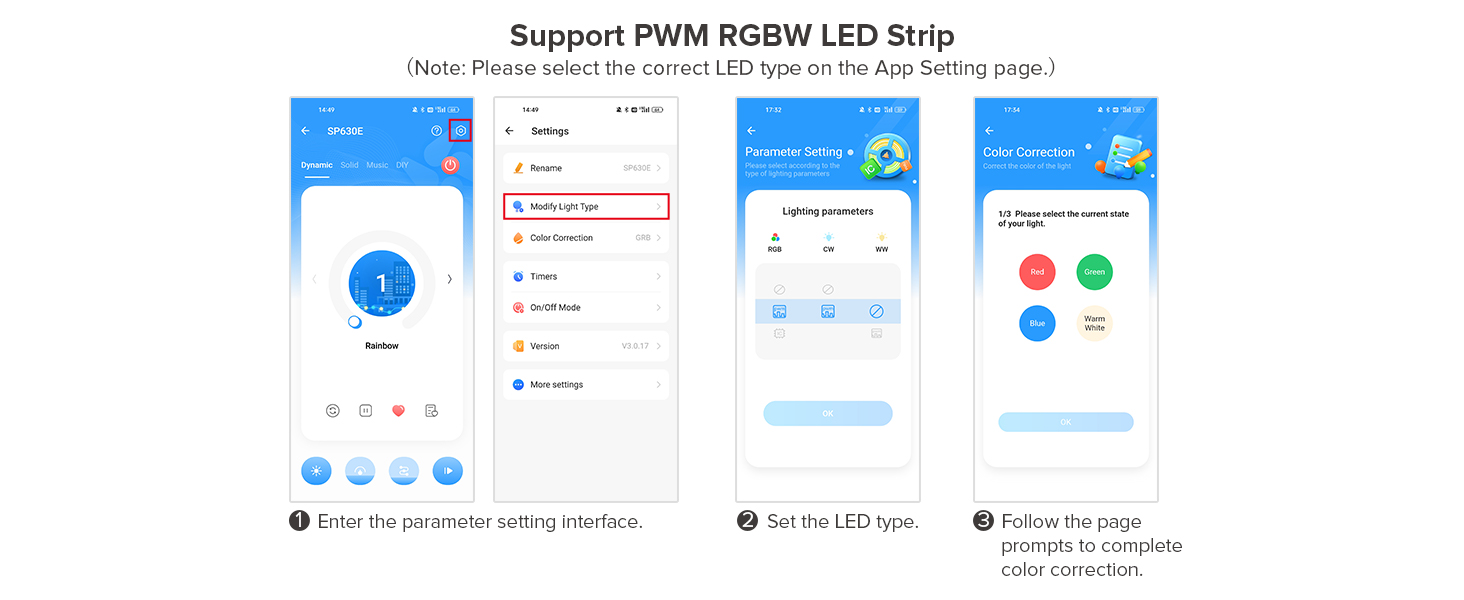

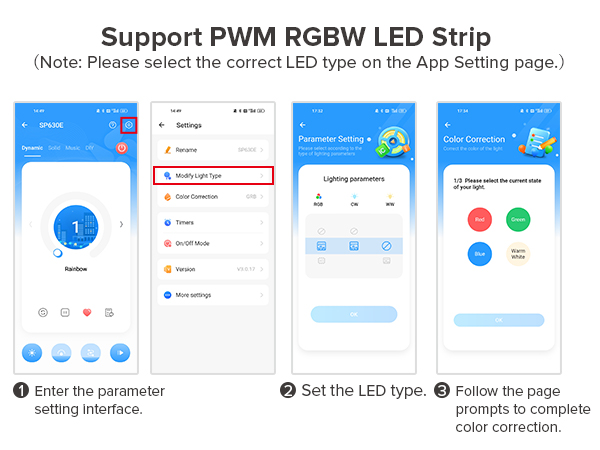

Color calibrationWhen the app color is inconsistent with the color of the LED strip, the color can be calibrated to make it consistent.

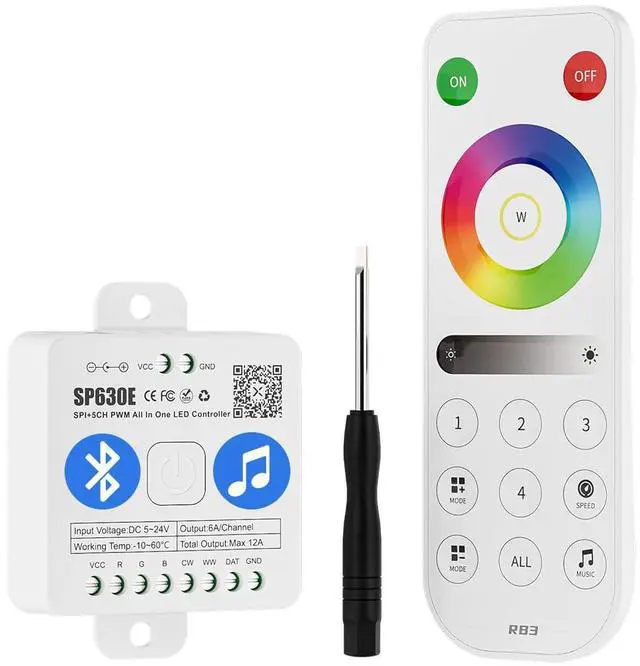

Package Contents1x RB3 RF remote,1xSP630E LED controller.

Parameter Table

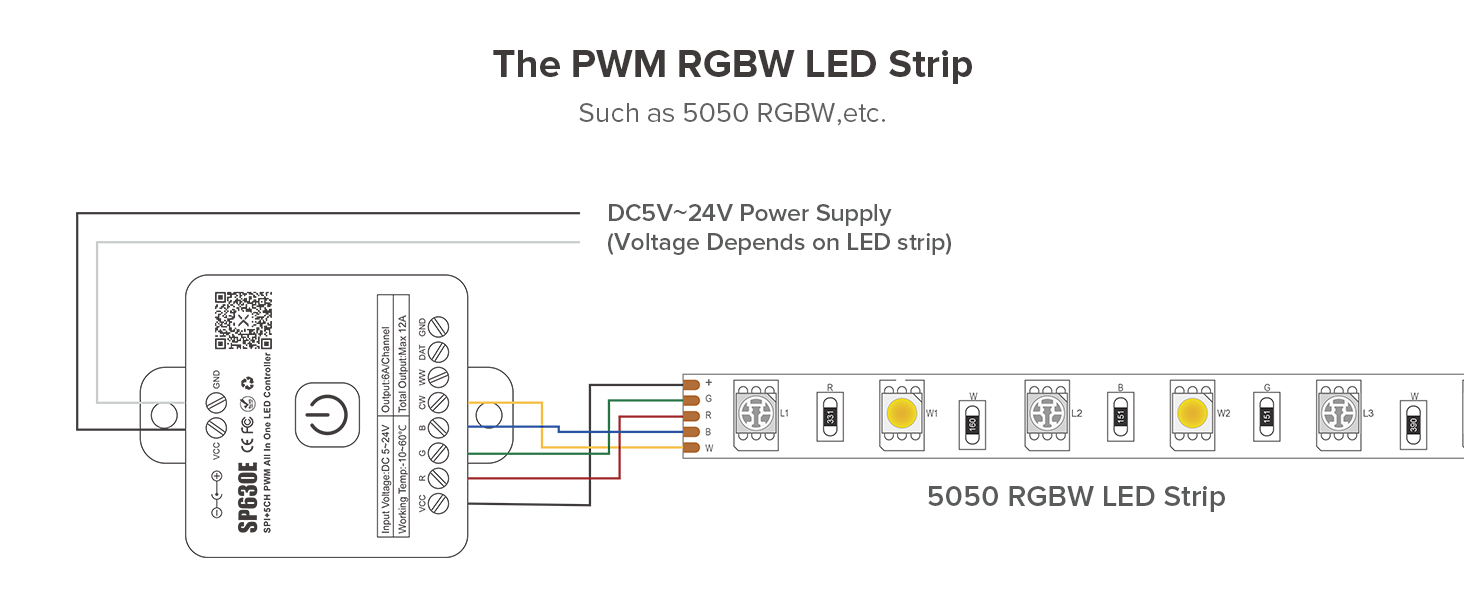

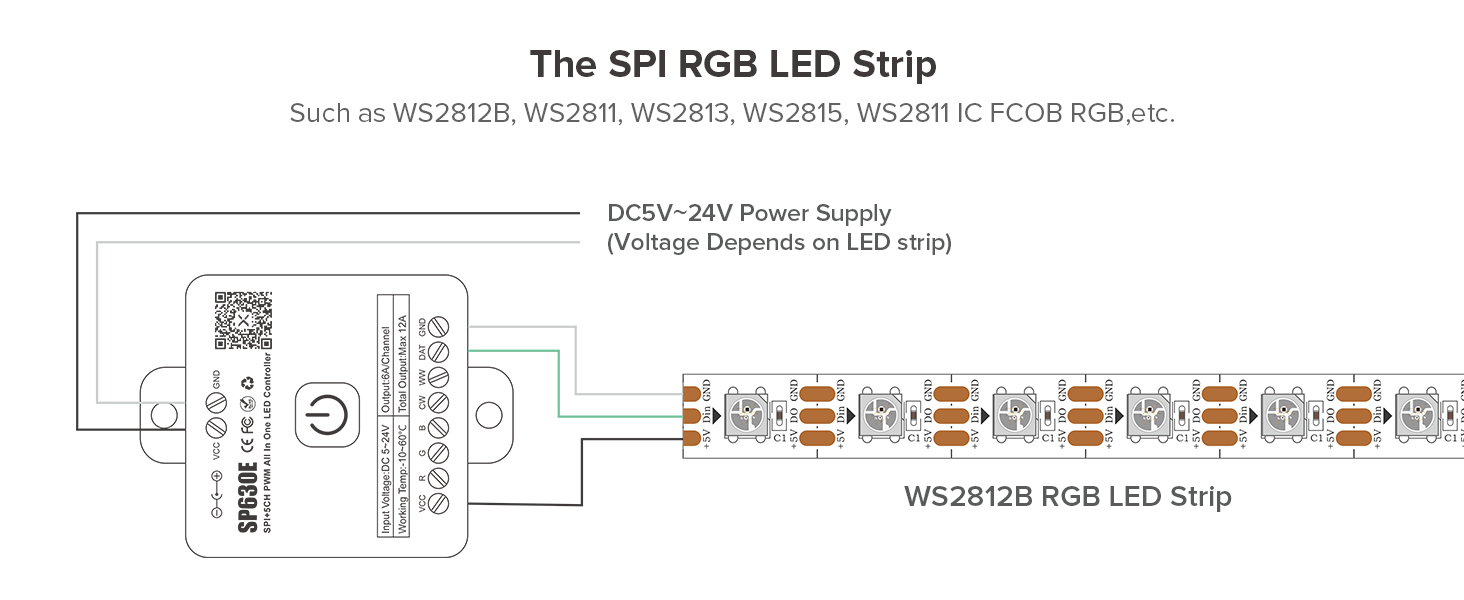

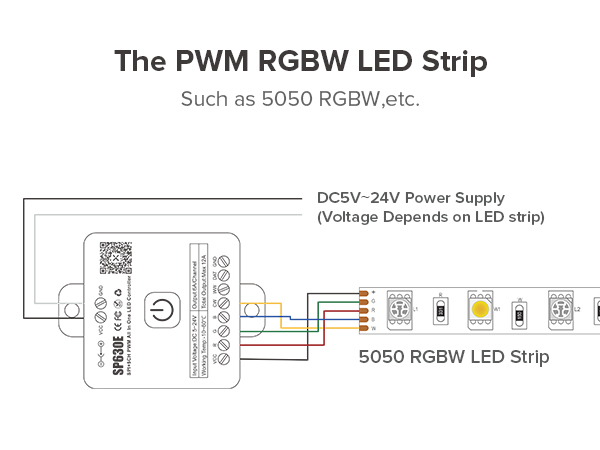

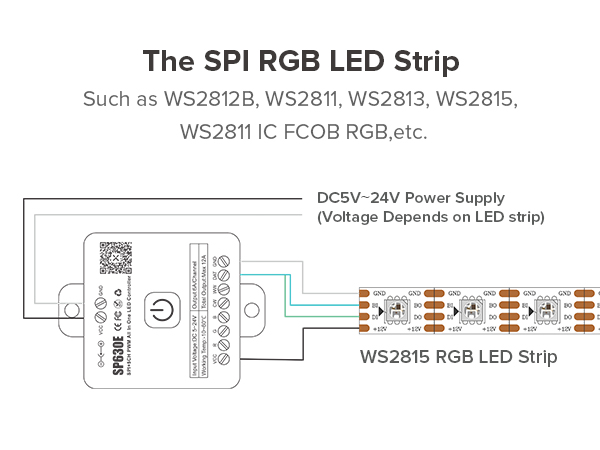

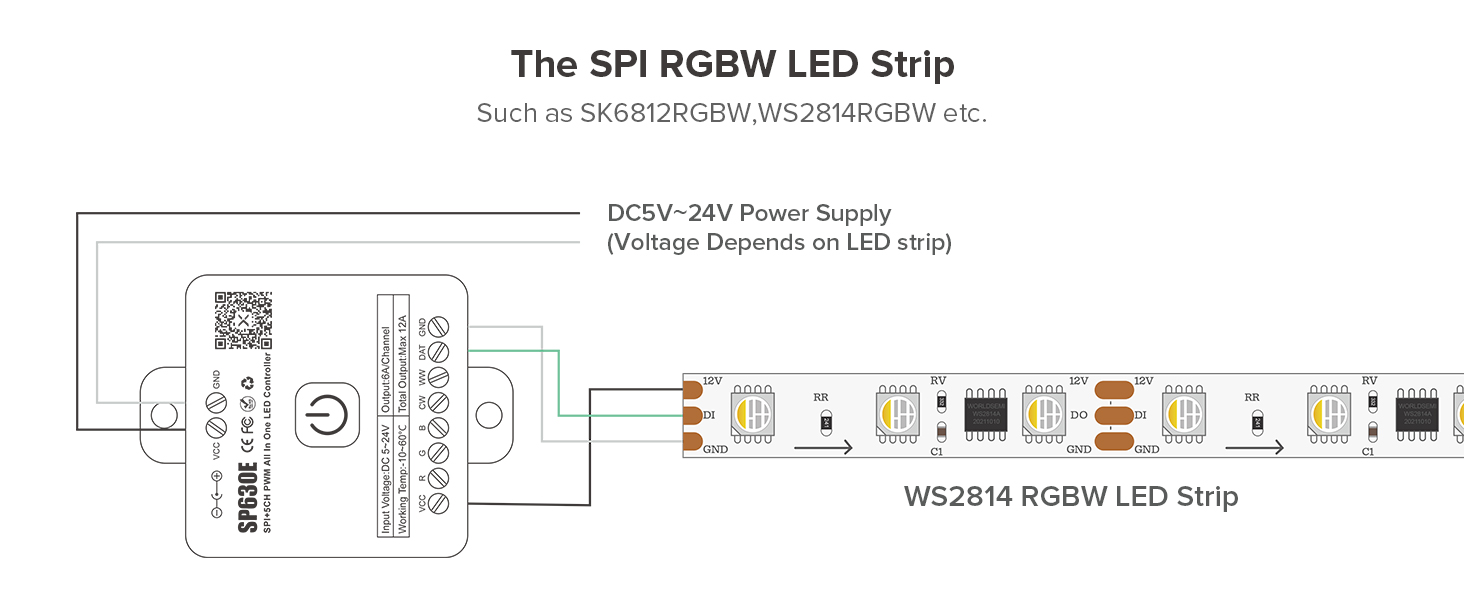

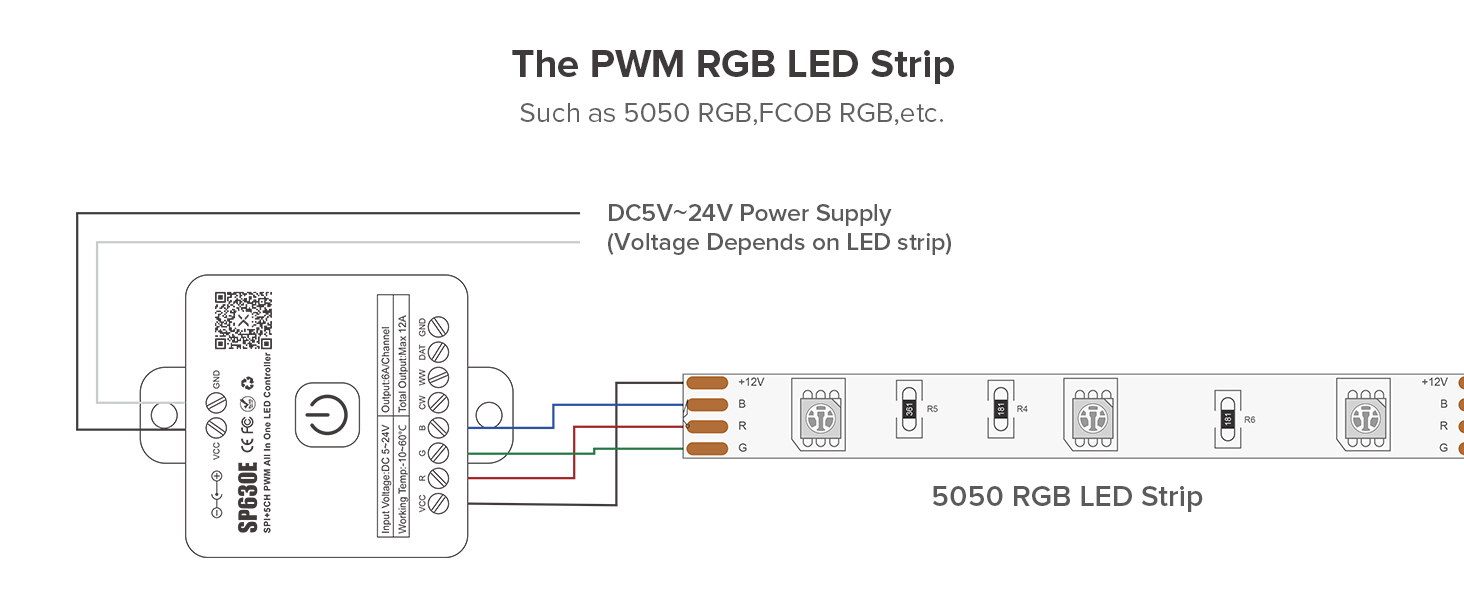

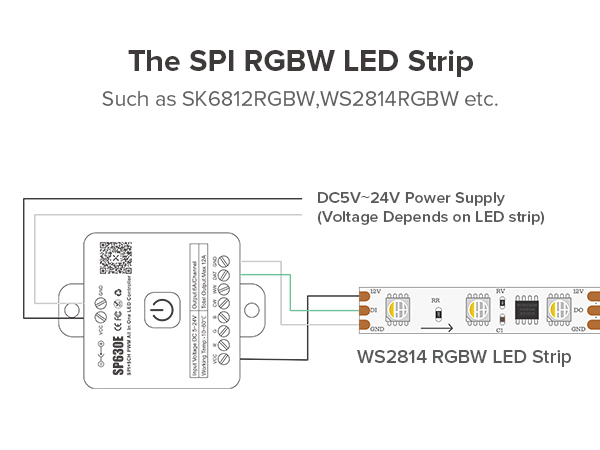

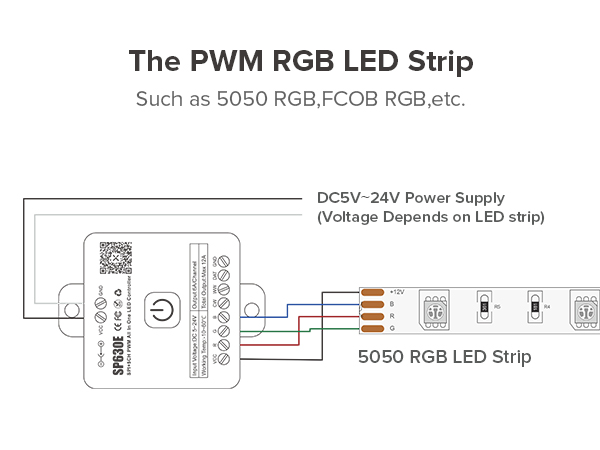

Compatible LED Strip Lights	SPI RGB/RGBW LED strip or PWM 3CH RGB/4CH RGBW LED strip
Input Voltage	DC5V-DC24V Controller voltage depends on LED strip
Current	PWM Single Channel Maximun Output Current: 6A.Total Maximun : 12A
Waterproof level	IP30 Non-waterproof
Operation temperature	-4?~140?(-20?~+60? )
On/off animations	Set on/off animations and the default power-on state.

APP Name	BanlanX
Modify	Device name, color order correction .
Support IC QTY	RGBCCT IC : 300 IC max
Support IC chip (SPI)	WS2805 RGBCCT IC LED Strip.
Support PWM chip No IC	FCOB ,SMD5050 6pin RGBCCT(V+ R G B CW WW).

Compatible Lights

Bluetooth APP

BanlanX APP

Match with RF Remote

Timmer

Timing switch light strip
5 Timmers max

Music

Built-in mic
phone mic
player streaming

2PIN ~ 6PIN LED Controller

2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0 Controller

Working Voltage: DC5V/ DC12V/ DC24V

Only Indoor Use
