Fireplace remote control and receiver with AUTO Thermostat Function
• It can Direct replacement for SKYTECH - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves
• The system can be thermostatically or manually turned on and off with the transmitter
• This remote control system is designed for use with a millivolt or 24V gas valve system.

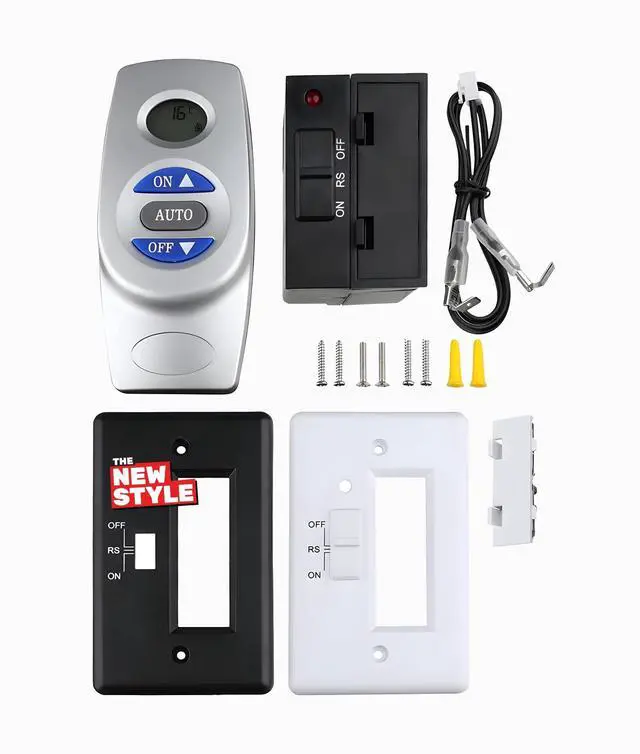

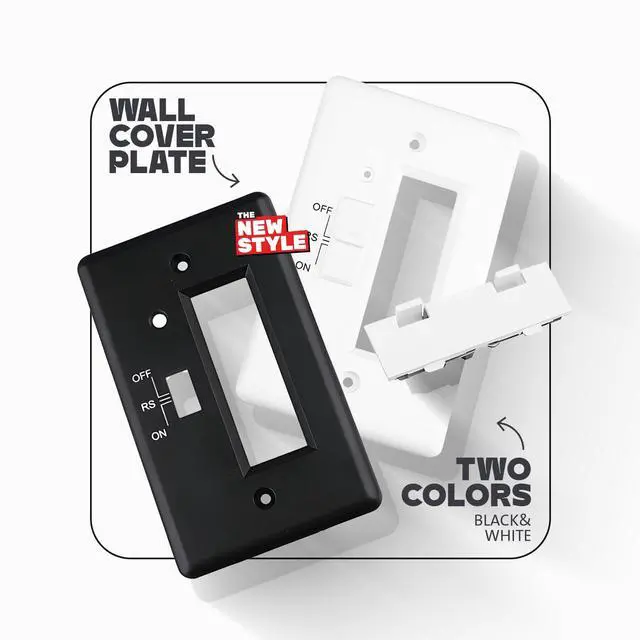

• Includes remote, receiver, wall plate, and wiring to connect receiver to valve
Attention: This does not work with Latching Solenoid gas valve systems please read your fireplace directions for correct application before purchase.
FEATURES/SPECIFICATIONS :
• Easy Access Thermostatic Control
• Battery Powered Transmitter and Receiver
• Low battery Indication
• Child Proof Lock-out
• 16 Security Codes
• Quick Disconnect Wiring Assembly
This Kit Does Not Include The Batteries
High-quality Kit

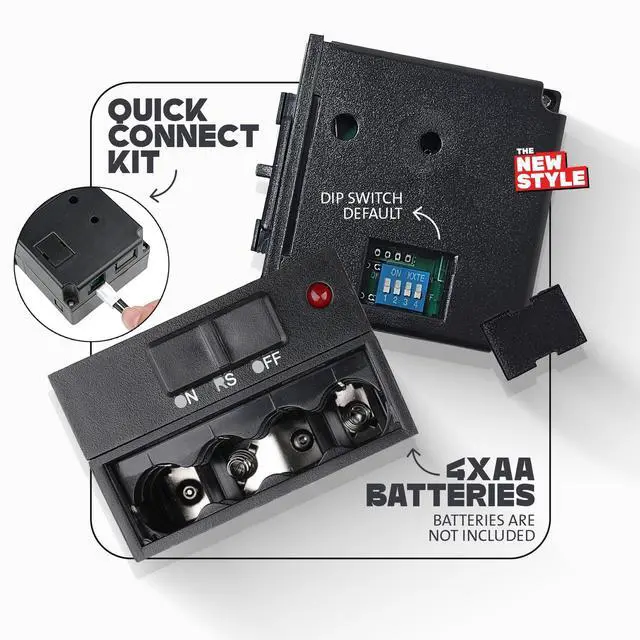

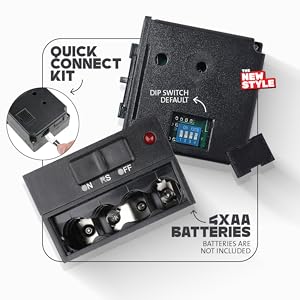

RECEIVER
• This kit comes with an 22 inch wire assembly.

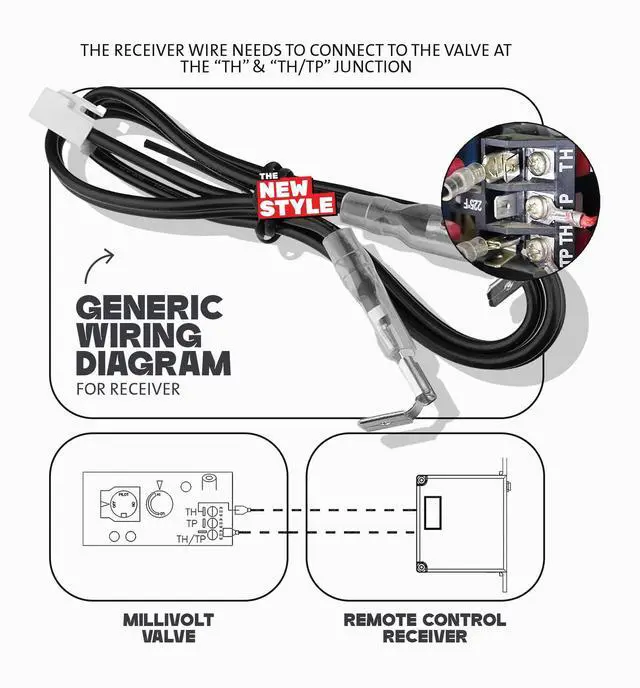

• Insert the white terminal to the back of the receiver , Do not force the terminal plug onto the receiver, connect the two terminals to the TH and TH/TP terminals of the millivolt valve, install the batteries and you're ready to go.

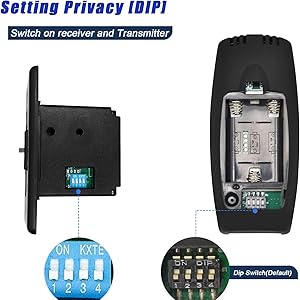

• DIP switches on the transmitter and the receiver must have the same position on both in order for the system to work , if not matched the transmitter will not work, check the photos to find the place of the dip switches on both.

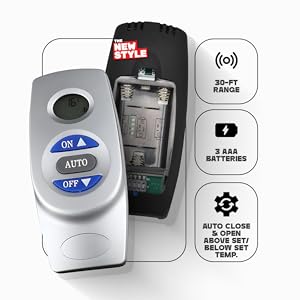

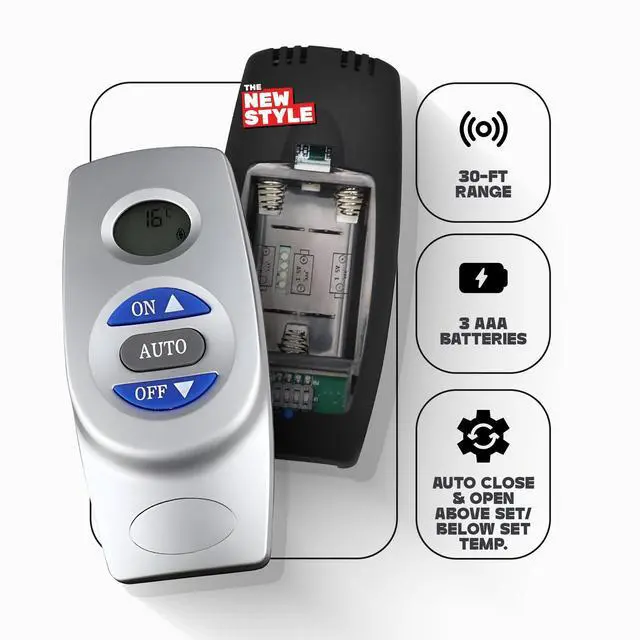

REMOTE
• This wireless thermostatic on/off/ remote control system provides a safe, reliable, and user friendly remote control for millivolt valve gas appliances.
• The system can be thermostatically or manually turned on and off with the transmitter
• Remote Control has two (2) operating modes: Manual and Thermostatic. The control system can be set to temperature ranges between 45°F and 90°F.
• The reset button can be used to reset the transmitter if transmitter is not working properly. The reset button is located behind the battery door cover. Using a paper clip, press the reset button for 5 seconds until the blue lcd screen shows the temperature display .
IMPORTANT INFORMATION
• Do not use this remote control system on applications with voltages above 24 Volts AC/DC and 1 amp current.
• This remote control system requires (3) “AAA” and four (4) “AA” batteries to power the transmitter and receiver.
• Do not short (or jumper) across the gas valve terminals to test the remote control installation
LEARNING TRANSMITTER TO RECEIVER
1.The transmitter privacy (DIP) Switches are preset at the factory. Setting the 4 DIP Switches on transmitter and receiver on the same position.
2.Put the receiver slide switch into RS mode , then press the On or Off button from the remote ,the receiver should indicate a red flashing light , that means transmitter is connected with receiver, if not make sure that the dip switches are in the same position and matched on both transmitter and the receiver.
Our products are well inspected from the factory, and the temperature error is usually within 1-2 degrees .
