Wireless Remote Switch DC 12V 24V 36V 48V New 2 Channel Multi-Function Remote Control Switch, 433Mhz Transmitter with Receiver Use for Electric Doors, Cars, Lights & MoreMomentary Mode
- easy to useWe have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything , just install it. The simple and practical programming realizes the two-way relay learning separately, which greatly facilitates the user's expansion application when using one control or multiple control and combination
- Long Range Signal can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance. Max range is up to 50meters with no obstacle
- 4 working modes Unique working mode, the four working modes of Momentary, Latched, Toggle, and 5 seconds delay can be switched at will, only need to through the Model button, you don't need to use a soldering iron or jumper cap
- Application scenarios : Widely used in a variety of equipment control; such as cars, motorcycles; LED lamps / courtyard lights control; electric doors; access control; electric curtains and other intelligent control and security fields
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
About Receiver:
Model No.: AK-RK02E
Working voltage: DC12-48V
Quiescent condition: Less than 6mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz
Output voltage: DC and Switch Signal is optional
Max load current: Less then 10A

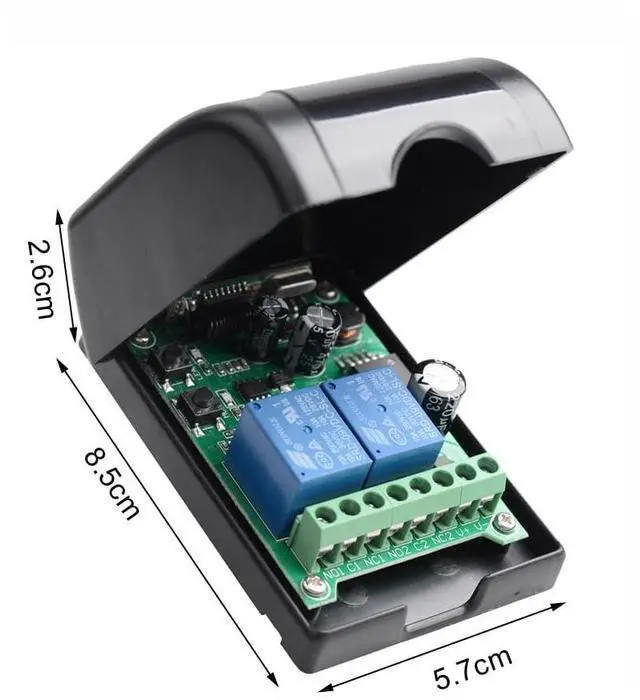

Size: 8.5 x 5.7 x 2.6cm
About Working way:
Working way changed by Model button
1.Momentary: press model button 1 time
Relay: Press and hold -> On; Release -> Off.
2.Latched: press model button 2 times
Relay: Press -> On; Press other button -> Off.
3.Toggle: press model button 3 times
Relay: Press -> On; Press same button again -> Off·
4.Delay 5 seconds: press model button 4 times
Press remote control A button, the relay A actuates and keeps working 5 seconds. The same as relay B .
About Learning and clearing Method:
Learning: press learning button 1 time ,the LED indicator flash then press the transmitter button A , LED indicator flsah 3 times and off ,button A learning successfully.
press learning button 2 times ,the LED indicator flash then press the transmitter button B ,LED indicator flsah 3 times and off ,button B learning successfully.
Clearning: Hold press learning button about 8 seconds,,indicator from ON to OFF,then press remote ,Relay did not Respond ,it means clearning code successful.
About Transmitter:
Buttons: 2 Buttons
Working Voltage:DC6V
Operating frequency :433MHz
Remote Distance: 20-50M

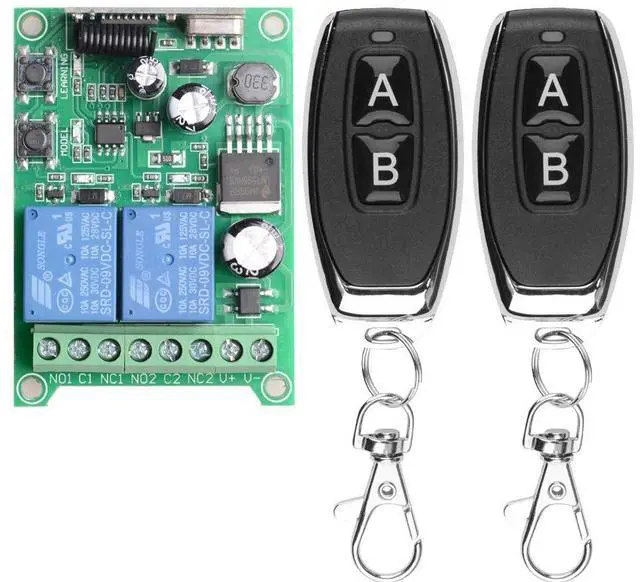

Package Includes
2 x Transmitters
1 x Receiver
1 x User Manua
