Technical Specifications for TO-Q-SYS-JWT WiFi Smart Switch
DIY Your Smart WiFi Home in Your Own Way
 TO-Q-SYS-JWT 1-50A |  TO-Q-SY1-JWT 20A |  TO-Q-SY2-JWT 1-63A |  TOVMT-216JWTMA 1-16A |  TOSCPM-T |  TOSA1-0150XJWT2A 1-50A |  TOWPS-116JWT8040A 1-16A | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Type | WiFi Smart Switch | WiFi Smart Switch | WiFi Smart Switch | WiFi Smart Switch | WiFi Smart Home Control Panel | WiFi Smart Current Transformer | WiFi Waterproof Junction Box |
Wiring Type | Neutral wire required | Neutral wire required | Neutral wire required | Supports L-N/ L-L wiring | Neutral wire required | Supports L-N/ L-L wiring | Neutral wire required |
Remote Control | ? | ? | ? | ? | ? | ? | ? |
Voice Control | ? | ? | ? | ? | ? | ? | ? |

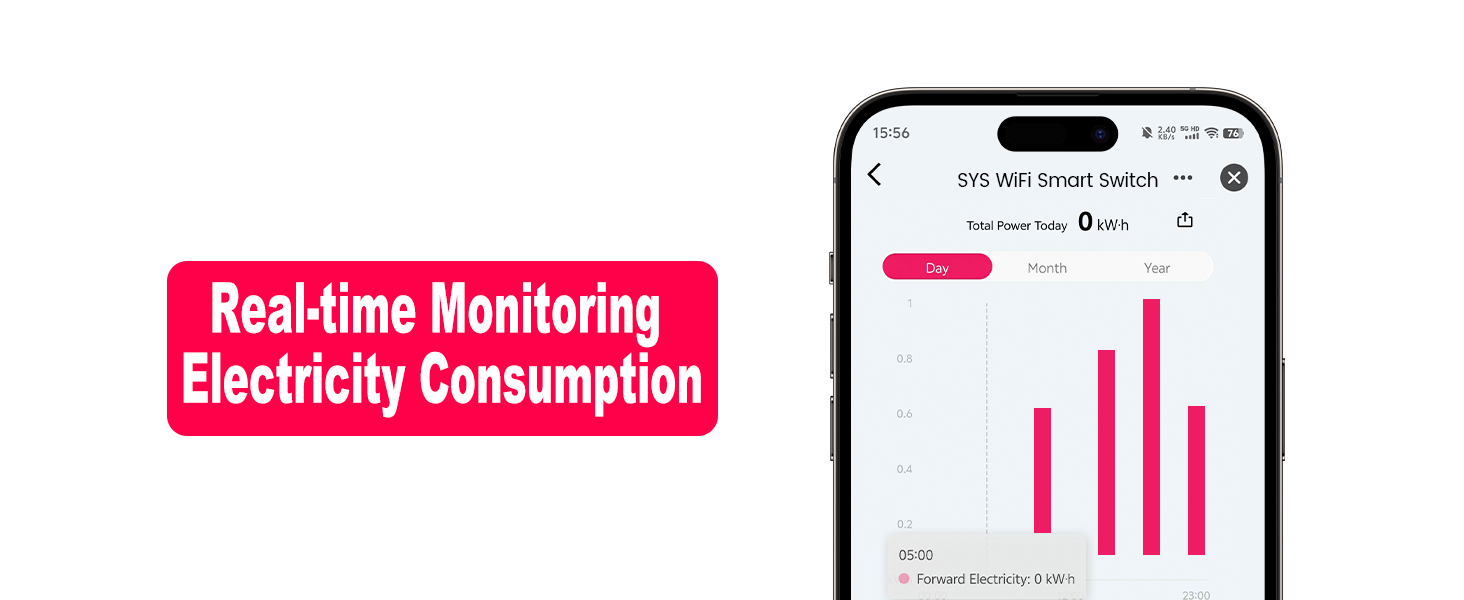

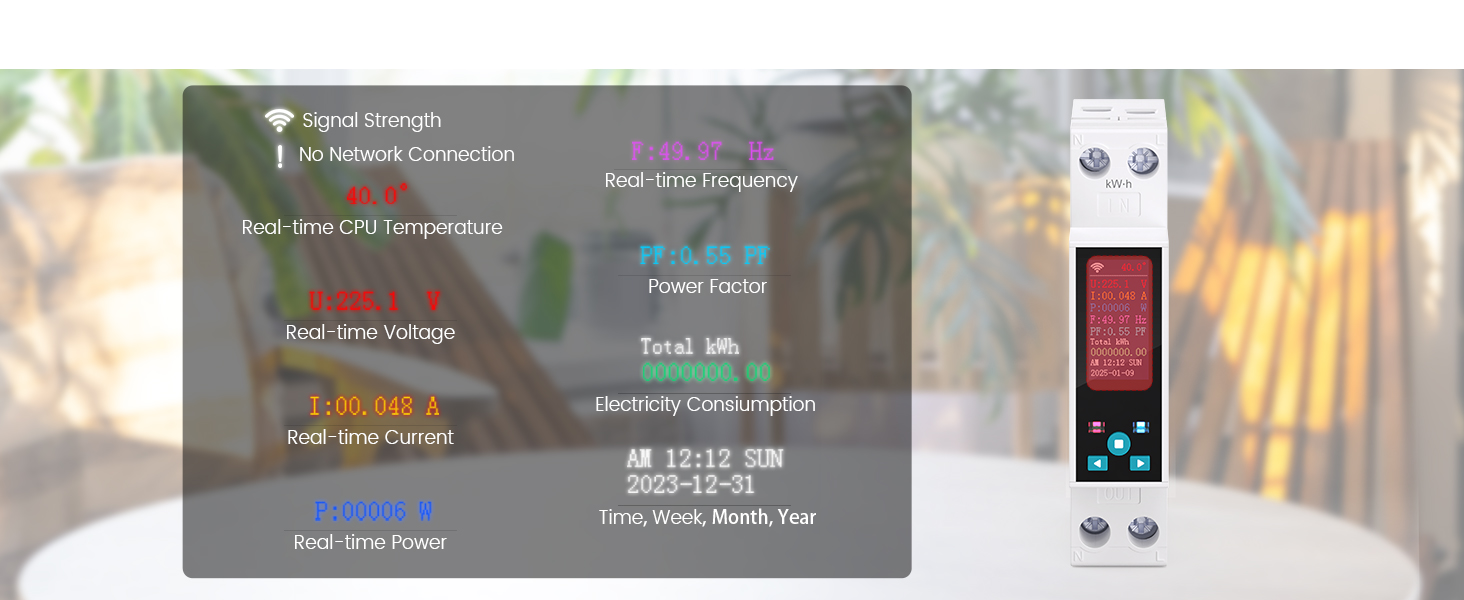

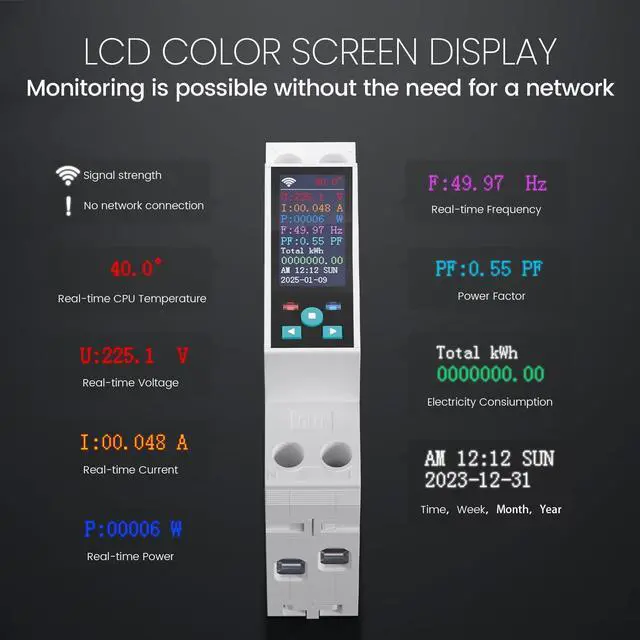

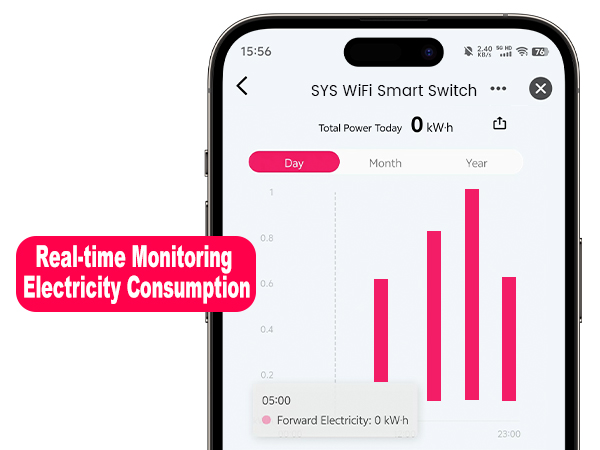

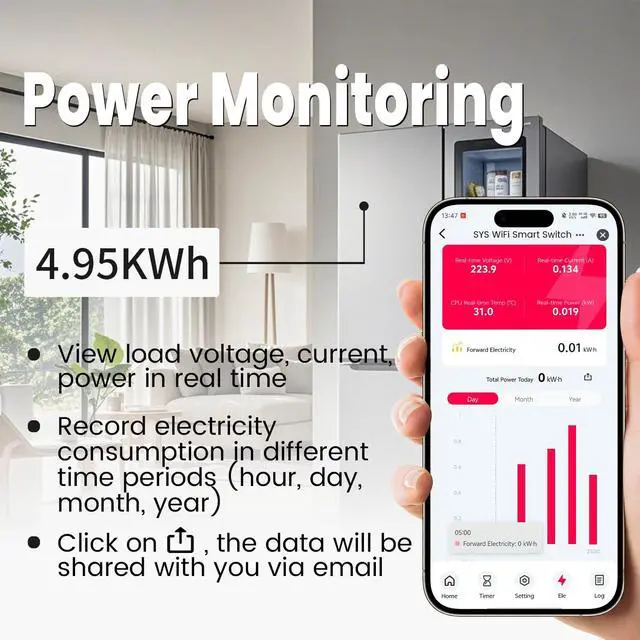

Real-time Power Monitoring | ? | ? | ? | ? | ? | ? | ? |
Multi-timing | ? | ? | ? | ? | ? | ? | ? |

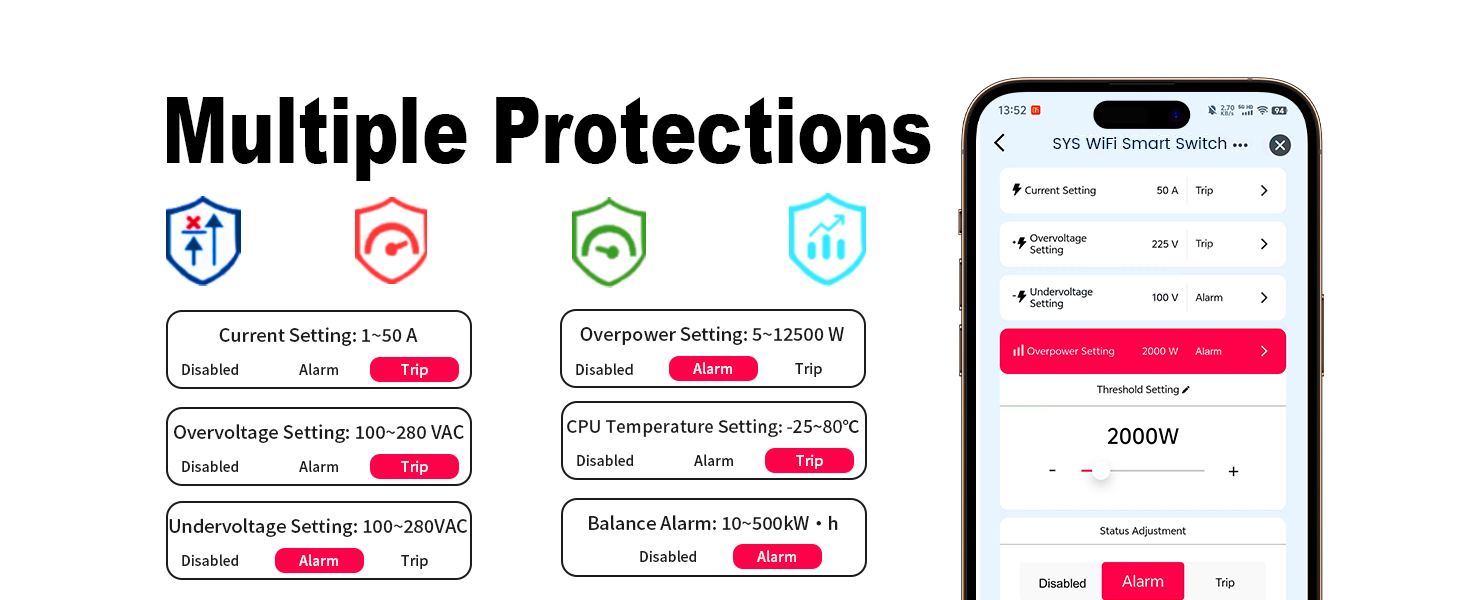

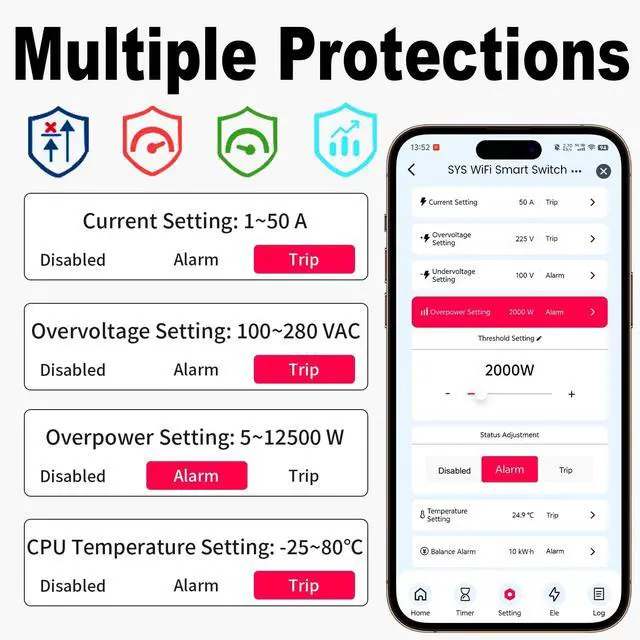

Multiple Protections | ? | ? | ? | ? | ? | ? | ? |

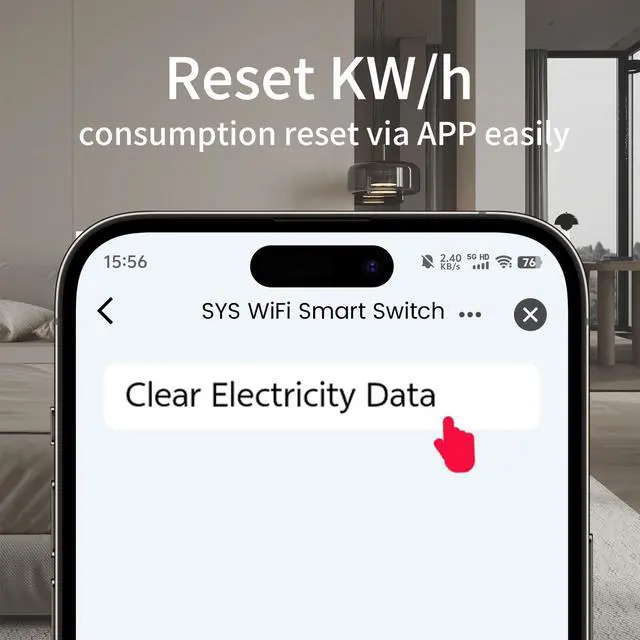

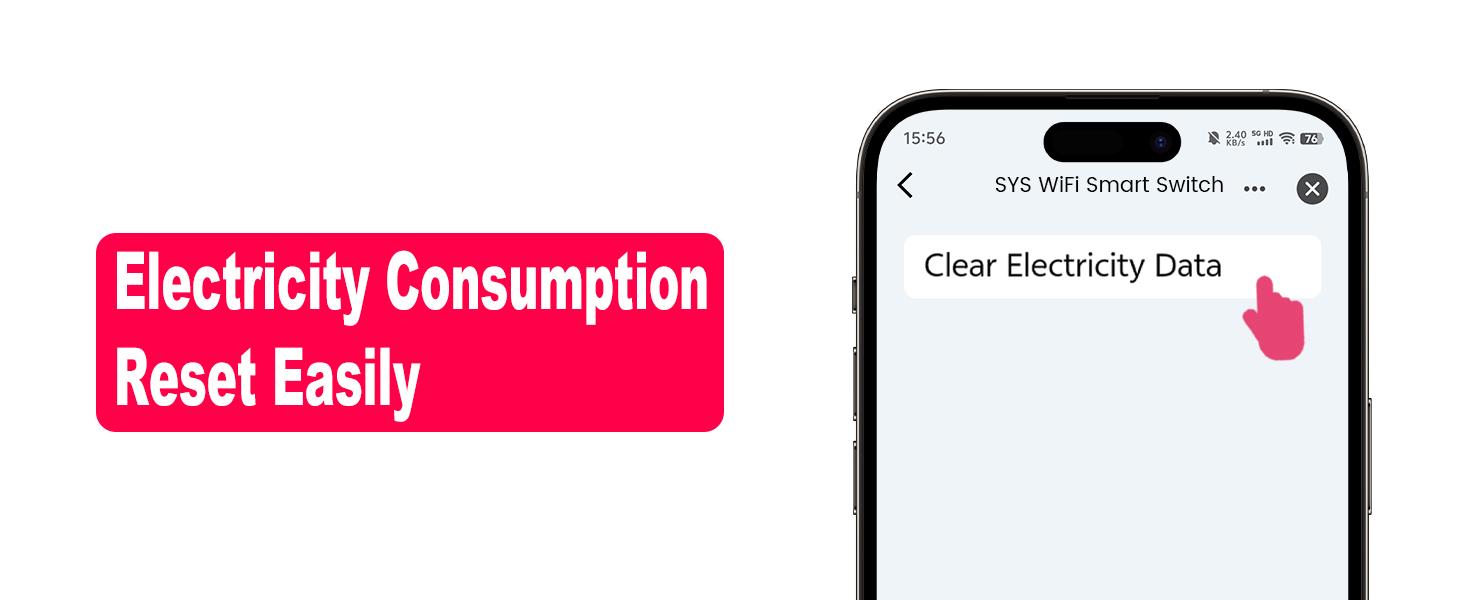

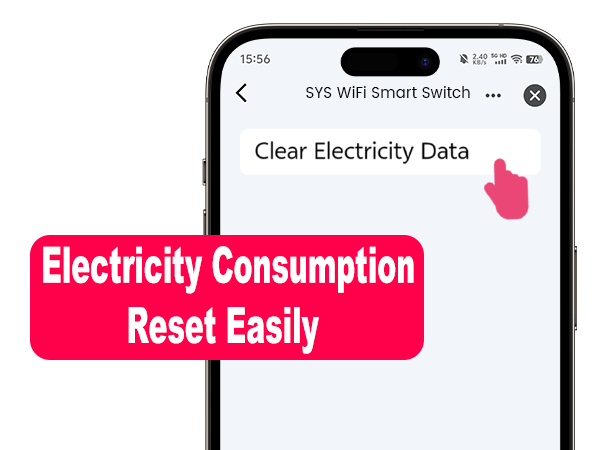

Clear/Export Electricity Data | ? | ? | ? | ? | ? | ? | ? |
Reclosing Functions | ? | ? | ? | ? | ? | ? | ? |

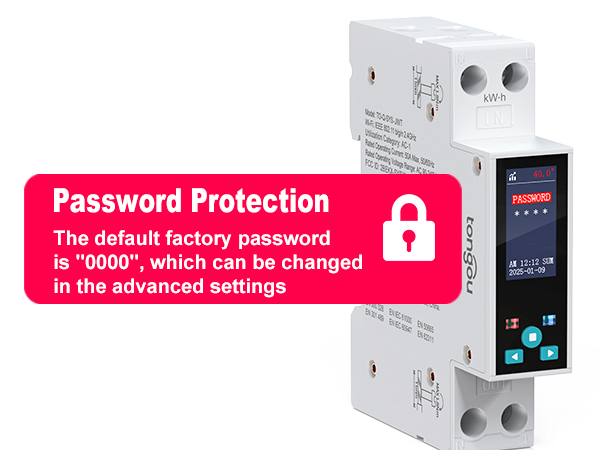

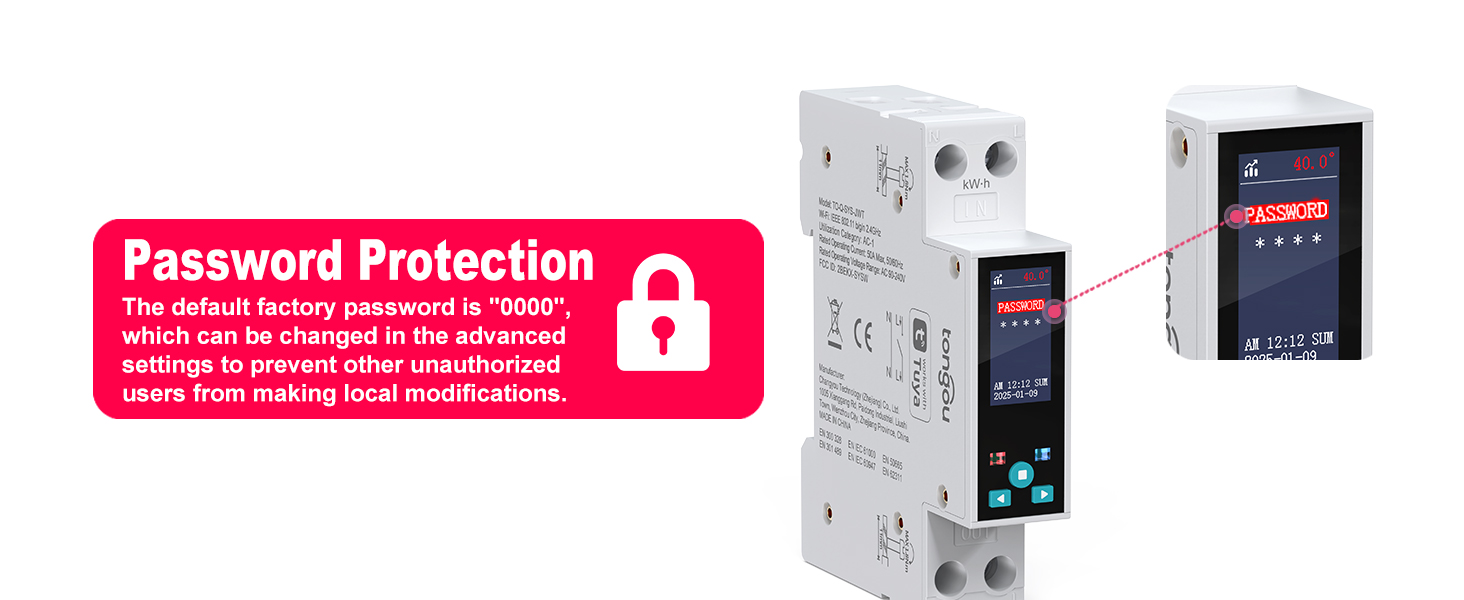

Password Protection | ? | ? | ? | ? | ? | ? | ? |

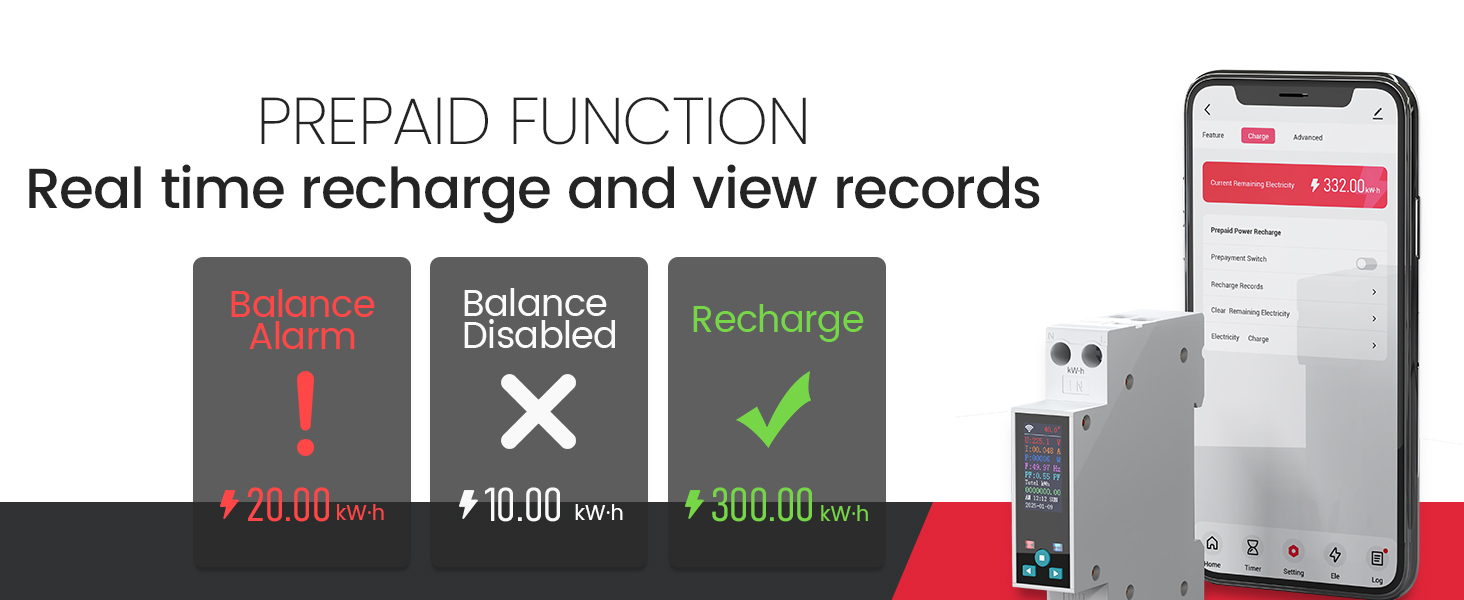

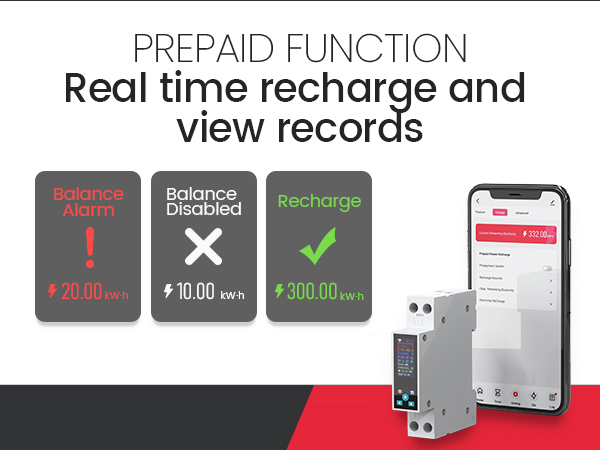

Prepaid Function | ? | ? | ? | ? | ? | ? | ? |
Provide Online Consult
tongou was established in 1993 and is the brand of Changyou Technology.
We position ourselves as providers of intelligent product solutions for high and low voltage electrical systems, taking on solving customers’ pressures and challenges as our responsibility and creating value for them.
We utilize intelligent products to serve global customers, making life smarter and more convenient to benefit your life.
WiFi Smart Switch
New WiFi Series
ZigBee Smart Switch & Gateway

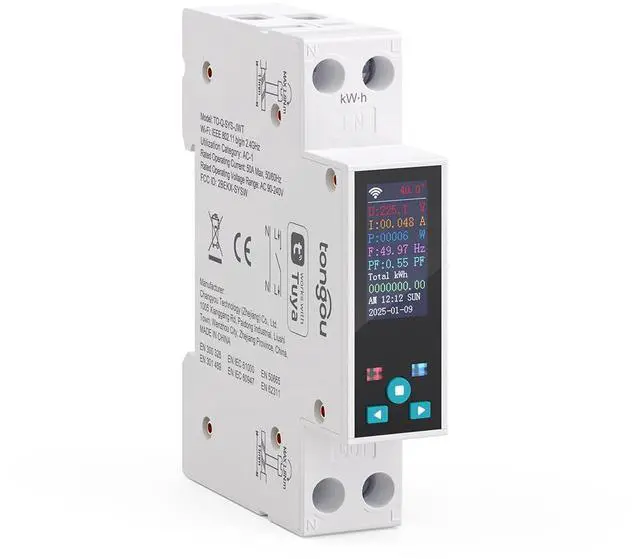

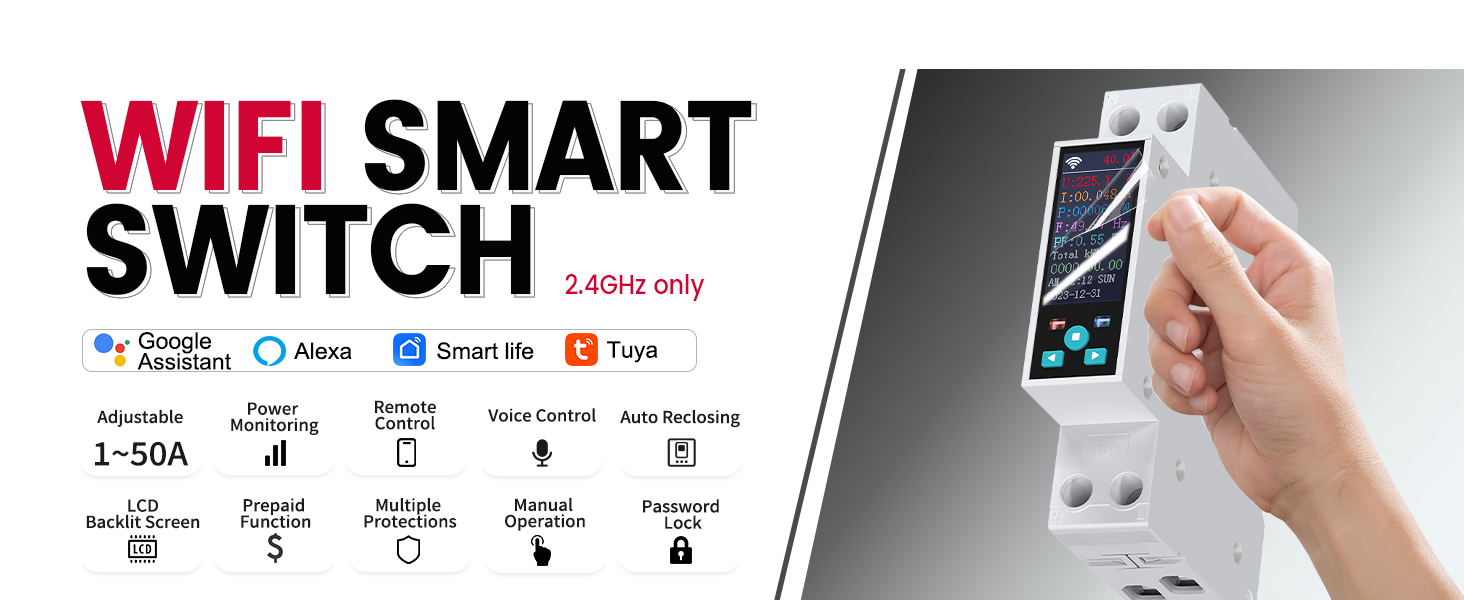

Technical Specifications for TO-Q-SYS-JWT WiFi Smart Switch
| Brand/ Manufacturer | TONGOU/ Changyou Technology (Zhejiang) Co.,Ltd. |
|---|---|
| Model | TO-Q-SYS-JWT |

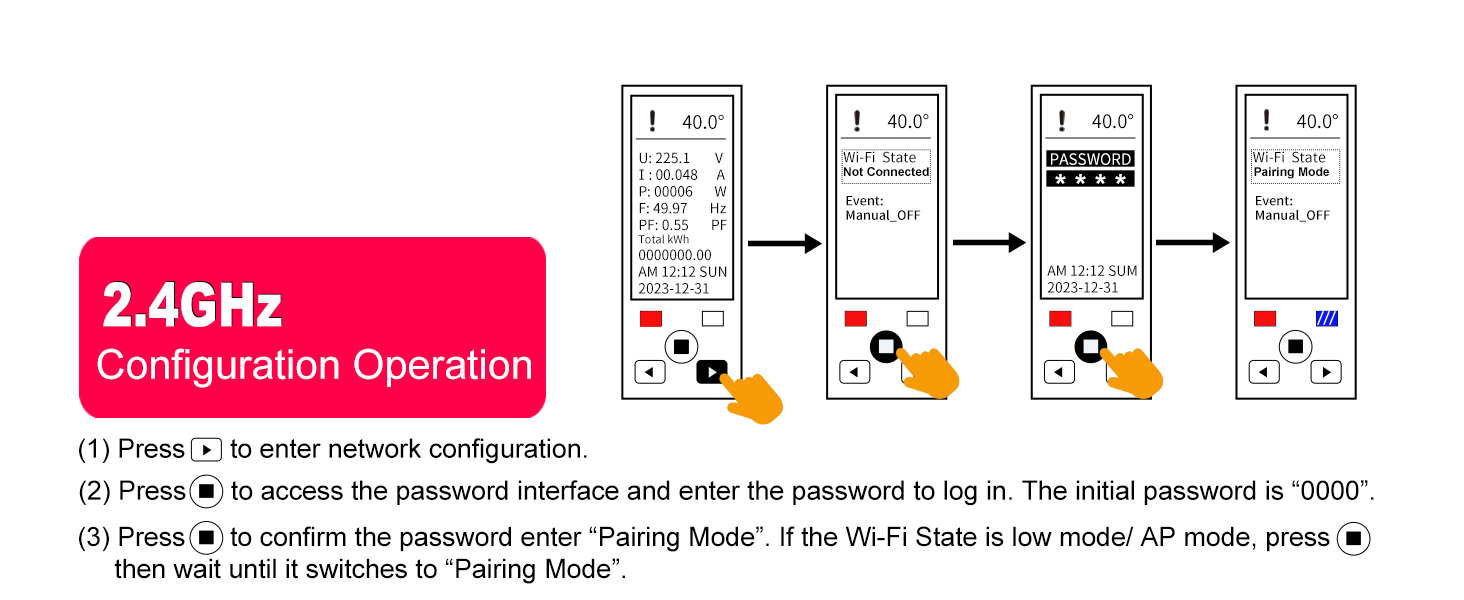

| Connection Protocol Type | Only for Wi-Fi IEEE 802.11 b/g/n 2.4GHz |
| Relay Type | Latching relay type |
| Rated Operating Voltage | AC 90-240V, 50/ 60Hz |
| Rated Operating Current | 1-50A |
| Poles Description | 1P+N (Neutral Wire Required, N pole cannot be cut off) |
| Circuit Type | Single-phase |
| Max Wiring Capacity | Power side: 10mm²; Load side: 10mm² |
| Current Scenario | AC1, AC electricity positive import |

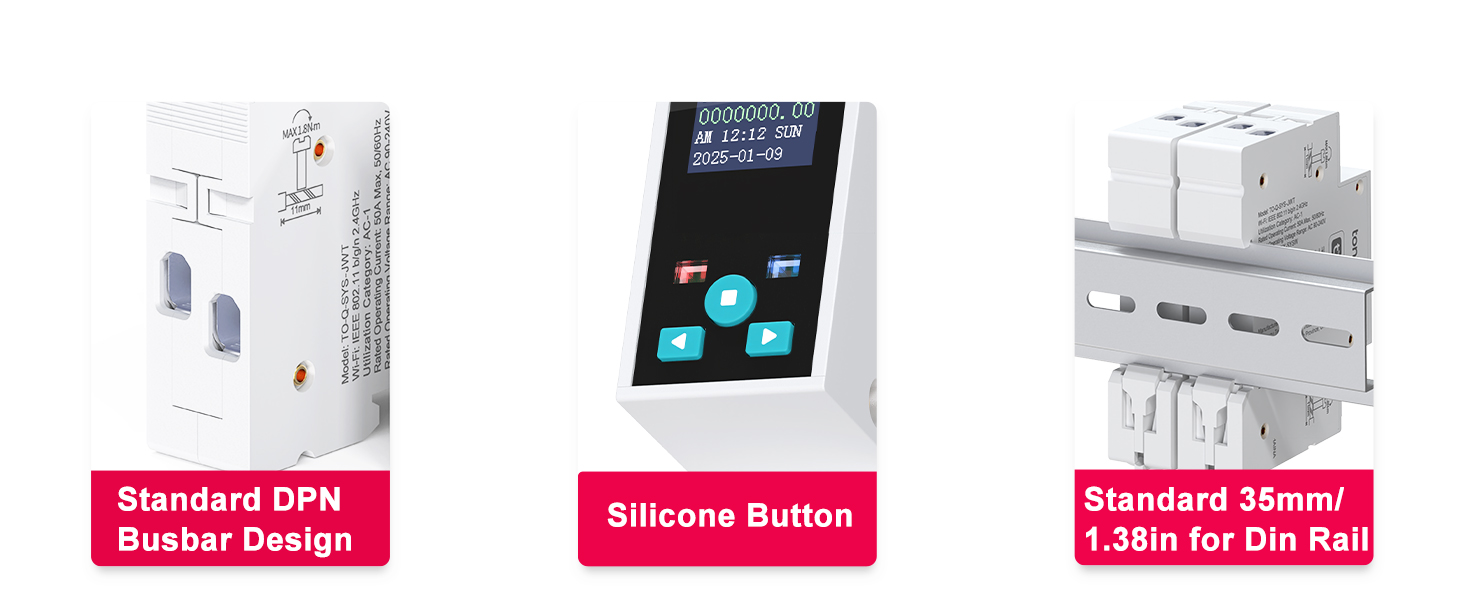

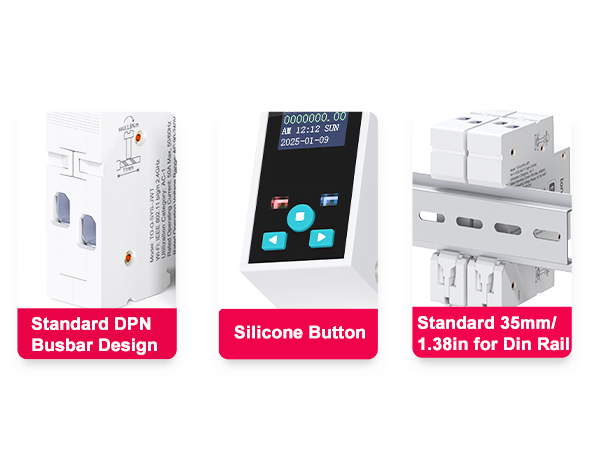

| Mounting Type | 35mm DIN rail |
| Accuracy | ±1% |
| Certification & Standard | FCC, CE & IEC 60947 standard (with over-current protection, overvoltage protection, undervoltage protection, overpower protection, and CPU temperature protection, but no short circuit protection) |
| Operation Type | Manual control, remote control via "Smart Life" and "Tuya" APP |
| Mobile Phone Support System | Android/ iOS |
Note:If the load side is used for Led lights, rated current = 16A, total power = 4000W.
