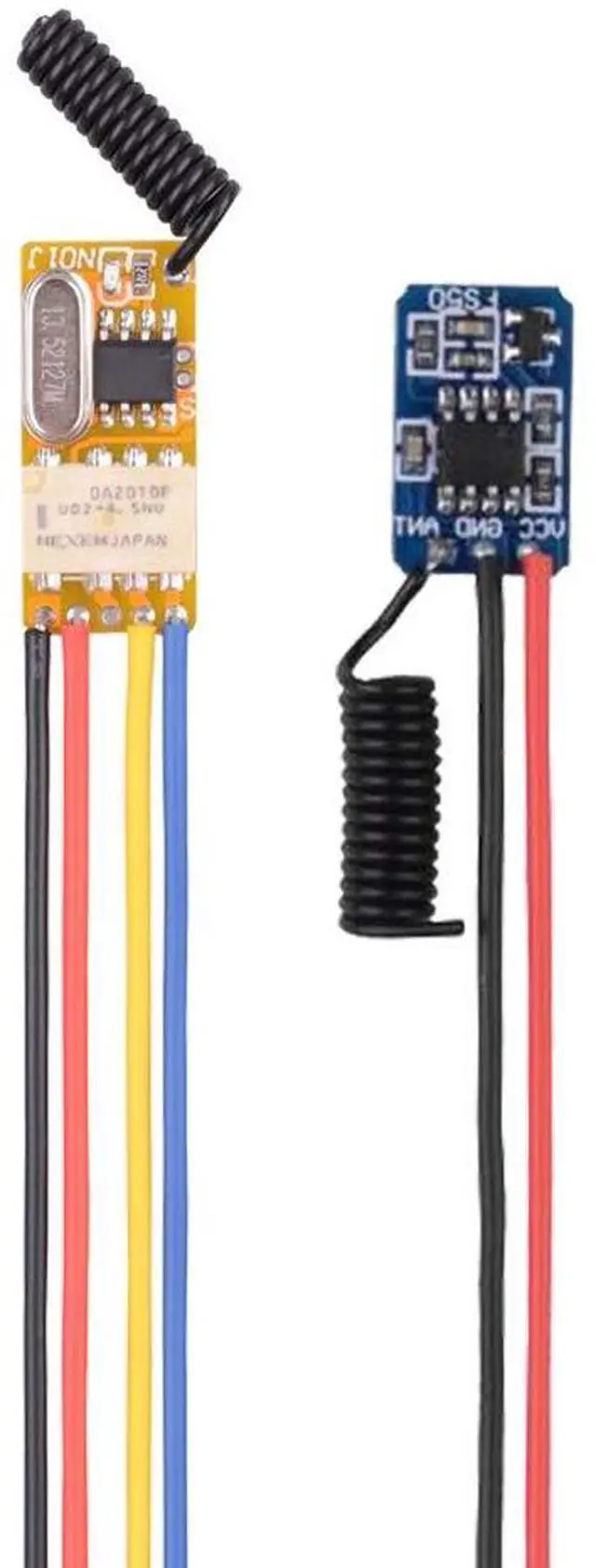

3.7-12V Wireless Remote Control Switch Mini Small PCB 433mhz RF Transmitter,3V -12V Battery Power Circuit Micro Controller for DIY
- it is a small size and easy installation. high sensitivity, with flexible control five working model for choose,It adopts non-directional wireless encoding technology, allowing independent control without mutual interference.
- easy to use : We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
- the RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 50 meters with no obstacle.
- it is mainly used in swtich, lamps, relays, remote controller, circuit boards,trumpet, power switch,home wireless control and security industry and battery powered on/off for small devices, etc. and other fields.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

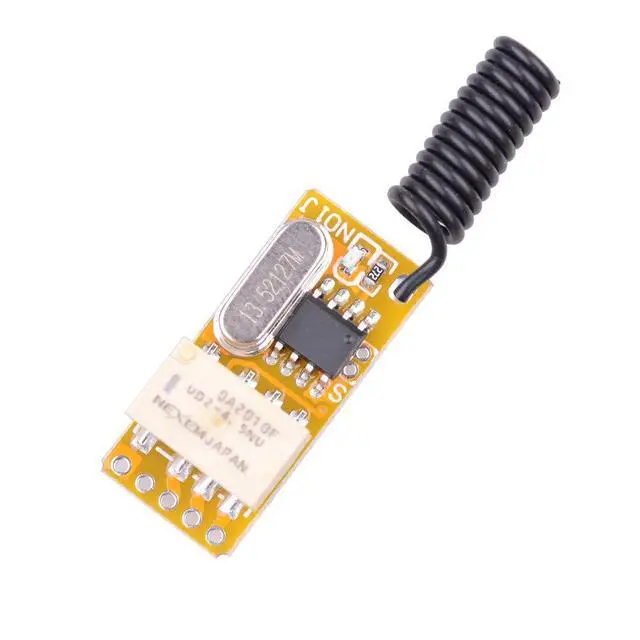

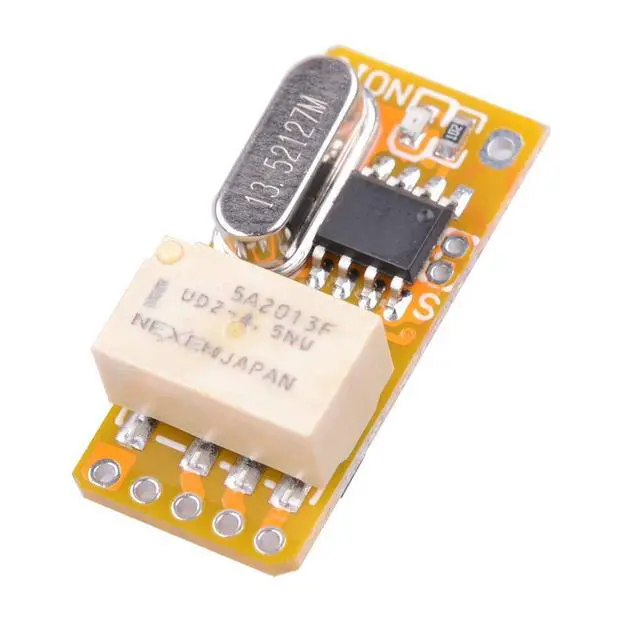

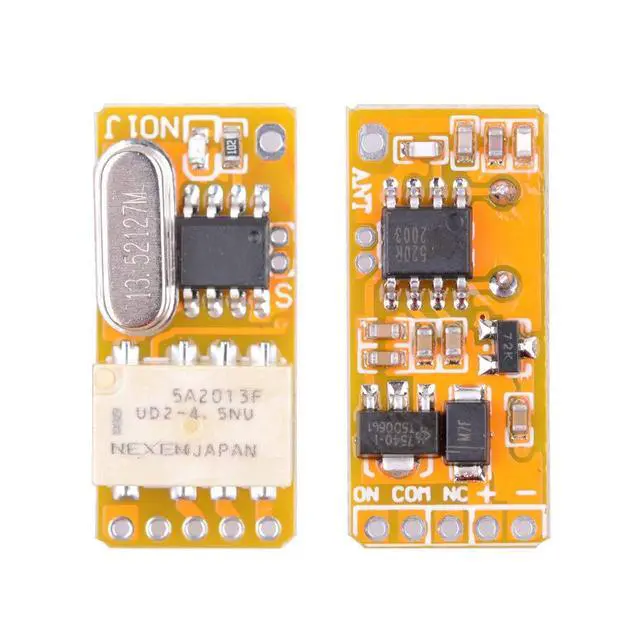

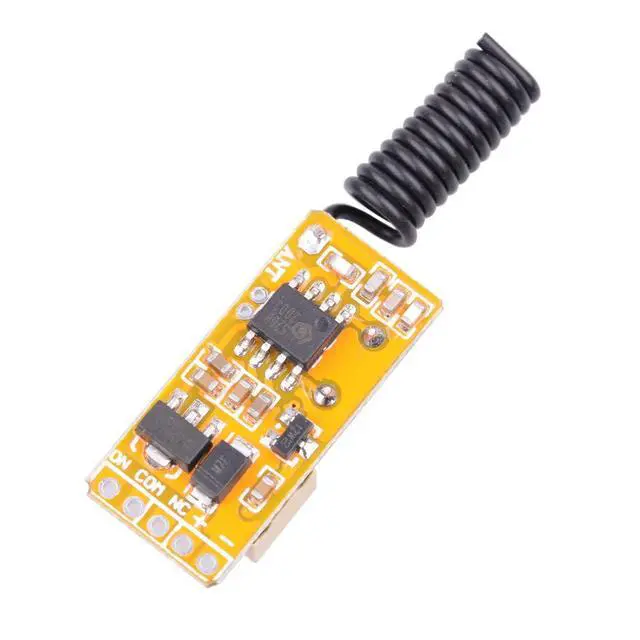

This product is an ultra-small mini remote switch. This is a safe widely used and flexible remote relay.
Receiver parameters :
Model number: NO1J
frequency: 433Mhz
Working Voltage: DC3.5V-DC12V
Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V
Max Load: 1A (have better Load less than 700ma)
Quiescent Current: 5ma
Relay Working Current: 30ma
Size: 25*11*8mm
Working Mode: Momentary. Toggle .Latched ,Delay time 10S adjustable.you can change working model by yourself.
(Notice: we send Momentary mode default .
Encoding Type: Learning point to add extra transmitter

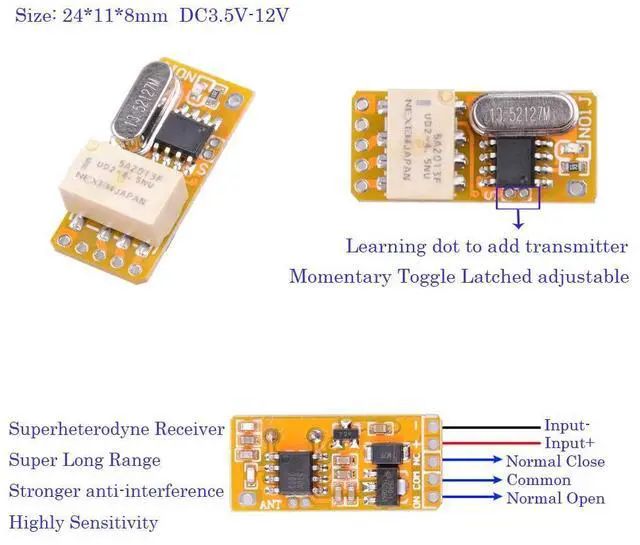

Normally Open Port (NO) Common Port (COM) Normally Close Port (NC) Input DC3.5V-DC12V Output 0V Switching Value
Momentary---Press and hold relay On; Release relay Off.(one channel switch need one button remote)
Toggle----Press relay On; Press same button again relay Off .(one channel switch need one button remote)
Latched----Press relay On; Press other button relay Off . ( one channel switch need 2 buttons remote )
Delay time : Press remote control button, the corresponding relay actuates and keeps working until the time out.
We've paired it up, so just wire it up and use it when you get it.
Clearing Code:
Connect the Learning Dot and hold on . Until the receiver Led indicator flash for 6 times, it mean Clearing code successfully

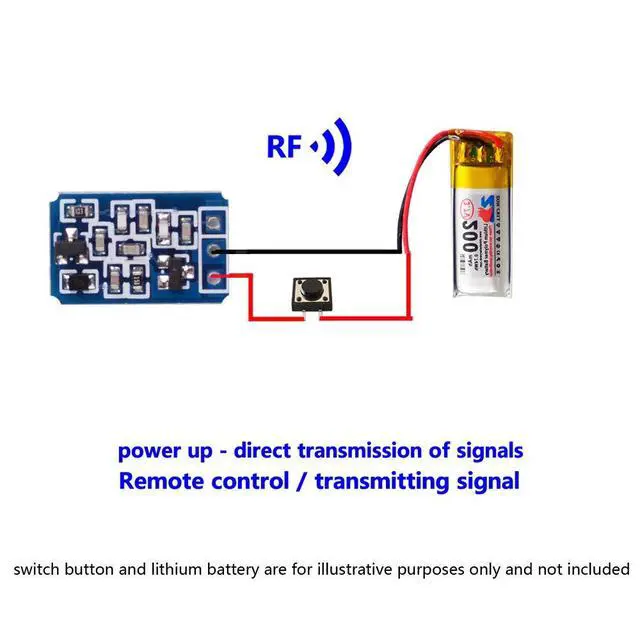

Remote control parameters:
frequency: 433Mhz
Working current: 12mA
Working Voltage3.7v -- 9v
Transmission Distance: 10-50 Meters
Package Include:
1 x Receiver(without cover)
1x Transmitter
