12V 80W Oil Change Pump Extractor Diesel Fluid Scavenge Suction Transfer Pump

Upgraded 80W Oil Change Pump Extractor

for Car Boat Motorbike Truck ATV and Other Vehicles

Extracting motor oil from your vehicle without Mess & Specialised. Quick and efficient.

It can be used for your Car, Motorcyle, Scooter, Quad Bike, Truck, Boat, Forklift, Generator, Tractor, Ride On Mower Etc Siphon & Transfer Diesel To Cars, Trucks, Ships, Boats, Tractors, Farm Machinery, Plant Equipment Etc.

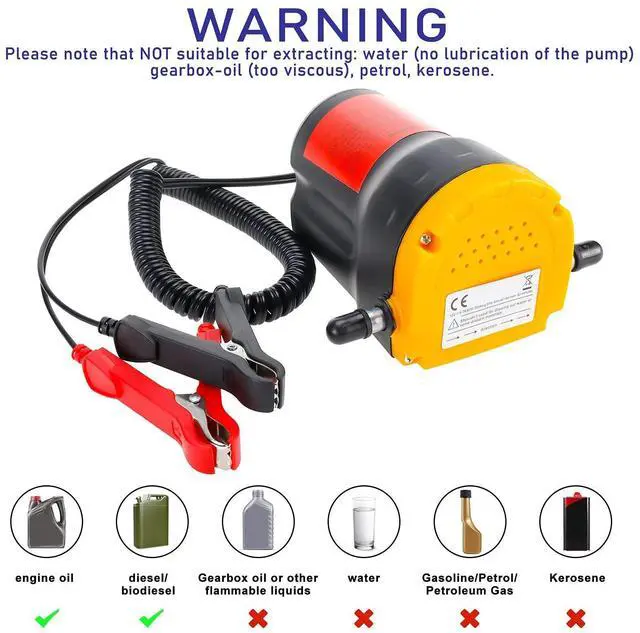

WARNING: This product can not use to extract water, gearbox oil or flammable liquids(such as fuel, petrol, gasoline)

If the product have any problems, we'll give you a free-return.

Specificaiton:

Input Voltage: DC 12V

Wattage: 80W, Current: 5A

Motor Oil (40-60 degrees)

Flow Rate: approx. 3L / min

Diesel or heating oil: approx 250 L/H

Sound pressure level:70dB(A)

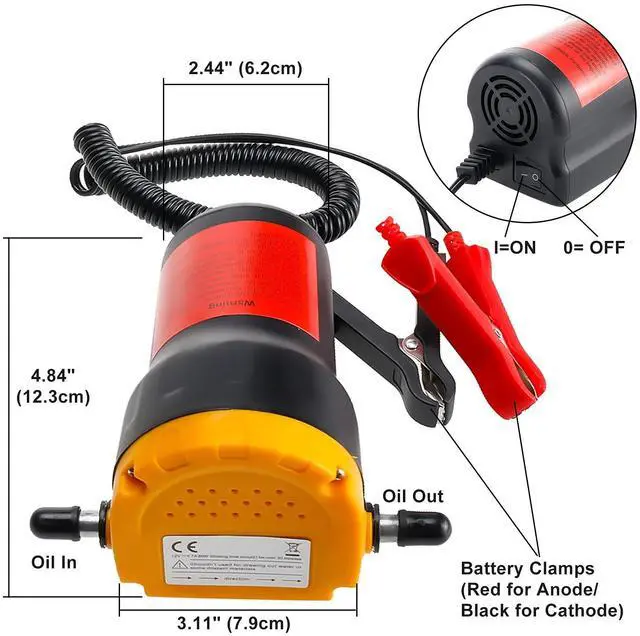

Upgraded Battery Clamps

Black for Cathode

Red for Anode

Changing the polarity of the power supply will change the direction of oil discharge

Easily Connect

Please connect it correctly, otherwise it is easy to malfunction.

It is mainly used to extract waste gas from the car, not to refuel.

Warm Tips

We recommend a short break after 10 minutes continuous usage (should not exceed 30 minutes) to allow the unit to cool.

Clean this pump after use, you can flush with washing detergent and then run with fresh transmission oil to run out water/detergent.

Package Included

1 x Pump

1 x Outlet Hose

1 x Inlet Hose

2 x Hose Clamps

2 x Battery Clamps

1 x User Guide

Easy Operation:

Warm up the engine for about 5 minutes to reduce the oil viscosity. It's important that the engine oil is warm (not hot) when extracting.

Turn off the engine and loosen the filler cap (for the time being)

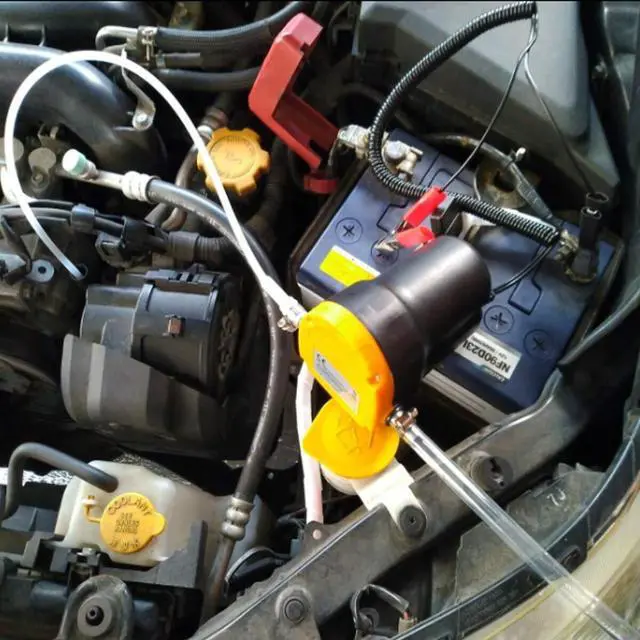

Connect the power clip of the pump body directly to the battery

Remove the oil level gauge and insert the thin hose of the pump. (Notice if you put it to the innermost very quickly,it won't work)

Gradually insert the hose while operating the pump.

When it is inserted to some extent,the operating noise will change and the oil will start to be sucked up.

Put the thick discharge hose on the waste oil tray. (If you put it directly in the waste oil treatment box, you will not know the amount of waste oil collected.)
