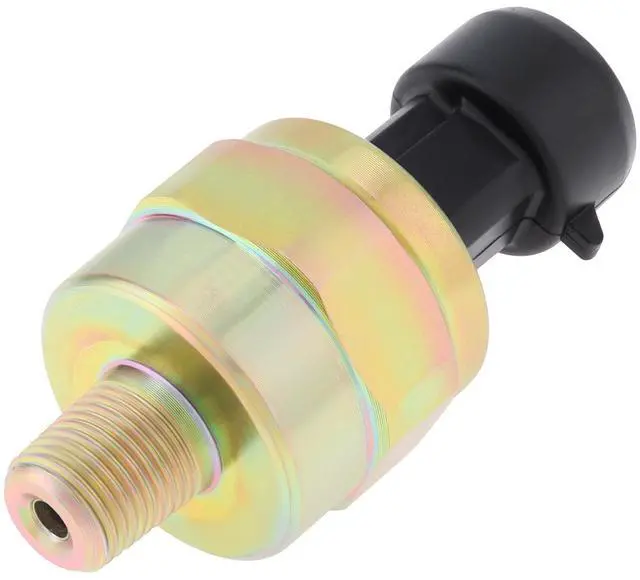

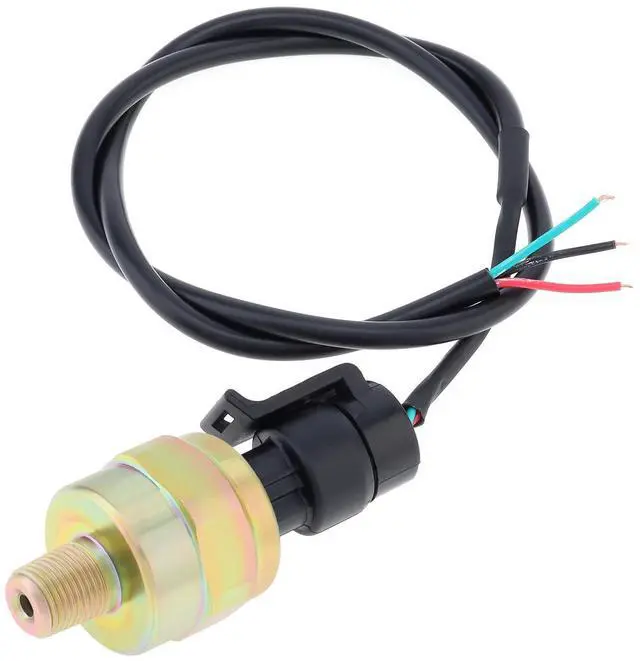

1/8 NPT 0-100 Psi Oil Fuel Pressure Sensor Transducer Sender with Harness Kit
- The 0-100 Psi fuel oil pressure transducer is made of 316 stainless steel. It is high temperature and corrosion resistant and cycle life is 500,000 times. IP65 Waterproof, work in various environments.
- The measuring range of pressure sensor transducer is 0-100psi. It is used to replace the OE pressor transmitter for fuel oil air water ect. Plug and play.

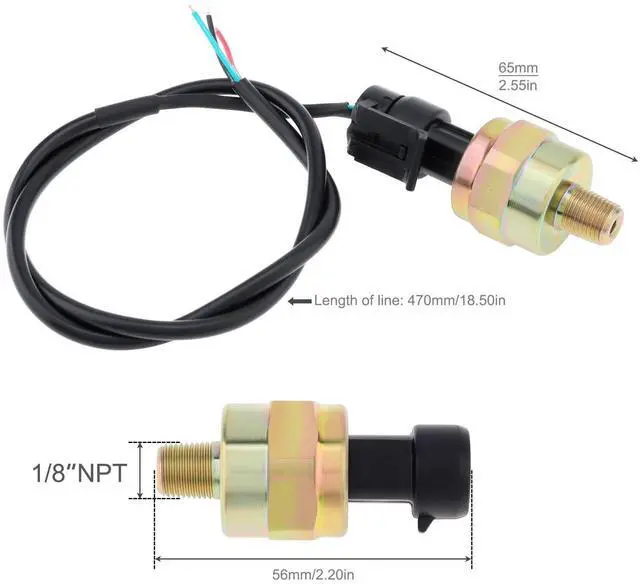

- Supply voltage: 5-16V. Output: 0.5V - 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V. It is 1/8 -27 NPT thread. Operating temperature: -40105.
- Gas, liquid and other physical parameters of the pressure sender sensor can be converted to standard electrical signals. Response time: 3ms.
- You can replace parts by yourself and solve your vehicle problems, just need to remove the old parts and install the new parts.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
- The 0-100 Psi fuel oil pressure transducer is made of 316 stainless steel. It is high temperature and corrosion resistant and cycle life is 500,000 times. IP65 Waterproof, work in various environments.
- The measuring range of pressure sensor transducer is 0-100psi. It is used to replace the OE pressor transmitter for fuel oil air water ect. Plug and play.
- Supply voltage: 5-16V. Output: 0.5V - 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V. It is 1/8 -27 NPT thread. Operating temperature: -40105.
- Gas, liquid and other physical parameters of the pressure sender sensor can be converted to standard electrical signals. Response time: 3ms.
- You can replace parts by yourself and solve your vehicle problems, just need to remove the old parts and install the new parts.

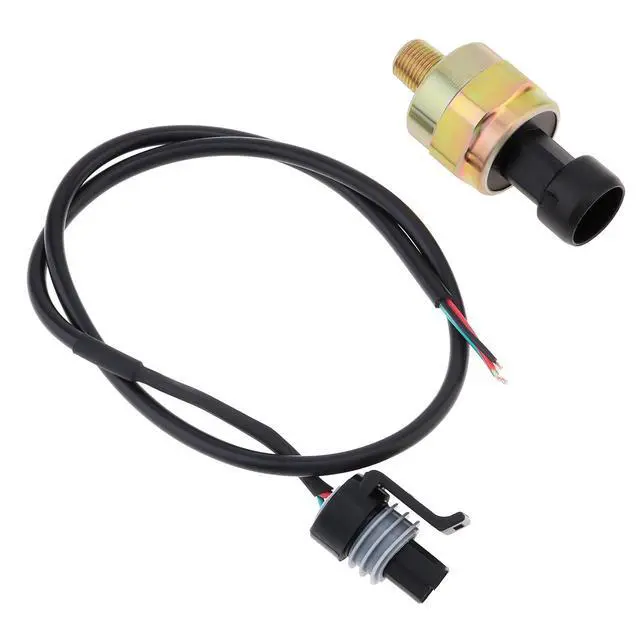

Package Includes:
1 x Oil Pressure Sensor
1 x Cable
