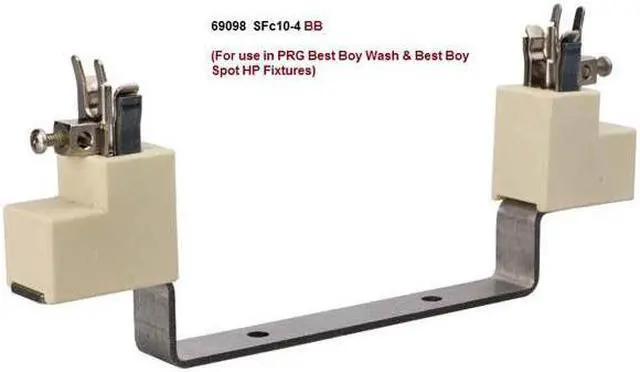

SFC10-4 lampholder for PRG Best Boy Wash and Best Boy Spot HP fixture

SFC10-4 lamp holder for PRG Best Boy Wash and Best Boy Spot HP and all their new fixtures which use the SHARXS 1500W/D7/60 Lamp

The bent support bar allow increased airflow under the lamp & reflector.



This lamp holder is for bulbs with SFC10-4 base, with 5.31 in overall length

- Lamp Wattage's: All SharXS HTI (5.31 in overall length)

- HMI 575 W/GS

- HTI 1200W/D7/60 SHARXS

- HTI 1200W/D7/75 SHARXS

- HTI 1500W/D7/60 SHARXS

- HTI 400W/D3/75 SHARXS

- HTI 400W/D5/60 BABY SHARXS

- HTI 575W/D4/60 SHARXS

- HTI 575W/D4/75 SHARXS

- HTI 575W/D5/56 BABY SHARXS

- HTI 700W/D4/60 SHARXS

- HTI 700W/D4/75 SHARXS

- MSR Gold 400W SA/2/DE

- MSR Gold 1200W SA/DE

- MSR Gold 1200W SA/2/DE

- MSR Gold 700W SA/2/DE

- MSR Gold 1500W SA/DE



- Lamp Base Spacing (A): 4.52

- Pulse Rating: 25kV

- Qualifications: UL Recognized

- E31557, CSA Certified

- LR209043 Dielectric breakdown rating of 15kV as UL certified



SFc10-4 socket is for all the SHARX family of lamps and the HMI 575W/DXS, excluding Baby SharXS bulbs

NOTE:

Baby SharXS ALSO say SFc10-4 for their base, but even though the lamp base is technically an SFc10-4 design, it is a shorter lamp length, so won’t fit in the socket.

Socket has the key-lock feature and will work with keyed bulbs only.

The name SFc10-4 is based on the diameter of the base (10 mm) and the M4 screw threads, not on the length of the lamp.

ONLY the SFc10-4 lamps have the Pre-focus notch to match our lampholders. (No notch on the SFc15.5 for instance).
