Dayton Audio DAEX32U-4 Ultra 32mm 40W 4 Ohm 295-235

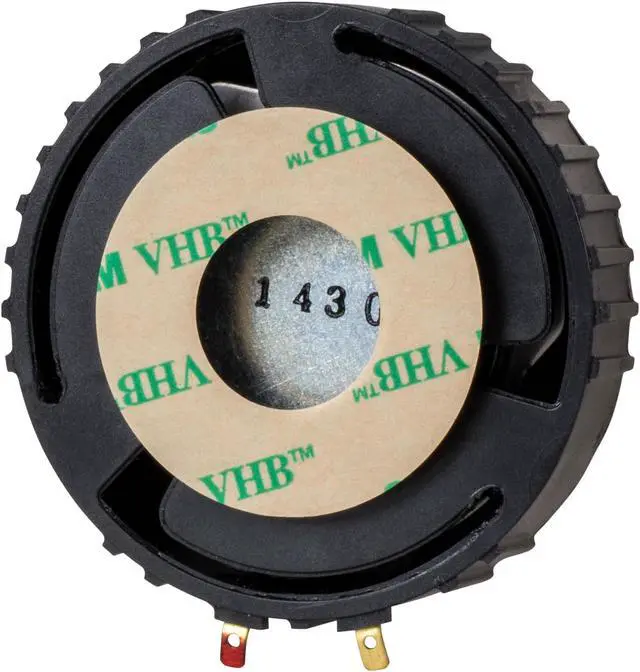

Overview Dayton Audio's DAEX32U-4 Ultra exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil makes it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB ( V ery H igh B ond) adhesive is pre-applied to the main body... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 40 watts RMS • VCdia: 32 mm • Nominal impedance: 4 ohms • Re: 3.5 ohms • Le: 0.23 mH • Fs (uncoupled): 160 Hz • Dimensions: 2.625' (66 mm) overall diameter x 0.75' (19 mm) total height • Adhesive dimensions: 1.64' (41.7 mm) outside diameter, 0.86' (21.7 mm) inside diameter • Weight: 140 grams. To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Undertanding Exciters White Paper .
