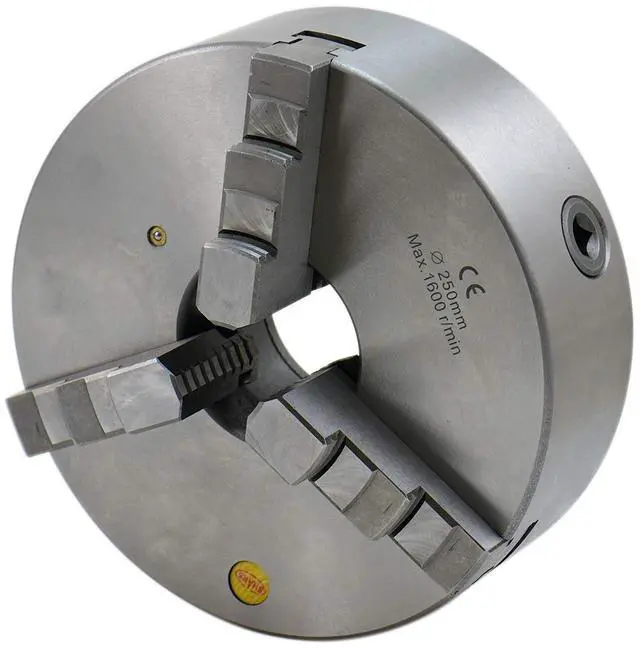

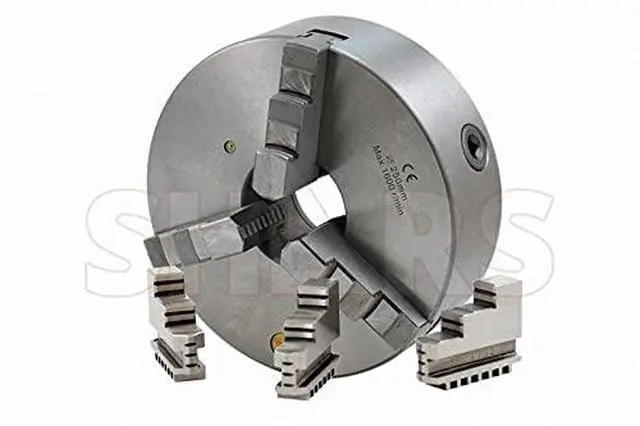

10" 3 Jaw Self Centering Scroll Lathe Chuck 202-5413 R[
Limited time offer, ends 07/31 By Yara Official Flagship
- SKU# 202-5413 A matching back plate, sold separately, requires machining on the face and hub OD to fit this chuck. Consult the back plate machining guide for specific details. Chuck Diameter: 10"; Through Hole Size: 3.15"; Bolt Circle Diameter: 8.898"; Chuck Thickness: 3.150"; TIR: 0.003"; Maximum Speed RPM: 1600; Maximum Torque NM: 320; Mounting: plain back; Reversible Jaws: No; Number of Jaws: 3 A serialized set of jaws are finished, ground, and lapped on their designated chuck body, which is the same body used in the final assembly for enhanced accuracy. Before assembly, the jaw's finishing machining operations are performed on a closed tolerance CNC machine
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SKU# 202-5413 A matching back plate, sold separately, requires machining on the face and hub OD to fit this chuck. Consult the back plate machining guide for specific details. Chuck Diameter: 10"; Through Hole Size: 3.15"; Bolt Circle Diameter: 8.898"; Chuck Thickness: 3.150"; TIR: 0.003"; Maximum Speed RPM: 1600; Maximum Torque NM: 320; Mounting: plain back; Reversible Jaws: No; Number of Jaws: 3 A serialized set of jaws are finished, ground, and lapped on their designated chuck body, which is the same body used in the final assembly for enhanced accuracy. Before assembly, the jaw's finishing machining operations are performed on a closed tolerance CNC machine
