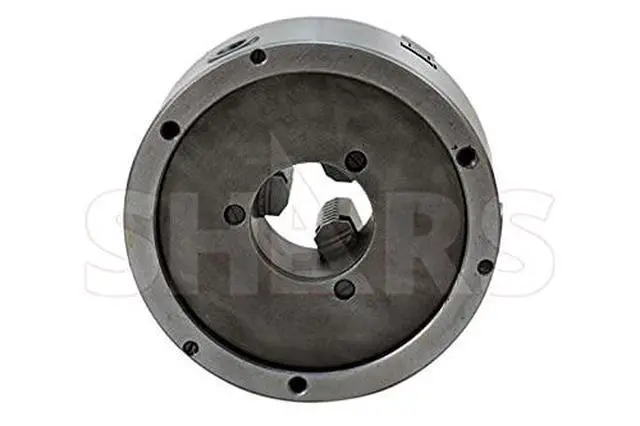

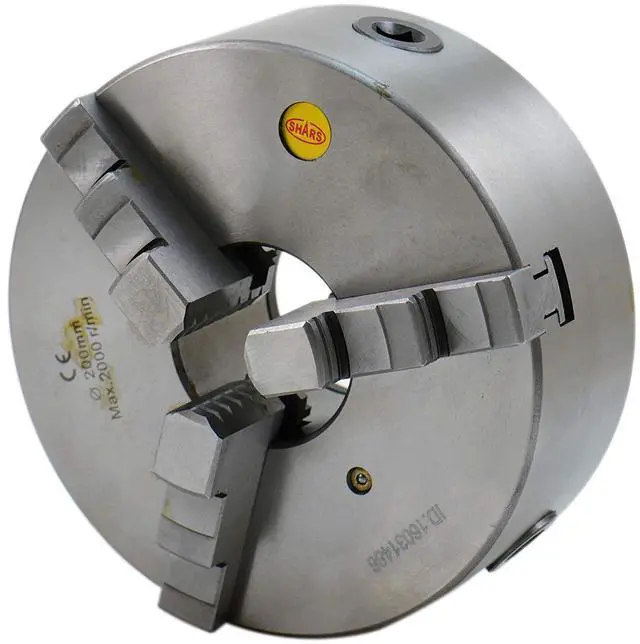

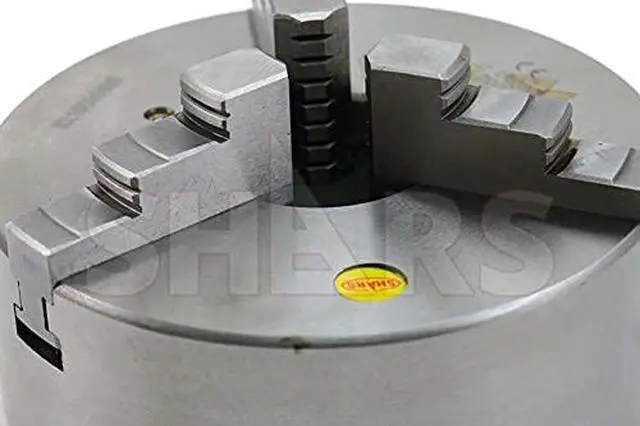

8" 3 jaw Self Centering Scroll Lathe Chuck 202-5412 R[
Limited time offer, ends 07/30 By Yara Official Flagship
- SKU# 202-5412 Chuck Diameter: 8"; Through Hole Size: 2.559"; Bolt Circle Diameter: 7.087"; Chuck Thickness: 2.953"; TIR: 0.0039"; Maximum Speed RPM: 2000; Maximum Torque NM: 250; Mounting: plain back; Reversible Jaws: No; Number of Jaws: 3 A serialized set of jaws are finished, ground, and lapped on their designated chuck body, which is the same chuck body used in the final assembly to achieve enhanced precision. Before assembly, the jaw's finishing machining operations are carried out on a closed-tolerance CNC machine. Internal Jaw: Clamping Range 0.157-3.346", Jamming Range: 2.559-7.874"
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SKU# 202-5412 Chuck Diameter: 8"; Through Hole Size: 2.559"; Bolt Circle Diameter: 7.087"; Chuck Thickness: 2.953"; TIR: 0.0039"; Maximum Speed RPM: 2000; Maximum Torque NM: 250; Mounting: plain back; Reversible Jaws: No; Number of Jaws: 3 A serialized set of jaws are finished, ground, and lapped on their designated chuck body, which is the same chuck body used in the final assembly to achieve enhanced precision. Before assembly, the jaw's finishing machining operations are carried out on a closed-tolerance CNC machine. Internal Jaw: Clamping Range 0.157-3.346", Jamming Range: 2.559-7.874"
