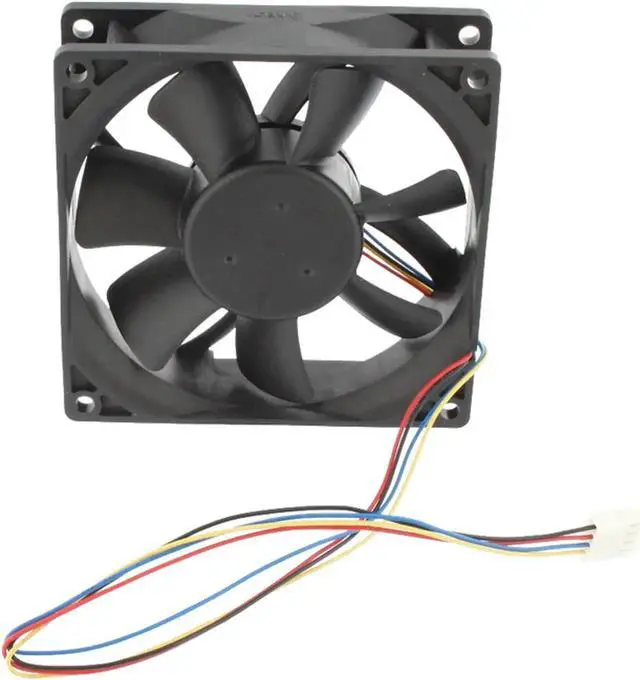

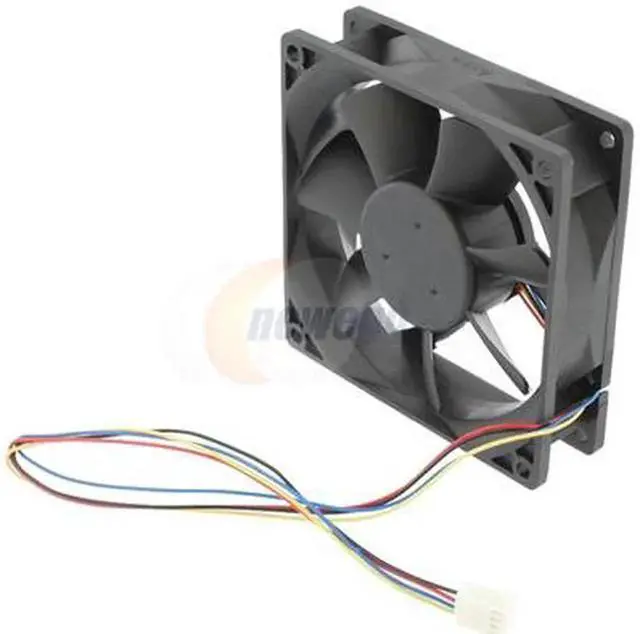

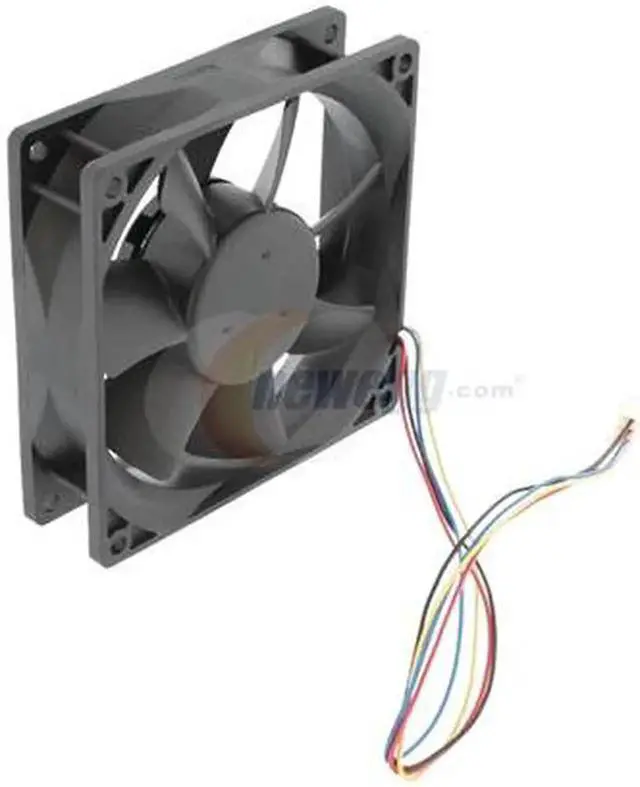

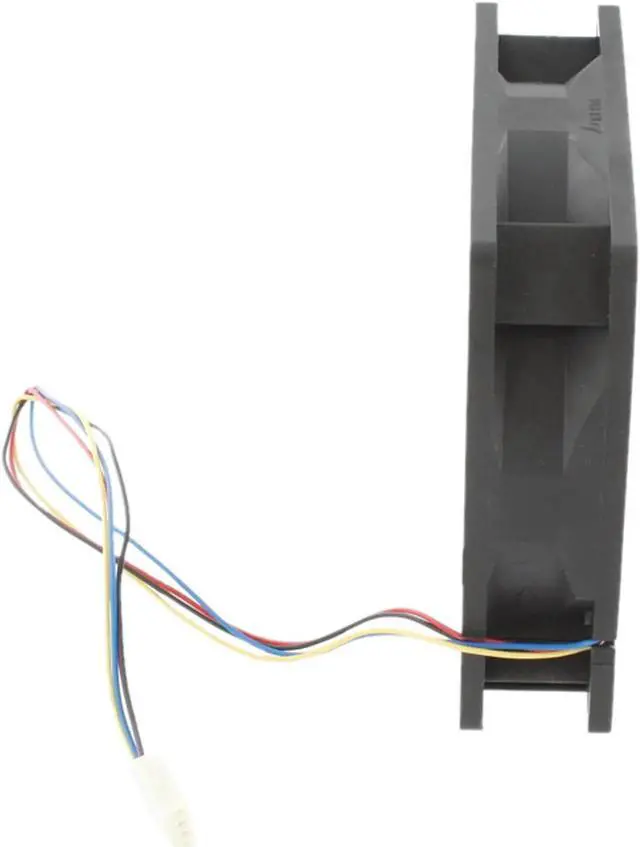

Delta AFC0912D-PWM 92mm Case Cooler
Limited time offer, ends 02/23 By PRIX Tech
- 92mm
- 4800 RPM 102.59 CFM
- Dual Ball
- 53.0 dBA
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model
| Brand | Delta |
| Model | AFC0912D-PWM |
Details
| Type | Case Fan |
| Compatibility | Case |
| Fan Size | 92mm |
| Bearing Type | Dual Ball |
| RPM | 4800 RPM |
| Air Flow | 102.59 CFM |
| Noise Level | 53.0 dBA |
| Power Connector | 4-pin PWM |
Features
| Features | Rated Voltage: 12 VDC | Operating Voltage Range: 8 - 13.2 VDC | Input Current: 0.75 Amp (maximum 1A) | Input Power: 9W (maximum 12W) | Maximum Air Pressure: 13.35 mmH2O or 0.526 inchH2O | The Delta AFC0912D-PWM is a high speed PWM cooling fan at 92 x 92 x 25mm. It yields a very strong air flow of 102.59 CFM, or 2.905 cubic meter per minute, at 53 dBA. The PWM function can balance between noise level and cooling power based on CPU load, while the speed sensor output provides speed monitoring capability. Life expectance is 70,000 hours (or almost 16 years if you operate the fan 12 hours a day) at 40 Degree C with 15 - 65% RH, all thanks for industrial grade materials plus top notched, high quality dual ball bearing. Operating temperature is -10 to +60 Degree C with 5 - 90% RH. Protection includes over current shut-down protection when rotor is locked, and polarity protection which can withstand reverse connection on positive and negative leads. This fan does not contain ozone depleting substances such as PBBs, PBBOs, CDCs, PBBEs, PBDPEs and HCFCs. | This fan has 4 wires lead with PWM and fan speed sensor output and a standard PWM 4 pin fan connector. You can power the fan through a 3 pin fan header on most computer motherboards or fan controllers, but you will lose the PWM functionality. You can also power it by a common computer power supply using a 3 pin to Molex 4 pin cable adapter (sold separately) but you will lose the PWM and fan speed monitoring functionality. Wire lead is approximately 12 inches long. |
Dimensions & Weight
| Dimensions | 92.00 x 92.00 x 25.00mm |
Additional Information
| First Listed on Newegg | January 07, 2026 |
