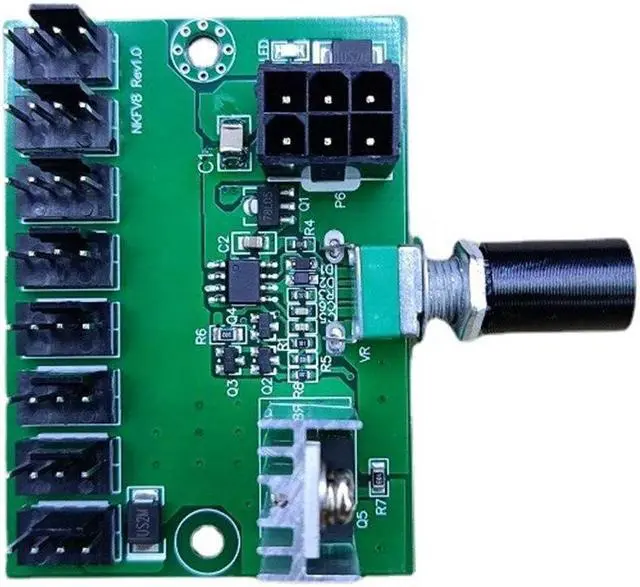

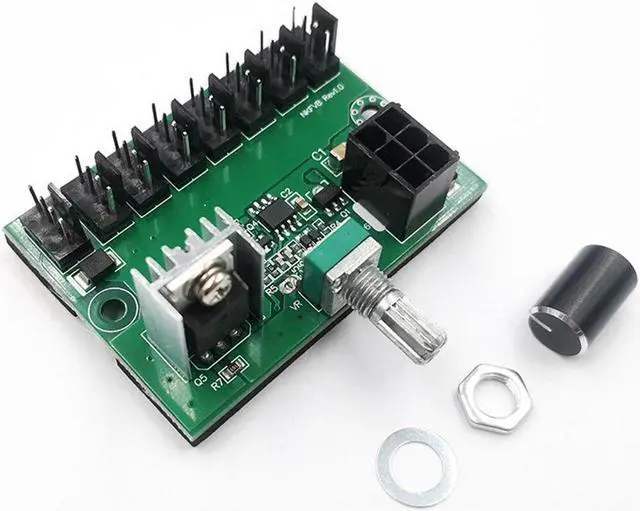

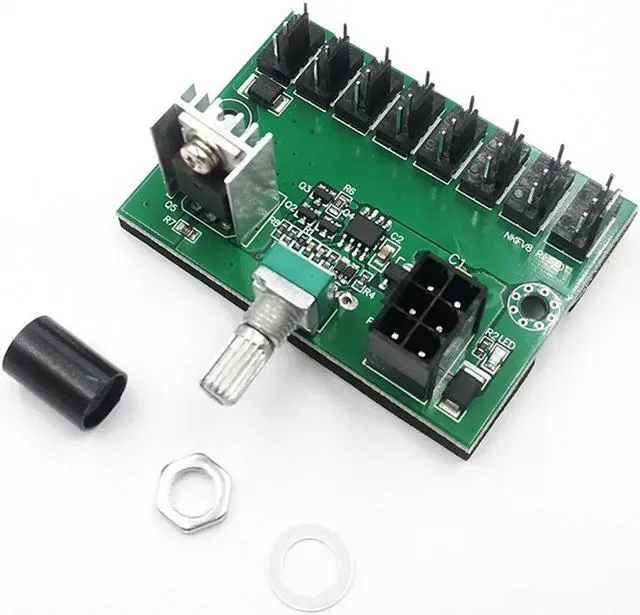

5Pcs Computer Case 12V Miner Fan Speed Controller 8-Channel Fan Hub PWM High-Power Violent Fan Controller

This governor can supply power to 8 fans, and rotating the potentiometer can adjust the speed of 8 fans at the same time.
The fan base supports 2P, 3P and 4P fans, and all 3 types of fans can adjust the speed.
installation method:

1. The adhesive pad at the bottom of the governor can be glued and fixed in the chassis.

2. Make holes on the chassis according to the size shown in the figure, and the potentiometer can be fixed in the hole of the chassis through nuts.

3. Set the screw column on the chassis according to the size of the fixing hole of the circuit board as shown in the figure, and fix the governor on the screw column.
Size: 62 x 45 x 26mm
Load current: 13A
Number of fan seats: 8
Power supply voltage: 12V
Power supply interface: 6 pin
Speed adjustment range: 0-full speed
Fan interface type: 2P, 3P, 4P
Size: 62 x 45 x 26mm
Material: PCB+Plastic+Metal
colour: green
Package Contents:

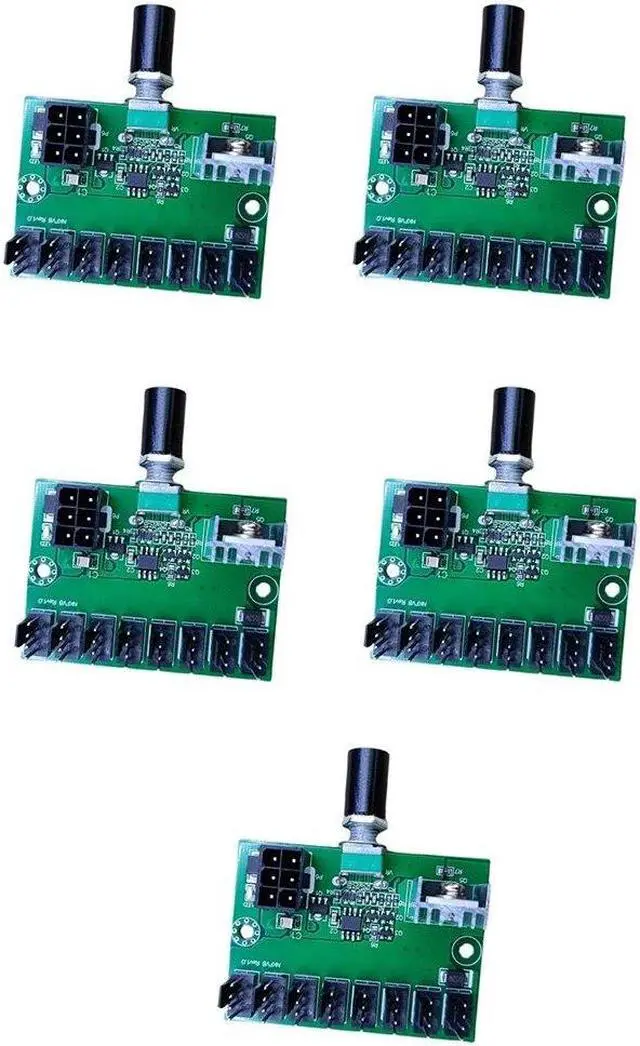

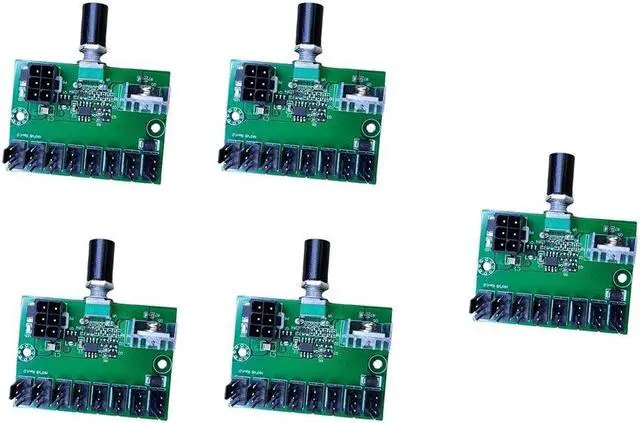

5 x Fan Speed Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
