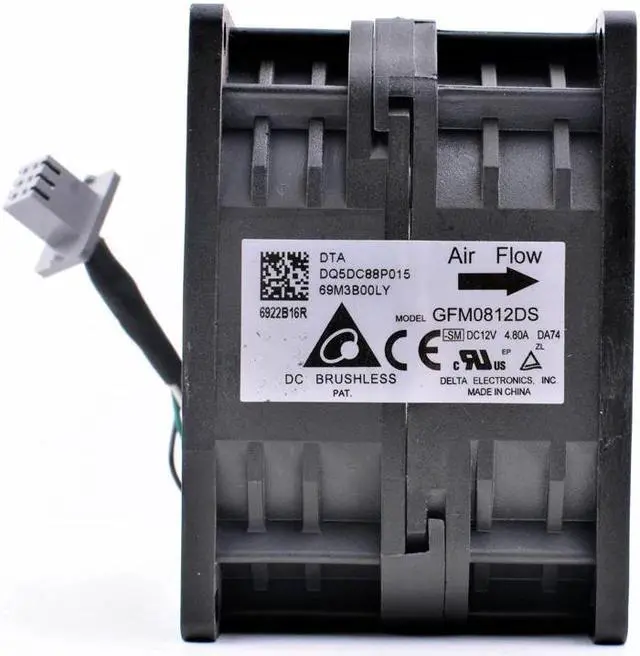

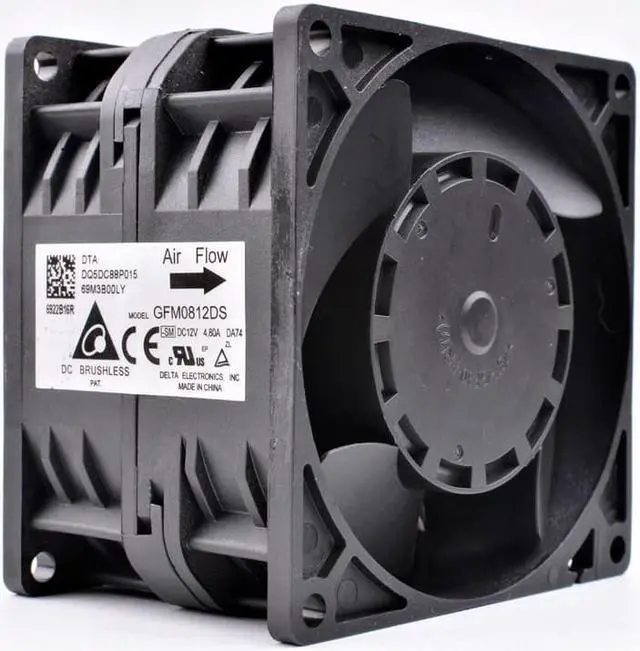

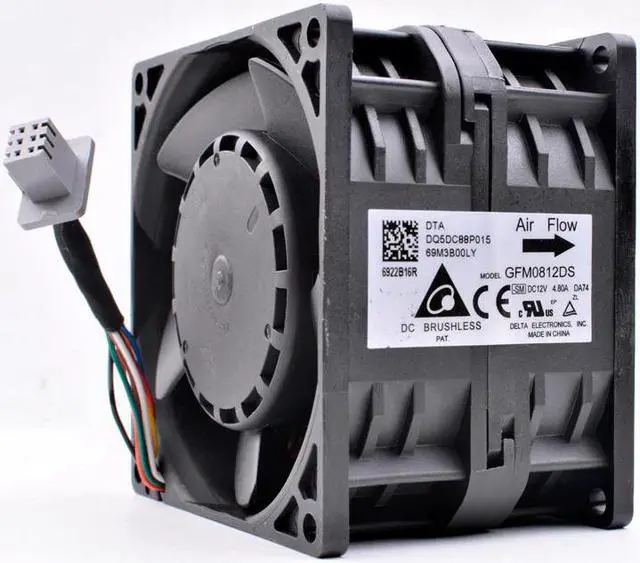

GFM0812DS 8cm 8056 12V 4.80A DQ5DC88P015 Server Cooling Fan
- Manufacturer Specifications Model: GFM0812DS-SMB7R
- Manufacturer: Delta Electronics
- Description: 80X56MM 12V DC FAN W/PWM CONTROL
- Uses: fan, thermal management >> DC fan
- Minimum order quantity: 1
- series:-
- Size / Size: Square - 80mm long x 80mm high
- Width: 56.00mm
- Airflow: 93.2 CFM (2.61m3/min)
- Static pressure: 4.485 inches of water (1117.2 Pa)
- Bearing type: ball
- Fan type: tube shaft type (double)
- Features: PWM control, speed sensor (tachometer)
- Noise: 73.3 dB(A)
- Power (W): 28.80W
- RPM: 12500 front, 11000 behind
- Termination: 4 wires per lead
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manufacturer
Manufacturer: Delta Electronics
Description: 80X56MM 12V DC FAN W/PWM CONTROL
Uses: fan, thermal management >> DC fan
Minimum order quantity: 1
series: -
Size / Size: Square - 80mm long x 80mm high
Width: 56.00 mm
Airflow: 93.2 CFM ( 2.61 m3/min)
Static pressure: 4.485 inches of water ( 1117.2 Pa)
Bearing type: ball
Fan type: tube shaft type (double)
Features: PWM control, speed sensor (tachometer)
Noise: 73.3 dB (A)
Power (W): 28.80W
RPM: 12500 front, 11000 behind
Termination: 4 wires per lead
Specifications
Model: GFM0812DS-SMB7RManufacturer: Delta Electronics
Description: 80X56MM 12V DC FAN W/PWM CONTROL
Uses: fan, thermal management >> DC fan
Minimum order quantity: 1
series: -
Size / Size: Square - 80mm long x 80mm high
Width: 56.00 mm
Airflow: 93.2 CFM ( 2.61 m3/min)
Static pressure: 4.485 inches of water ( 1117.2 Pa)
Bearing type: ball
Fan type: tube shaft type (double)
Features: PWM control, speed sensor (tachometer)
Noise: 73.3 dB (A)
Power (W): 28.80W
RPM: 12500 front, 11000 behind
Termination: 4 wires per lead
