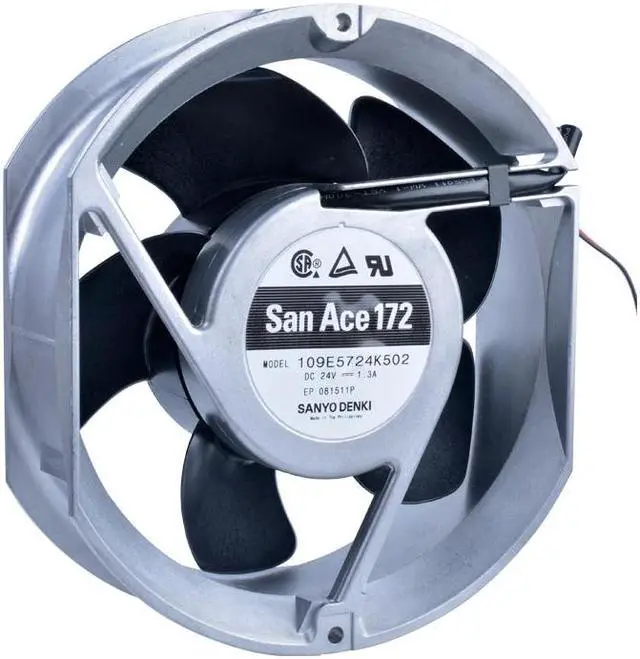

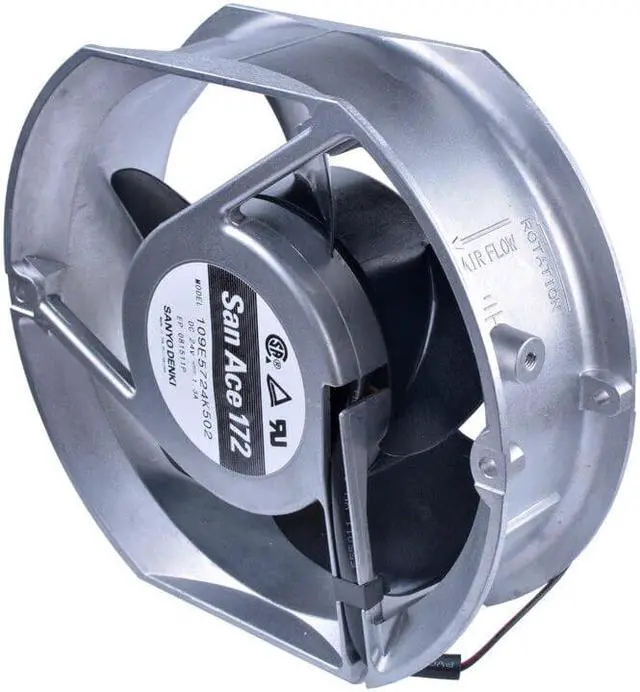

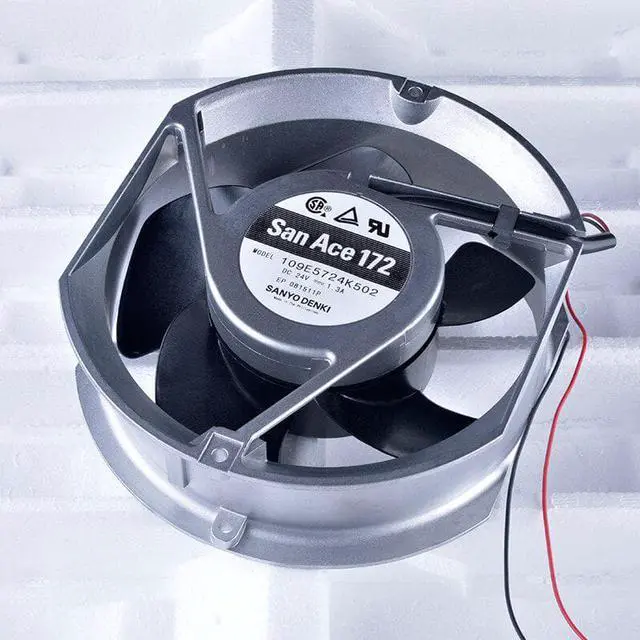

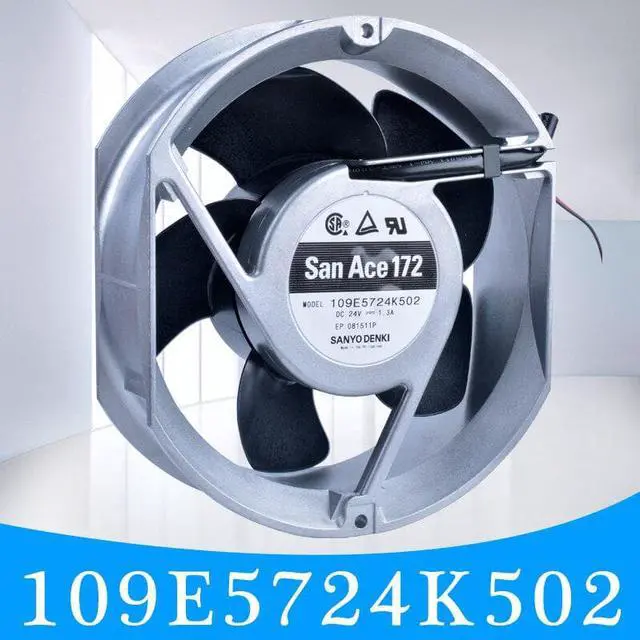

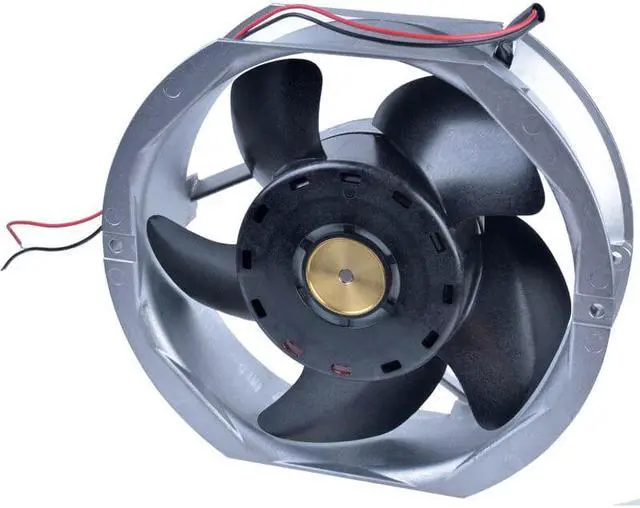

109E5724K502 17251 172x150x52mm 24V 1.30A double ball strong wind volume dc cooling fan
- Manufacturer's part number: 109E5724K502 FAN 172X51MM 24VDC
- SDCUT RBLS order quantity: 1.
- Description: FAN 172X51MM 24VDC SDCUT RBLS.
- Minimum order quantity: 1.
- Part status: on sale.
- Voltage - rated: 24VDC.
- Size/size: rectangle/round - 172mm long x 150mm high.
- 51 mm width:
- Air flow: 300.0 CF (8.50m3/min)
- Static pressure: 0.976 inch water column (243.0pa)
- Bearing type: ball.
- Fan type: tube shaft type.
- Features: -
- Noise: 60 dB (A)
- Power (W) : 31.2W.
- The RPM, 4100 RPM
- End connect: 2 leads.
- Intrusion prevention: -
- Working temperature: - 4 to 158 F (70 C) - 20 ~
- Recognition: CSA, TUV, UR.
- Weight: 1.7 pounds (771.1g)
+
+
