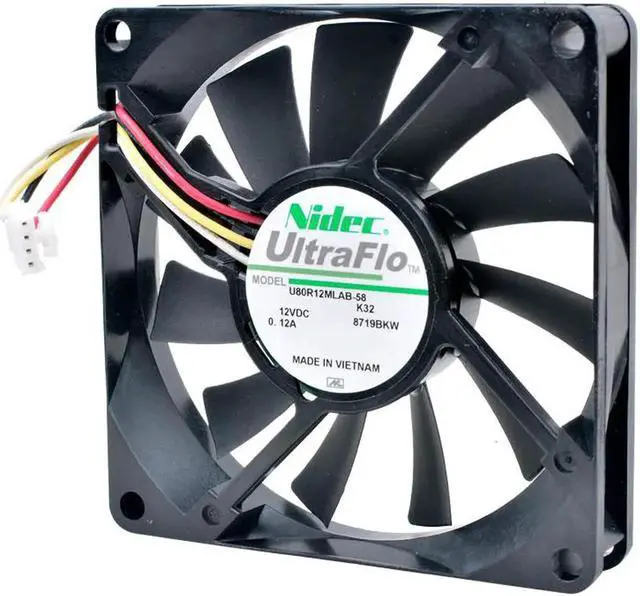

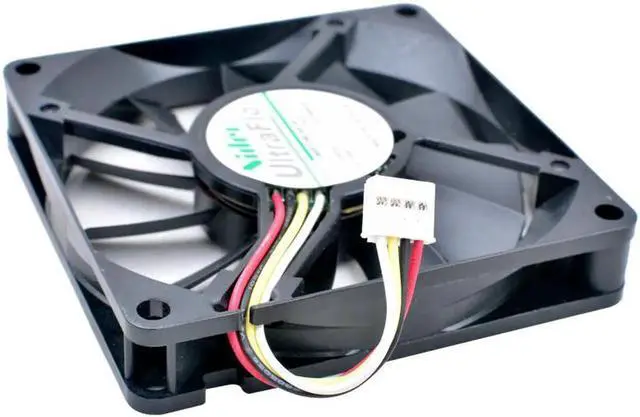

U80R12MLAB-58 8cm 80mm fan 80x80x15mm DC12V 0.12A 4 lines Industrial computer cooling fan with speed monitoring RD warning
- Model: U80R12MLAB-58
- Auxiliary line: speed measurement and temperature control
- Speed: 225010%RPM
- Rated voltage: DC 12V
- Rated current: 0.12A
- Actual current: 0.08A
- Power consumption: 0.96W
- Noise: 24DBA
- Air volume: 23CFM
- Wind pressure: 2.3mmH2O
- Expected life: constant temperature 40, humidity 5%~95% 38000hrs
- Net weight: 52.4 grams
- Wiring mode: red wire positive, black wire negative, yellow wire speed measurement, white wire alarm, does not support pwm temperature control
- Hole diameter: 4MM
- Back circle size: 34MM
- Inclined hole pitch: 100MM
- Bevel size: 110MM
- Bearing: hydraulic bearing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: U80R12MLAB-58
Auxiliary line: speed measurement and temperature control
Speed: 225010%RPM
Rated voltage: DC 12V
Rated current: 0.12A
Actual current: 0.08A
Power consumption: 0.96W
Noise: 24DBA
Air volume: 23CFM
Wind pressure: 2.3 mmH2O
Expected life: constant temperature 40, humidity 5%~95% 38000hrs
Net weight: 52.4 grams
Wiring mode: red wire positive, black wire negative, yellow wire speed measurement, white wire alarm, does not support pwm temperature control
Hole diameter: 4MM
Back circle size: 34MM
Inclined hole pitch: 100MM
Bevel size: 110MM
Bearing: hydraulic bearing
