$15.81
Ships from China.
Meet Your Seller

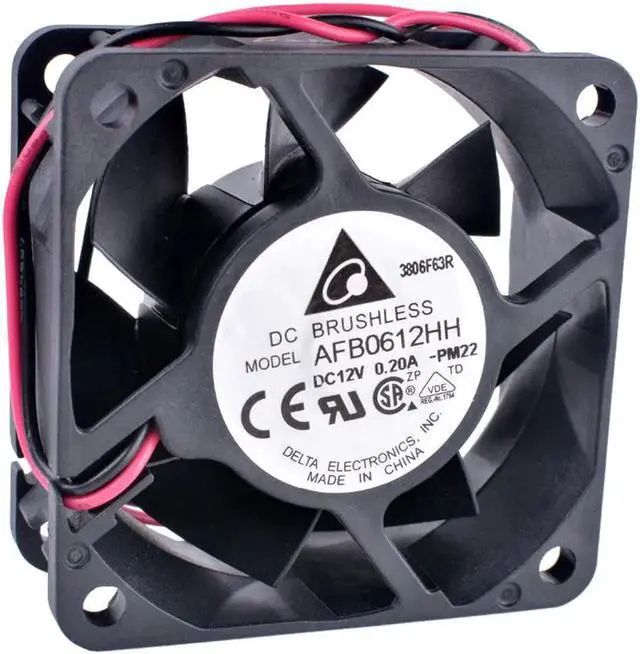

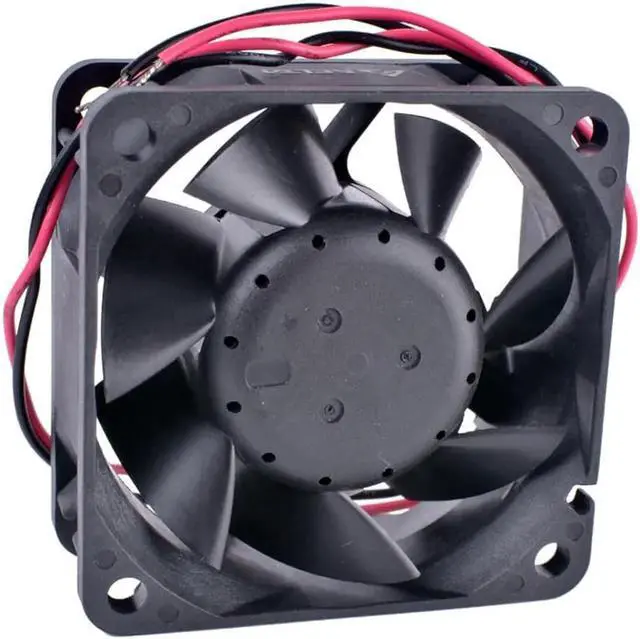

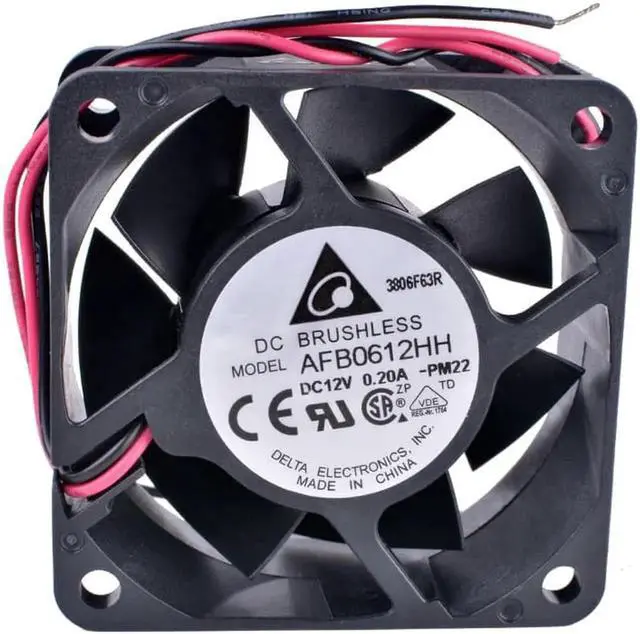

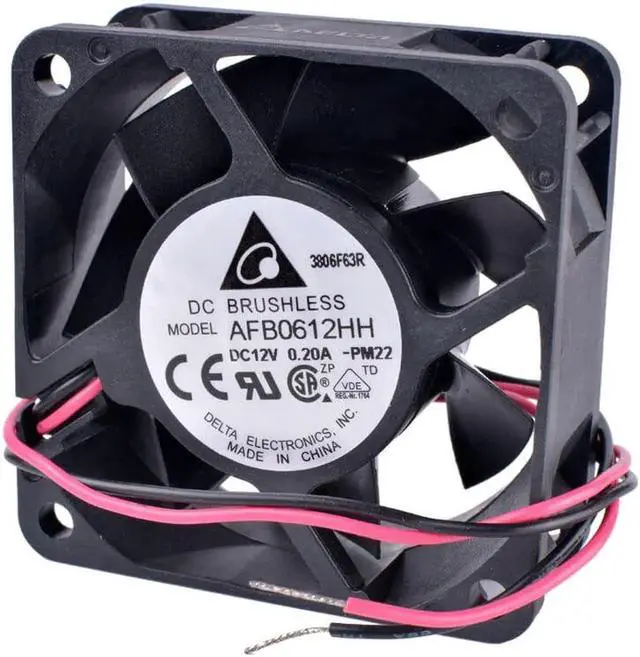

AFB0612HH 6cm 60mm fan 6025 12V 0.20A Double ball bearing 2-wire power cooling fan
- Appearance size : 606025mm
- Rated voltage : DC12V
- Voltage Range : DC7.0V-14.0V
- Input power: 0.20A (nominal current, measured 0.2A)
- Rated speed : 5000 r.p.m Bearing construction : Maintenance-free double ball
- bearings [rotation direction] : The wind discharges from the support and
- rotates counterclockwise towards the rotor
- Wiring method: + red - black
- Maximum air flow : 17.1 m3/h
- Motor Protection : Staggered Protection and Stall Locked Flow Protection
- Wind pressure : 105 Pa
- Noise Index : 32.5 dB(A)
- Material Material : Glass fiber reinforced plastic, PBT shell, PA blade, with
- environmental certification
- Functional Description : Electronic Exchange External Rotor DC Fan,
- Complete Electronic Commutation Unit
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Appearance size: 606025mm
Rated voltage: DC12V
Voltage Range: DC 7.0V - 14.0V
Input power: 0.20A (nominal current, measured 0.2A )
Rated speed: 5000 r. p. m
Bearing construction: Maintenance-free double ball
bearings [rotation direction]: The wind discharges from the support and
rotates counterclockwise towards the rotor
Wiring method: + red - black
Maximum air flow: 17.1 m3/h
Motor Protection: Staggered Protection and Stall Locked Flow Protection
Wind pressure: 105 Pa
Noise Index: 32.5 dB (A)
Material Material: Glass fiber reinforced plastic, PBT shell, PA blade, with
environmental certification
Functional Description: Electronic Exchange External Rotor DC Fan,
Complete Electronic Commutation Unit
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by jay's Marketplace Return Policy
