Noctua Cooling Solutions
Noctua's premium cooling components are internationally renowned for their superb quietness, exceptional performance and quality.

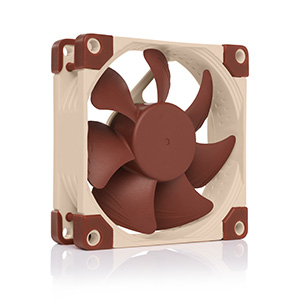

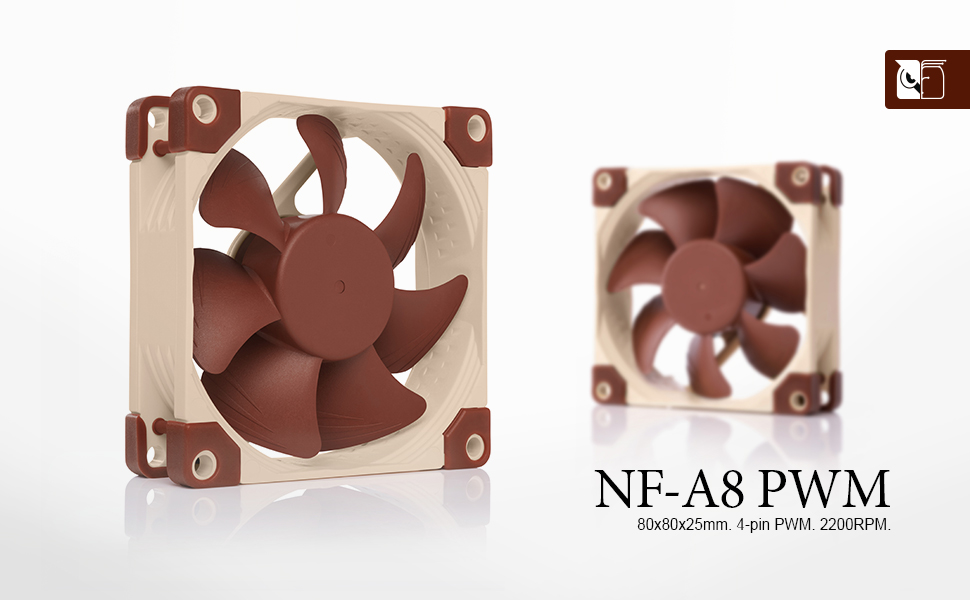

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2200 to 1750rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Flow Acceleration Channels
The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
SSO2 bearing
The NF-A8 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

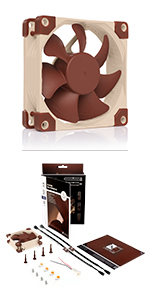

Scope of delivery
- Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV1 anti-vibration mounts
- Fan screws

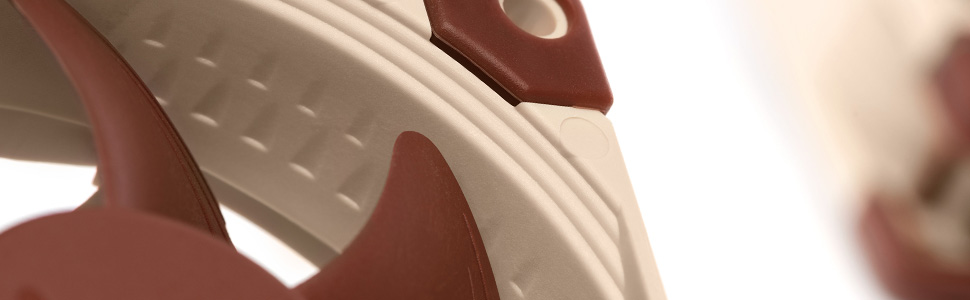

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

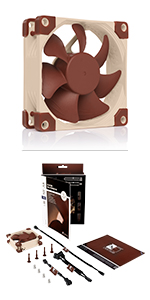

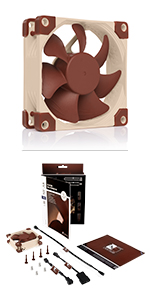

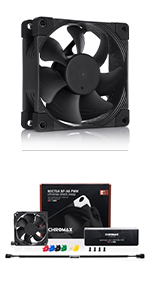

 NF-A8 PWM |  NF-A8 FLX |  NF-A8 ULN |  NF-A8 5V PWM | NF-A8 5V |  NF-A8 PWM chromax.black.swap | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Connector | 4-pin PWM | 3-pin | 3-pin | 4-pin PWM | 3-pin | 4-pin PWM |
| Voltage | 12V | 12V | 12V | 5V | 5V | 12V |
| RPM | Max: 2200 / Min: 450 | 2000 | 1400 | Max: 2200 / Min: 450 | 2200 | Max: 2200 / Min: 450 |
| RPM with L.N.A. | 1750 | 1650 | 1100 | - no data | - no data | - no data |
| RPM with U.L.N.A. | - no data | 1200 | - no data | - no data | - no data | - no data |
| Acoustical Noise | 17,7 dB(A) | 16,1 dB(A) | 10,4 dB(A) | 17,7 dB(A) | 17,7 dB(A) | 17,7 dB(A) |
| Acoustical Noise with L.N.A. | 13,8 dB(A) | 12,9 dB(A) | 6,5 dB(A) | - no data | - no data | - no data |
| Acoustical Noise with U.L.N.A. | - no data | 7,9 dB(A) | - no data | - no data | - no data | - no data |
| Size | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm |
| Colour | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Black with swappable coloured anti-vibration pads |
The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2200 to 1750rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Flow Acceleration Channels
The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
SSO2 bearing
The NF-A8 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Scope of delivery
- Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV1 anti-vibration mounts
- Fan screws
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
NF-A8 PWM | NF-A8 FLX | NF-A8 ULN | NF-A8 5V PWM | NF-A8 5V | NF-A8 PWM chromax.black.swap | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Connector | 4-pin PWM | 3-pin | 3-pin | 4-pin PWM | 3-pin | 4-pin PWM |
| Voltage | 12V | 12V | 12V | 5V | 5V | 12V |
| RPM | Max: 2200 / Min: 450 | 2000 | 1400 | Max: 2200 / Min: 450 | 2200 | Max: 2200 / Min: 450 |
| RPM with L.N.A. | 1750 | 1650 | 1100 | - no data | - no data | - no data |
| RPM with U.L.N.A. | - no data | 1200 | - no data | - no data | - no data | - no data |
| Acoustical Noise | 17,7 dB(A) | 16,1 dB(A) | 10,4 dB(A) | 17,7 dB(A) | 17,7 dB(A) | 17,7 dB(A) |
| Acoustical Noise with L.N.A. | 13,8 dB(A) | 12,9 dB(A) | 6,5 dB(A) | - no data | - no data | - no data |
| Acoustical Noise with U.L.N.A. | - no data | 7,9 dB(A) | - no data | - no data | - no data | - no data |
| Size | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm |
| Colour | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Black with swappable coloured anti-vibration pads |
