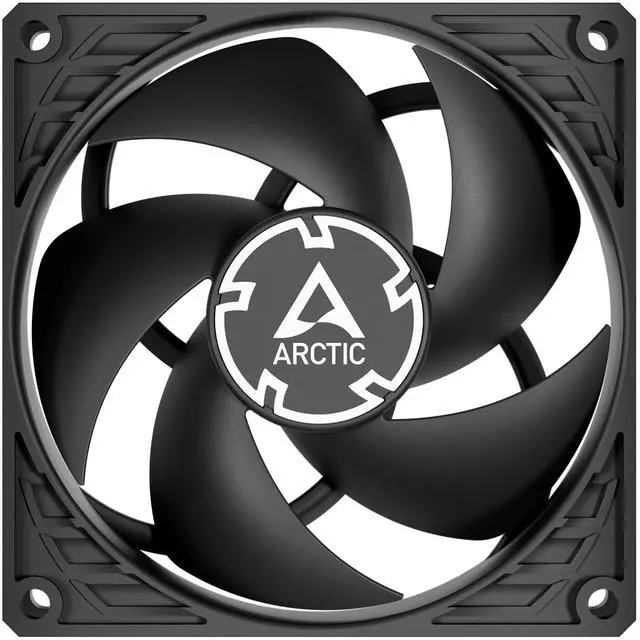

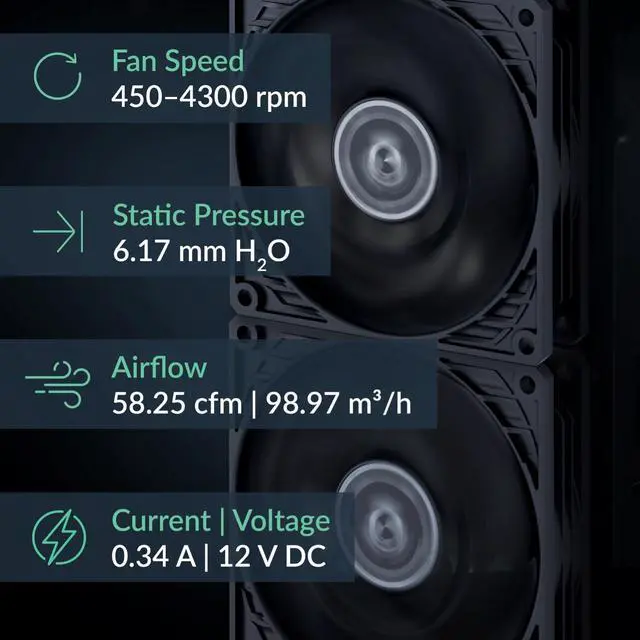

Powerful and energy efficient
The P9 Max is a powerful 92 mm fan with a speed of 450 to 4300 rpm. It delivers a static pressure of 6.17 mmH2O and generates an airflow of 58.25 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient with a consumption of only 0.34 A. It also has a 0 dB mode for silent operation when idle.

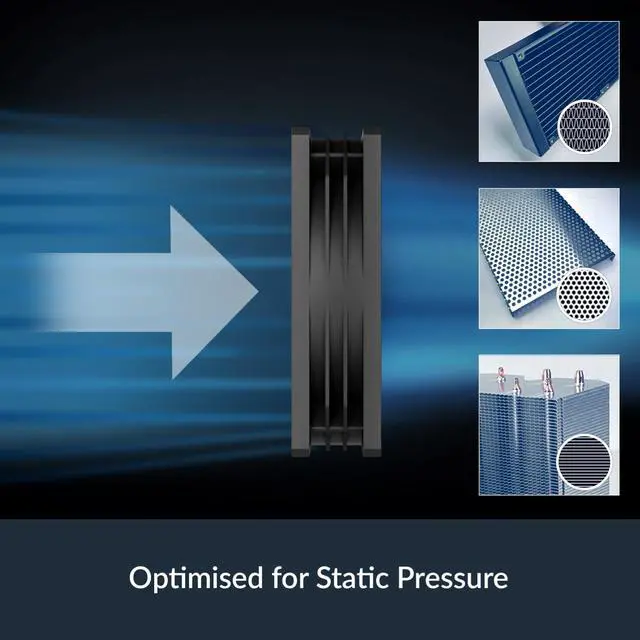

Optimized for high static pressure
The P9 Max delivers a focused airflow and ensures good airflow even with particularly high air resistance. This makes the P9 Max particularly suitable for use on heat sinks, radiators, pinhole panels and filters.

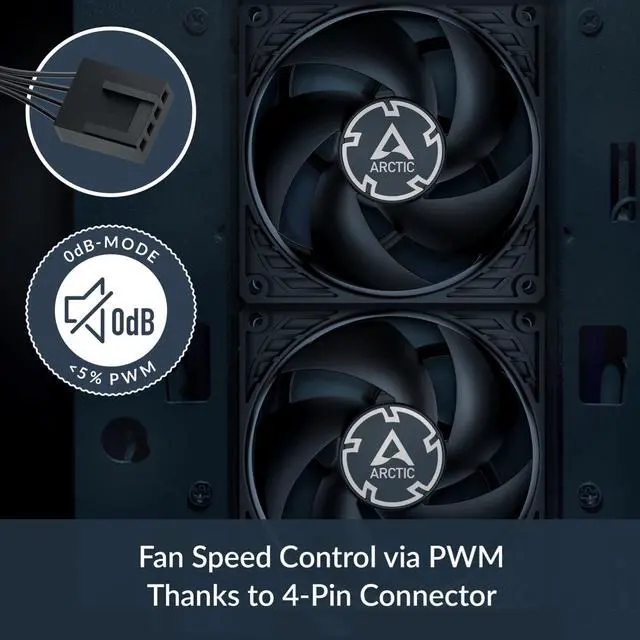

0 dB Mode - Zero rpm
The fan can be throttled to a standstill via PWM, allowing silent operation when idle while ensuring maximum performance when needed. This means the P9 PWM Max offers extremely flexible speed adjustment to optimally regulate the airflow in any case.

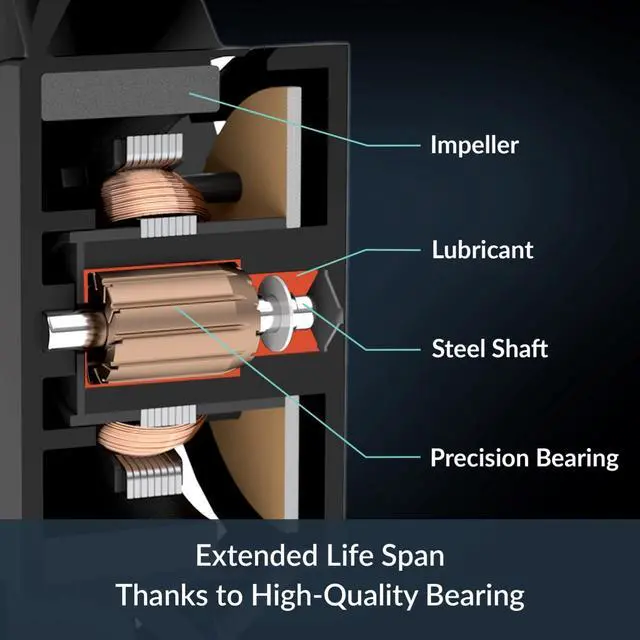

Fluid Dynamic Bearing
The P9 Max is equipped with ARCTIC's proven Fluid Dynamic Bearing, which enables particularly quiet operation. ARCTIC makes no compromises on durability and offers a 6-year promise.

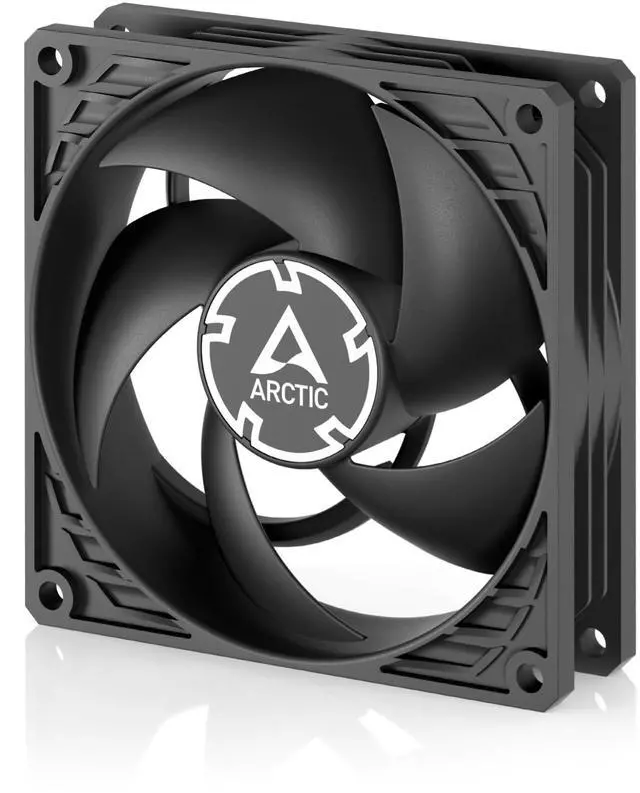

Size & Weight
- Length: 92 mm
- Width: 92 mm
- Height: 25 mm
- Weight: 105 g
Technical data
Fan specifications
Speed: 450-4300 rpm (PWM controlled), 0 rpm below 5% PWM
Airflow: 58.25 cfm | 98.97 m³/h
Static pressure: 6.17 mmH2O
Fan bearing: Hydrodynamic sleeve bearing
Typical voltage: 12 V DC
Start-up voltage: 5 V DC
Current: 0.34 A
Cable length: 400 mm
Connector: 4-pin fan connector
Operating ambient temperature: 0-40 °C

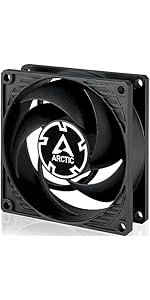

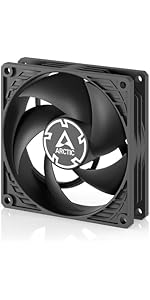

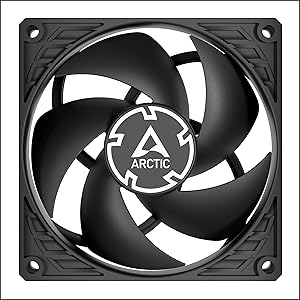

 ARCTIC P9 Max |  ARCTIC P9 PWM PST | ARCTIC P9 PWM PST CO | ARCTIC P9 Silent | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Fan Speed | 450–4300 rpm (PWM controlled), 0 rpm below 5 % PWM | 200–3000 rpm (PWM controlled), 0 rpm below 5 % PWM | 200–3000 rpm (PWM controlled), 0 rpm below 5 % PWM | 1900 rpm |
| Airflow | 58.25 cfm | 98.97 m³/h | 38.83 cfm | 65.97 m³/h | 38.83 cfm | 65.97 m³/h | 23.96 cfm | 40.70 m³/h |
| Static Pressure | 6.17 mmH2O | 3.12 mmH2O | 3.12 mmH2O | 1.32 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Dual Ball Bearing | Fluid Dynamic Bearing |
| Voltage | 12 V DC | 12 V DC | 12 V DC | 12 V DC |
| Current | 0.34 A | 0.12 A | 0.12 A | 0.08 A |
| Cable Length | 400 mm | 400 mm + 80 mm Daisy-Chain Cable | 400 mm + 80 mm Daisy-Chain Cable | 400 mm |
| Connector | 4-Pin Fan Plug | 4-Pin Fan Plug + 4-Pin Socket | 4-Pin Fan Plug + 4-Pin Socket | 3-Pin Fan Plug |
