Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Two Way Installation
You can either blow warm air out of the case or draw cool air into your case.
Highly Efficient
The ARCTIC F12 Case Fan is the ultimate PC-Cooler solution.
Technical Specifications
Performance
Fan Speed: 1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1.00 mmH2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Controll Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0–40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.7 V
Current | Voltage: 0.12 A | 12 V DC
Cable Lenght: 400 mm

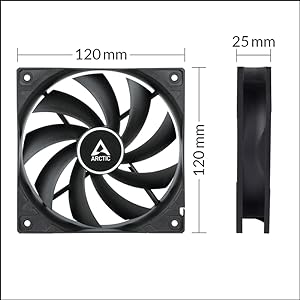

Size & Weight
- Lenght: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 107 g
 F12 (5 Pack) | F12 PWM PST (5 Pack) |  P12 Max (5 Pack) |  P12 (5 Pack) | P12 PWM PST (5 Pack) |  P12 Slim PWM PST (3 Pack) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — no data | — | — | — |
| Size | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120 x 120 x 25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?15 mm |
| Fan Speed | 1350 rpm | 230–1350 rpm | 200–3300 rpm | 1800 rpm | 200–1800 rpm | 300–2100 rpm |
| Airflow | 53 cfm | 90.1 m³/h | 53 cfm | 90.1 m³/h | 81.04 cfm | 137.69 m³/h | 56.3 cfm | 95.7 m³/h | 56.3 cfm | 95.7 m³/h | 42.1 cfm | 71.53 m³/h |
| Noise Level | 0.3 Sone | 0.3 Sone | 0.6 Sone | 0.3 Sone | 0.3 Sone | 0.3 Sone |
| Control Type | Fixed Speed | PWM PST | PWM | Fixed Speed | PWM PST | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 107 g | 109 g | 184 g | 139 g | 145 g | 85 g |
| Static pressure | 1.0 mmH2O | 1.0 mmH2O | 4.35 mmH2O | 2.2 mmH2O | 2.2 mmH2O | 1.45 mmH2O |
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Two Way Installation
You can either blow warm air out of the case or draw cool air into your case.
Highly Efficient
The ARCTIC F12 Case Fan is the ultimate PC-Cooler solution.
Technical Specifications
Performance
Fan Speed: 1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1.00 mmH2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Controll Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0–40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.7 V
Current | Voltage: 0.12 A | 12 V DC
Cable Lenght: 400 mm
Size & Weight
- Lenght: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 107 g
F12 (5 Pack) | F12 PWM PST (5 Pack) | P12 Max (5 Pack) | P12 (5 Pack) | P12 PWM PST (5 Pack) | P12 Slim PWM PST (3 Pack) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — no data | — | — | — |
| Size | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120 x 120 x 25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?15 mm |
| Fan Speed | 1350 rpm | 230–1350 rpm | 200–3300 rpm | 1800 rpm | 200–1800 rpm | 300–2100 rpm |
| Airflow | 53 cfm | 90.1 m³/h | 53 cfm | 90.1 m³/h | 81.04 cfm | 137.69 m³/h | 56.3 cfm | 95.7 m³/h | 56.3 cfm | 95.7 m³/h | 42.1 cfm | 71.53 m³/h |
| Noise Level | 0.3 Sone | 0.3 Sone | 0.6 Sone | 0.3 Sone | 0.3 Sone | 0.3 Sone |
| Control Type | Fixed Speed | PWM PST | PWM | Fixed Speed | PWM PST | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 107 g | 109 g | 184 g | 139 g | 145 g | 85 g |
| Static pressure | 1.0 mmH2O | 1.0 mmH2O | 4.35 mmH2O | 2.2 mmH2O | 2.2 mmH2O | 1.45 mmH2O |
ARCTIC, a leading manufacturer of PC coolers and components, initiated and continues to shape the trend towards quiet cooling systems.
