Optimised for Static Pressure
During the development of the P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan ensures extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.
High Quality Bearing
Thanks to a unique technology developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
Push warm air out of the case, pull cool air into your case.
Highly Efficient

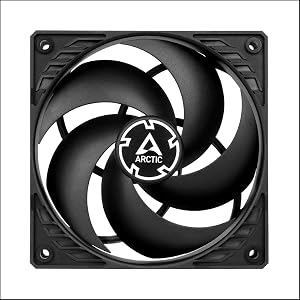

The ARCTIC P14 Case Fan is the ultimate PC-Cooler solution.
General data
Performance
Fan Speed: 1700 rpm
Airflow: 72.8 cfm | 123.76 m³/h
Static Pressure: 2.40 mmH2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0–40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.1 V
Current | Voltage: 0.15 A | 12 V DC
Cable Length: 400 mm
Size & Weight
- Length: 140 mm
- Width: 140 mm
- Height: 27 mm
- Weight: 191 g

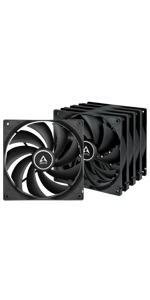

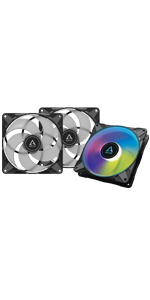

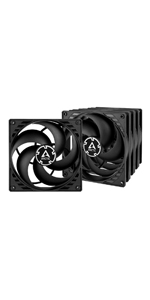

 P14 (5 Pack) | P14 PWM PST (5 Pack) |  F14 PWM PST (5 Pack) | F14 (5 Pack) |  P14 Max (5 Pack) |  P14 PWM PST A-RGB (3 Pack) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — no data | — no data | — no data |
| Size | 140?x?140?x?27 mm | 140?x?140?x?27 mm | 140?x?140?x?27 mm | 140?x?140?x?27 mm | 140?x?140?x?27 mm | 140?x?140?x?27 mm |
| Fan Speed | 1700 rpm | 200–1700 rpm | 200–1350 rpm | 1350 rpm | 400-2800 rpm | 200-1900 rpm |
| Airflow | 72.8 cfm | 123.76 m³/h | 72.8 cfm | 123.76 m³/h | 74 cfm | 126 m³/h | 74 cfm | 126 m³/h | 95 cfm | 161.4 m³/h | 68.9 cfm | 117.06 m³/h |
| Control Type | Fixed Speed | PWM PST | PWM PST | Fixed Speed | PWM | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 191 g | 194 g | 181 g | 180 g | 245 g | 210 g |
| Static Pressure | 2.4 mmH2O | 2.4 mmH2O | 1.3 mmH2O | 1.6 mmH2O | 4.18 mmH2O | 2.0 mmH2O |
Optimised for Static Pressure
During the development of the P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan ensures extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.
High Quality Bearing
Thanks to a unique technology developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
Push warm air out of the case, pull cool air into your case.
Highly Efficient
The ARCTIC P14 Case Fan is the ultimate PC-Cooler solution.
General data
Performance
Fan Speed: 1700 rpm
Airflow: 72.8 cfm | 123.76 m³/h
Static Pressure: 2.40 mmH2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0–40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.1 V
Current | Voltage: 0.15 A | 12 V DC
Cable Length: 400 mm
Size & Weight
- Length: 140 mm
- Width: 140 mm
- Height: 27 mm
- Weight: 191 g
P14 (5 Pack) | P14 PWM PST (5 Pack) | F14 PWM PST (5 Pack) | F14 (5 Pack) | P14 Max (5 Pack) | P14 PWM PST A-RGB (3 Pack) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — no data | — no data | — no data |
| Size | 140?x?140?x?27 mm | 140?x?140?x?27 mm | 140?x?140?x?27 mm | 140?x?140?x?27 mm | 140?x?140?x?27 mm | 140?x?140?x?27 mm |
| Fan Speed | 1700 rpm | 200–1700 rpm | 200–1350 rpm | 1350 rpm | 400-2800 rpm | 200-1900 rpm |
| Airflow | 72.8 cfm | 123.76 m³/h | 72.8 cfm | 123.76 m³/h | 74 cfm | 126 m³/h | 74 cfm | 126 m³/h | 95 cfm | 161.4 m³/h | 68.9 cfm | 117.06 m³/h |
| Control Type | Fixed Speed | PWM PST | PWM PST | Fixed Speed | PWM | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 191 g | 194 g | 181 g | 180 g | 245 g | 210 g |
| Static Pressure | 2.4 mmH2O | 2.4 mmH2O | 1.3 mmH2O | 1.6 mmH2O | 4.18 mmH2O | 2.0 mmH2O |
