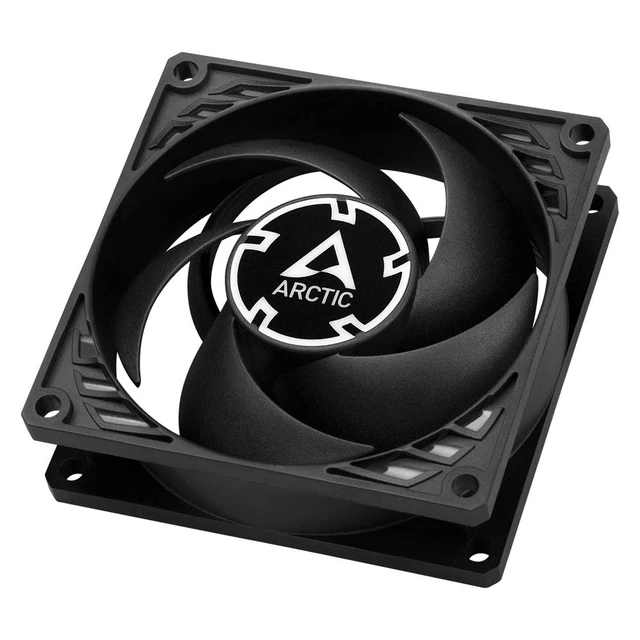

Optimised for Static Pressure
During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan ensures extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P8 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
200 to 3000 RPM regulated via PWM PST

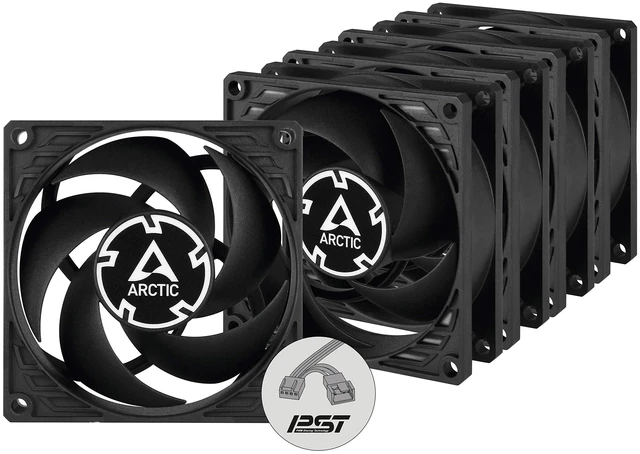

With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while offering maximum cooling performance when needed.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
General data
Performance
Fan Speed: 200-3000 RPM
Airflow: 23.4 CFM/40.3 m³/h
Static Pressure: 1.90 mm H2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0 - 40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 3.4 V
Current/Voltage: 0.09 A/12 V
Cable Length: 400 mm

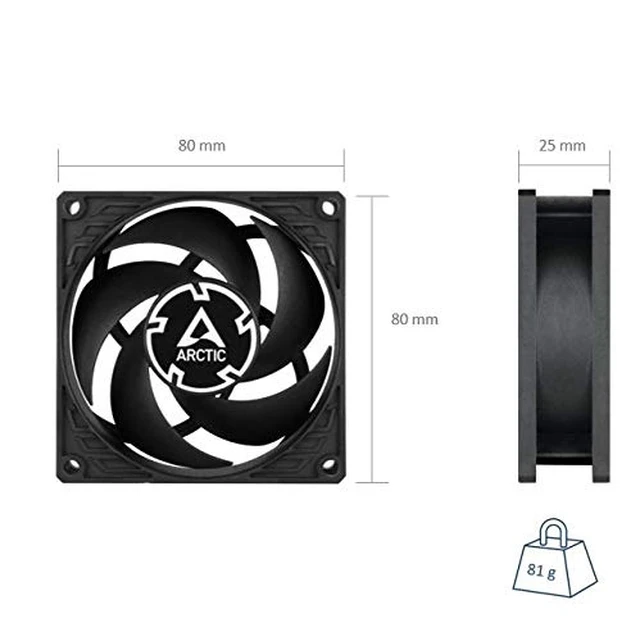

Size & Weight
- Length: 80 mm
- Width: 80 mm
- Height: 25 mm
- Weight: 81 g

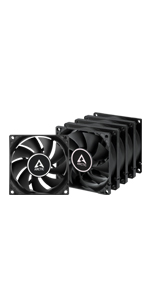

 F8 PWM PST CO |  P8 (5 Pack) | P8 PWM PST (5 Pack) |  F8 PWM PST (5 Pack) |  F8 Silent | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — no data | — | — | — no data | — no data |
| Size | 80?x?80?x?25 mm | 80?x?80?x?25 mm | 80?x?80?x?25 mm | 80?x?80?x?25 mm | 80?x?80?x?25 mm |
| Fan Speed | 300–2000 RPM | 3000 RPM | 200–3000 RPM | 300–2000 RPM | 1200 RPM |
| Airflow | 31 CFM/52.7 m³/h (@ 2000 RPM) | 23.4 CFM/40.3 m³/h (@ 3000 RPM) | 23.4 CFM/40.3 m³/h (@ 3000 RPM) | 31 CFM/52.7 m³/h (@ 2000 RPM) | 15.1 CFM/25.7 m³/h (@ 1200 RPM) |
| Noise Level | 0.3 Sone (@ 2000 RPM) | 0.3 Sone (@ 3000 RPM) | 0.3 Sone (@ 3000 RPM) | 0.3 Sone (@ 2000 RPM) | 0.08 Sone (@ 1200 RPM) |
| Control Type | PWM PST | Fixed Speed | PWM PST | PWM PST | Fixed Speed |
| Bearing | Dual Ball Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 72 g | 81 g | 81 g | 72 g | 71 g |
| Static Pressure | 1.0 mmH2O (@ 2000 RPM) | 1.90 mmH2O (@ 3000 RPM) | 1.9 mmH2O (@ 3000 RPM) | 1.0 mmH2O (@ 2000 RPM) | 0.54 mmH2O (@ 1200 RPM) |
Optimised for Static Pressure
During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan ensures extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P8 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
200 to 3000 RPM regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while offering maximum cooling performance when needed.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
General data
Performance
Fan Speed: 200-3000 RPM
Airflow: 23.4 CFM/40.3 m³/h
Static Pressure: 1.90 mm H2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0 - 40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 3.4 V
Current/Voltage: 0.09 A/12 V
Cable Length: 400 mm
Size & Weight
- Length: 80 mm
- Width: 80 mm
- Height: 25 mm
- Weight: 81 g
F8 PWM PST CO | P8 (5 Pack) | P8 PWM PST (5 Pack) | F8 PWM PST (5 Pack) | F8 Silent | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — no data | — | — | — no data | — no data |
| Size | 80?x?80?x?25 mm | 80?x?80?x?25 mm | 80?x?80?x?25 mm | 80?x?80?x?25 mm | 80?x?80?x?25 mm |
| Fan Speed | 300–2000 RPM | 3000 RPM | 200–3000 RPM | 300–2000 RPM | 1200 RPM |
| Airflow | 31 CFM/52.7 m³/h (@ 2000 RPM) | 23.4 CFM/40.3 m³/h (@ 3000 RPM) | 23.4 CFM/40.3 m³/h (@ 3000 RPM) | 31 CFM/52.7 m³/h (@ 2000 RPM) | 15.1 CFM/25.7 m³/h (@ 1200 RPM) |
| Noise Level | 0.3 Sone (@ 2000 RPM) | 0.3 Sone (@ 3000 RPM) | 0.3 Sone (@ 3000 RPM) | 0.3 Sone (@ 2000 RPM) | 0.08 Sone (@ 1200 RPM) |
| Control Type | PWM PST | Fixed Speed | PWM PST | PWM PST | Fixed Speed |
| Bearing | Dual Ball Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 72 g | 81 g | 81 g | 72 g | 71 g |
| Static Pressure | 1.0 mmH2O (@ 2000 RPM) | 1.90 mmH2O (@ 3000 RPM) | 1.9 mmH2O (@ 3000 RPM) | 1.0 mmH2O (@ 2000 RPM) | 0.54 mmH2O (@ 1200 RPM) |
