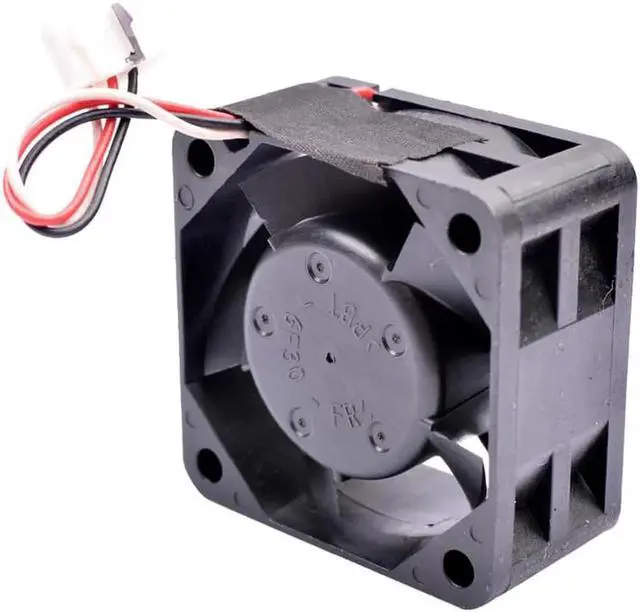

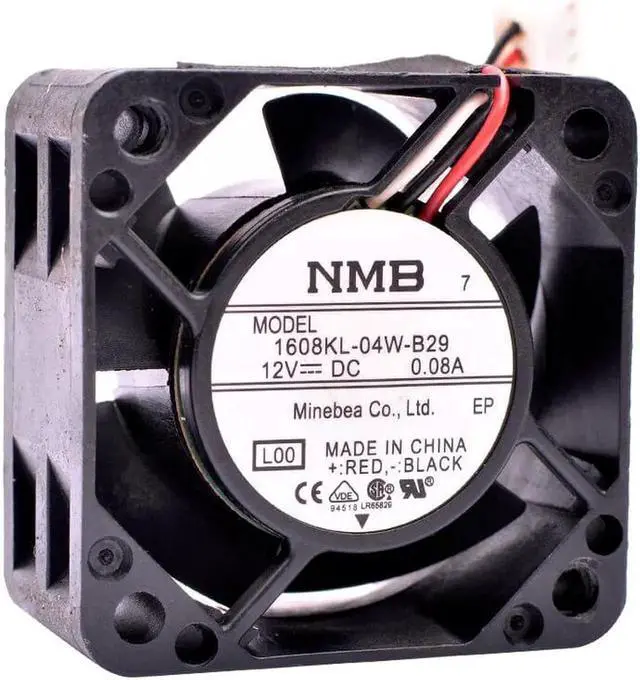

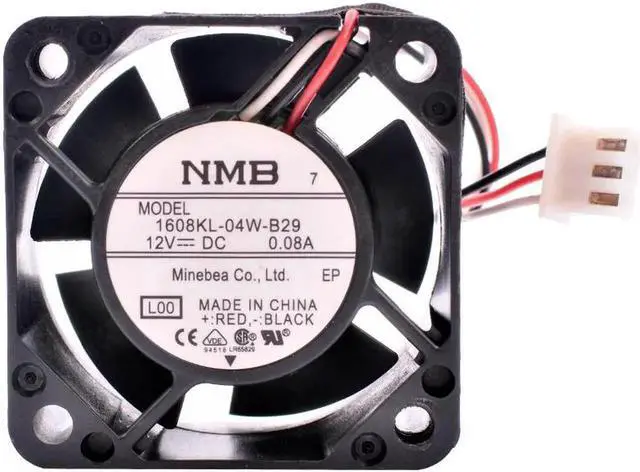

1608KL-04W-B29 40mm fan 40x40x20mm 4cm 4020 DC12V 0.08A Silent cooling fan suitable for power switch
Limited time offer, ends 01/19 By Xiaoying Cooling Fans LLC
- Manufacturer Part Number: 1608KL-04W-B29-L00
- Description: FAN AXIAL 40X20MM 12VDC WIRE
- Minimum order quantity: 1
- Part Status: On Sale
- Voltage-Rating: 12VDC
- Size/Size: Square-40mm long x 40mm high
- Width: 20.00mm
- Airflow: 6.0 CFM (0.168m3/min)
- Static pressure: 0.121 inches of water column (30.1 Pa)
- Bearing type: ball
- Fan type: tube shaft type
- Features: Locked rotor sensor
- Noise: 22.5 dB
- Power (W): 720mW
- RPM: 5500 RPM
- Termination: 3 leads
- Intrusion protection:-
- Working temperature: 14 ~ 158F (-10 ~ 70C)
- Approval: CE, CSA, UL, VDE
- Weight: 0.055 lbs (24.95g)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manufacturer Part Number: 1608KL-04W-B29-L00
Description: FAN AXIAL 40X20MM 12VDC WIRE
Minimum order quantity: 1
Part Status: On Sale
Voltage-Rating: 12VDC
Size/Size: Square-40mm long x 40mm high
Width: 20.00 mm
Airflow: 6.0 CFM ( 0.168 m3/min)
Static pressure: 0.121 inches of water column ( 30.1 Pa)
Bearing type: ball
Fan type: tube shaft type
Features: Locked rotor sensor
Noise: 22.5 dB
Power (W): 720mW
RPM: 5500 RPM
Termination: 3 leads
Intrusion protection: -
Working temperature: 14 ~ 158F (-10 ~ 70C)
Approval: CE, CSA, UL, VDE
Weight: 0.055 lbs ( 24.95 g)
