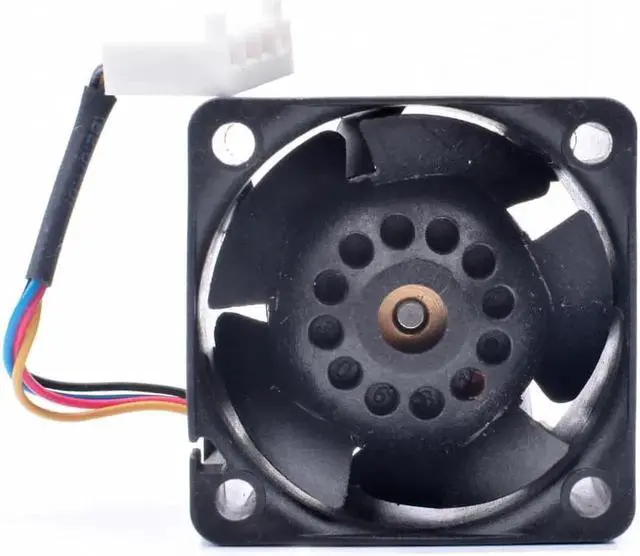

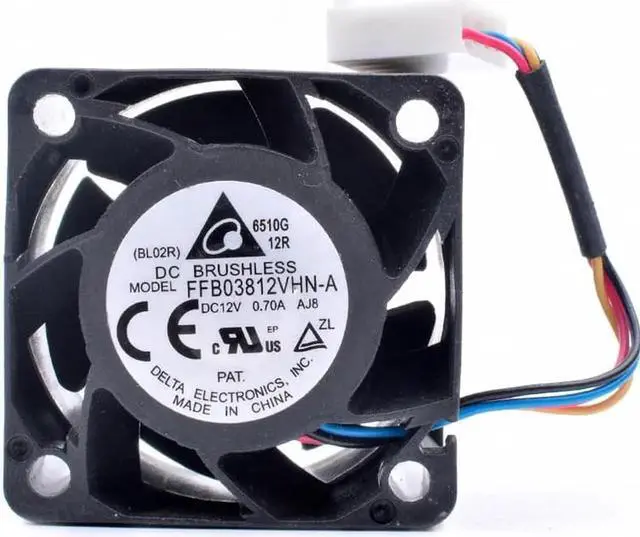

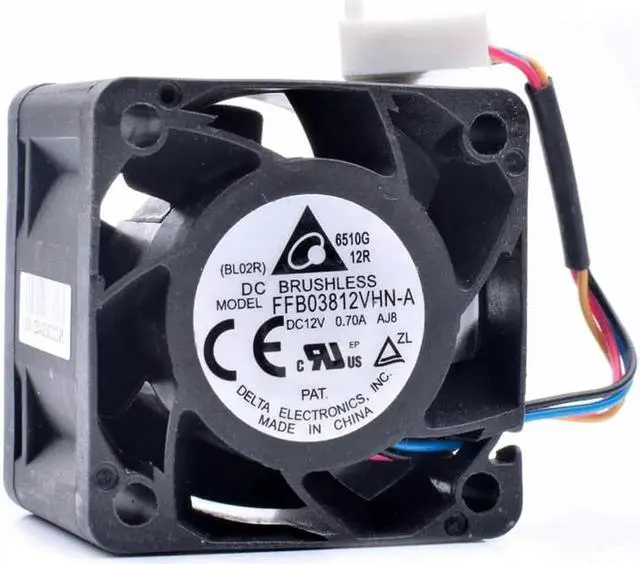

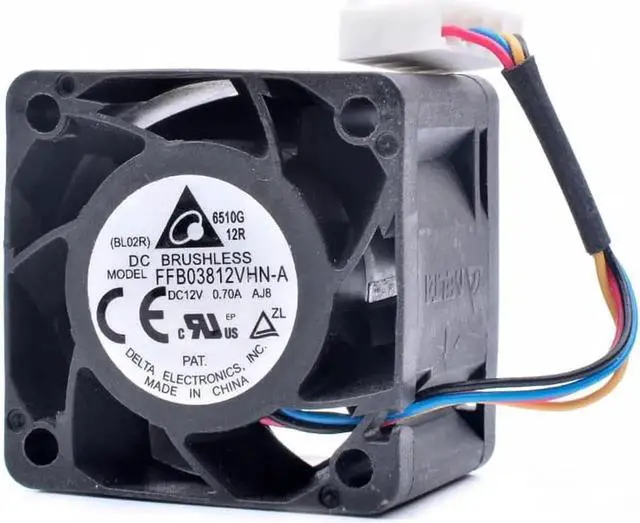

FFB03812VHN-A 3.8cm 3828 38mm 38x38x28mm 12V 0.70A server power cooling fan
- Model: FFB03812VHN
- Description: FAN DC AXIAL 12V 38X28 16000RPM
- Category Fan, Thermal Management Fan - DC
- Series FFB
- Fan type tube type
- Size / Size Square - 38mm L x 38mm H x 28mm W
- Voltage - rated 12VDC
- Features PWM control; speed sensor (tachometer)
- RPM 16000 RPM
- Noise 58.5 dB(A)
- Static pressure 1.463 inches of water (364.4 Pa)
- Airflow 20.2 CFM (0.573m3/min)
- Terminal 4 lead
- Bearing type Ball
- Working temperature 14 ~ 140 F (-10 ~ 60 C)
- Weight 0.106 lbs (48.08g)
- Rated current 0.550A
- Voltage range 10.8 ~ 13.2VDC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: FFB03812VHN
Description: FAN DC AXIAL 12V 38X28 16000RPM
Category Fan, Thermal Management Fan - DC
Series FFB
Fan type tube type
Size / Size Square - 38mm L x 38mm H x 28mm W
Voltage - rated 12VDC
Features PWM control; speed sensor (tachometer)
RPM 16000 RPM
Noise 58.5 dB (A)
Static pressure 1.463 inches of water ( 364.4 Pa)
Airflow 20.2 CFM ( 0.573 m3/min)
Terminal 4 lead
Bearing type Ball
Working temperature 14 ~ 140 F (-10 ~ 60 C)
Weight 0.106 lbs ( 48.08 g)
Rated current 0.550A
Voltage range 10.8 ~ 13.2VDC
