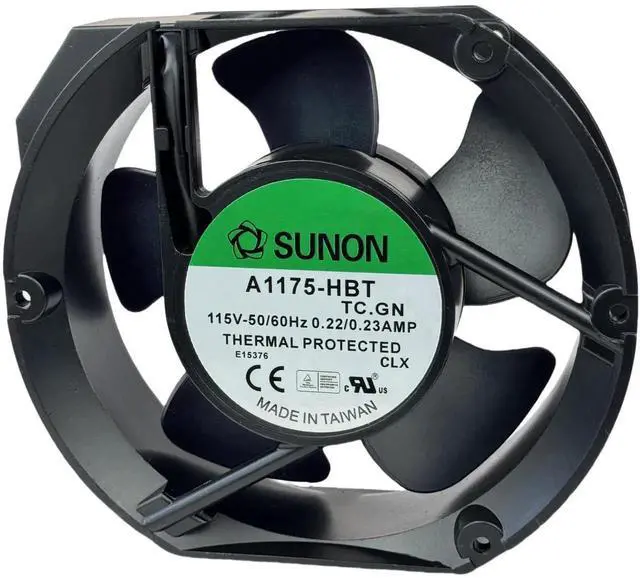

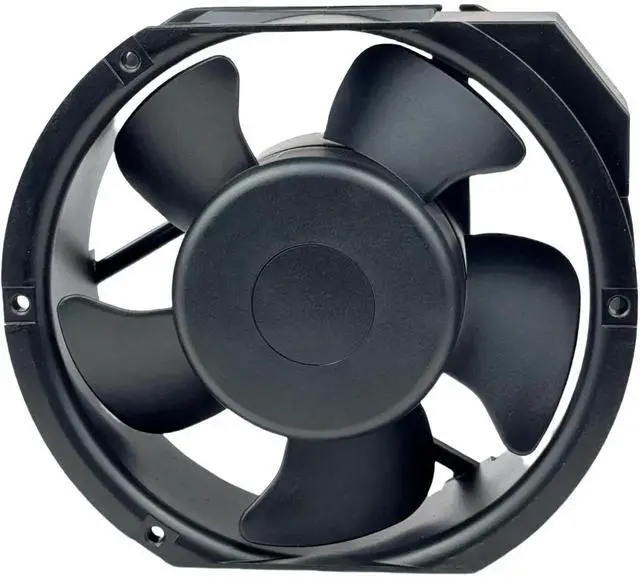

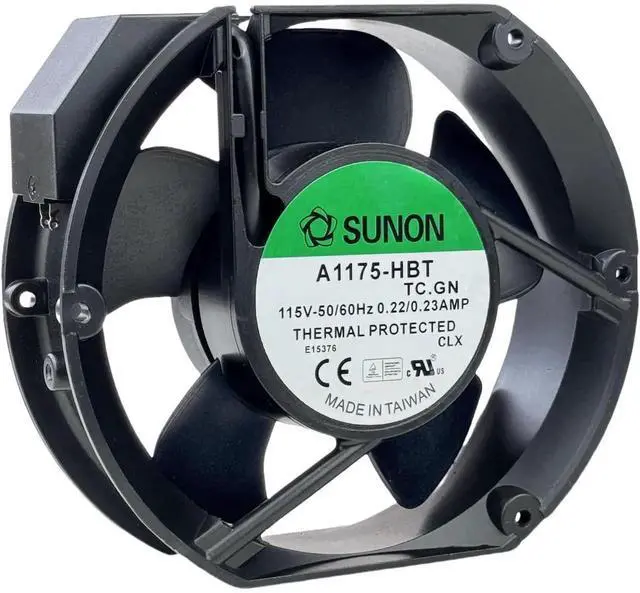

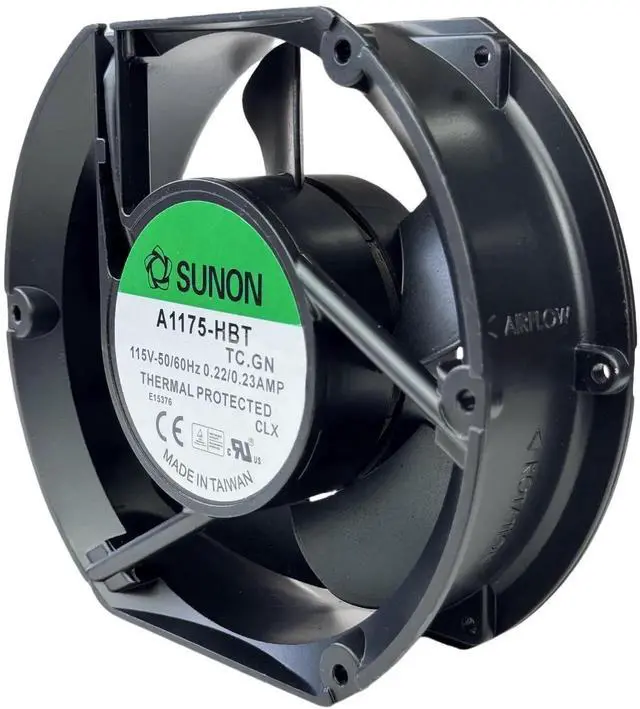

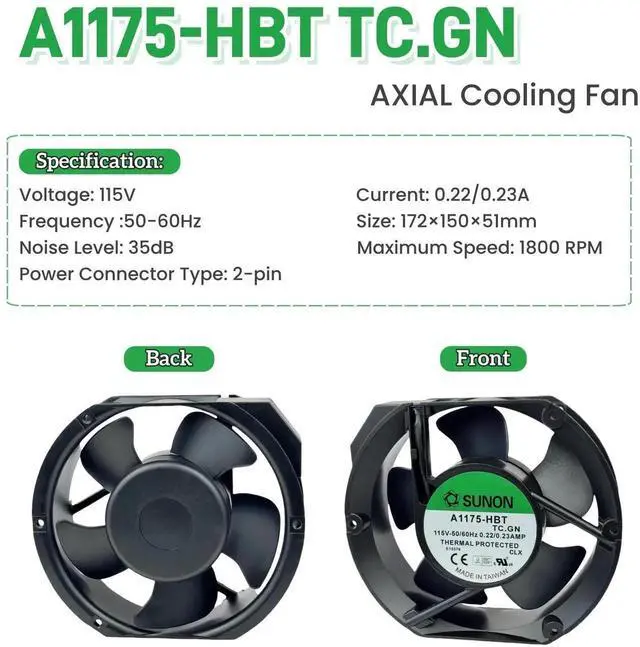

SUNON A1175-HBT TC.GN 172×150×51mm AC Axial Cooling Fan 115VAC 0.22/0.23A 50/60Hz 2-Pin Industrial Cabinet Fan
- Original SUNON A1175-HBT TC.GN ball bearing fan with UL/TUV/CE certified quality
- 115V AC dual frequency design, 0.22A(50Hz)/0.23A(60Hz) fits North American power grids

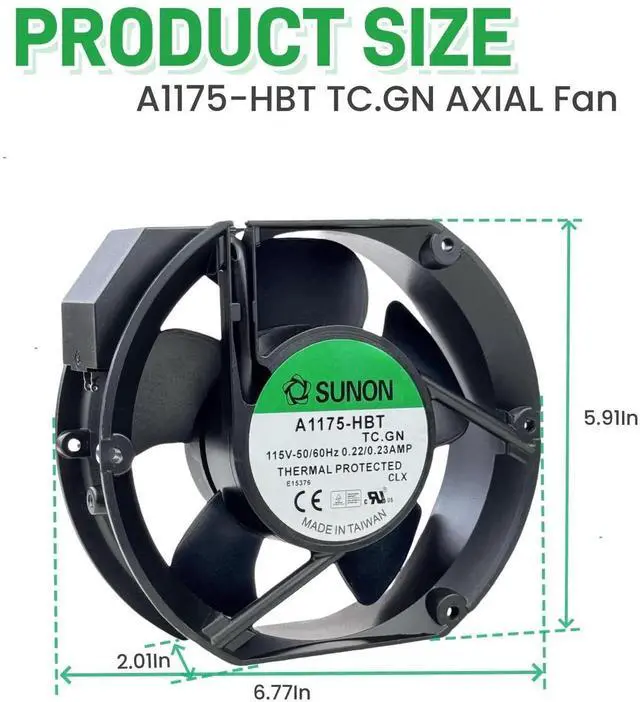

- Obround 172×150×51mm aluminum frame delivers high airflow & strong static pressure
- Built-in thermal auto-reset protection, stable operation from -10 to 70 long-hour running

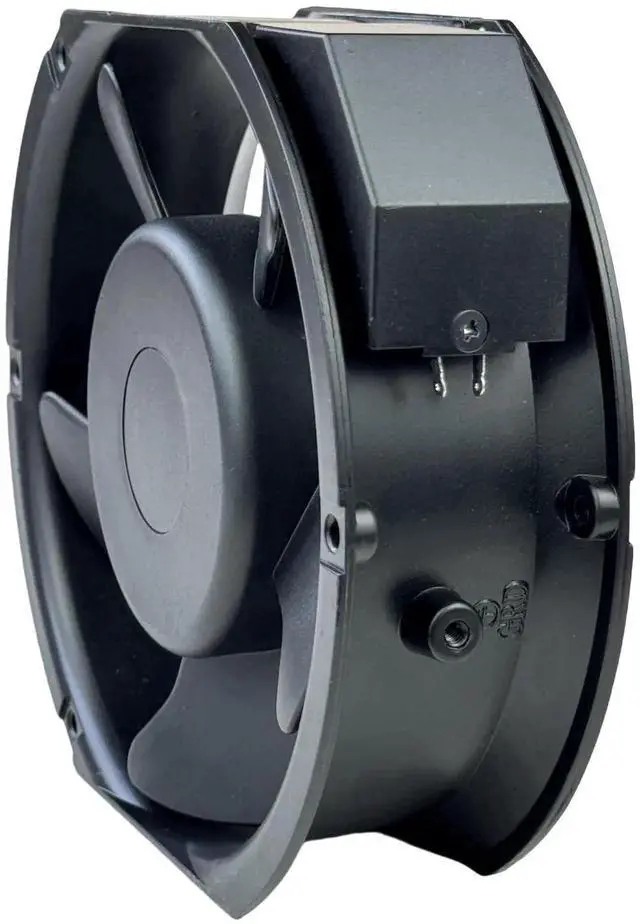

- Simple 2-pin terminal wiring, universal mounting for inverters and industrial enclosures
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This SUNON A1175-HBT TC.GN AC axial fan adopts classic obround 172×150×51mm structure, specially designed for industrial enclosure heat dissipation. It operates at 115V AC, compatible with 50Hz and 60Hz power supplies with rated current 0.22A and 0.23A separately, perfectly matching North American industrial power standards.
Equipped with durable double ball bearings and aluminum alloy frame, the fan runs at 2800/3200 RPM to output 203/239 CFM airflow, effectively exhausting concentrated heat inside equipment. Integrated thermal cut-off protection prevents motor burnout under abnormal high temperature, supporting 24/7 non-stop continuous industrial operation.
The fan comes with standard 2-pin wiring terminals for quick plug-and-play replacement. Standard mounting hole layout enables direct installation on frequency converters, power cabinets, welding equipment and automation control enclosures from mainstream industrial brands. It is a reliable, high-static-pressure cooling replacement part for medium and large industrial thermal management systems.
